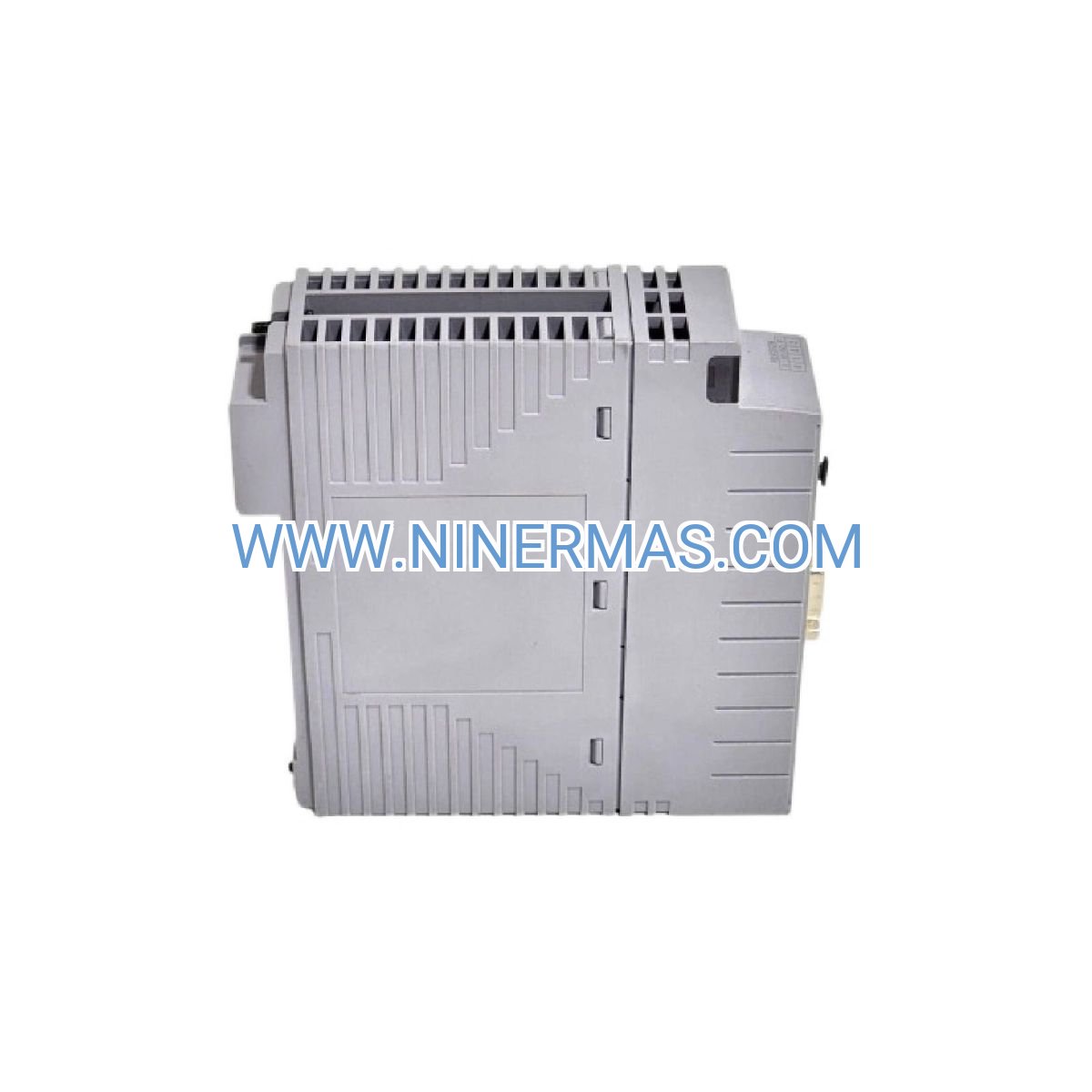

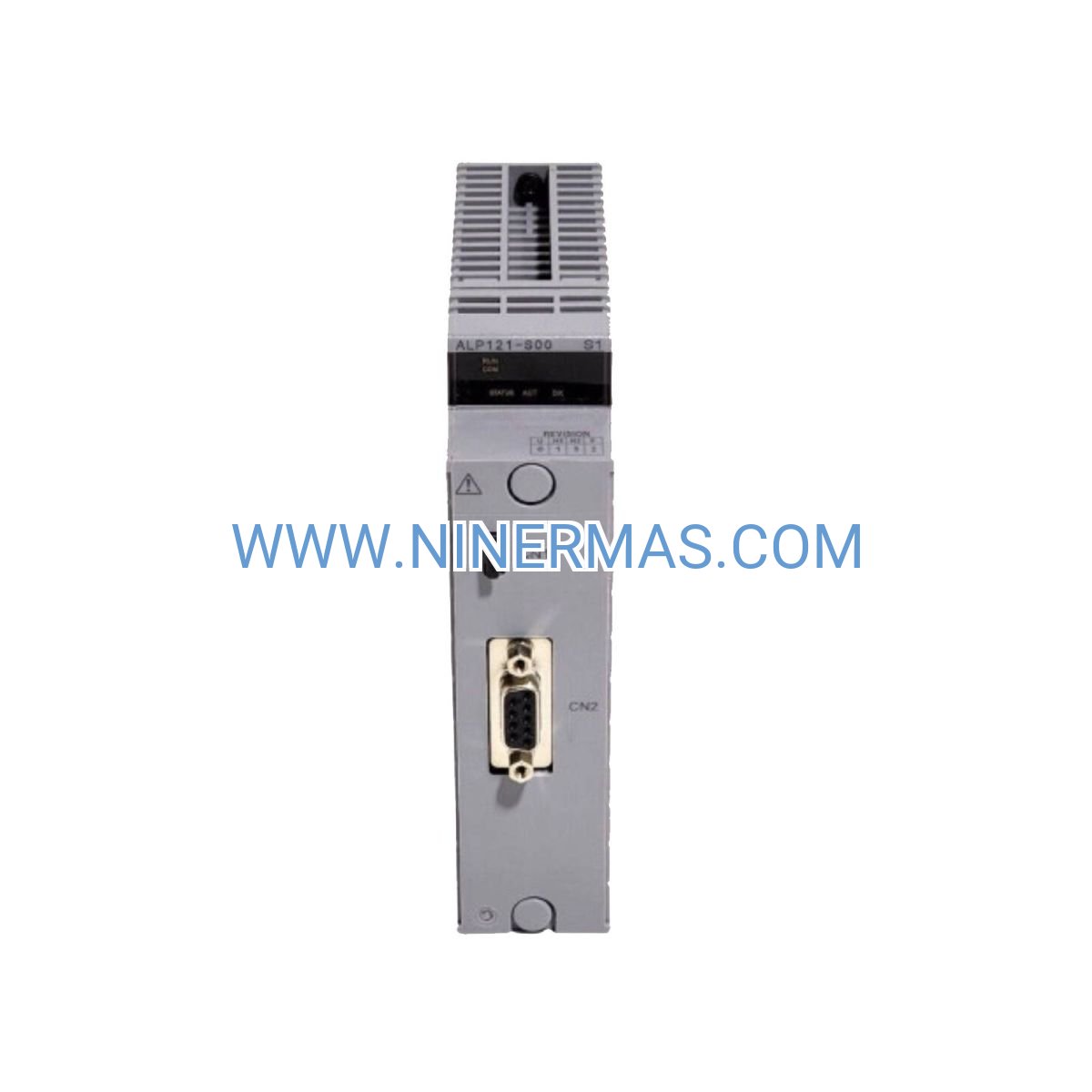

ALP121-S00 PROFIBUS-DP Communication Interface (Industrial-Grade Network Gateway)

The Yokogawa ALP121-S00 represents a specialized PROFIBUS-DP communication interface designed for mission-critical industrial network integration. This module serves as the essential bridge connecting distributed control systems with field-level instrumentation across process manufacturing and automation facilities.

Engineered for environments where communication reliability directly impacts production uptime, the ALP121-S00 addresses the challenge of integrating multi-vendor field devices into centralized control architectures. Process engineers and automation specialists rely on this module to establish deterministic data pathways between control layers and field instrumentation.

Key advantages include galvanically isolated communication channels that protect sensitive control equipment from electrical noise, automatic baud rate detection that accelerates commissioning workflows, and protocol-compliant operation ensuring interoperability across diverse equipment ecosystems. The module's industrial-grade construction withstands harsh operating conditions while maintaining consistent network performance.

Core Features & Benefits

✓ High-Speed Data Exchange: Supports PROFIBUS-DP communication from 9.6 Kbps up to 12 Mbps, enabling rapid cyclic data transfer between master controllers and up to 125 field devices per network segment.

✓ Electrical Isolation Protection: Integrated galvanic isolation safeguards control system electronics from ground loops, voltage spikes, and electromagnetic interference common in industrial power environments.

✓ Auto-Configuration Intelligence: Automatic baud rate detection eliminates manual configuration steps, reducing installation time by up to 40% and minimizing commissioning errors during system startup.

✓ Extended Temperature Operation: Qualified for -10°C to +55°C ambient conditions, ensuring reliable performance in non-climate-controlled equipment rooms and field enclosures.

✓ Standards-Compliant Architecture: Full conformance to IEC 61158/61784 PROFIBUS-DP specifications guarantees seamless integration with certified field instruments from global manufacturers.

✓ Low Power Consumption: Energy-efficient design reduces heat generation in densely populated control cabinets while lowering operational energy costs over the module's service life.

Typical Application Scenarios

Chemical Processing Plants: Connects Yokogawa CENTUM DCS platforms to PROFIBUS-enabled flow meters, pressure transmitters, and analytical instruments monitoring reactor conditions. Solves the challenge of integrating best-in-class field devices regardless of manufacturer, while maintaining the deterministic timing required for cascade control loops.

Oil & Gas Production Facilities: Links offshore platform control systems to subsea valve actuators, separator level transmitters, and compressor monitoring devices. Addresses the need for noise-immune communication in electrically harsh environments with variable frequency drives and high-power switching equipment.

Pharmaceutical Manufacturing: Enables batch control systems to communicate with clean-in-place (CIP) skid controllers, bioreactor instrumentation, and sterile filling equipment. Delivers the validated communication infrastructure required for 21 CFR Part 11 compliance and batch record traceability.

Water Treatment Systems: Integrates municipal SCADA platforms with distributed pump stations, filtration units, and chemical dosing systems across multi-site operations. Provides the long-distance communication capability needed for geographically dispersed infrastructure monitoring.

Power Generation Units: Facilitates data exchange between turbine control systems and auxiliary equipment including feedwater pumps, coal pulverizers, and emissions monitoring instruments. Ensures the millisecond-level response times critical for protective relay coordination and load-following operations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the ALP121-S00 when your application requires integrating Yokogawa control platforms with PROFIBUS-DP field networks. Verify that your field device population supports PROFIBUS-DP protocol (not PROFIBUS-PA). For applications requiring intrinsically safe field wiring or Foundation Fieldbus connectivity, consult alternative communication module options. Confirm available slot positions in your control system chassis and verify backplane power budget capacity before ordering.

Extended Functions

Diagnostic Capabilities: Built-in diagnostic functions provide real-time visibility into network health, including bus fault detection, slave device status monitoring, and communication error counters accessible through the host control system interface.

Redundancy Support: Compatible with redundant controller configurations, enabling seamless failover protection for critical process control applications where communication loss could impact safety or production continuity.

Configuration Tools: Integrates with standard PROFIBUS configuration software (GSD files) and Yokogawa engineering tools, allowing unified system configuration and reducing the learning curve for maintenance personnel.

Firmware Updateability: Field-upgradeable firmware ensures long-term supportability as PROFIBUS protocol enhancements and security patches become available throughout the module's operational lifespan.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules or large-volume orders may require 2-3 weeks for factory preparation and quality verification.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring long-term asset protection.

Technical Support: Access to application engineering support for network design consultation, troubleshooting assistance, and integration guidance. Support available via email, phone, and remote diagnostic sessions during business hours.

Documentation Package: Each module ships with installation manual, GSD configuration file, dimensional drawings, and compliance certificates. Comprehensive technical documentation available for download including wiring diagrams and protocol implementation guides.

Frequently Asked Questions

Q: How does the ALP121-S00 interface with existing Yokogawa control systems?
A: The module installs directly into compatible Yokogawa controller chassis slots, drawing power from the backplane and communicating via the internal bus. Configuration is performed through the engineering workstation using standard Yokogawa configuration tools, with PROFIBUS network parameters defined using GSD files imported into the project database.

Q: What is the maximum network distance supported by this communication module?
A: Maximum segment length varies by baud rate: 1,200 meters at 9.6 Kbps, 400 meters at 187.5 Kbps, and 100 meters at 12 Mbps. Extended distances up to 10 kilometers achievable using fiber optic repeaters or RS-485 line extenders for distributed facility architectures.

Q: Can this module reduce energy consumption compared to legacy communication systems?
A: Yes, the ALP121-S00's optimized power design typically consumes 30-40% less energy than previous-generation communication modules, reducing heat load in control cabinets and lowering cooling requirements. Over a 10-year operational period, energy savings can offset 15-20% of the initial module investment.

Q: What installation requirements must be considered during system design?
A: Verify chassis slot availability and backplane compatibility with your specific Yokogawa controller model. Ensure proper cable shielding and grounding practices per PROFIBUS installation guidelines. Allocate appropriate IP addresses within your network architecture and confirm that total network load remains within the 125-device limit per segment.

Q: Does the ALP121-S00 support remote monitoring and diagnostics?
A: The module provides comprehensive diagnostic data accessible through the host control system, including network statistics, device status, and error logs. When integrated with Yokogawa's Plant Resource Manager (PRM) or similar asset management platforms, remote monitoring capabilities enable predictive maintenance and proactive troubleshooting.

Q: How does galvanic isolation improve system reliability in industrial environments?
A: Electrical isolation breaks ground loop paths that can introduce noise currents between field devices and control equipment. This protection is particularly valuable in facilities with large motor drives, welding equipment, or variable frequency drives that generate electromagnetic interference. Isolation prevents communication errors and protects sensitive control electronics from voltage transients.

Request Technical Consultation

Our application engineering team can assist with network architecture design, device selection, and integration planning for your specific process control requirements. Contact us to discuss your PROFIBUS-DP communication needs and receive customized recommendations based on your facility's operational profile.
