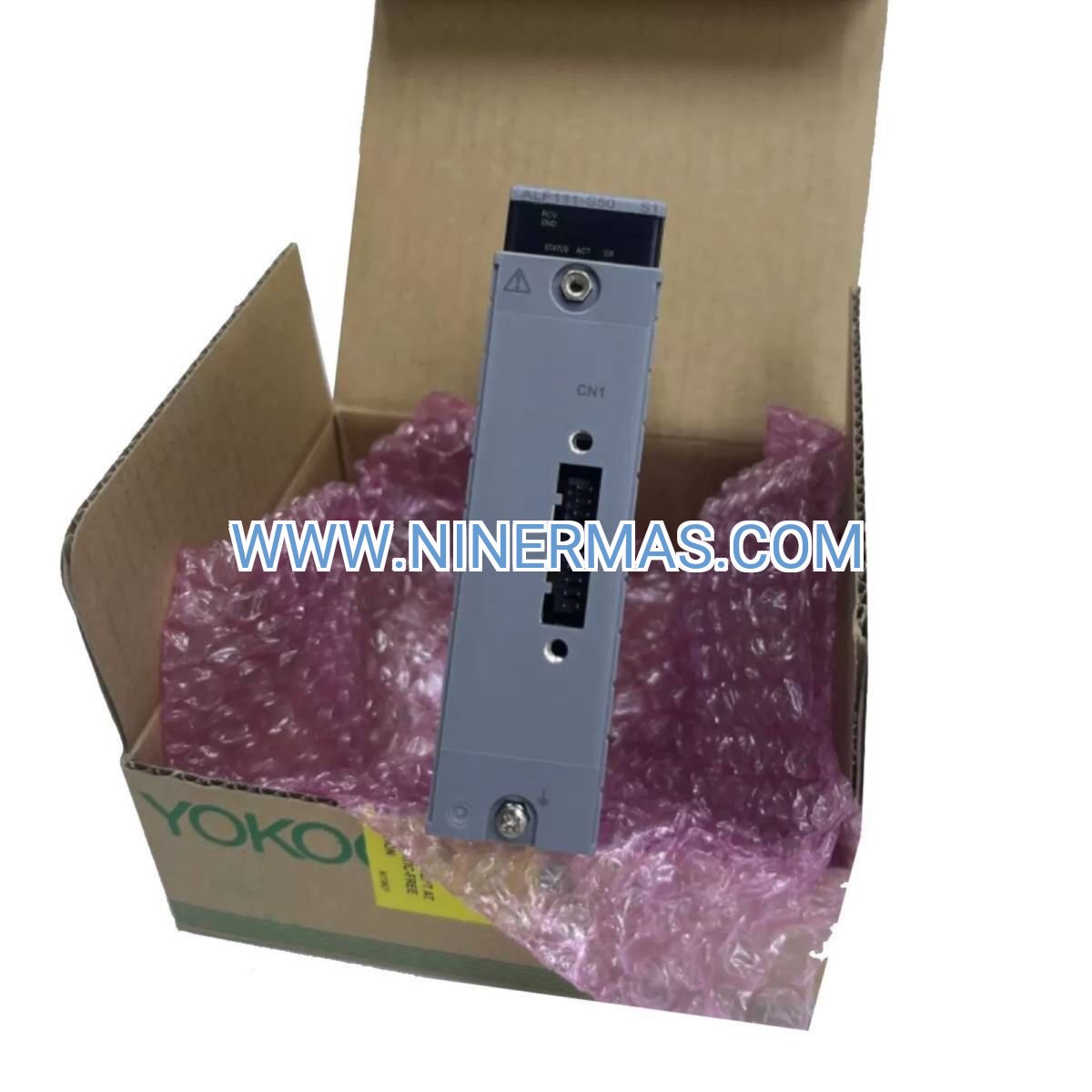

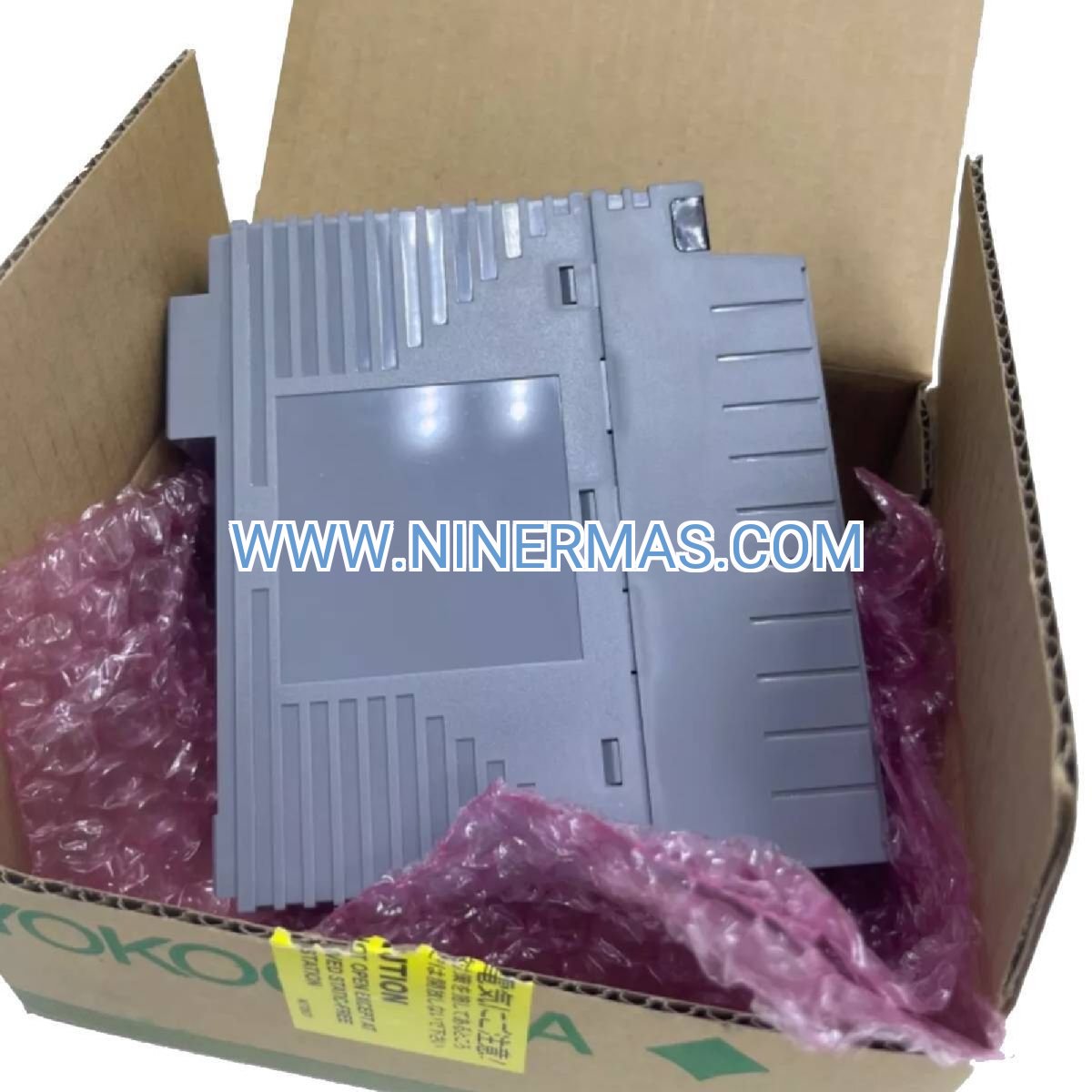

ALF111-S50 S1 Foundation Fieldbus Module (Industrial-Grade Multi-Segment Communication Hub)

The ALF111-S50 S1 represents Yokogawa's advanced solution for Foundation Fieldbus H1 network infrastructure, delivering four independent communication segments within a single compact module. Designed for demanding process automation environments, this communication hub enables seamless integration of up to 64 field instruments across distributed control architectures. Whether you're upgrading legacy 4-20mA systems or building new digital fieldbus networks, the ALF111-S50 S1 provides the scalability and reliability required for mission-critical industrial operations.

Process industries face increasing pressure to maximize asset visibility while reducing installation complexity. Traditional point-to-point wiring creates maintenance bottlenecks and limits diagnostic capabilities. The ALF111-S50 S1 addresses these challenges by consolidating field device communication onto a standardized digital bus, enabling real-time data access from transmitters, analyzers, and actuators throughout your facility. Compatible with Yokogawa N-IO and FIO control platforms, this module serves as the critical link between your control room and field instrumentation layer.

Built to withstand harsh industrial conditions from -40°C to +70°C, the ALF111-S50 S1 combines robust hardware design with intelligent diagnostics. Each H1 segment operates independently at 31.25 kbit/s, ensuring deterministic communication timing even under heavy network loads. Hot-swappable architecture minimizes downtime during maintenance, while comprehensive segment health monitoring enables proactive troubleshooting before issues impact production.

Core Capabilities & Business Value

→ Quad-Segment Architecture
Four electrically isolated H1 channels allow logical separation of process areas, equipment types, or criticality levels. This design simplifies network planning and accelerates fault isolation during troubleshooting—reducing mean time to repair by up to 40% compared to single-segment configurations.

✓ High Device Density
Support for 16 devices per segment (64 total) maximizes infrastructure utilization. Consolidate temperature, pressure, flow, and analytical measurements from an entire process unit onto one module, eliminating dozens of individual I/O cards and associated wiring.

✓ Plug-and-Play Integration
Seamless compatibility with Yokogawa CENTUM VP, ProSafe-RS, and STARDOM control systems. Pre-configured device descriptions (DD files) and automatic address assignment reduce commissioning time by 30-50% versus traditional hardwired installations.

→ Advanced Diagnostics
Real-time monitoring of segment voltage, current draw, and communication errors. Built-in loop integrity checks detect wiring faults, grounding issues, and device malfunctions before they escalate to process upsets—improving overall equipment effectiveness (OEE).

✓ Compact Footprint
DIN rail mounting with minimal panel space requirements. The module's 5W power consumption and fanless design reduce cooling loads in control cabinets, supporting energy efficiency initiatives.

→ Future-Proof Investment
Full compliance with IEC 61158-2 Foundation Fieldbus Physical Layer specification ensures long-term interoperability with third-party devices. Protect your automation investment as you expand or modernize field instrumentation.

Industry Applications & Problem-Solving

Oil & Gas Refining
In crude distillation units, the ALF111-S50 S1 connects temperature cascades, pressure transmitters, and flow meters across multiple column sections. Operators gain unified visibility into thermal profiles and material balances, enabling tighter quality control and faster response to process deviations. The module's extended temperature rating supports installation in outdoor analyzer shelters and pump houses.

Chemical Manufacturing
Batch reactors require precise coordination of dosing pumps, agitators, and safety instrumentation. Deploy one ALF111-S50 S1 per reactor train to integrate all field devices onto a single network. Advanced diagnostics detect valve stiction, transmitter drift, and wiring degradation—common failure modes that cause off-spec batches and unplanned shutdowns.

Pharmaceutical Production
Clean-in-place (CIP) systems demand validated communication between flow meters, conductivity analyzers, and automated valves. The ALF111-S50 S1's deterministic timing ensures regulatory-compliant data logging, while segment isolation prevents cross-contamination of critical process data during multi-product campaigns.

Water & Wastewater Treatment
Municipal treatment plants span large geographic areas with distributed pumping stations, clarifiers, and filtration systems. Use the four-segment design to organize devices by treatment stage—primary settling, aeration basins, disinfection, and sludge handling. Centralized monitoring reduces operator travel time and accelerates response to alarm conditions.

Power Generation
Boiler feedwater systems, flue gas desulfurization, and cooling tower circuits contain hundreds of measurement points. The ALF111-S50 S1 consolidates these inputs into the plant DCS, providing the data granularity needed for efficiency optimization and emissions compliance reporting.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the ALF111-S50 S1 when you need to connect 17-64 Foundation Fieldbus devices in a single control cabinet or process area. For smaller installations (up to 32 devices), consider the two-segment ALF111-S00 variant to optimize cost. Ensure your control system supports the required number of fieldbus interface modules—each ALF111-S50 S1 occupies one slot in the N-IO or FIO rack. Verify that total segment length (including spurs) does not exceed 1,900 meters per H1 channel to maintain signal integrity.

Extended Functionality

IoT & Cloud Integration: When paired with Yokogawa's Sushi Sensor gateway or OpreX Asset Operations and Optimization suite, fieldbus data from the ALF111-S50 S1 can be streamed to cloud analytics platforms. This enables predictive maintenance algorithms, remote expert support, and cross-site performance benchmarking without compromising control system security.

Redundancy Options: Deploy dual ALF111-S50 S1 modules in hot-standby configuration for critical process areas. Automatic failover ensures continuous communication even during module replacement or power supply faults, supporting 99.9%+ availability targets in continuous process industries.

Custom Configuration Services: NINERMAS offers pre-commissioning services including device descriptor installation, segment address mapping, and factory acceptance testing. Receive modules ready for plug-and-play deployment, reducing on-site engineering hours by 60-80%.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules require 10-15 business days for testing and documentation. Expedited processing available for emergency replacements and project-critical deliveries.

Warranty Coverage: 24-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty plans available for up to 60 months, including advance replacement and on-site spare management.

Technical Support: Access to Yokogawa-certified application engineers for network design review, troubleshooting assistance, and firmware updates. Support available via email, phone, and remote desktop sessions during your business hours (Asia, Europe, Americas time zones).

Documentation Package: Each module ships with installation manual, quick-start guide, device descriptor files (DD/EDD), and certificate of conformity. CAD drawings and 3D STEP models available for panel design integration.
