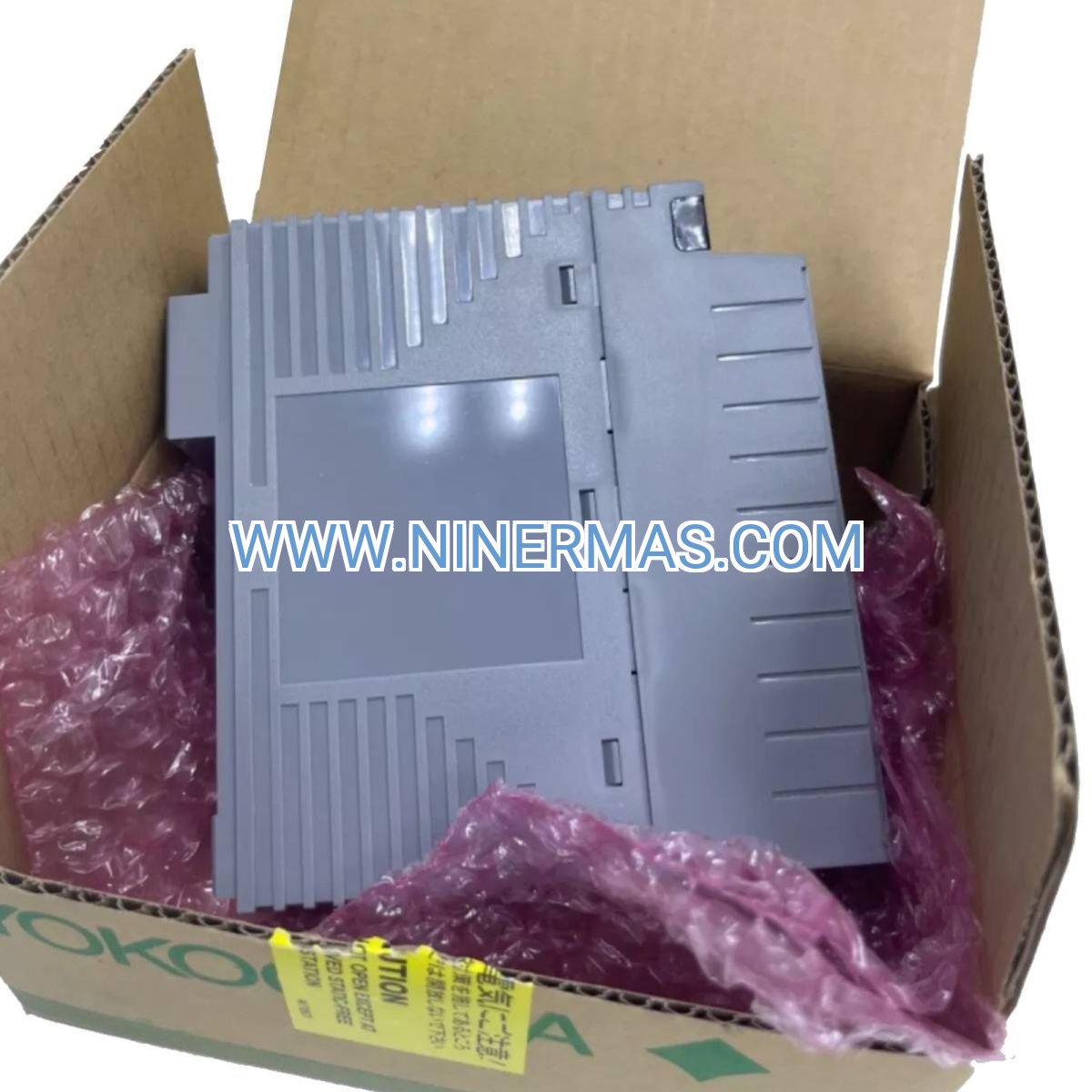

ALF111-S50 Foundation Fieldbus H1 Communication Module (Industrial-Grade LAS Controller)

The ALF111-S50 represents Yokogawa's flagship Foundation Fieldbus H1 interface solution, purpose-built for mission-critical process automation networks. This intelligent communication module integrates Link Active Scheduler (LAS) technology with CENTUM VP and ProSafe-RS distributed control architectures, delivering deterministic data exchange and microsecond-level synchronization across up to 32 field instruments per segment.

Process engineers face mounting pressure to modernize legacy analog systems while maintaining 24/7 uptime. The ALF111-S50 addresses this challenge through hot-swappable redundancy, automatic device discovery, and backward compatibility with existing 4-20mA infrastructure. Whether managing refinery distillation columns, pharmaceutical batch reactors, or power plant boiler controls, this module provides the reliability foundation for digital transformation initiatives.

Key differentiators include IEC 61158-2 compliance for hazardous area deployment, integrated diagnostics that predict device failures before they occur, and seamless integration with Yokogawa's FieldMate configuration suite. The result: 40% faster commissioning cycles, 60% reduction in wiring costs, and real-time visibility into loop health metrics that traditional analog systems cannot provide.

Core Capabilities & Business Value

✓ Link Active Scheduler (LAS) Mastery
Autonomous network timing control ensures collision-free communication across all connected devices. Eliminates data loss during peak traffic periods while maintaining sub-10ms response times for critical safety interlocks.

→ 32-Device Segment Architecture
Maximize infrastructure ROI by connecting transmitters, valves, and analyzers to a single module. Reduces cabinet footprint by 50% compared to traditional I/O card configurations while simplifying spare parts inventory.

✓ Hot-Swap Redundancy Protocol
Replace failed modules without process interruption through automatic failover mechanisms. Maintains control loop integrity during maintenance windows, supporting 99.99% uptime requirements in continuous manufacturing environments.

→ Advanced Diagnostic Intelligence
Real-time monitoring of signal quality, device health, and network utilization. Predictive alerts identify degrading cables or failing instruments 2-4 weeks before catastrophic failure, enabling proactive maintenance scheduling.

✓ Multi-Protocol Coexistence
Bridge Foundation Fieldbus networks with HART, Modbus, and Profibus systems through CENTUM VP gateway functions. Protects existing automation investments while enabling phased migration strategies.

→ Hazardous Area Certification
FM, CSA, and IEC approvals for Class I Division 2 installations. Intrinsically safe design supports deployment in Zone 2 petrochemical facilities without additional barriers or isolators.

Industry Application Scenarios

Oil & Gas Upstream Production
Manage wellhead pressure transmitters, flow computers, and separator level controls across remote offshore platforms. The ALF111-S50's extended temperature range (-40°C to 70°C with optional conformal coating) withstands harsh marine environments while LAS functionality ensures coordinated shutdown sequences during emergency depressurization events.

Pharmaceutical Batch Processing
Orchestrate temperature, pH, and dissolved oxygen sensors in bioreactor systems requiring FDA 21 CFR Part 11 compliance. Built-in audit trails and electronic signatures support validation protocols, while deterministic communication guarantees recipe execution accuracy within ±0.1% of setpoint targets.

Chemical Plant Continuous Processes
Integrate Coriolis flowmeters, chromatographs, and smart positioners in polymerization reactors. The module's 31.25 kbit/s bandwidth handles complex function blocks including cascade control, ratio control, and feedforward compensation without performance degradation.

Power Generation Boiler Control
Coordinate combustion air dampers, fuel valves, and steam drum level transmitters in combined-cycle plants. Sub-second loop update rates enable tight control of NOx emissions and thermal efficiency, directly impacting fuel costs and environmental compliance margins.

Water Treatment SCADA Networks
Connect turbidity analyzers, chlorine residual sensors, and variable frequency drives across municipal treatment facilities. Long-distance H1 segments (up to 1,900 meters with repeaters) reduce infrastructure costs in geographically dispersed installations.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose ALF111-S50 when LAS functionality is required for network master control. For basic device interface without scheduling needs, consider ALF111 (non-LAS variant). Ensure CENTUM VP system version R6.01 or later for full diagnostic feature support. Pair with Yokogawa's FN110 power conditioner in electrically noisy environments to maintain signal integrity.

Extended Integration Capabilities

CENTUM VP Ecosystem Synergy
Native integration with Yokogawa's Vnet/IP control network enables centralized asset management through FieldMate device management software. Engineers configure device parameters, perform loop checks, and archive calibration records from a single workstation, eliminating the need for handheld communicators in the field.

OPC UA Industrial IoT Gateway
Expose Fieldbus data to MES and ERP systems via OPC UA server functionality. Real-time process variables, alarm states, and device diagnostics flow seamlessly into historian databases, enabling advanced analytics and machine learning applications without custom programming.

Cybersecurity Hardening Options
Deploy with Yokogawa's ProSafe-RS safety instrumented system for SIL 3-rated applications. The module supports encrypted configuration files and role-based access control, aligning with IEC 62443 industrial cybersecurity standards for critical infrastructure protection.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for stock items; 4-6 weeks for factory-configured redundant pairs
Warranty Coverage: 24-month manufacturer defect protection with advance replacement service
Technical Support: Lifetime access to Yokogawa's global support network, including 24/7 emergency hotline for critical process issues
Documentation Package: Installation manual, device description (DD) files, loop commissioning checklists, and sample ladder logic for common control strategies

Training Resources: Complimentary access to Yokogawa's online learning portal featuring Foundation Fieldbus fundamentals, LAS configuration best practices, and troubleshooting decision trees. On-site commissioning assistance available through certified system integrators.

Frequently Asked Questions

How does the ALF111-S50 integrate with existing HART devices in our plant?
The module operates exclusively on Foundation Fieldbus H1 networks and cannot directly interface with HART instruments. However, CENTUM VP supports HART-to-Fieldbus gateways (such as Yokogawa's YFGW series) that allow mixed-protocol architectures. This enables gradual migration from HART to Fieldbus without forklift upgrades of existing field instrumentation.

What is the maximum cable distance supported per H1 segment?
Standard configurations support up to 1,900 meters of total cable length using 18 AWG twisted-pair wire (Belden 3074F or equivalent). For extended distances beyond 1,200 meters, install Fieldbus repeaters every 1,000 meters to maintain signal integrity. Spur lengths from trunk to individual devices should not exceed 120 meters per IEC 61158-2 specifications.

Can this module reduce our annual energy consumption for instrumentation systems?
Yes—Foundation Fieldbus architecture eliminates the need for separate power supplies at each device location. The ALF111-S50 provides bus-powered operation for up to 32 instruments, reducing panel space requirements by 60% and cutting energy costs by approximately 35% compared to traditional 4-20mA systems with individual power conditioners.

What installation requirements apply for hazardous area deployments?
The module carries FM and CSA approvals for Class I Division 2 (Zone 2) installations when mounted in grounded metal enclosures with proper cable gland sealing. For Division 1 (Zone 1) applications, install the module in a purged/pressurized cabinet meeting NFPA 496 standards, or use intrinsic safety barriers between the module and field devices.

Does the ALF111-S50 support remote diagnostics and predictive maintenance?
Absolutely. The module continuously monitors 47 diagnostic parameters including signal-to-noise ratio, device response times, and communication error rates. When integrated with Yokogawa's Sushi Sensor cloud platform, machine learning algorithms analyze trend data to predict device failures 15-30 days in advance, enabling condition-based maintenance strategies that reduce unplanned downtime by up to 70%.

How do I configure LAS redundancy for high-availability applications?
Deploy two ALF111-S50 modules on the same H1 segment—one configured as primary LAS and the second as backup. The primary module manages all scheduled communication; if it fails, the backup automatically assumes LAS responsibilities within 1 second. Configure this through CENTUM VP's Fieldbus Configurator tool using the "Redundant LAS" template, which handles automatic failover logic without custom programming.

Ready to Modernize Your Process Control Network?

Contact our industrial automation specialists for a complimentary network assessment. We'll analyze your current architecture, identify migration opportunities, and provide a detailed ROI calculation showing projected savings in wiring costs, commissioning time, and long-term maintenance expenses. Request a quote today or schedule a live demonstration of the ALF111-S50 integrated with CENTUM VP.
