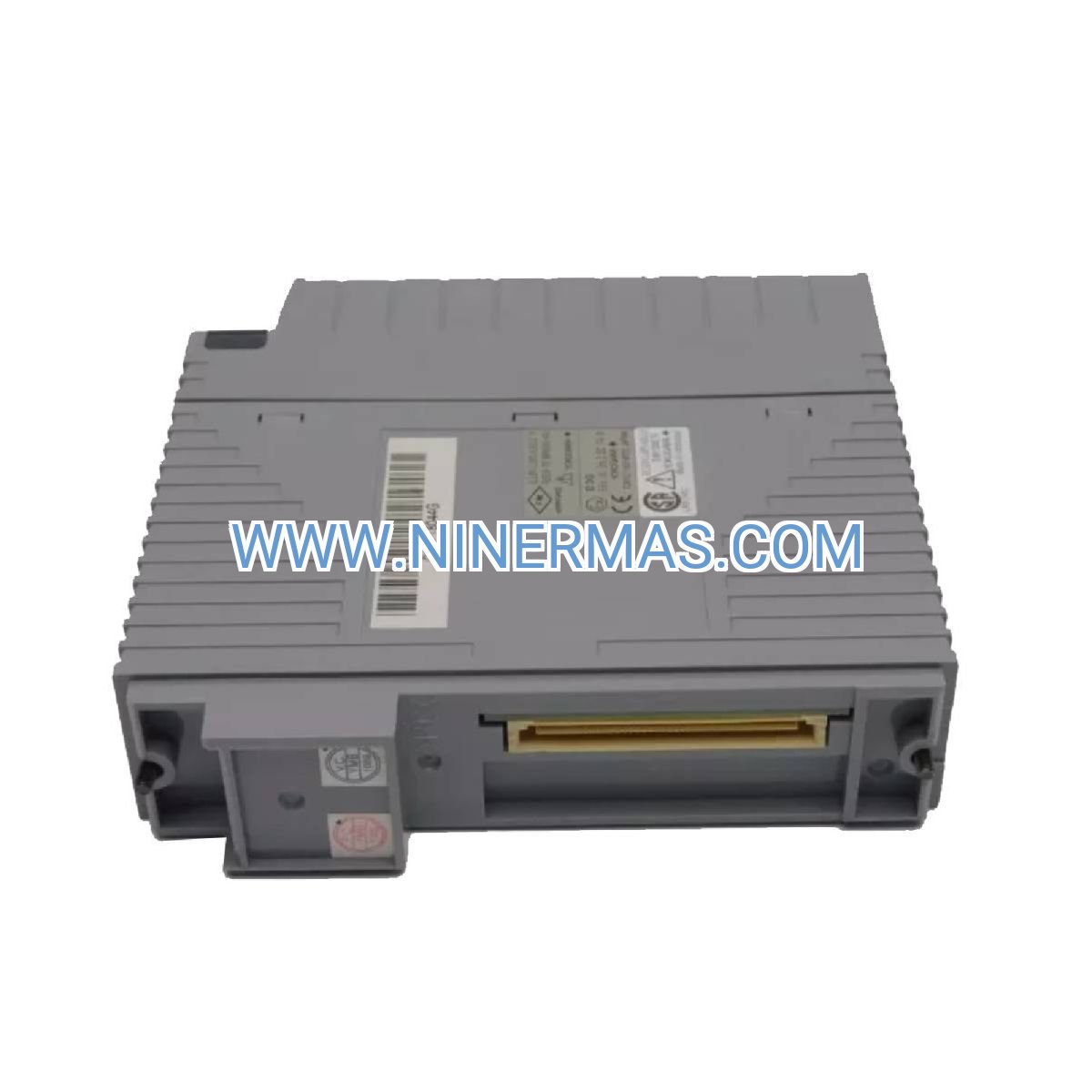

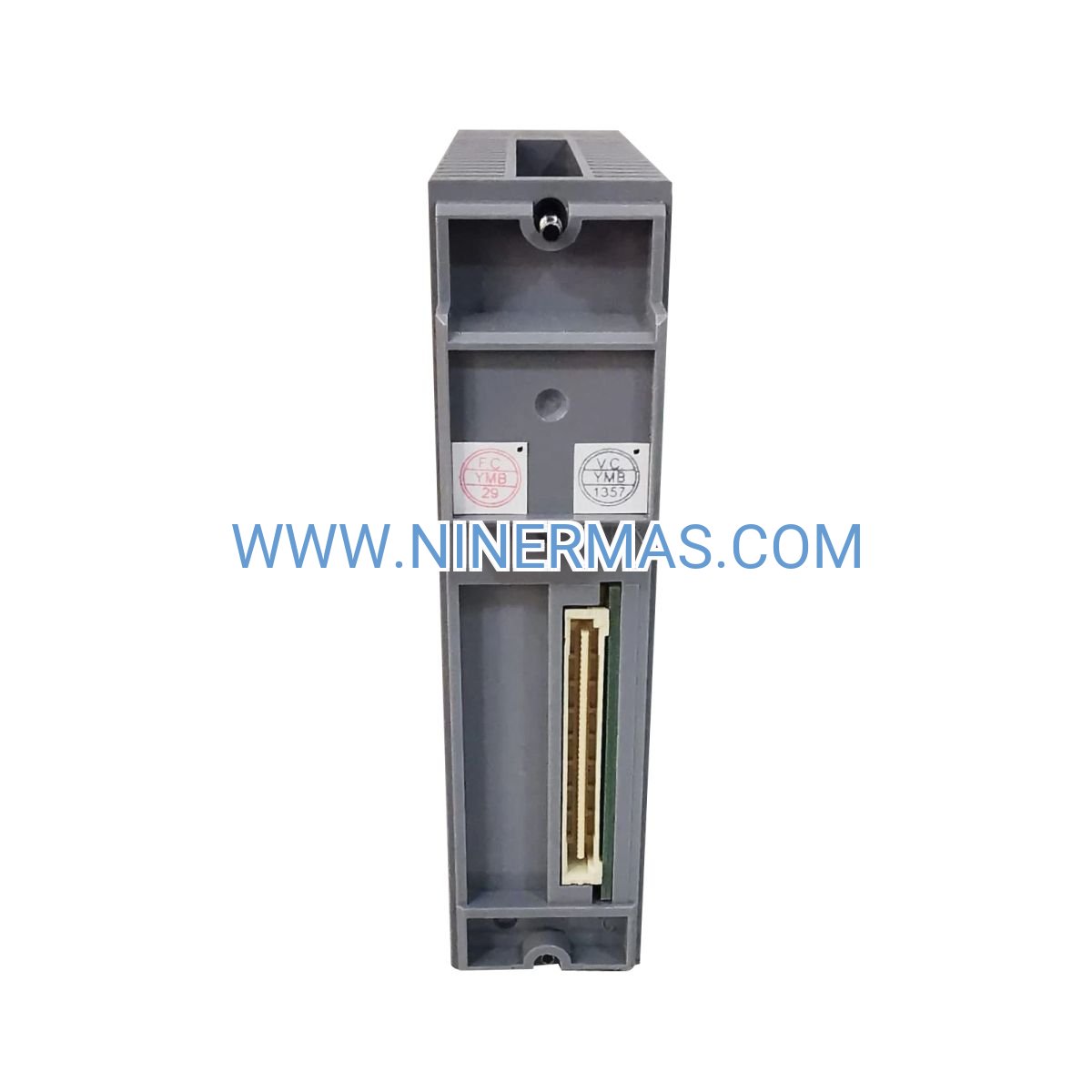

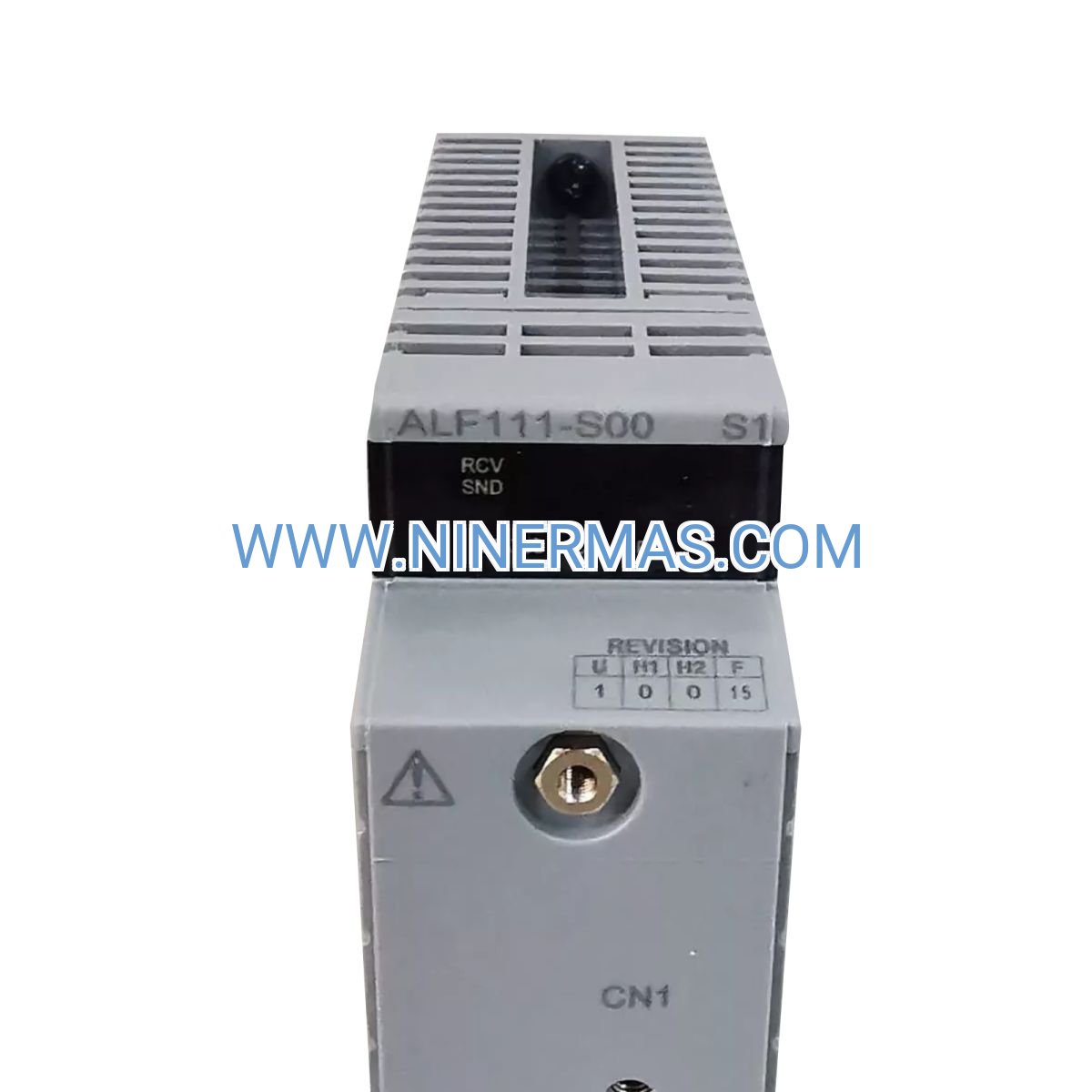

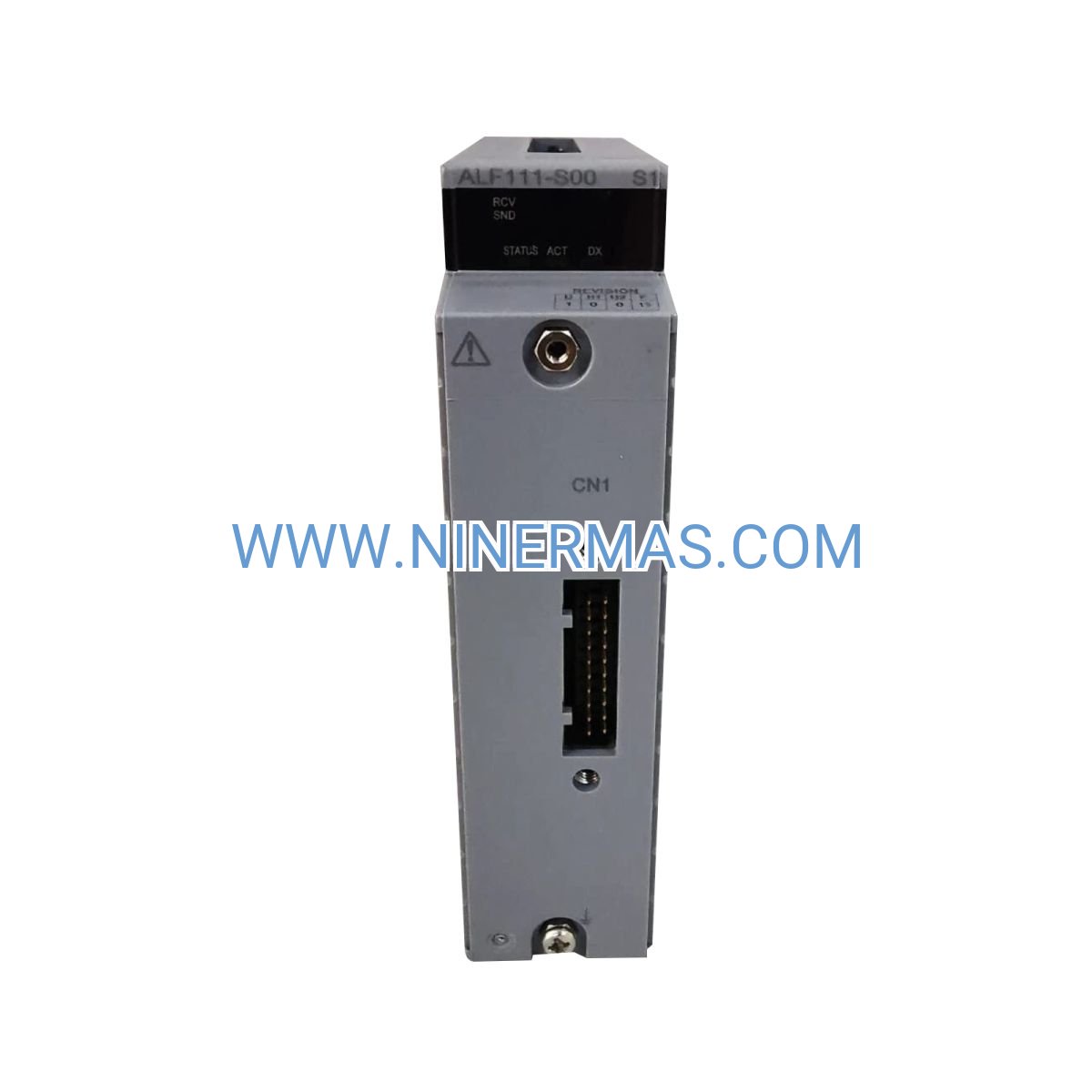

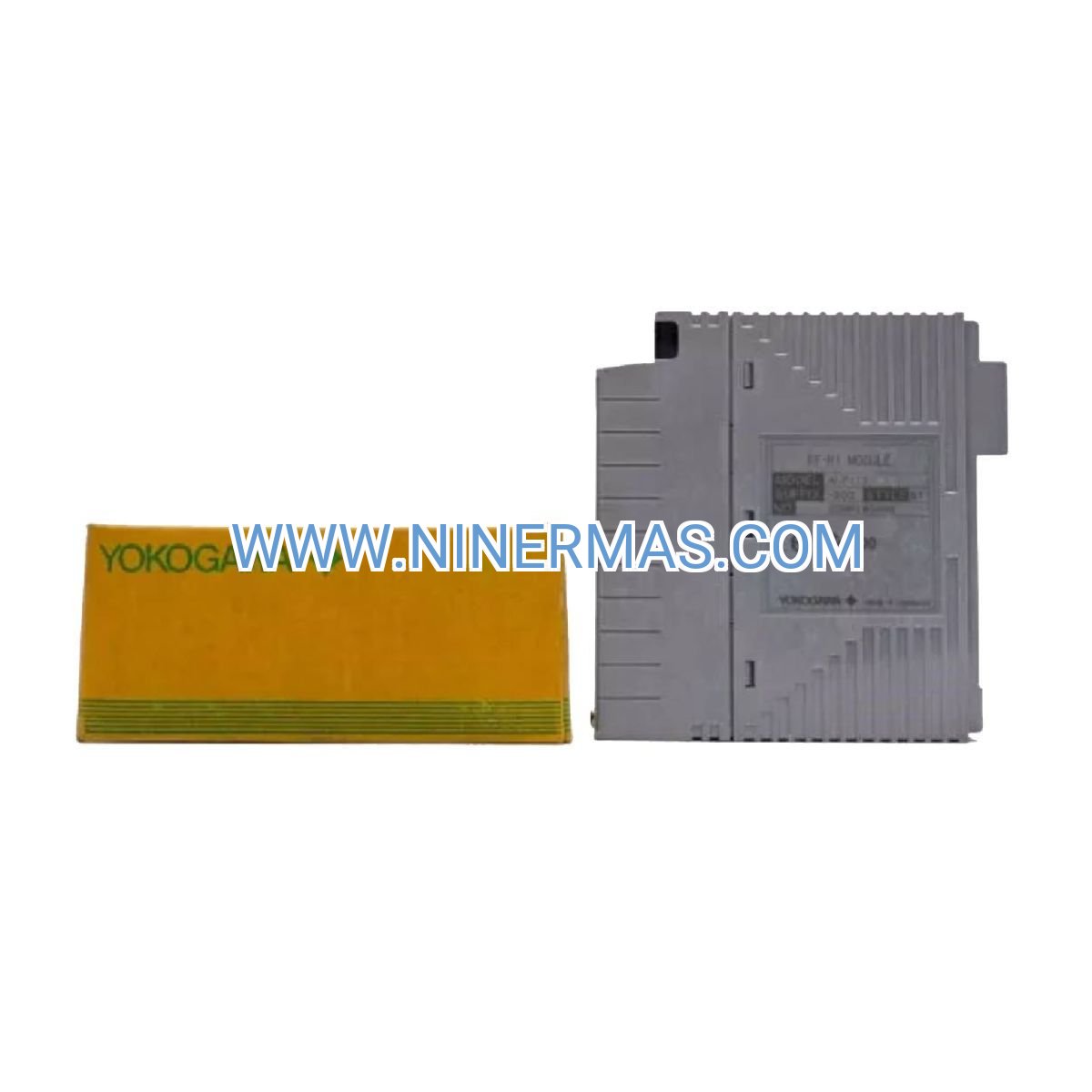

ALF111-S00 S1 Foundation Fieldbus H1 Communication Module (Industrial-Grade Link Scheduler)

The ALF111-S00 S1 represents Yokogawa's advanced Foundation Fieldbus H1 communication solution engineered for mission-critical process control environments. This Link Active Scheduler (LAS) module establishes deterministic, microsecond-precise communication between Yokogawa N-IO/FIO distributed control systems and up to 32 intelligent field devices per segment. Designed for oil & gas, chemical processing, and pharmaceutical manufacturing, it solves the challenge of coordinating distributed intelligence across hazardous zones while maintaining IEC 61158-2 compliance and FISCO intrinsic safety certification.

Process engineers and automation specialists rely on the ALF111-S00 S1 to eliminate communication jitter in cascade control loops, ratio control strategies, and split-range valve applications where timing precision directly impacts product quality and safety. The S1 firmware revision extends device library support to 500+ certified instruments while providing real-time diagnostics for predictive maintenance and segment health monitoring.

Whether retrofitting legacy 4-20mA systems or designing greenfield installations, this module delivers proven reliability with redundant LAS failover, extended temperature operation (-40°C to +70°C), and simplified commissioning through auto-addressing—reducing engineering hours by up to 40% compared to manual configuration workflows.

Core Features & Business Value

→ Deterministic Scheduling Architecture
Configurable macrocycle timing from 10ms to 10 seconds ensures predictable data delivery for coordinated multi-loop control. Eliminates communication delays that cause process variability in batch reactors, distillation columns, and blending operations.

✓ Redundant LAS with Sub-Second Failover
Primary/backup scheduler configuration maintains continuous operation during module failures. Automatic switchover within 1 second prevents process trips and unplanned shutdowns—critical for 24/7 production environments.

✓ FISCO Intrinsic Safety Compliance
Certified for Zone 0/Division 1 hazardous area deployment without entity parameter calculations. Simplifies installation in explosive atmospheres while providing bus power to field devices through isolated 1500V DC channels.

✓ Advanced Segment Diagnostics
Real-time monitoring of device response times, wiring faults, communication errors, and power budget utilization. Accessible via DCS operator interfaces and FieldMate asset management software for predictive maintenance strategies.

✓ Extended Device Compatibility
S1 firmware supports latest EDDL revisions for plug-and-play integration with transmitters, positioners, analyzers, and control valves from 50+ manufacturers. Reduces commissioning complexity and spare parts inventory requirements.

✓ Auto-Addressing & Rapid Commissioning
Automatic device address assignment during startup eliminates manual configuration errors. Segment topology verification tools reduce commissioning time by 40% while ensuring compliance with FF-816 installation guidelines.

Typical Application Scenarios

Offshore Oil & Gas Production Platforms
Coordinates smart transmitters, emergency shutdown valves, and analytical instruments across topside process modules in Zone 1 hazardous areas. Redundant LAS architecture ensures continuous operation during North Sea weather conditions while meeting SIL 2 safety requirements for hydrocarbon processing.

Chemical Batch Reactor Control
Manages recipe-driven sequences involving temperature cascades, pressure compensation, and material addition timing. Foundation Fieldbus function blocks enable distributed PID control within field devices, reducing controller loading by 60% while improving batch-to-batch consistency.

Pharmaceutical Clean Room Manufacturing
Provides validated communication for sterile processing equipment requiring 21 CFR Part 11 compliance. Deterministic scheduling supports coordinated control of sterilization cycles, aseptic filling operations, and environmental monitoring systems with full audit trail capabilities.

Power Plant Boiler Optimization
Orchestrates feedwater control, combustion air management, and fuel flow coordination using multi-variable control strategies. H1 segment architecture reduces wiring costs by 70% compared to traditional 4-20mA installations while enabling advanced diagnostics for predictive maintenance.

Pulp & Paper Stock Preparation
Integrates consistency transmitters, flow controllers, and chemical dosing systems across bleaching and refining processes. Foundation Fieldbus enables real-time quality adjustments based on distributed measurements, improving fiber yield by 3-5% while reducing chemical consumption.

Technical Parameters & Selection Guide

Selection Criteria: Choose the ALF111-S00 S1 when your application requires Foundation Fieldbus H1 communication with deterministic scheduling, hazardous area certification, and compatibility with Yokogawa N-IO/FIO distributed control systems. For applications requiring 12-16 devices per segment at distances up to 1900 meters, this module provides optimal performance. Consider redundant LAS configurations for SIL-rated safety applications or processes with high availability requirements (>99.5% uptime targets).

Extended Functions

Asset Management Integration: Seamless connectivity with Yokogawa PRM (Plant Resource Manager) and FieldMate software enables centralized device configuration, calibration management, and predictive diagnostics across entire Foundation Fieldbus infrastructure.

Advanced Diagnostics Suite: Real-time segment health monitoring includes wiring quality assessment, device response time trending, communication error logging, and power budget analysis—accessible via DCS operator displays or mobile maintenance applications.

Customization Options: Factory configuration services available for pre-commissioned modules with customer-specific device libraries, macrocycle templates, and redundancy settings—reducing on-site startup time by 50% for large-scale projects.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for stock items; 4-6 weeks for factory-configured modules with custom device libraries and redundancy settings.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical process applications requiring 5-year coverage.

Technical Support: Access to Yokogawa-certified application engineers for segment design review, commissioning assistance, and troubleshooting support via phone, email, and remote connectivity (8:00 AM - 6:00 PM CST, Monday-Friday).

Documentation Package: Includes installation manual, configuration guide, EDDL device files, segment design worksheets, and IEC 61158-2 compliance certificates. CAD drawings and 3D STEP models available for mechanical integration planning.

Frequently Asked Questions

Q: How does the ALF111-S00 S1 integrate with existing Yokogawa DCS systems?
A: The module installs directly into N-IO or FIO I/O racks, drawing power from the backplane. Configuration occurs through your DCS engineering station using Resource Manager or FieldMate software. No additional gateways or protocol converters required—the module appears as a native I/O card within your system architecture.

Q: What is the maximum segment capacity for reliable operation?
A: While the module supports up to 32 devices per H1 segment per FF-816 specifications, we recommend 12-16 devices for optimal performance in applications with fast macrocycle requirements (≤500ms). Larger device counts work well for slower processes like tank level monitoring or environmental systems with 2-10 second update rates.

Q: Can this module reduce energy consumption in my control system?
A: Yes—Foundation Fieldbus architecture eliminates individual device power supplies and reduces wiring by 70% compared to traditional 4-20mA installations. The module's bus-powered topology delivers 15-20mA per device, reducing panel space requirements by 40% and lowering installation costs by $200-400 per device point.

Q: What are the installation requirements for hazardous area deployment?
A: For Zone 0/Division 1 installations, use FISCO-certified barriers and twisted-pair instrumentation cable (Type A per IEC 61158-2). The module's intrinsic safety certification eliminates entity parameter calculations—simply verify total segment length ≤1900m and device count ≤32. Detailed installation guidelines provided in FF-816 compliance documentation.

Q: Does the module support remote diagnostics and predictive maintenance?
A: Absolutely. The S1 firmware provides real-time segment health metrics including device response times, communication error rates, and wiring quality indicators. Integration with PRM or FieldMate enables remote monitoring, automated alert generation, and predictive maintenance scheduling based on device performance trends—reducing unplanned downtime by 30-50%.

Q: How quickly can I commission a new H1 segment with this module?
A: Using the auto-addressing feature, a typical 12-device segment can be commissioned in 2-4 hours versus 6-8 hours for manual configuration. The module automatically discovers devices, assigns addresses, and verifies segment topology. For pre-configured modules with customer-specific device libraries, commissioning time reduces to 1-2 hours per segment.

Request Technical Consultation

Our application engineering team provides complimentary segment design reviews, device selection guidance, and ROI analysis for Foundation Fieldbus migration projects. Contact us with your process requirements, existing infrastructure details, and project timeline for customized recommendations.

Next Steps: Submit a technical inquiry with your DCS platform, device count, hazardous area classification, and application requirements. We'll respond within 4 business hours with segment design recommendations, pricing, and delivery timelines.
