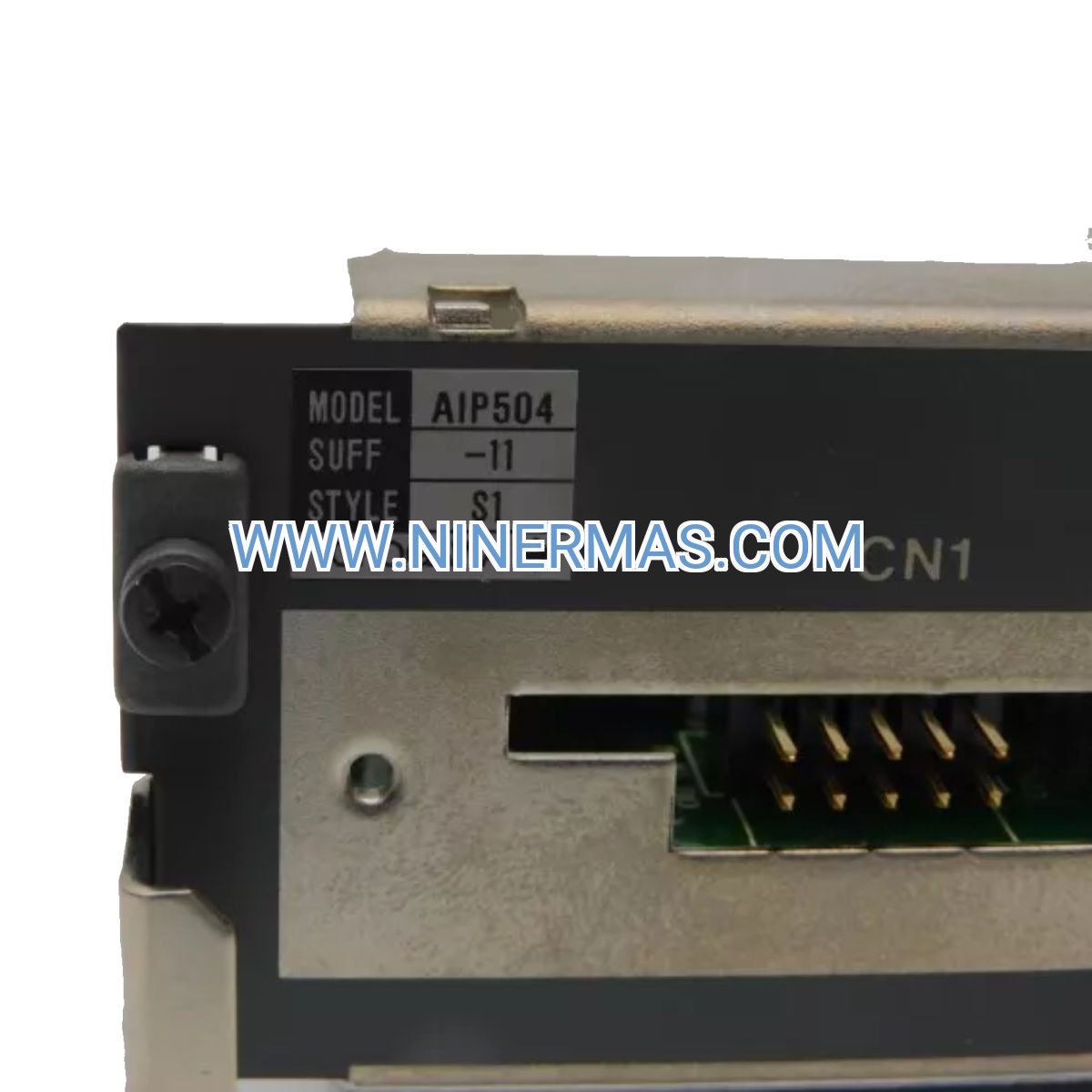

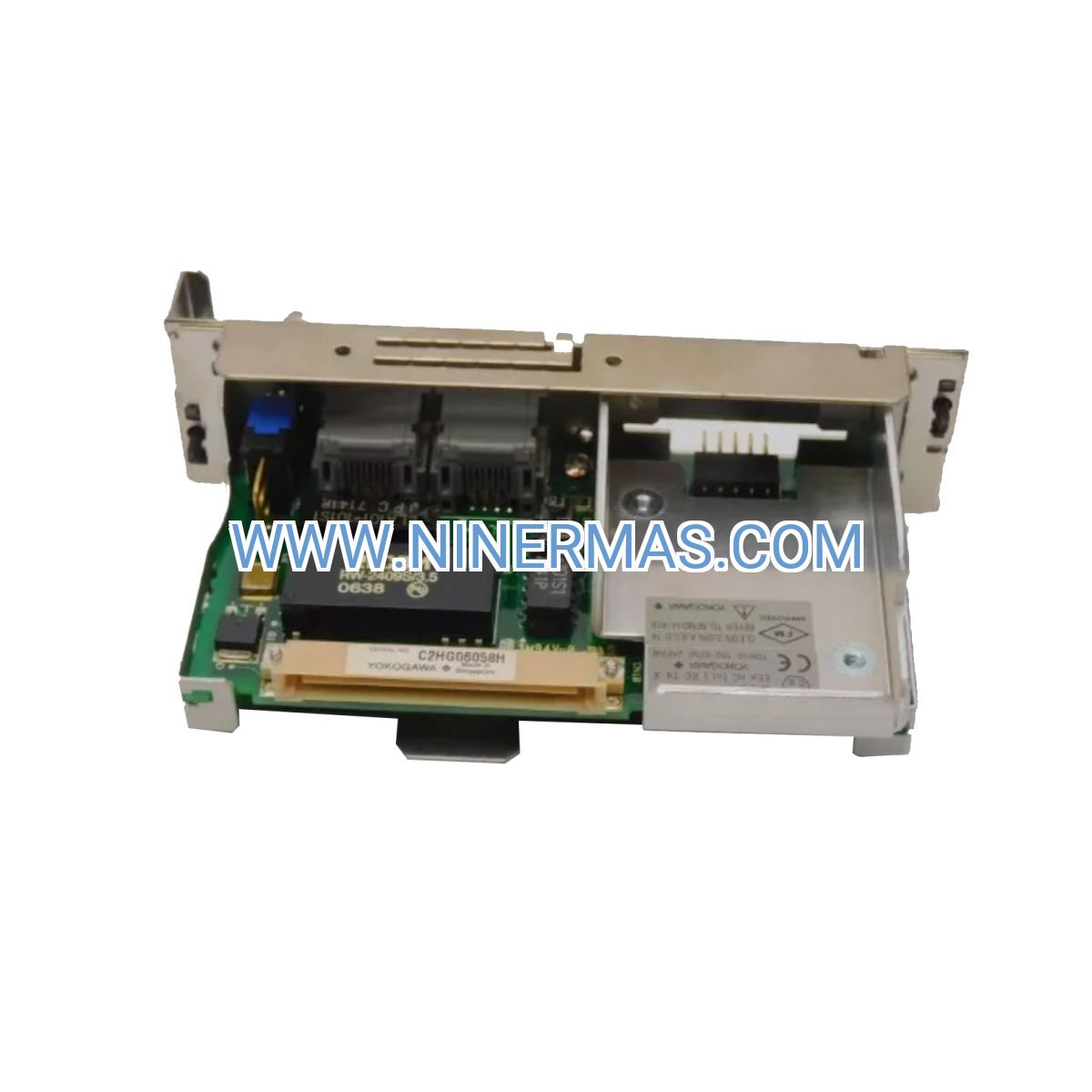

AIP504-11 Vnet Coupler Module (Industrial-Grade Communication Bridge)

The AIP504-11 represents Yokogawa's proven solution for establishing deterministic, high-speed network connectivity within CENTUM distributed control architectures. This Vnet coupler module functions as the critical communication bridge linking field control stations to the Vnet proprietary bus, enabling real-time data exchange across CS 3000 and VP platform installations.

Designed for process industries demanding zero-compromise reliability, this network interface addresses the fundamental challenge of maintaining microsecond-level synchronization between distributed I/O subsystems and supervisory control layers. Engineers deploy the AIP504-11 when conventional Ethernet solutions cannot meet the deterministic timing requirements of safety-critical control loops.

With 10 Mbps dedicated bandwidth and protocol-level redundancy support, this module ensures continuous operation in oil refineries, chemical plants, power stations, and pharmaceutical facilities where network failures translate directly to production losses and safety incidents.

Core Capabilities & Technical Advantages

→ Deterministic 10 Mbps Data Transfer
Guaranteed message delivery within predictable time windows eliminates jitter and latency spikes that compromise control loop stability. Ideal for fast-response processes requiring sub-100ms update cycles.

✓ Dual-Redundant Network Architecture
Seamless failover between primary and backup Vnet paths maintains control continuity during cable faults or switch failures. Automatic switchover occurs within 50 milliseconds without operator intervention.

→ Plug-Compatible System Integration
Direct installation into existing CENTUM CS 3000 and VP cabinets without firmware modifications or configuration file conversions. Backward compatibility protects legacy infrastructure investments during phased upgrades.

✓ Industrial Temperature Tolerance
Operates reliably across 0°C to 55°C ambient conditions without forced cooling or thermal management accessories. Conformal coating protects circuitry from humidity and airborne contaminants in harsh plant environments.

→ Low-Power Consumption Design
Minimizes heat generation within densely populated control cabinets while reducing facility energy costs. Typical power draw remains below 8 watts during peak communication loads.

✓ Standard DIN Rail Mounting
Tool-free installation on 35mm DIN rails accelerates commissioning schedules and simplifies maintenance access. Panel-mount adapters available for custom enclosure configurations.

Industrial Application Scenarios

Refinery Crude Distillation Units
Connects distributed temperature, pressure, and flow transmitters to central control processors managing fractionation column operations. The module's deterministic performance ensures precise control of heat exchanger networks where 0.5°C deviations impact product quality specifications.

Chemical Batch Reactor Systems
Links recipe management workstations to field-mounted valve actuators and dosing pumps executing multi-step synthesis sequences. Redundant network paths prevent batch losses during communication infrastructure maintenance.

Power Plant Boiler Control Networks
Integrates combustion control loops, feedwater regulation, and steam temperature management across geographically distributed boiler islands. High-speed data exchange supports coordinated control strategies that optimize thermal efficiency.

Pharmaceutical Clean Room Environments
Provides validated communication pathways for environmental monitoring systems tracking temperature, humidity, and differential pressure parameters. Meets 21 CFR Part 11 audit trail requirements for electronic record integrity.

Pulp & Paper Machine Automation
Synchronizes drive systems, moisture sensors, and caliper gauges across paper machine sections spanning 100+ meters. Low-latency communication enables cross-directional profile control that reduces basis weight variation.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the AIP504-11 when your CENTUM system architecture requires field control station connectivity to the Vnet backbone. Verify compatibility with your specific CS 3000 or VP software revision level before ordering. For systems requiring fiber-optic media conversion or extended distance connectivity beyond 100 meters, consult factory application engineers for media converter specifications.

Extended Integration Capabilities

OPC UA Gateway Connectivity
Interfaces with third-party OPC UA servers to expose Vnet process variables to MES and ERP systems. Enables real-time production monitoring dashboards without compromising control network security.

Redundancy Configuration Options
Supports 1:1 hot-standby and N+1 load-sharing redundancy topologies. Automatic health monitoring triggers failover events based on configurable heartbeat timeout thresholds.

Diagnostic Protocol Support
Built-in SNMP agents provide network performance metrics including packet loss rates, collision counts, and bandwidth utilization statistics. Integrates with plant-wide network management platforms for centralized monitoring.

Custom Firmware Provisioning
Factory-programmable firmware variants available for specialized applications requiring non-standard baud rates or protocol extensions. Minimum order quantities apply for custom configurations.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units shipping from our Shanghai distribution center. Express 24-hour dispatch available for critical outage situations (additional fees apply).

Custom Configuration Lead Time: 10-15 business days for factory-programmed firmware variants or special testing requirements.

Warranty Coverage: 12-month manufacturer's warranty covering material defects and workmanship failures. Extended 36-month warranty packages available at time of purchase.

Technical Support: Lifetime access to application engineering team via email and phone. Remote diagnostic assistance included for troubleshooting network connectivity issues.

Documentation Package: Each module ships with installation quick-start guide, dimensional drawings, terminal wiring diagrams, and digital access to full technical manual (PDF format).

Frequently Asked Questions

How does the AIP504-11 integrate with existing CENTUM CS 3000 field control stations?
The module installs directly into the FCS communication slot without requiring software patches or configuration file modifications. Physical connection uses standard Vnet cable assemblies with RJ45-style connectors. System recognizes the module automatically during power-up initialization.

What network cable specifications are required for reliable Vnet communication?
Use shielded twisted-pair cable rated for industrial Ethernet applications (minimum Cat5e specification). Maximum segment length between coupler and Vnet switch is 100 meters. For longer distances, deploy fiber-optic media converters at intermediate points.

Can this module support simultaneous connections to multiple Vnet segments?
The AIP504-11 provides a single Vnet port connection. For multi-segment architectures, deploy one coupler module per Vnet domain and configure routing tables within the CENTUM engineering workstation to manage inter-segment data exchange.

What diagnostic indicators help troubleshoot communication failures?
Front-panel LEDs display power status (green), network activity (amber flashing), and fault conditions (red). Diagnostic registers accessible via engineering software provide detailed error codes for cable faults, protocol violations, and configuration mismatches.

Does the module require periodic firmware updates for security patches?
Yokogawa releases firmware updates on an as-needed basis to address discovered vulnerabilities or add protocol enhancements. Updates install via the CENTUM engineering workstation using standard module programming procedures. Typical update frequency is 12-18 months.

What environmental protection rating does the module carry for harsh industrial locations?
The AIP504-11 meets IP20 ingress protection when installed in standard control cabinets. For applications requiring higher protection levels (washdown environments, outdoor enclosures), install the module within NEMA 4X or IP65-rated junction boxes with appropriate cable glands.

Ready to Optimize Your CENTUM Network Infrastructure?

Contact our industrial automation specialists to verify compatibility with your specific system configuration and receive detailed integration guidance. Request a formal quotation including volume pricing for multi-unit deployments or discuss custom testing requirements for mission-critical applications.
