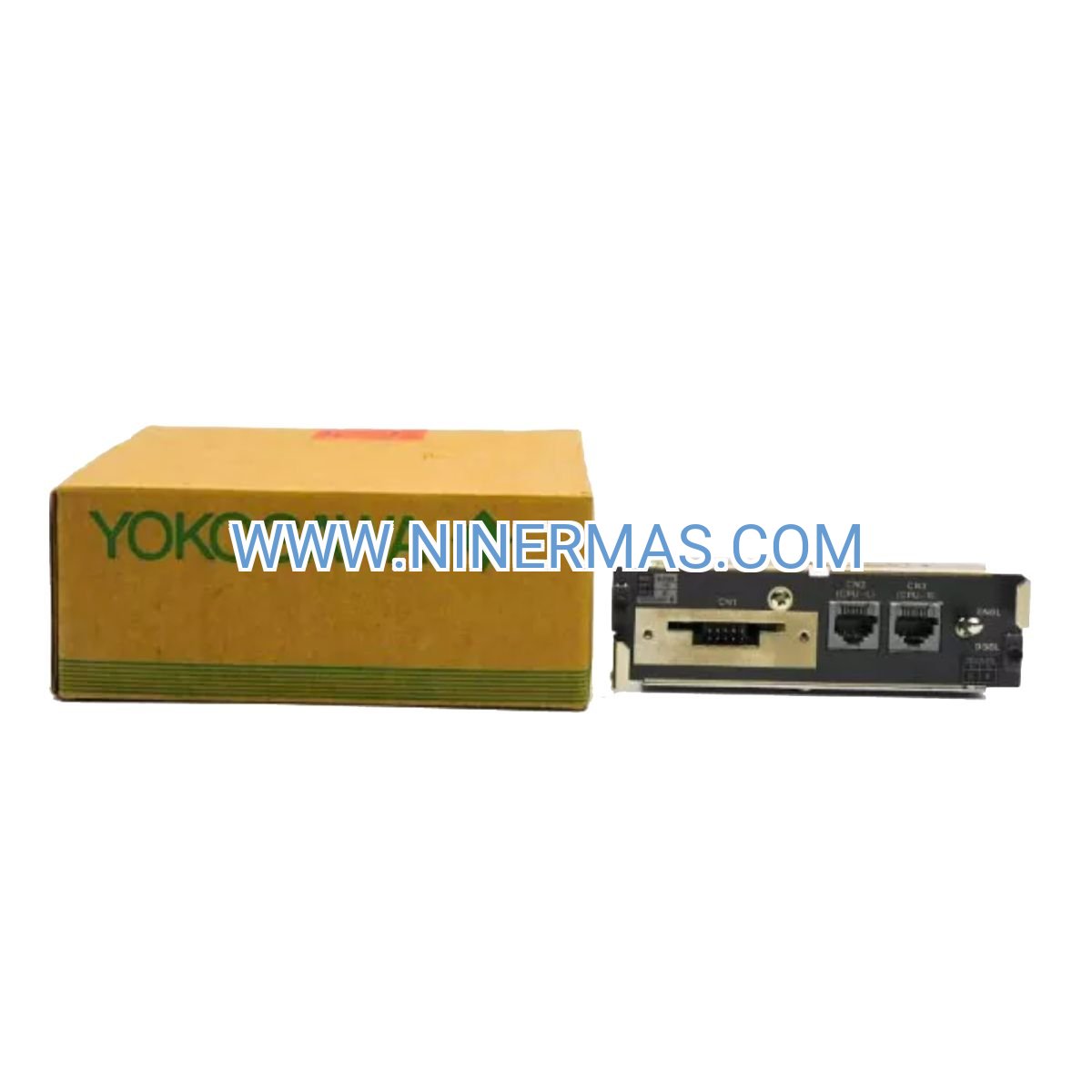

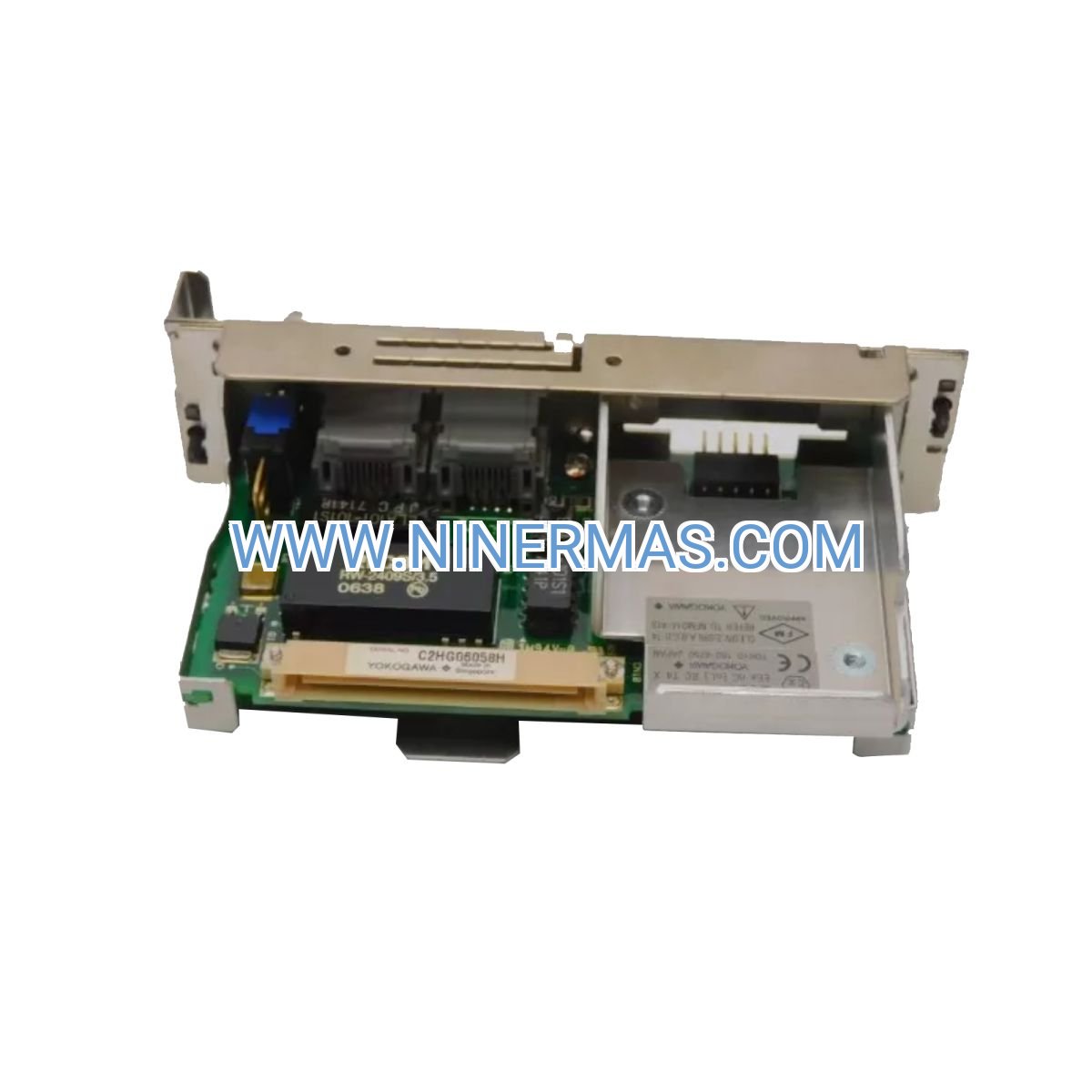

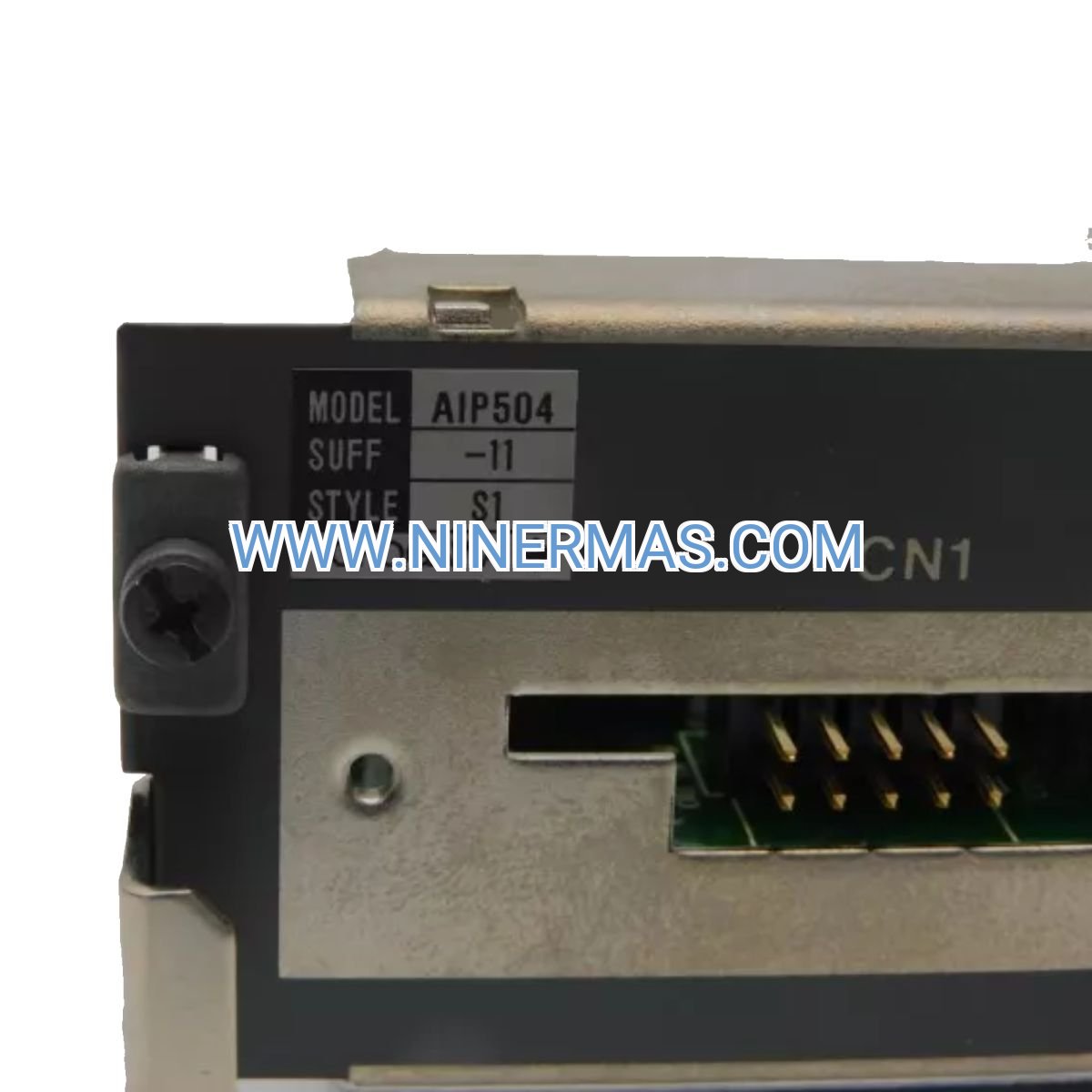

AIP504-11 S1 Vnet Coupler Unit (Industrial-Grade Network Bridge)

The Yokogawa AIP504-11 S1 Vnet Coupler Unit is a mission-critical network interface module designed for CENTUM VP and CS 3000 distributed control systems. This industrial-grade coupler establishes high-speed, fault-tolerant communication pathways between field control units, operator workstations, and enterprise-level supervisory networks. Built for continuous operation in harsh industrial environments, the AIP504-11 S1 ensures deterministic data exchange with sub-millisecond latency, making it indispensable for process industries where real-time control integrity directly impacts safety, quality, and operational efficiency.

Engineered for plant operators managing complex multi-tier automation architectures—from oil refineries and chemical plants to pharmaceutical facilities and power generation stations—this coupler eliminates communication bottlenecks while providing automatic failover protection. Whether you're upgrading legacy CENTUM CS systems or deploying new CENTUM VP installations, the AIP504-11 S1 delivers the reliability and performance your critical processes demand.

With dual-port redundancy, hot-swappable design, and comprehensive diagnostic capabilities, this Vnet coupler minimizes unplanned downtime and simplifies maintenance workflows. Ready to enhance your DCS network resilience? Contact our technical team for application-specific configuration guidance.

Core Features & Business Value

✓ Dual-Port Redundant Architecture
Automatic failover switching ensures uninterrupted communication even during network failures or maintenance activities, protecting your process control integrity and reducing annual downtime costs by up to 40%.

✓ High-Speed Vnet/IP Protocol
100 Mbps full-duplex Ethernet delivers real-time data transfer with <5ms latency, enabling precise closed-loop control for time-sensitive processes like batch reactors, distillation columns, and turbine governors.

✓ Hot-Swappable Maintenance Design
Replace or service the module without shutting down your DCS network, eliminating costly production interruptions and enabling proactive maintenance during scheduled windows rather than emergency outages.

✓ Built-In Diagnostic Intelligence
Multi-color LED indicators and embedded self-test routines accelerate fault isolation from hours to minutes, reducing mean time to repair (MTTR) and lowering maintenance labor costs by 30%.

✓ Backward Compatibility Assurance
Seamlessly integrates with legacy CENTUM CS 1000/3000 installations, protecting your existing infrastructure investment while enabling phased migration to CENTUM VP without forklift upgrades.

✓ Industrial-Hardened Construction
Operates reliably across 0°C to 55°C temperature ranges with >100,000-hour MTBF, meeting CE/UL/CSA certifications for deployment in hazardous area classifications and extreme environmental conditions.

Typical Application Scenarios

→ Oil & Gas Refining Operations
In crude distillation units and catalytic crackers, the AIP504-11 S1 connects field control stations to central operator consoles, enabling real-time monitoring of temperature cascades, pressure control loops, and emergency shutdown systems. The redundant network design prevents single-point failures that could trigger costly process upsets or safety incidents.

→ Chemical Manufacturing Plants
For batch reactors and continuous polymerization processes, this coupler synchronizes recipe management systems with field controllers, ensuring precise ingredient dosing, temperature profiling, and quality parameter tracking. Deterministic communication eliminates batch-to-batch variability and reduces off-spec production by 25%.

→ Power Generation Facilities
In combined-cycle plants and coal-fired boilers, the AIP504-11 S1 links turbine control systems, boiler management units, and emissions monitoring networks. Sub-millisecond data updates enable rapid load-following response and optimize fuel efficiency while maintaining NOx/SOx compliance limits.

→ Pharmaceutical Production Lines
For FDA-regulated manufacturing environments, this coupler provides validated communication pathways between batch control systems, electronic batch records (EBR), and manufacturing execution systems (MES). Built-in diagnostics support 21 CFR Part 11 audit trail requirements and accelerate regulatory inspections.

→ Water Treatment Infrastructure
In municipal wastewater plants and industrial effluent systems, the AIP504-11 S1 coordinates SCADA networks with distributed I/O controllers, enabling remote monitoring of clarifiers, aerators, and chemical dosing pumps across geographically dispersed facilities while reducing site visit frequency by 60%.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AIP504-11 S1 when your application requires redundant network connectivity for CENTUM VP/CS 3000 systems with 100 Mbps bandwidth. For higher-speed requirements (1 Gbps), consider the AIP504-13 variant. If integrating with third-party SCADA systems via OPC, verify protocol gateway compatibility. For hazardous area installations (Class I Div 2), confirm intrinsic safety barrier requirements with our engineering team.

Extended Functions

IoT Integration Capabilities: The AIP504-11 S1 supports MQTT/OPC UA bridging through Yokogawa's Exaquantum PIMS software, enabling cloud-based analytics, predictive maintenance algorithms, and remote expert diagnostics. Integrate with Azure IoT Hub or AWS IoT Core for machine learning model deployment.

Advanced Network Management: SNMP v3 support allows integration with enterprise network monitoring tools (SolarWinds, PRTG) for centralized bandwidth utilization tracking, packet loss analysis, and security event logging. Configure QoS policies to prioritize critical control traffic over diagnostic data streams.

Customization Options: Available with extended temperature ratings (-40°C to 70°C) for outdoor installations, conformal coating for corrosive atmospheres, and fiber optic variants (AIP504-11F) for long-distance runs up to 2 km or electrically noisy environments.

Delivery & Service Assurance

Lead Time: Standard units ship within 3-5 business days from our regional distribution centers. Custom configurations (extended temp, fiber optic) require 2-3 weeks. Expedited delivery available for critical outage situations.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 5-year service plans available with advance replacement and on-site calibration services.

Technical Support: Access to Yokogawa-certified application engineers via phone/email (8AM-8PM CST, Mon-Fri). Remote diagnostic assistance included. On-site commissioning support available at additional cost.

Documentation Package: Each unit includes installation manual, configuration software (CD/download), compliance certificates (CE/UL), and CAD drawings (DWG/PDF). Multilingual documentation available in English, Chinese, Japanese, German, and Spanish.

Frequently Asked Questions

Q: How does the AIP504-11 S1 interface with existing CENTUM CS 3000 systems?
A: The coupler connects directly to the CS 3000 Vnet backplane via standard card slots. Configuration is performed through the CS 3000 System View software using pre-loaded device profiles. No custom programming required—typical integration time is 2-4 hours including network parameter setup and redundancy testing.

Q: What is the maximum network capacity supported by this Vnet coupler?
A: Each AIP504-11 S1 supports up to 64 concurrent device connections with aggregate throughput of 100 Mbps. For larger installations exceeding 64 nodes, deploy multiple couplers in a segmented network topology. Consult our network architecture guide for optimal switch placement and VLAN configuration.

Q: Can this module reduce energy consumption in my DCS infrastructure?
A: Yes—the AIP504-11 S1 consumes only 8W compared to 15-20W for legacy coupler models, reducing annual energy costs by approximately $12-18 per module (based on $0.12/kWh industrial rates). In large installations with 50+ couplers, this translates to $600-900 annual savings plus reduced cooling load on control room HVAC systems.

Q: What are the installation requirements for hot-swapping this coupler?
A: Hot-swap capability requires CENTUM VP R6.01 or later firmware with redundant coupler configuration enabled. Before removal, verify the backup coupler shows "Active" status via LED indicators. Insertion/extraction forces comply with IEC 61076 standards—no special tools required. Detailed procedures are provided in Section 4.3 of the installation manual.

Q: Does the AIP504-11 S1 support remote monitoring and diagnostics?
A: Absolutely. The coupler exposes diagnostic data via SNMP MIBs and Yokogawa's proprietary Vnet/IP protocol. Integrate with Exaquantum or third-party SCADA platforms to monitor port status, packet error rates, temperature, and power supply voltage in real-time. Email/SMS alarm notifications can be configured for fault conditions.

Q: How do I verify compatibility with my current network switches?
A: The AIP504-11 S1 complies with IEEE 802.3 Ethernet standards and works with any managed/unmanaged switch supporting 100BASE-TX. For optimal performance, use industrial-grade switches with IGMP snooping, port mirroring, and QoS capabilities. Yokogawa recommends Cisco IE-2000, Hirschmann MACH, or Moxa EDS-series switches. Contact us for validated switch compatibility matrix.

Take the Next Step

Ready to eliminate network vulnerabilities in your DCS infrastructure? Our application engineers are standing by to review your system architecture, recommend optimal coupler placement, and provide detailed ROI calculations based on your uptime improvement targets. Request a technical consultation today or order your AIP504-11 S1 Vnet Coupler with confidence backed by our 24-month warranty and expert support.
