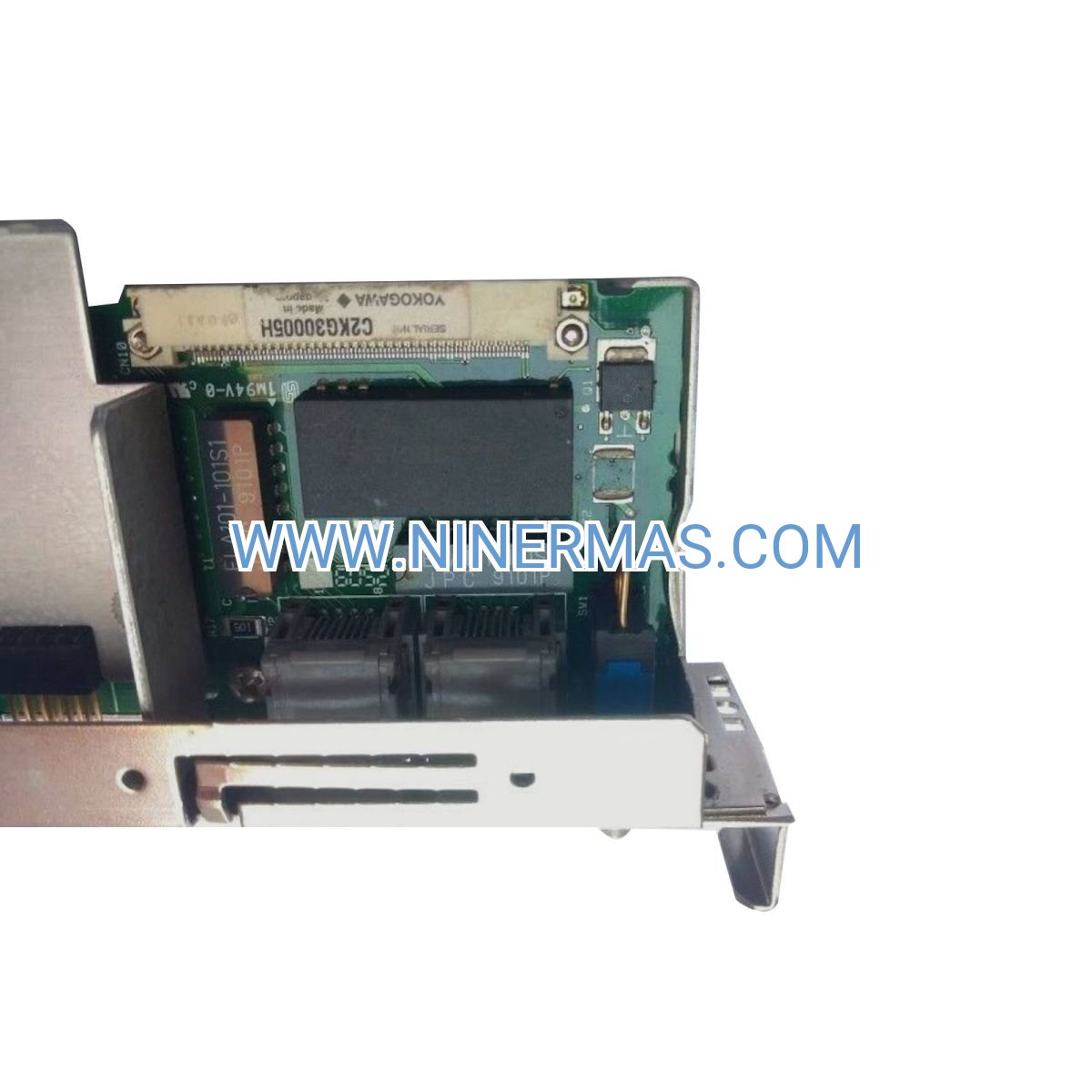

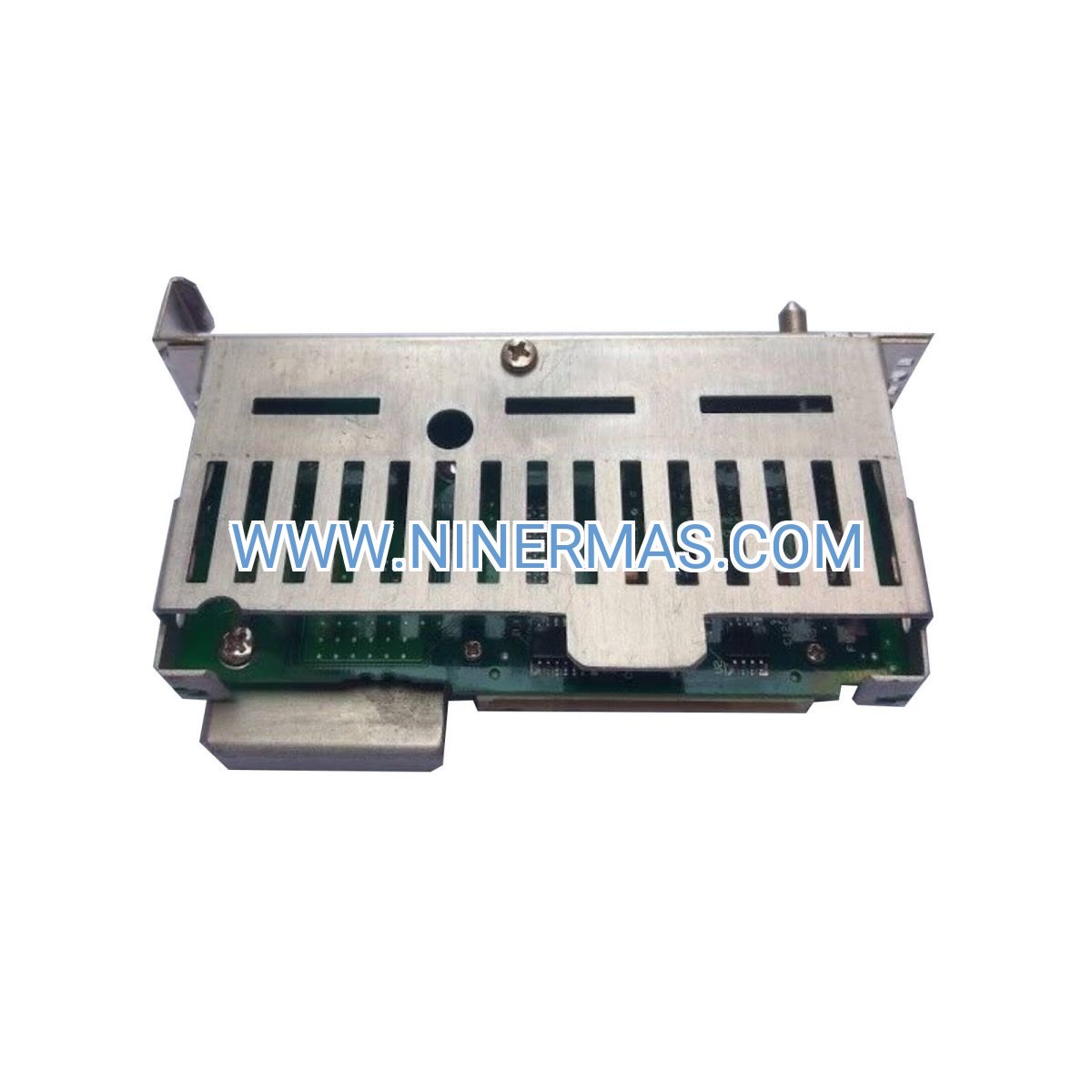

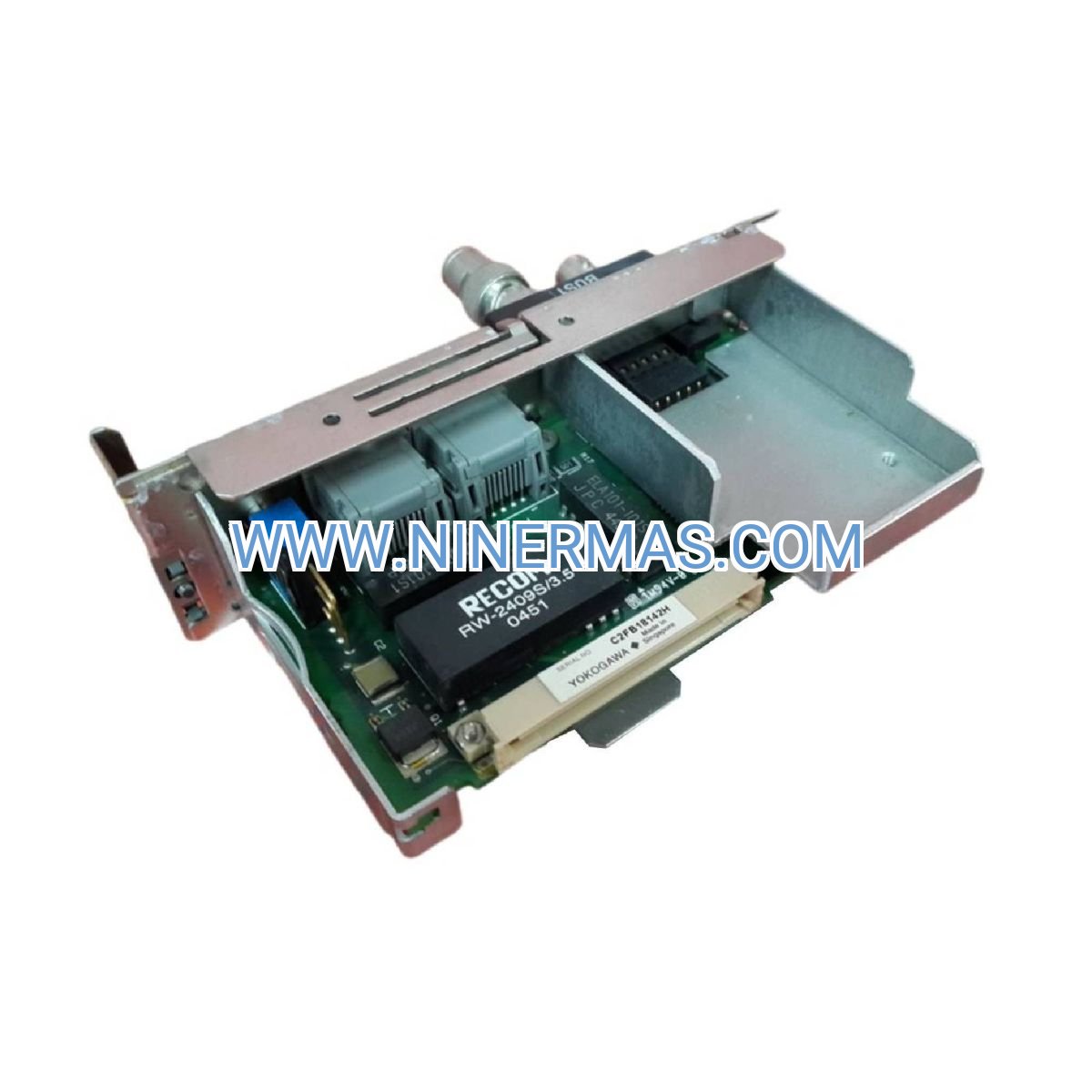

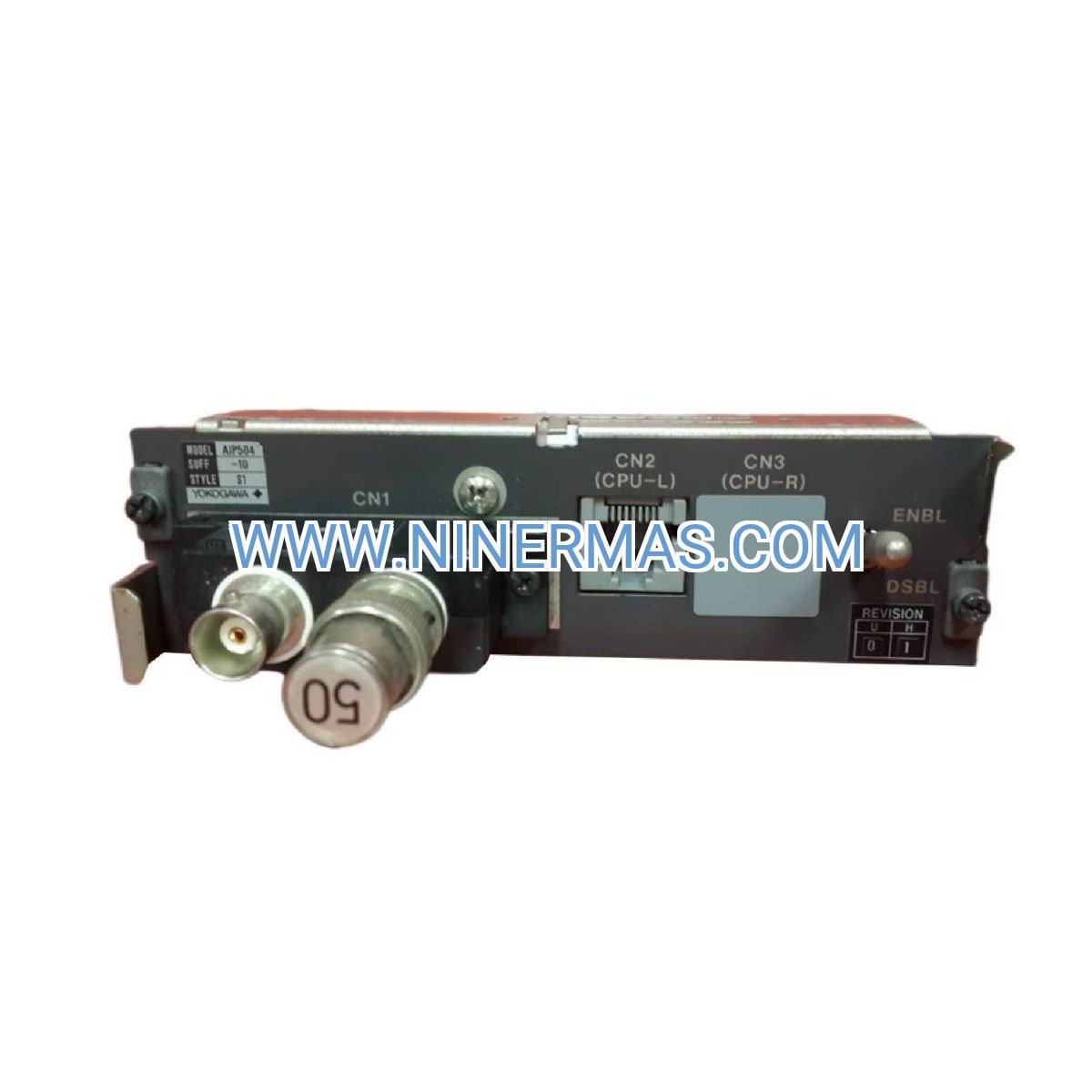

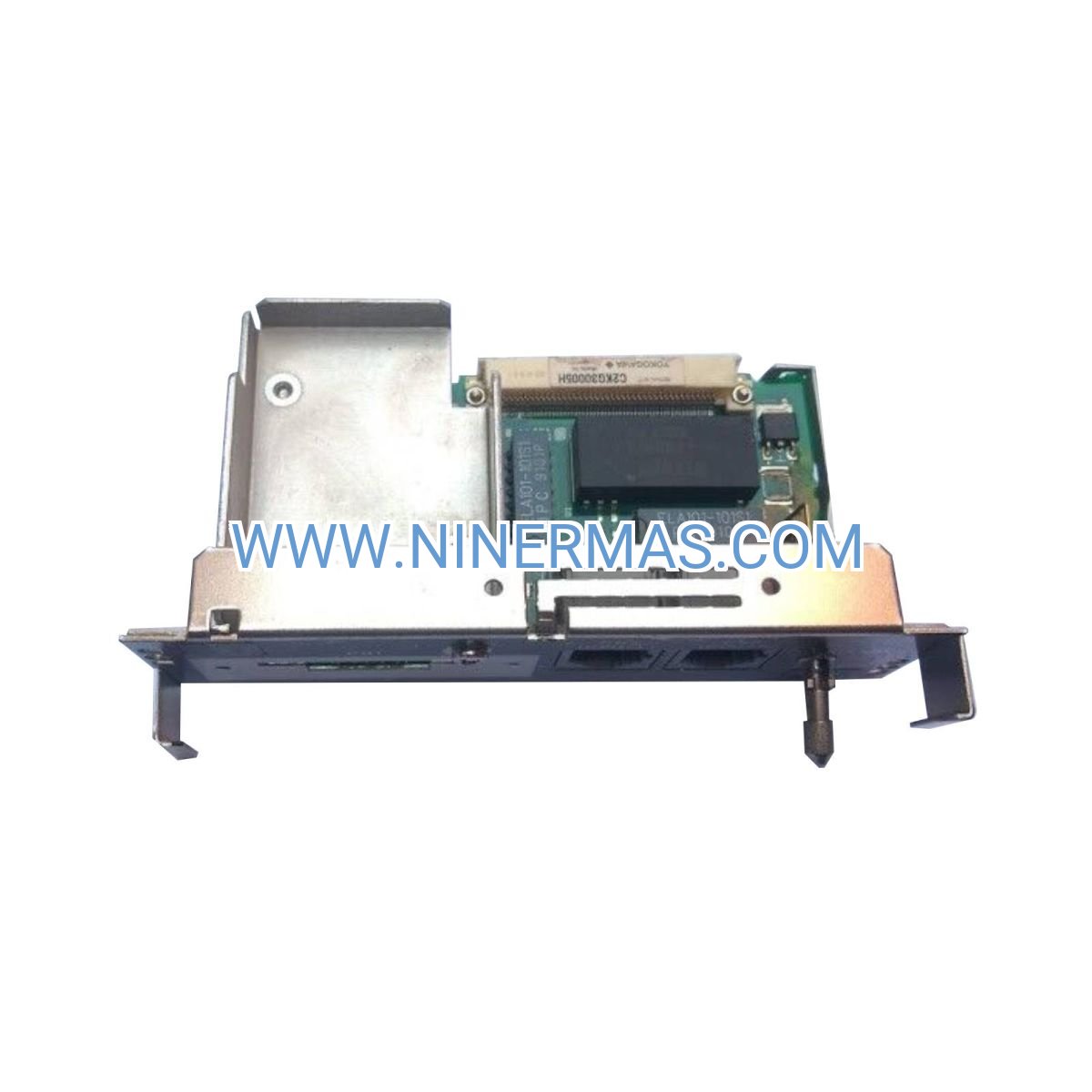

AIP504-10 Network Coupler (Industrial-Grade V-Net Interface Module)

The AIP504-10 represents Yokogawa's proven solution for establishing deterministic, high-throughput communication links within CENTUM CS distributed control architectures. This network coupler module bridges field control units, operator workstations, and engineering consoles through V-Net protocol, delivering microsecond-level response times critical for process safety and production continuity. Designed for 24/7 operation in harsh industrial environments, the AIP504-10 combines compact DIN-rail mounting with hot-swappable serviceability, minimizing planned and unplanned downtime across oil refineries, chemical plants, power stations, and manufacturing facilities.

Process engineers and automation specialists rely on the AIP504-10 to solve network bottlenecks, eliminate single points of failure, and future-proof legacy CENTUM CS installations. Whether you're scaling an existing DCS network or migrating from obsolete communication hardware, this coupler unit integrates seamlessly with Yokogawa's ecosystem while maintaining backward compatibility with earlier CENTUM CS generations.

Key differentiators include built-in diagnostics for proactive fault detection, support for both simplex and redundant network topologies, and field-proven reliability exceeding 100,000 hours MTBF. The AIP504-10 accelerates commissioning timelines, reduces engineering overhead, and ensures compliance with IEC 61508 functional safety standards—making it the preferred choice for mission-critical process control applications worldwide.

Core Features & Business Value

→ 10 Mbps Deterministic Data Bus
Guaranteed bandwidth allocation ensures real-time process data reaches operator stations within 50 ms, enabling faster decision-making and tighter loop control compared to Ethernet-based alternatives.

✓ Redundant Network Architecture Support
Deploy dual-channel configurations for automatic failover protection—critical for continuous processes where network downtime translates to production losses exceeding $50,000/hour.

✓ Hot-Swappable Modular Design
Replace faulty units without system shutdown or process interruption, reducing maintenance windows from hours to minutes and improving overall equipment effectiveness (OEE) by 8-12%.

→ Integrated Diagnostic LEDs & Self-Test
Visual status indicators and automatic health checks simplify troubleshooting, cutting mean time to repair (MTTR) by up to 40% versus legacy modules requiring external test equipment.

✓ Wide Operating Temperature Range (0°C to 55°C)
Proven performance in control rooms lacking climate control, offshore platforms, and tropical climates—eliminating the need for costly HVAC upgrades.

→ Backward Compatible with CENTUM CS Legacy Systems
Protect existing infrastructure investments while gaining access to modern diagnostic tools and network management features unavailable in first-generation V-Net hardware.

Typical Application Scenarios

Upstream Oil & Gas Production Facilities
Challenge: Remote wellhead platforms require reliable communication between subsea control modules and topside SCADA systems across distances exceeding 500 meters.
Solution: AIP504-10 couplers maintain signal integrity over extended V-Net cable runs, supporting real-time monitoring of 200+ I/O points per network segment while withstanding vibration, humidity, and temperature extremes.
Outcome: 99.7% network uptime, 30% reduction in false alarms, and compliance with API RP 14C safety instrumented system requirements.

Batch Chemical Manufacturing
Challenge: Recipe-driven processes demand synchronized data exchange between reactor controllers, dosing pumps, and quality analyzers to maintain product specifications within ±2% tolerance.
Solution: Redundant AIP504-10 pairs ensure uninterrupted communication during batch transitions, equipment changeovers, and maintenance activities—preventing costly off-spec production runs.
Outcome: Batch cycle time reduced by 15 minutes, material waste decreased 18%, and full audit trail compliance for FDA 21 CFR Part 11 validation.

Combined-Cycle Power Generation
Challenge: Gas turbine control systems require sub-100 ms response times for load balancing, emissions monitoring, and protective relay coordination across multi-unit plants.
Solution: AIP504-10 modules create high-speed data highways linking turbine controllers, heat recovery steam generators (HRSG), and grid synchronization equipment without introducing latency.
Outcome: Improved load-following capability, 5% increase in thermal efficiency, and zero network-related trips over 18-month evaluation period.

Pulp & Paper Machine Drives
Challenge: Coordinated speed control of 40+ section drives demands precise timing synchronization to prevent web breaks and maintain sheet quality at production speeds exceeding 1,200 m/min.
Solution: V-Net couplers distribute setpoint updates and encoder feedback across the machine control network with jitter below 5 ms, enabling tight cross-directional profile control.
Outcome: Web break frequency reduced 60%, grade transition time cut from 45 to 28 minutes, and annual savings of $340,000 in reduced downtime.

Municipal Water Treatment SCADA
Challenge: Multi-site water distribution networks spanning 80+ km require centralized monitoring of pump stations, reservoir levels, and chlorination systems with minimal infrastructure cost.
Solution: AIP504-10 units aggregate data from remote terminal units (RTUs) onto a single V-Net backbone, eliminating the need for dedicated fiber-optic links between every site.
Outcome: 55% reduction in communication infrastructure costs, real-time alarm response, and compliance with AWWA cybersecurity guidelines.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AIP504-10 when your CENTUM CS network requires proven V-Net compatibility, deterministic performance for time-critical loops, or when upgrading from earlier AIP504-00 series modules. For new installations considering migration to CENTUM VP, consult with our application engineers to evaluate hybrid network architectures combining V-Net and Ethernet/IP.

Extended Functions

Network Diagnostics & Performance Monitoring
Built-in counters track packet errors, retransmissions, and bandwidth utilization—exportable to Yokogawa's Exaquantum historian for trend analysis and predictive maintenance scheduling.

Firmware Update Capability
Field-upgradable firmware via V-Net interface enables deployment of security patches and feature enhancements without hardware replacement, extending product lifecycle beyond 15 years.

Third-Party Integration Options
OPC DA/UA gateways available for bridging V-Net data to enterprise MES/ERP systems, enabling real-time production reporting and advanced analytics without compromising control network security.

Custom Configuration Services
Factory pre-configuration available for large-scale deployments—modules ship with customer-specific node addresses, redundancy settings, and diagnostic thresholds pre-loaded to accelerate commissioning.

Delivery & Service Assurance

Lead Time: Standard units ship within 3-5 business days from our regional distribution centers in North America, Europe, and Asia-Pacific. Custom-configured modules require 10-15 business days for factory programming and testing.

Warranty Coverage: 24-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty plans available for up to 60 months, including advance replacement and on-site spares management.

Technical Support: Lifetime access to our application engineering team for configuration assistance, troubleshooting, and network optimization. Phone, email, and remote desktop support available 24/7/365 for critical process environments.

Documentation Package: Each AIP504-10 ships with installation manual, wiring diagrams, configuration software (CD-ROM + download link), calibration certificate, and compliance declarations (CE, UL, RoHS). CAD drawings and 3D STEP models available for panel design integration.

Frequently Asked Questions

Can the AIP504-10 interface with non-Yokogawa PLCs or third-party SCADA platforms?
The AIP504-10 operates exclusively within Yokogawa CENTUM CS ecosystems using proprietary V-Net protocol. For integration with Allen-Bradley, Siemens, or Schneider Electric controllers, consider Yokogawa's Ethernet/IP or Modbus TCP gateway modules, or contact our integration specialists for custom protocol conversion solutions.

What is the maximum distance between AIP504-10 modules in a redundant network configuration?
Single-segment V-Net networks support up to 500 meters of cable between couplers. For installations exceeding this distance, deploy V-Net repeaters at 500 m intervals to extend total network reach to 2 km. Redundant configurations require dual cable paths; consult our network design guide for fiber-optic extender options in applications beyond 2 km.

How does the AIP504-10 improve energy efficiency compared to older communication modules?
The AIP504-10 consumes 8 W typical power versus 15-18 W for legacy AIP504-00 series modules—a 45% reduction. In a 100-node network, this translates to 700 W lower power draw, reducing cooling loads and delivering annual energy savings of approximately $850 (based on $0.12/kWh industrial rates).

What are the installation requirements for mounting and wiring the AIP504-10?
The module mounts on standard 35 mm DIN rail per EN 50022. Minimum clearances: 50 mm above/below for ventilation, 30 mm left/right for cable routing. Wiring requires 18-22 AWG shielded twisted-pair for V-Net connections and 16-20 AWG for 24 VDC power supply. Torque terminal screws to 0.5-0.6 N⋅m; detailed installation procedures included in user manual.

Does the AIP504-10 support remote monitoring and diagnostics for predictive maintenance?
Yes. The module exposes diagnostic parameters (network utilization, error counters, temperature) via V-Net to CENTUM CS operator stations. For advanced analytics, integrate with Yokogawa Sushi Sensor or Exaquantum Plant Information Management System (PIMS) to establish baseline performance profiles and trigger maintenance alerts when degradation trends are detected.

Is the AIP504-10 suitable for SIL-rated safety instrumented systems (SIS)?
The AIP504-10 is designed for basic process control (BPCS) applications and is not certified for use in safety instrumented functions per IEC 61508/61511. For safety-critical communication, specify Yokogawa's ProSafe-RS safety controller platform with dedicated safety network modules certified to SIL 3.

Take the Next Step

Ready to eliminate network bottlenecks and future-proof your CENTUM CS infrastructure? Our automation specialists are standing by to provide technical consultation, generate custom quotations, and coordinate factory acceptance testing for your specific application. Contact us today to discuss volume pricing, spare parts programs, and integration services tailored to your project timeline.

Request a quote now or call our technical sales team to schedule a network assessment and receive a complimentary system architecture review.
