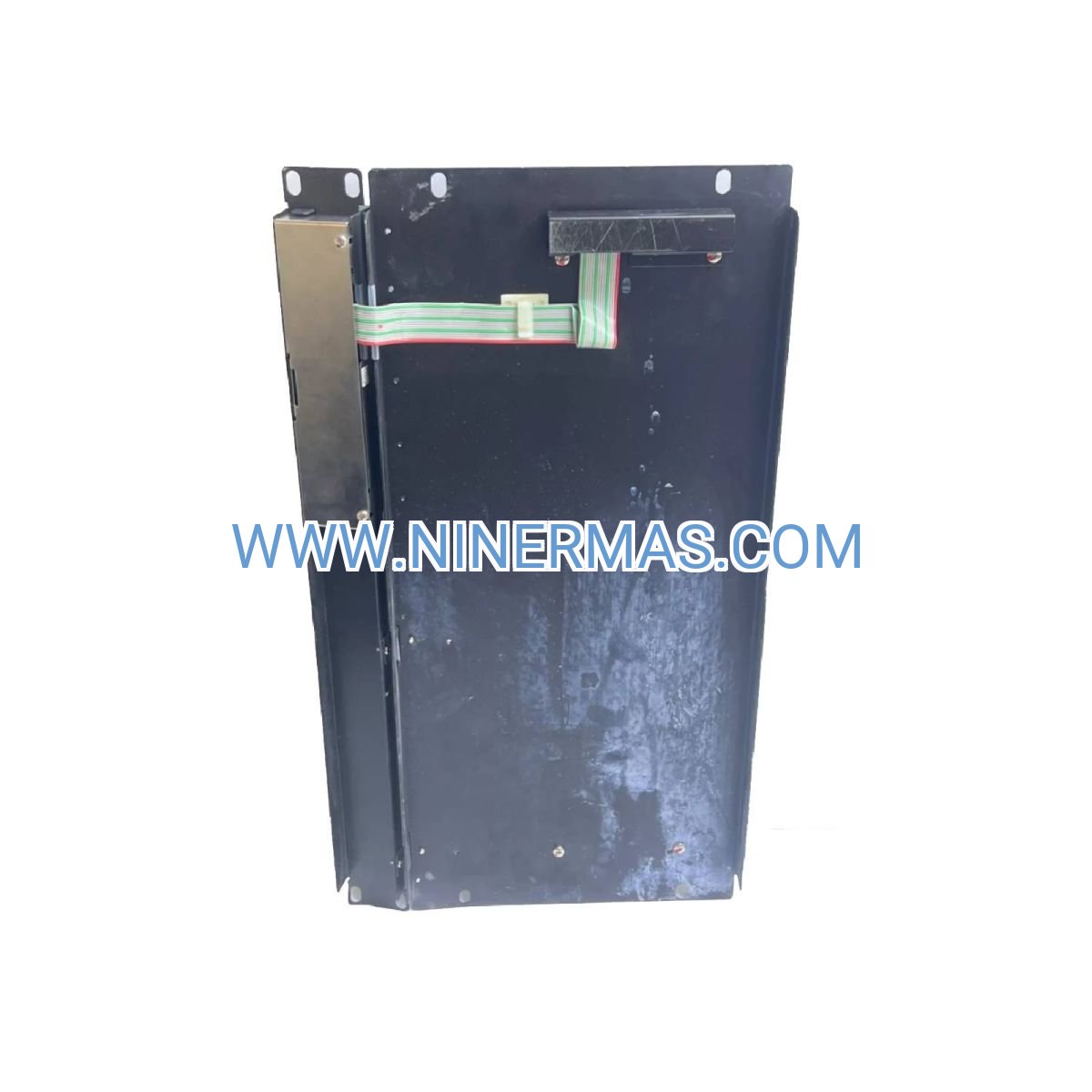

AFV30D-S41251 S2 Field Control Processor (Industrial-Grade DCS Brain)

The AFV30D-S41251 S2 represents YOKOGAWA's second-generation field control processor engineered for continuous process industries requiring deterministic control execution and fault-tolerant operation. This CPU module anchors the Field Control Station within CENTUM VP distributed control architectures, delivering real-time regulatory control, sequential automation, and data acquisition across oil refineries, chemical plants, power stations, and pharmaceutical facilities.

Designed for environments where unplanned downtime translates to millions in lost revenue, this processor addresses three critical operational challenges: maintaining control loop integrity during component failures, scaling I/O capacity without performance degradation, and enabling maintenance activities without process interruption. Plant engineers and automation integrators deploy this module when system availability requirements exceed 99.99% and control response times must remain within millisecond tolerances.

With dual-redundant network interfaces, hot-swappable architecture, and 72-hour battery-backed operation, the AFV30D-S41251 S2 ensures your critical processes continue running even when infrastructure components fail. Whether you're modernizing legacy DCS installations or building greenfield automation systems, this processor provides the computational foundation for reliable industrial control.

Core Capabilities & Technical Advantages

→ Dual-Redundant Processing Architecture
Hot-standby CPU pairing with automatic failover ensures zero control interruption during hardware faults. Cross-link synchronization maintains identical process states between primary and backup processors, enabling bumpless transfer in under 100 milliseconds when switchover occurs.

→ High-Density I/O Management
Handles up to 1,024 field I/O points per FCS through Enhanced Serial Bus communication. Distributed I/O architecture reduces cabinet wiring by 40% compared to centralized designs while maintaining deterministic scan cycles between 100ms and 10 seconds based on application requirements.

✓ Extended Battery Backup Operation
Integrated supercapacitor system preserves control execution for 72 hours during complete power loss when paired with optional battery modules. Critical alarm states, process variable trends, and control outputs remain active, preventing unsafe process conditions during utility outages.

✓ Hot-Swap Maintenance Capability
Field-replaceable design allows technicians to exchange faulty modules during full production operation. LED diagnostic indicators and built-in self-test routines identify failing components before they impact process control, reducing mean time to repair by 60%.

✓ Multi-Protocol Network Integration
Dual V-Net/IP Ethernet interfaces provide 100Mbps connectivity to HMI workstations, engineering consoles, and enterprise historians. Native support for OPC UA, Modbus TCP, and FOUNDATION Fieldbus enables integration with third-party analyzers, drives, and safety systems.

✓ IEC 61131-3 Programming Environment
Develop control strategies using Function Block Diagram, Ladder Logic, or Structured Text within YOKOGAWA's Engineering Studio. Pre-validated library contains 200+ regulatory control algorithms including cascade PID, ratio control, split-range output, and model predictive functions.

Application Scenarios Across Process Industries

Refinery Crude Distillation Control
Manages 50+ control loops across atmospheric and vacuum distillation units, coordinating feed preheating, reflux ratio optimization, and product draw-off sequencing. Addresses the challenge of maintaining product specification during crude slate changes while maximizing throughput. Delivers ±0.5°C temperature control accuracy on critical separation stages, reducing off-spec production by 15%.

Chemical Reactor Batch Automation
Executes ISA-88 compliant batch recipes for specialty chemical production, controlling ingredient charging sequences, exothermic reaction cooling, and product discharge operations. Solves the problem of recipe variability and operator error in multi-product facilities. Achieves batch cycle time reduction of 8-12% through optimized transition logic and parallel operation sequencing.

Power Plant Boiler-Turbine Coordination
Coordinates combustion air control, feedwater regulation, and steam temperature management across 500MW generation units. Tackles the complexity of load-following operation while maintaining emission compliance and equipment protection. Enables 3% improvement in thermal efficiency through advanced feedforward trim and cross-limiting strategies.

Pharmaceutical Clean Room Environmental Control
Regulates HVAC systems maintaining ISO Class 5 cleanroom conditions with ±0.3°C temperature and ±2% RH humidity tolerances. Addresses FDA 21 CFR Part 11 compliance requirements for electronic records and audit trails. Provides validated control performance with full change management documentation and electronic signature workflows.

Water Treatment Chemical Dosing Systems
Controls coagulant, pH adjustment, and disinfection chemical feed pumps based on real-time water quality measurements. Solves the challenge of variable influent conditions and regulatory discharge limits. Reduces chemical consumption by 18-25% through model-based feedforward control and adaptive tuning algorithms.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the AFV30D-S41251 S2 when your application requires up to 1,024 I/O points with standard control cycle performance. For larger systems exceeding 2,000 I/O points, consider the AFV30D-S41252 duplexed configuration. Applications demanding sub-50ms control cycles should evaluate the AFV40D high-performance processor variant. Ensure your V-Net/IP network infrastructure supports 100Mbps switched Ethernet with IGMP snooping for optimal deterministic performance.

Advanced Integration & Expansion Options

IoT Connectivity & Cloud Integration: Native OPC UA server functionality enables secure data streaming to cloud-based analytics platforms including AWS IoT, Azure Industrial IoT, and Google Cloud IoT Core. Publish process variables, alarm events, and equipment health metrics to enterprise data lakes for machine learning model development and predictive maintenance applications.

Cybersecurity Hardening: Implements IEC 62443 security standards with role-based access control, encrypted network communication, and audit logging of all configuration changes. Supports network segmentation through VLAN tagging and integrates with industrial firewalls for defense-in-depth architectures.

Custom Function Block Development: YOKOGAWA's SDK allows creation of proprietary control algorithms in C/C++ for specialized applications. Compile custom function blocks with real-time operating system integration, then deploy across multiple FCS units through centralized engineering tools.

Delivery Timeline & Service Commitments

Standard Delivery: 4-6 weeks for factory-fresh units with full factory acceptance testing documentation
Express Delivery: 10-14 business days for in-stock inventory (subject to availability)
Custom Configuration: 8-10 weeks for pre-loaded application programs and customer-specific firmware

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 60 months with advanced replacement service.

Technical Support: Access to YOKOGAWA-certified application engineers for system design consultation, commissioning assistance, and troubleshooting support. 24/7 emergency hotline for critical production issues with 4-hour response commitment.

Documentation Package: Includes hardware installation manual, programming reference guide, network configuration procedures, and preventive maintenance schedules. CAD drawings and 3D STEP models provided for panel layout design.

Frequently Asked Questions

How does the AFV30D-S41251 S2 integrate with existing CENTUM CS 3000 systems during migration projects?
The S2 processor maintains backward compatibility with CS 3000 I/O modules through ESB protocol translation. Migration strategies typically involve parallel operation where new AFV30D FCS units run alongside legacy CP451 processors, allowing phased cutover of control loops without full system shutdown. YOKOGAWA's migration tools automatically convert CS 3000 control logic to CENTUM VP format with 95%+ fidelity.

What I/O module capacity planning should be considered when specifying this processor?
Allocate 70-80% of the 1,024 I/O point maximum for initial installation to preserve expansion capacity. Each analog input module consumes 16 I/O points, digital input modules use 32 points, and analog output modules require 8 points. Factor in 15-20% overhead for diagnostic points, virtual I/O, and communication channel status monitoring.

Can the processor support energy monitoring and power quality analysis for ISO 50001 compliance?
Yes, through integration with YOKOGAWA's STARDOM FCN/FCJ controllers or third-party power meters via Modbus TCP. The AFV30D can collect kWh consumption, power factor, and harmonic distortion data at 1-second intervals, then calculate specific energy consumption (SEC) metrics and generate EnPI reports required for ISO 50001 energy management certification.

What installation environment requirements must be met for reliable long-term operation?
Mount the processor in climate-controlled equipment rooms maintaining 20-25°C ambient temperature with filtered ventilation to prevent dust accumulation. Ensure cabinet design provides 100mm clearance above and below the module for convection cooling. Install surge protection devices on all network cables and maintain separate grounding for control system and power distribution to prevent ground loop interference.

How does firmware update procedure work without interrupting active control loops?
In redundant configurations, update the standby processor first while the primary continues control execution. After validation, force switchover to the updated standby, then update the former primary. For simplex installations, YOKOGAWA's online update feature allows firmware patching during operation with automatic rollback if integrity checks fail, though this requires control cycle extension to 500ms during the 3-5 minute update window.

What remote monitoring capabilities are available for predictive maintenance programs?
The processor continuously logs CPU utilization, memory fragmentation, network packet loss, and I/O communication errors to internal diagnostics buffers. Export these metrics via OPC UA to condition monitoring platforms that apply machine learning algorithms to detect degradation patterns 4-8 weeks before failure. YOKOGAWA's Sushi Sensor technology can also be retrofitted for vibration and temperature monitoring of the physical module.

Start Your CENTUM VP System Design

Ready to specify the AFV30D-S41251 S2 for your next automation project? Our application engineering team provides complimentary system architecture reviews, I/O capacity calculations, and network topology design for qualified projects. Contact us with your process requirements, existing infrastructure details, and timeline constraints to receive a detailed technical proposal within 48 hours.

For immediate technical inquiries, reach our industrial automation specialists at sale@ninermas.com or call +0086 187 5021 5667 during business hours (GMT+8). Emergency support for existing installations available 24/7 through our priority service line.
