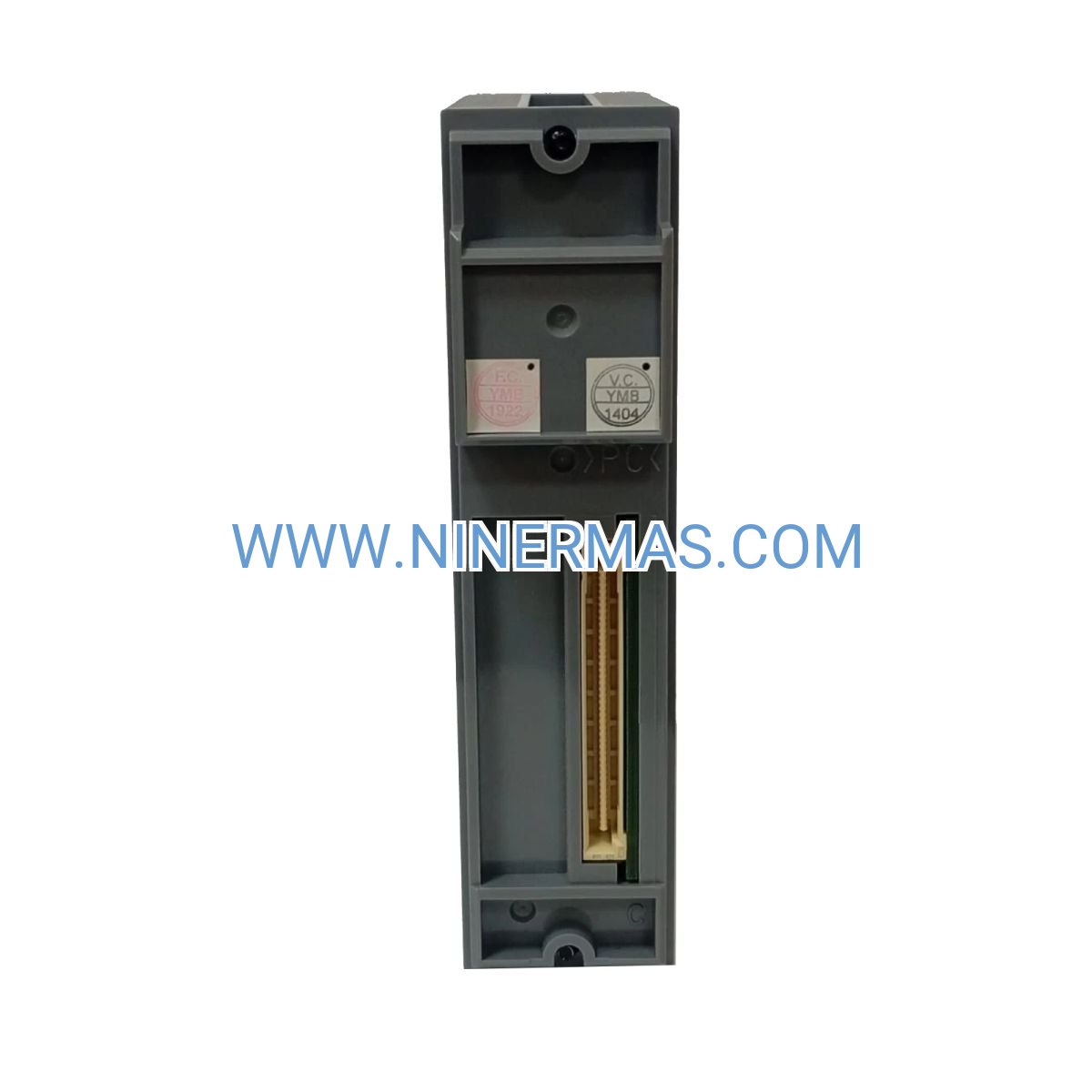

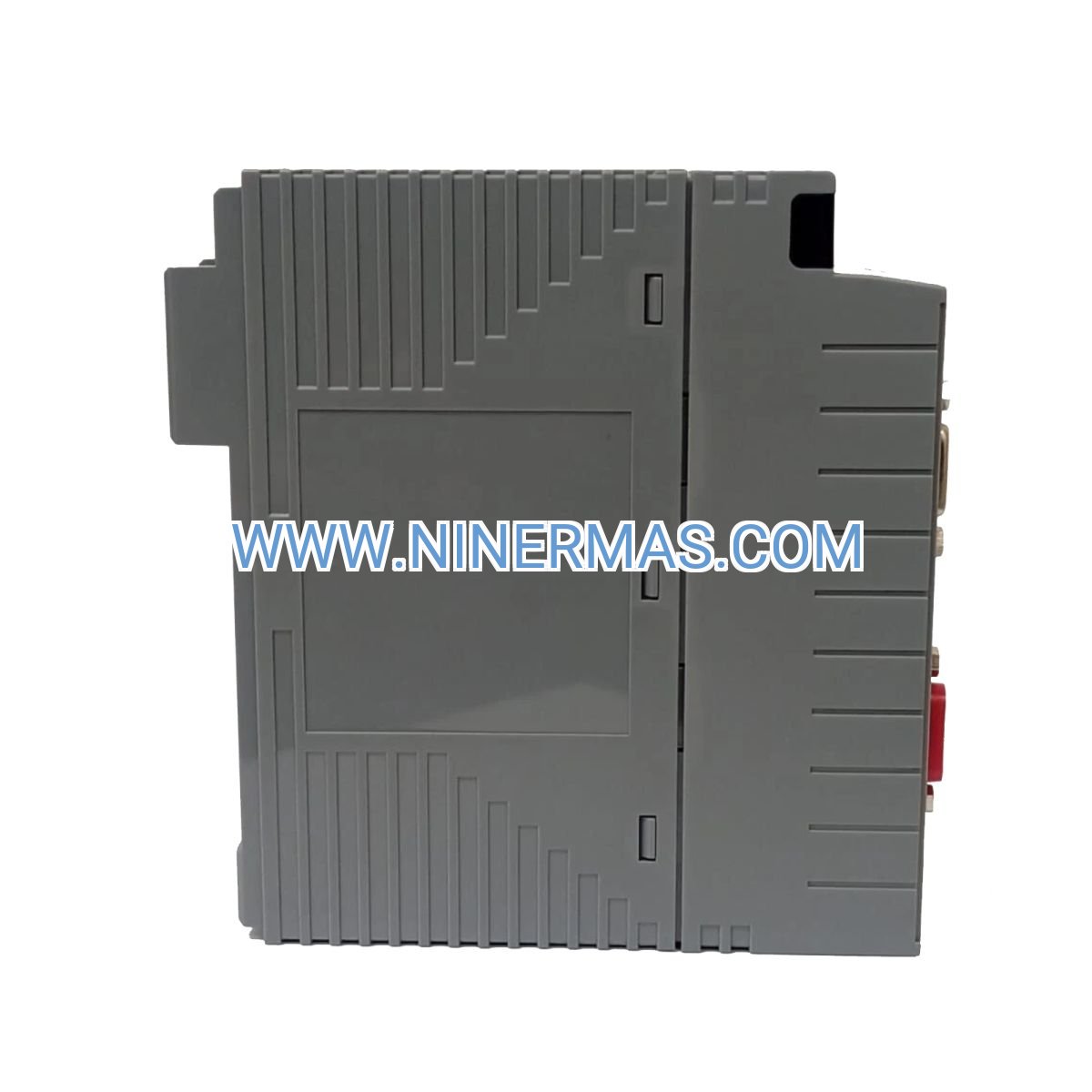

ADV561-P50 S2 Digital Output Module (Industrial-Grade 64-Channel Controller)

The ADV561-P50 S2 represents Yokogawa's flagship solution for high-density digital output control in mission-critical automation systems. Engineered with 64 isolated 24VDC channels, this module delivers exceptional reliability for valve actuation, relay switching, and precision timing applications across process industries.

Designed for seamless integration with CENTUM VP and CENTUM CS 3000 distributed control platforms, the ADV561-P50 S2 addresses the growing demand for compact, high-channel-count I/O in space-constrained control cabinets. Its dual-mode output capability—supporting both pulse and time-proportional control—eliminates the need for separate analog modules in temperature regulation and flow modulation scenarios.

Whether you're upgrading legacy relay panels, expanding DCS capacity, or building greenfield automation infrastructure, this module provides the performance density and diagnostic intelligence required for Industry 4.0-ready control systems. Contact our technical team for application-specific configuration guidance.

Core Features & Benefits

✓ 64 Isolated Output Channels
Maximize cabinet space efficiency with 2x the density of standard 32-channel modules while maintaining full channel-to-channel isolation for superior noise immunity and fault containment.

✓ Dual Output Mode Architecture
Switch between pulse output (for event-driven control) and time-proportional output (for analog-like modulation) without hardware changes—reducing spare parts inventory and simplifying maintenance.

✓ Hot-Swappable Design
Replace modules during live operation without system shutdown, minimizing unplanned downtime and enabling proactive maintenance strategies that reduce annual maintenance costs by 15-25%.

✓ Advanced Diagnostics Integration
Real-time channel health monitoring through DCS interface provides instant fault detection, reducing troubleshooting time from hours to minutes and preventing cascading failures in critical loops.

✓ Industrial-Hardened Construction
Operate reliably in -20°C to +60°C environments with vibration resistance and conformal coating protection—proven in offshore platforms, desert refineries, and arctic mining operations.

✓ Backward-Compatible Protocol
Drop-in replacement for legacy ADV series modules with automatic configuration migration, protecting your existing automation investment while gaining next-generation performance.

Typical Application Scenarios

→ Chemical Batch Processing
Control up to 64 pneumatic valves in multi-stage reactor systems with microsecond-precision sequencing. Eliminates valve timing errors that cause off-spec batches, improving first-pass yield by 8-12% in specialty chemical production.

→ Oil & Gas Wellhead Automation
Manage safety shutdown valves, choke actuators, and separator controls across distributed wellpad installations. Isolated outputs prevent ground loop interference common in long cable runs (500m+), ensuring fail-safe operation in SIL-rated applications.

→ Power Generation Auxiliary Systems
Operate boiler feedwater pumps, cooling tower fans, and fuel handling equipment with time-proportional outputs that reduce mechanical wear. Extends actuator service life 30-40% compared to on/off control strategies.

→ Pharmaceutical Clean Room HVAC
Modulate damper actuators and filter bypass valves using time-proportional mode for precise airflow control. Maintains ±0.5°C temperature stability required for GMP compliance without costly analog I/O expansion.

→ Water Treatment Dosing Systems
Pulse-control chemical metering pumps with 10ms resolution for accurate coagulant and disinfectant injection. Reduces chemical waste by 18-22% while maintaining regulatory compliance for discharge parameters.

Technical Parameters & Selection Guide

Selection Criteria: Choose the ADV561-P50 S2 when your application requires more than 32 digital outputs in a single control loop or when cabinet space is limited. For applications with mixed I/O requirements, pair with ADV151-P53 digital input modules and AAI543 analog modules for complete process coverage. Consult our I/O density calculator tool to optimize module selection for your specific panel layout.

Extended Functions

IoT & Remote Monitoring Integration
When paired with Yokogawa's STARDOM FCN/FCJ controllers or e-RT3 Plus edge gateways, output status data streams to cloud platforms via OPC UA or MQTT protocols. Enable predictive maintenance analytics by tracking output switching frequency, load current trends, and thermal performance metrics.

Redundancy Configuration
Deploy in dual-redundant pairs for SIL 2/3 safety applications using Yokogawa's ProSafe-RS safety system architecture. Automatic failover occurs within 100ms, maintaining continuous control during module replacement or failure scenarios.

Custom Output Profiles
Factory-configurable output characteristics available for specialized loads: slow-start profiles for motor starters, PWM frequency adjustment (100Hz-10kHz) for proportional valves, and synchronized multi-channel sequencing for coordinated actuator control.

Delivery & Service Assurance

Lead Time
→ Standard Configuration: 3-5 business days (in-stock items)
→ Custom Configuration: 2-3 weeks (factory programming required)
→ Express Service: 24-48 hours available for critical shutdowns

Warranty Coverage
→ 18-month manufacturer warranty from shipment date
→ Extended 36-month warranty available with annual calibration service
→ Lifetime technical support for registered installations

Technical Support
→ Pre-sales application engineering consultation
→ DCS integration assistance and configuration file templates
→ On-site commissioning support (available in major industrial regions)
→ 24/7 emergency hotline for production-critical issues

Documentation Package
→ Installation manual with wiring diagrams (PDF + printed)
→ Configuration software and device drivers (USB/download)
→ Compliance certificates (CE, UL, ATEX as applicable)
→ Calibration test report and traceability documentation

Frequently Asked Questions

Q: What communication protocols does the ADV561-P50 S2 support for system integration?
A: The module communicates via Yokogawa's proprietary Vnet/IP high-speed backplane protocol when installed in CENTUM VP or CS 3000 systems. For third-party DCS integration, use the AFV30D gateway module which provides Modbus TCP, PROFINET, and EtherNet/IP connectivity. Direct fieldbus connection is not supported—all communication occurs through the DCS controller.

Q: Can I mix pulse and time-proportional outputs on the same module?
A: Yes, output mode is configurable per channel through the DCS engineering interface. You can assign channels 1-32 for pulse output (solenoid valves) while using channels 33-64 for time-proportional control (heating elements) within the same module. Configuration changes take effect immediately without requiring module restart.

Q: What is the maximum cable distance between the module and field devices?
A: For 24VDC loads, maximum recommended cable length is 500 meters using 0.75mm² (18AWG) shielded cable. Longer distances up to 1000m are achievable with 1.5mm² (16AWG) cable and reduced load current (<0.3A per channel). Always calculate voltage drop based on total cable resistance and load current to ensure minimum 21.6VDC at the device terminals.

Q: How does the module handle output short-circuit protection?
A: Each channel features electronic current limiting at 0.6A with automatic retry after fault clearance. Short-circuit events are logged in the DCS alarm history with channel identification. Persistent faults (>10 seconds) trigger channel shutdown with manual reset required through the operator interface. This prevents nuisance trips while protecting module circuitry from sustained overload damage.

Q: Is the ADV561-P50 S2 compatible with legacy CENTUM CS 1000 systems?
A: Direct compatibility requires CENTUM CS 1000 R3.08 or later with Vnet/IP-capable node units. Earlier CS 1000 revisions (R3.05 and below) require AFV10S Vnet-to-Vnet/IP converter modules. For CS 1000 systems approaching end-of-life, we recommend migration planning to CENTUM VP—contact our modernization team for assessment and phased upgrade strategies.

Q: What energy efficiency improvements does time-proportional mode provide?
A: Time-proportional control reduces energy consumption 12-18% in thermal processes by eliminating overshoot and hunting behavior common with on/off control. For example, a 10kW heater controlled at 60% duty cycle consumes 6kW average power with ±2% stability versus 7-8kW average with traditional bang-bang control cycling between 0-100%. Annual energy savings typically offset module cost within 18-24 months in continuous process applications.

Request Your Technical Consultation

Our automation specialists are ready to assist with I/O sizing calculations, panel layout optimization, and DCS integration planning. Contact us today with your project specifications for customized recommendations and competitive pricing on volume orders. Same-day quotations available for standard configurations.
