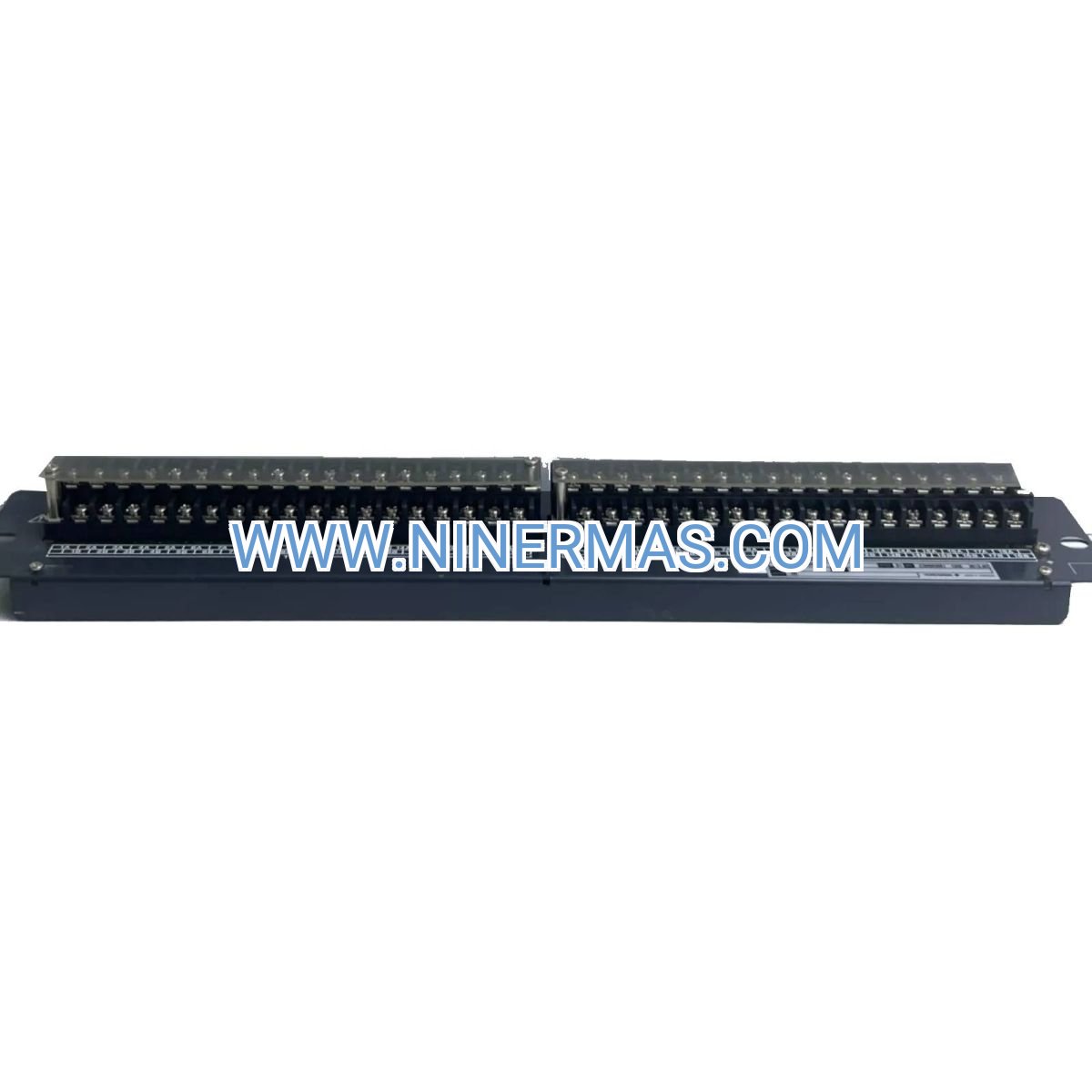

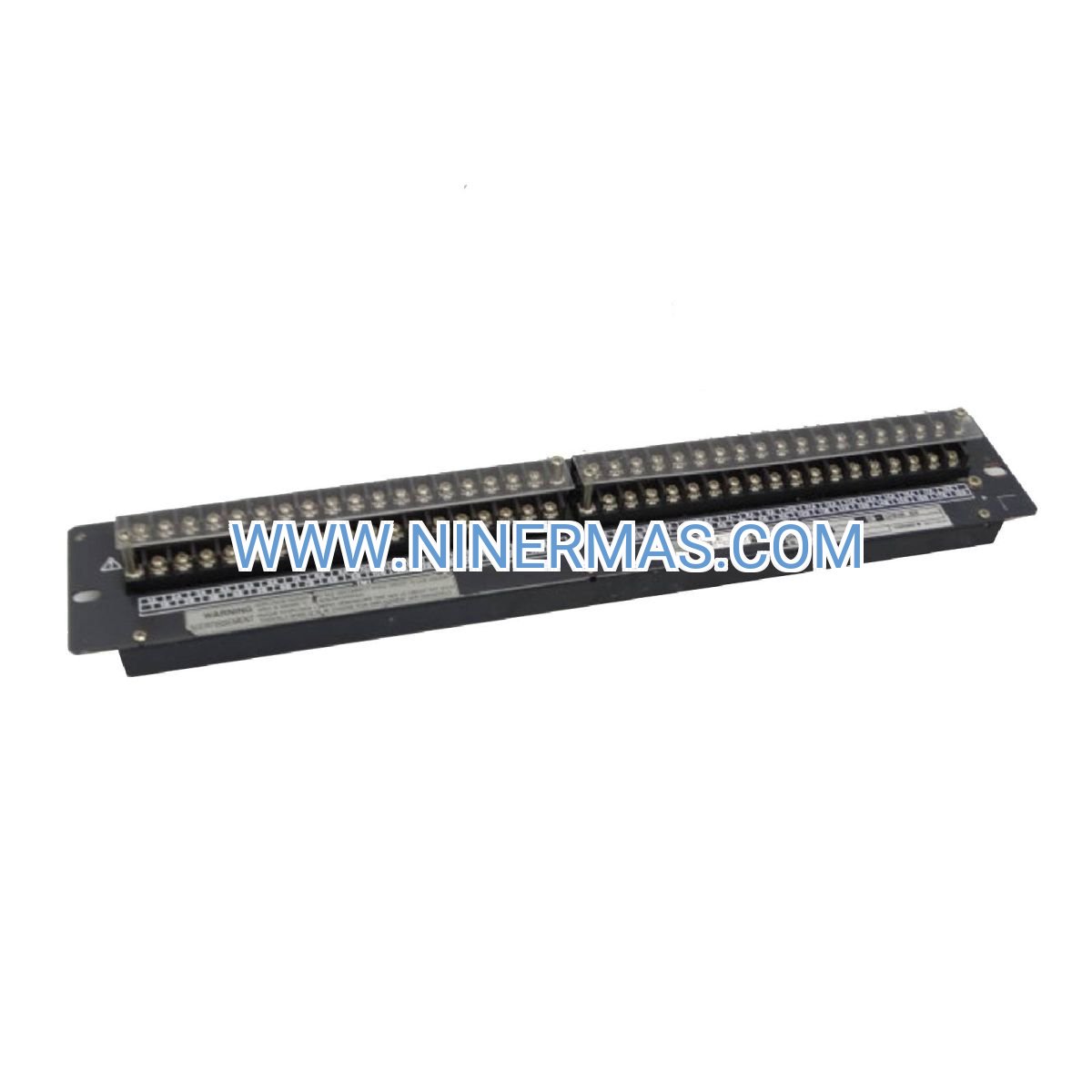

AEA4D-01 Terminal Board (Industrial-Grade Analog Signal Interface)

The AEA4D-01 represents Yokogawa's commitment to precision signal management in distributed control environments. Engineered as a 16-channel terminal interface, this component bridges field instrumentation with CENTUM VP I/O architecture, delivering dependable analog signal routing for process-critical applications. Whether you're upgrading legacy systems or commissioning new installations, the AEA4D-01 provides the connectivity backbone that modern industrial automation demands.

Industrial facilities face mounting pressure to maintain uptime while managing increasingly complex signal networks. The AEA4D-01 addresses this challenge by offering dual redundancy capability, allowing seamless failover between primary and backup modules without process interruption. Process engineers and control system integrators rely on this terminal board to eliminate single points of failure in temperature, pressure, flow, and level measurement circuits across oil refineries, chemical plants, power stations, and pharmaceutical facilities.

What sets the AEA4D-01 apart is its field-proven design that combines robust construction with installation efficiency. Removable terminal blocks enable module swaps without rewiring, color-coded connections reduce commissioning errors by up to 40%, and integrated test points accelerate troubleshooting during startup and maintenance windows. This terminal board doesn't just connect signals—it streamlines your entire I/O lifecycle.

Core Capabilities & Business Value

✓ 16-Channel Analog Capacity
Handle multiple process variables through a single compact interface, reducing cabinet footprint by 30% compared to distributed terminal solutions while maintaining signal integrity across 4-20mA, 1-5VDC, and thermocouple inputs.

→ Dual Redundancy Architecture
Support both single and dual module configurations with automatic switchover logic, ensuring 99.9% uptime in mission-critical loops. Eliminate unplanned downtime costs averaging $260,000 per hour in process industries.

✓ Tool-Free Terminal Blocks
Removable screw terminals allow hot-swappable module replacement during scheduled maintenance, cutting mean time to repair (MTTR) from 45 minutes to under 10 minutes without disturbing field wiring.

→ DIN Rail Mounting System
Standardized mounting interface integrates with existing control cabinet infrastructure, reducing installation labor by 25% and enabling flexible layout optimization for space-constrained environments.

✓ Wide Environmental Range
Operate reliably across -10°C to +55°C with 5-95% RH tolerance, meeting the demanding conditions of outdoor substations, coastal facilities, and high-temperature process areas without additional climate control.

→ Global Safety Certifications
CE, UL, and CSA compliance ensures regulatory acceptance across North America, Europe, and Asia-Pacific markets, accelerating project approvals and reducing certification overhead for multinational deployments.

Industry Applications & Problem Resolution

Oil & Gas Upstream/Downstream Operations
In offshore platforms and refinery units, the AEA4D-01 interfaces with pressure transmitters monitoring separator vessels, temperature sensors tracking distillation columns, and flow meters controlling product blending. The dual redundancy feature prevents production losses during instrument calibration or module failures, maintaining continuous custody transfer accuracy and safety interlock integrity.

Chemical Manufacturing & Batch Processing
Pharmaceutical and specialty chemical plants deploy the AEA4D-01 for reactor temperature profiling, pH monitoring in neutralization tanks, and flow control in dosing systems. The removable terminal design supports FDA 21 CFR Part 11 compliance by enabling calibration verification without system shutdown, while color-coded terminals reduce validation documentation errors.

Power Generation & Utilities
Thermal power stations utilize the AEA4D-01 for turbine vibration monitoring, boiler drum level control, and emissions measurement systems. The wide temperature range accommodates installation near high-heat equipment, and the compact design fits within existing switchgear cabinets during plant modernization projects.

Water Treatment & Environmental Control
Municipal water facilities and industrial wastewater plants connect the AEA4D-01 to dissolved oxygen sensors, turbidity analyzers, and chemical feed pumps. The terminal board's corrosion-resistant construction withstands humid environments, while the standardized CENTUM VP integration simplifies SCADA system expansion.

Food & Beverage Production
Breweries, dairy processors, and beverage bottling lines employ the AEA4D-01 for pasteurization temperature control, CIP system monitoring, and carbonation level management. The UL/CSA certifications meet food safety standards, and the quick-disconnect terminals reduce changeover time between product runs.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the AEA4D-01 when your application requires 16 or fewer analog channels per I/O module location. For systems demanding continuous operation, specify dual redundant module configuration. Verify that your CENTUM VP system runs compatible firmware (R3.08 or later recommended). Consider environmental conditions—installations exceeding 95% RH require additional enclosure protection. For wire gauge compatibility, use 12-24 AWG stranded copper conductors with ferrule terminations for optimal connection reliability.

Advanced Integration Features

CENTUM VP Ecosystem Compatibility
The AEA4D-01 seamlessly integrates with Yokogawa's Vnet/IP field control network, supporting both AAI (Analog Input) and AAO (Analog Output) module families. The terminal board's pin configuration automatically adapts to single or dual module installations, with built-in jumper settings for redundancy mode selection. This flexibility allows system expansion from simplex to redundant architectures without hardware replacement.

Diagnostic & Maintenance Support
Integrated LED indicators provide real-time status feedback for each channel, enabling rapid fault isolation during commissioning and operation. Test points on each terminal block support loop verification using standard multimeters, eliminating the need for specialized diagnostic equipment. The removable terminal design allows pre-wiring and bench testing before field installation, reducing on-site commissioning time by up to 50%.

Customization Options
While the standard AEA4D-01 covers most applications, Yokogawa offers factory customization for unique requirements including conformal coating for corrosive environments, extended temperature ratings for extreme climates, and custom terminal labeling for project-specific documentation standards. Contact our technical team to discuss specialized configurations for your application.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory orders
Express Shipping: Available for urgent project requirements with 24-48 hour dispatch
Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship
Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and integration guidance
Documentation Package: Includes installation manual, wiring diagrams, dimensional drawings, and compliance certificates

All shipments include anti-static packaging, shock-absorbing materials, and moisture barrier protection to ensure product integrity during transit. International orders are accompanied by complete customs documentation and HS code classification for expedited clearance.

Frequently Asked Questions

How does the AEA4D-01 terminal board connect to existing CENTUM VP I/O modules?
The AEA4D-01 features a direct plug-in connector that mates with AAI/AAO series modules. Simply mount the terminal board on DIN rail, insert the I/O module into the terminal board's backplane connector, and secure with the provided retention clips. No additional cabling or adapters are required for the module-to-terminal interface.

What wire gauge and terminal capacity does the AEA4D-01 support?
Each screw terminal accommodates 12-24 AWG wire (0.5-2.5mm²) with recommended torque of 0.5-0.6 N⋅m. For optimal reliability in high-vibration environments, use ferrule-terminated stranded conductors. The terminal blocks accept both solid and stranded wire, though stranded with ferrules is preferred for industrial applications.

Can the AEA4D-01 reduce energy consumption in my control system?
While the terminal board itself is a passive component with negligible power draw, its dual redundancy support enables energy-efficient system designs. By allowing module-level redundancy instead of full system duplication, you can reduce overall power consumption by 15-20% compared to traditional hot-standby architectures while maintaining equivalent reliability.

What installation clearances are required for proper AEA4D-01 operation?
Maintain minimum 50mm clearance above and below the terminal board for adequate ventilation and wire bending radius. Allow 100mm in front for terminal access during maintenance. Side-by-side mounting is permitted with zero spacing when using standard DIN rail. For high-density installations, verify that ambient temperature remains within the -10°C to +55°C operating range.

Does the AEA4D-01 support remote monitoring and diagnostics?
The terminal board itself is a passive interface component, but when paired with CENTUM VP I/O modules, full remote diagnostic capability is available through the Vnet/IP network. Module-level diagnostics include channel health status, loop current monitoring, and fault detection—all accessible via the CENTUM VP HIS (Human Interface Station) or web-based monitoring tools.

How do I verify compatibility between the AEA4D-01 and my existing Yokogawa modules?
The AEA4D-01 is compatible with all AAI141, AAI143, AAO141, and AAO143 series modules regardless of revision level. For legacy systems, verify that your CENTUM VP system firmware is R3.08 or later. If you're unsure about compatibility, provide your module part numbers and system revision to our technical team for verification before ordering.

Take the Next Step

Ready to enhance your CENTUM VP system reliability with the AEA4D-01 terminal board? Our industrial automation specialists are standing by to assist with technical specifications, quantity pricing, and integration planning. Contact us today for a detailed quotation, or add to cart for immediate checkout with our secure payment system. For projects requiring multiple units or custom configurations, request a consultation to discuss volume discounts and engineering support options.
