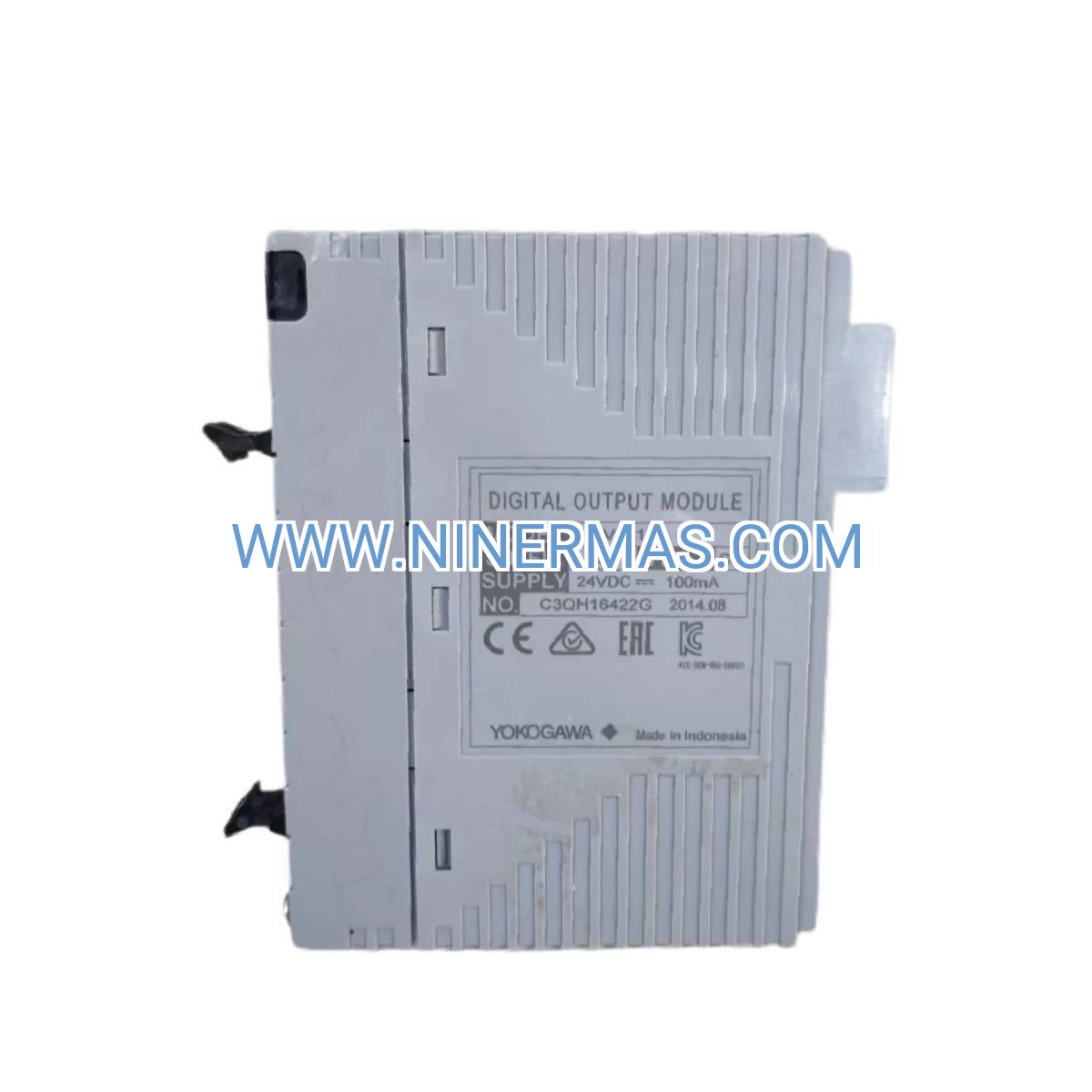

ADV561-P50 Digital Output Module (Industrial-Grade 64-Channel Solution)

The ADV561-P50 represents a high-performance digital output solution engineered for mission-critical industrial environments. This 64-channel module combines isolated output architecture with 24 V DC operation to deliver unmatched reliability in distributed control systems. Built for process industries where signal integrity and system uptime are non-negotiable, it serves as the backbone for valve actuation, motor control, and safety interlock applications across chemical, oil & gas, and pharmaceutical facilities.

Designed for integration with Yokogawa's CENTUM VP and CS 3000 platforms, this module addresses the growing demand for high-density I/O in space-constrained control panels. Engineers and system integrators choose the ADV561-P50 when they need to consolidate multiple lower-density modules into a single, maintainable unit while preserving electrical isolation and diagnostic capabilities.

Whether you're upgrading legacy systems or designing new installations, the ADV561-P50 delivers the channel count, isolation, and configurability required for modern process control—backed by Yokogawa's proven track record in industrial automation.

Core Capabilities & Technical Advantages

→ 64 Isolated Output Channels
Each output features channel-to-channel and channel-to-system isolation, eliminating ground loop risks and protecting control circuits from field-side electrical transients. Ideal for mixed-voltage environments and safety-critical applications.

✓ Dual Output Modes
Supports both pulse output and time-proportional control, enabling precise modulation of heating elements, proportional valves, and variable-speed drives without requiring separate analog modules. Reduces system complexity and cost.

→ Hot-Swappable Design
Field-replaceable without system shutdown, minimizing unplanned downtime during maintenance. Built-in keying prevents incorrect module insertion, reducing commissioning errors.

✓ Real-Time Diagnostics
Continuous monitoring of output circuit integrity with fault reporting to the DCS interface. Detects open circuits, short circuits, and overload conditions before they impact process operations.

→ Compact Form Factor
64 outputs in a single module slot reduce panel space requirements by up to 50% compared to traditional 32-channel solutions. Simplifies wiring, lowers installation labor, and improves cabinet airflow.

✓ Fast Switching Response
Optimized for real-time control applications with sub-millisecond response times, ensuring precise synchronization in multi-step batch processes and high-speed packaging lines.

Industry Applications & Use Cases

Chemical Processing & Refining
Controls solenoid valves in reactor feed systems, blending operations, and emergency shutdown sequences. Isolated outputs prevent cross-contamination of control signals in hazardous area installations.

Power Generation & Utilities
Activates breaker trip coils, damper actuators, and auxiliary equipment in turbine control systems. Time-proportional outputs regulate boiler feedwater heaters and economizer bypass valves.

Pharmaceutical Manufacturing
Manages clean-in-place (CIP) valve sequencing, sterile transfer panel interlocks, and environmental control systems. Meets 21 CFR Part 11 compliance requirements through comprehensive audit trails.

Water & Wastewater Treatment
Operates pump starters, chemical dosing valves, and aeration blower controls. Pulse outputs drive metering pumps for precise chlorine and coagulant injection.

Food & Beverage Production
Controls filling line diverter valves, pasteurizer heating zones, and packaging machine actuators. Supports HACCP-compliant process monitoring with integrated diagnostics.

Technical Specifications & Selection Guide

Selection Criteria: Choose the ADV561-P50 when your application requires more than 32 outputs per module, electrical isolation between channels, or time-proportional control without analog I/O. For lower channel counts, consider the ADV551-P10 (32CH). For mixed signal applications, pair with AAI835-H53 analog modules.

Advanced Features & System Integration

Seamless DCS Integration
Pre-configured device profiles for Yokogawa engineering tools enable drag-and-drop configuration. Online parameter adjustment allows tuning of pulse width, frequency, and time-proportional settings without interrupting process operations.

Redundancy Support
Compatible with redundant I/O configurations for high-availability applications. Automatic failover ensures continuous operation during module replacement or maintenance.

Cybersecurity Compliance
Supports IEC 62443 security standards with encrypted communication and role-based access control. Firmware updates via secure channels prevent unauthorized modifications.

Customization Options
Factory-configurable output ranges, terminal block types, and labeling schemes available for OEM and large-scale projects. Contact our engineering team for custom specifications.

Delivery, Warranty & Technical Support

Lead Time: Standard units ship within 3–5 business days. Custom configurations require 2–3 weeks for factory programming and testing.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans available for critical applications.

Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and system optimization. Remote diagnostic support available 24/7 for emergency situations.

Documentation: Each module includes installation manual, wiring diagrams, configuration templates, and sample ladder logic. CAD drawings and 3D models available for download.

Frequently Asked Questions

Can the ADV561-P50 interface with third-party DCS platforms?
While optimized for Yokogawa CENTUM systems, the module can integrate with other DCS platforms via standard fieldbus protocols (Modbus, PROFIBUS). Contact our integration team for compatibility verification.

What is the maximum cable length for output wiring?
Recommended maximum is 100 meters (328 feet) for 24 V DC loads using shielded twisted-pair cable. Longer runs may require signal repeaters or higher supply voltages.

How does time-proportional control improve energy efficiency?
By modulating output duty cycle instead of continuous on/off switching, time-proportional control reduces thermal cycling in heating elements and extends actuator lifespan by up to 40%, lowering maintenance costs.

Is the module suitable for hazardous area installations?
The ADV561-P50 carries ATEX Zone 2 certification for installation in non-hazardous control rooms. For Zone 1/Division 1 applications, use with approved intrinsic safety barriers.

What diagnostic information is available through the DCS?
Real-time status includes per-channel output state, load current, fault conditions (open/short circuit), module temperature, and power supply voltage. Historical fault logs support predictive maintenance.

Can I mix different I/O module types in the same rack?
Yes, the ADV561-P50 is compatible with Yokogawa's full range of analog input, analog output, and digital input modules in the same chassis, simplifying system design and spares inventory.

Get Started with ADV561-P50

Ready to upgrade your control system with high-density digital outputs? Our application engineers are available to discuss your specific requirements, provide sizing calculations, and recommend optimal configurations for your process. Request a technical datasheet, schedule a consultation, or place your order today.
