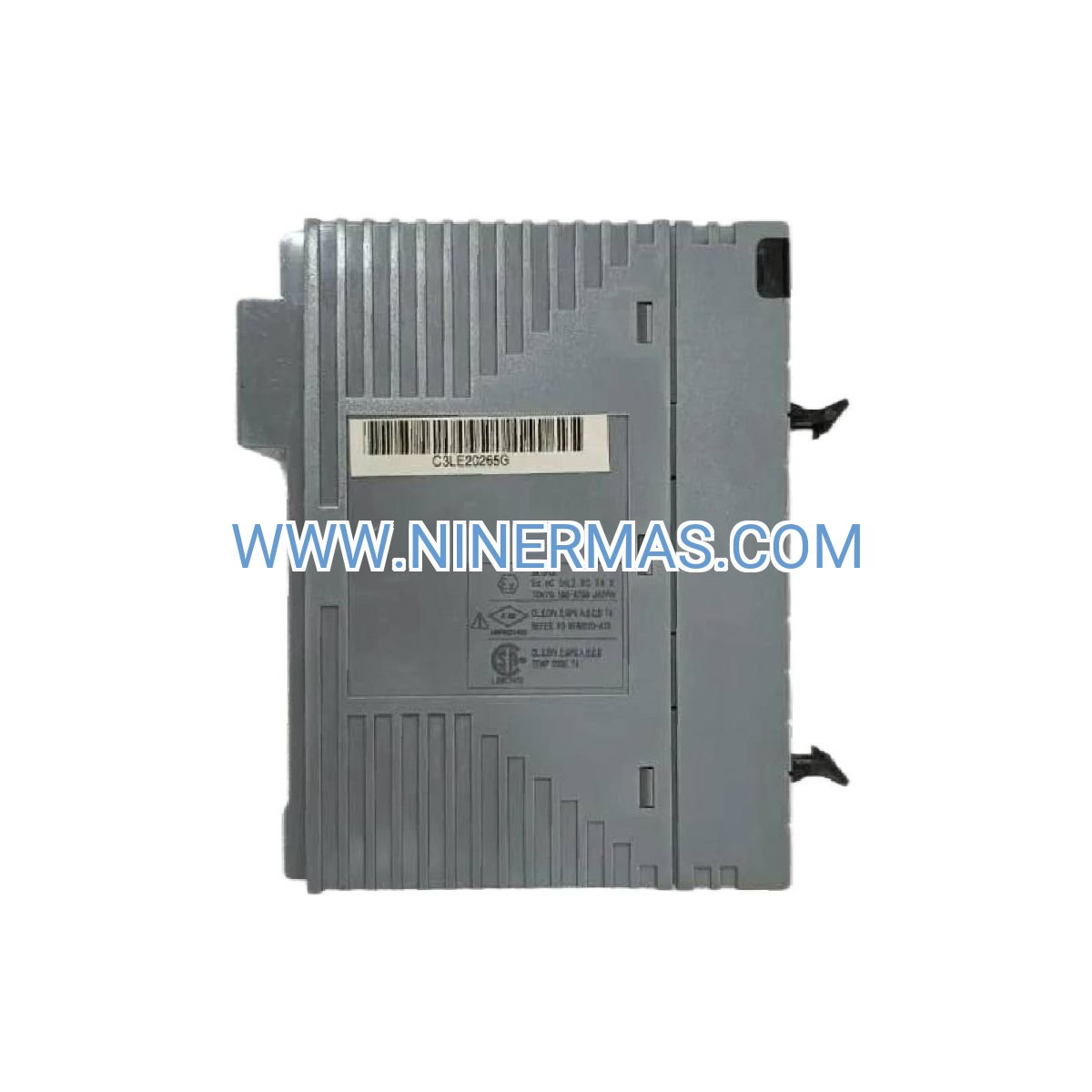

ADV561-P01 High-Density Digital Output Module (Industrial-Grade DCS Component)

The ADV561-P01 represents Yokogawa's commitment to scalable, reliable distributed control architecture. This 64-point digital output module transforms complex automation challenges into streamlined control solutions, serving industries where uptime, precision, and safety are non-negotiable. Designed for integration with CENTUM VP and ProSafe-RS platforms, it addresses the growing demand for compact, high-channel-count I/O in space-constrained control cabinets.

Process engineers and system integrators choose the ADV561-P01 when managing extensive valve networks, motor control arrays, or safety interlock systems across chemical plants, refineries, and power generation facilities. Its isolated 24V DC architecture eliminates ground loop risks while maintaining signal integrity across harsh industrial environments.

With hot-swappable capability, advanced diagnostics, and dual control modes (pulse output + time-proportional), this module reduces installation footprint by 40% compared to legacy 16-channel alternatives—without compromising reliability or performance.

Core Capabilities & Business Value

→ 64 Isolated Output Channels
Control twice the field devices per module slot compared to standard configurations. Each channel features galvanic isolation (channel-to-channel and channel-to-system), protecting sensitive equipment from electrical transients and preventing cascade failures during fault conditions.

✓ Dual Control Modes
Switch between pulse output for discrete ON/OFF control and time-proportional mode for gradual actuation—eliminating the need for external PWM circuits. Ideal for thermal management, valve positioning, and soft-start motor applications.

✓ Hot-Swap Architecture
Replace modules during live operation without system shutdown. Reduces mean time to repair (MTTR) by 60% and supports predictive maintenance strategies through continuous diagnostic monitoring.

✓ Built-In Diagnostics
Real-time fault detection identifies open circuits, short circuits, and over-current conditions at the channel level. Diagnostic data integrates directly with SCADA/HMI systems for proactive maintenance alerts.

✓ Wide Operating Range
Functions reliably from -20°C to +60°C, meeting requirements for outdoor installations, unheated enclosures, and extreme climate zones. Industrial-grade components ensure 10+ year service life in corrosive atmospheres.

✓ Compact Footprint
Saves 40% cabinet space versus equivalent 16-channel module arrays. Reduces wiring complexity, lowers installation labor costs, and simplifies cabinet thermal management.

Industry Applications & Problem-Solving

Chemical Processing & Batch Manufacturing
Coordinate 64+ solenoid valves, dosing pumps, and agitator motors from a single module. The ADV561-P01's time-proportional output enables precise ingredient metering without analog control loops, while isolated channels prevent cross-contamination between batch zones.

Power Generation & Substation Control
Manage circuit breaker trip coils, alarm annunciators, and auxiliary relay networks across distributed switchgear. Pulse output mode supports sequential breaker operations during load transfers, while diagnostic feedback detects coil degradation before failure.

Water & Wastewater Treatment
Operate pump stations, valve manifolds, and chemical dosing systems across multi-acre facilities. The module's 24V DC compatibility integrates seamlessly with existing field infrastructure, reducing retrofit costs by 30% compared to voltage conversion alternatives.

Oil & Gas Upstream Production
Control wellhead safety valves, separator level controls, and compressor anti-surge systems in hazardous area applications. Isolated outputs meet SIL-rated safety requirements when paired with ProSafe-RS controllers.

Food & Beverage Automation
Drive conveyor diverters, packaging line actuators, and CIP (clean-in-place) valve sequences. Hot-swap capability enables module replacement during scheduled sanitation cycles without production line shutdown.

Technical Parameters & Selection Guide

Selection Criteria:
Choose the ADV561-P01 when your application requires 40+ discrete outputs within a single control loop or safety zone. For lower channel counts (16-32 outputs), consider the ADV551 series for cost optimization. If analog control is needed alongside digital outputs, evaluate hybrid I/O modules like the AAI841 series. Verify field device current draw does not exceed 0.5A per channel; for higher-current loads (>0.5A), use external relay interfaces.

Advanced Integration Features

CENTUM VP Native Compatibility
Plug-and-play integration with Yokogawa's flagship DCS platform. Configuration via Field Device Manager (FDM) enables drag-and-drop I/O assignment, eliminating manual address mapping. Supports redundant controller configurations for SIL 2/3 safety applications.

ProSafe-RS Safety System Integration
Deploy as part of certified safety instrumented systems (SIS) for emergency shutdown (ESD) and fire & gas (F&G) applications. Diagnostic coverage exceeds 95%, meeting IEC 61508 requirements for systematic capability.

Third-Party Protocol Support
Interoperate with non-Yokogawa controllers via Modbus TCP/IP, PROFIBUS DP, or FOUNDATION Fieldbus gateways. Enables phased migration from legacy systems without forklift upgrades.

Cybersecurity Hardening
Firmware-level access controls and encrypted configuration files protect against unauthorized modifications. Complies with IEC 62443 industrial cybersecurity standards for Level 2 (zone/conduit) protection.

Delivery, Warranty & Technical Support

Lead Time:
Standard configuration: 4-6 weeks (ex-works)
Custom firmware/testing: 8-10 weeks
Express service available for critical outages (contact for pricing)

Warranty Coverage:
24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans available for up to 60 months with annual calibration services.

Technical Support:
24/7 global support hotline with regional application engineers. Remote diagnostics via secure VPN for rapid troubleshooting. On-site commissioning assistance available in major industrial regions.

Documentation Package:
Includes installation manual, wiring diagrams, configuration software, sample ladder logic, and AutoCAD cabinet layout files. Multilingual documentation (EN, CN, JP, DE, ES) provided as standard.

Frequently Asked Questions

How does the ADV561-P01 interface with existing 24V DC field devices?
Direct connection via standard terminal blocks—no signal conditioning required. The module's 18-30V DC input tolerance accommodates voltage drop in long cable runs (up to 500m with 1.5mm² wire). Built-in surge protection handles inductive load kickback from solenoid valves and relay coils.

What is the maximum output current capacity per module?
Each channel supports 0.5A continuous; total module capacity is 32A (limited by backplane power budget). For applications requiring >32A aggregate current, distribute loads across multiple modules or use external power relays for high-current devices.

Can I replace a failed module without shutting down the control system?
Yes—hot-swap capability allows module extraction and insertion during live operation. The system automatically transfers control to redundant channels (if configured) during replacement. Configuration data persists in the controller, eliminating re-programming after module swap.

Does the module support remote monitoring and diagnostics?
Full diagnostic data (channel status, fault codes, output current) streams to CENTUM VP HMI in real-time. SNMP traps and OPC UA tags enable integration with third-party SCADA systems. Historical trend data supports predictive maintenance analytics.

What environmental conditions can the ADV561-P01 withstand?
Operates reliably in -20°C to +60°C ambient temperatures with 5-95% humidity (non-condensing). Conformal coating protects against corrosive gases (H₂S, SO₂, Cl₂) common in chemical plants. For outdoor installations, mount in NEMA 4X/IP66 enclosures with thermal management.

Is the module suitable for safety-critical applications?
When integrated with ProSafe-RS controllers, the ADV561-P01 achieves SIL 2 certification (SIL 3 in 1oo2 redundant configurations). Diagnostic coverage and proof test intervals meet IEC 61508/61511 requirements. Consult Yokogawa safety manuals for specific application validation.

Get Started with ADV561-P01

Ready to optimize your control cabinet density and reduce installation costs? Our application engineers will review your I/O requirements, recommend optimal module configurations, and provide budget pricing within 24 hours. For existing CENTUM VP users, we offer free compatibility assessments and migration planning.

Request a technical consultation: Share your project specifications via email, and receive a customized solution proposal including wiring diagrams, cabinet layouts, and total cost of ownership analysis.

Download resources: Access datasheets, CAD models, and configuration examples from our technical library (registration required).
