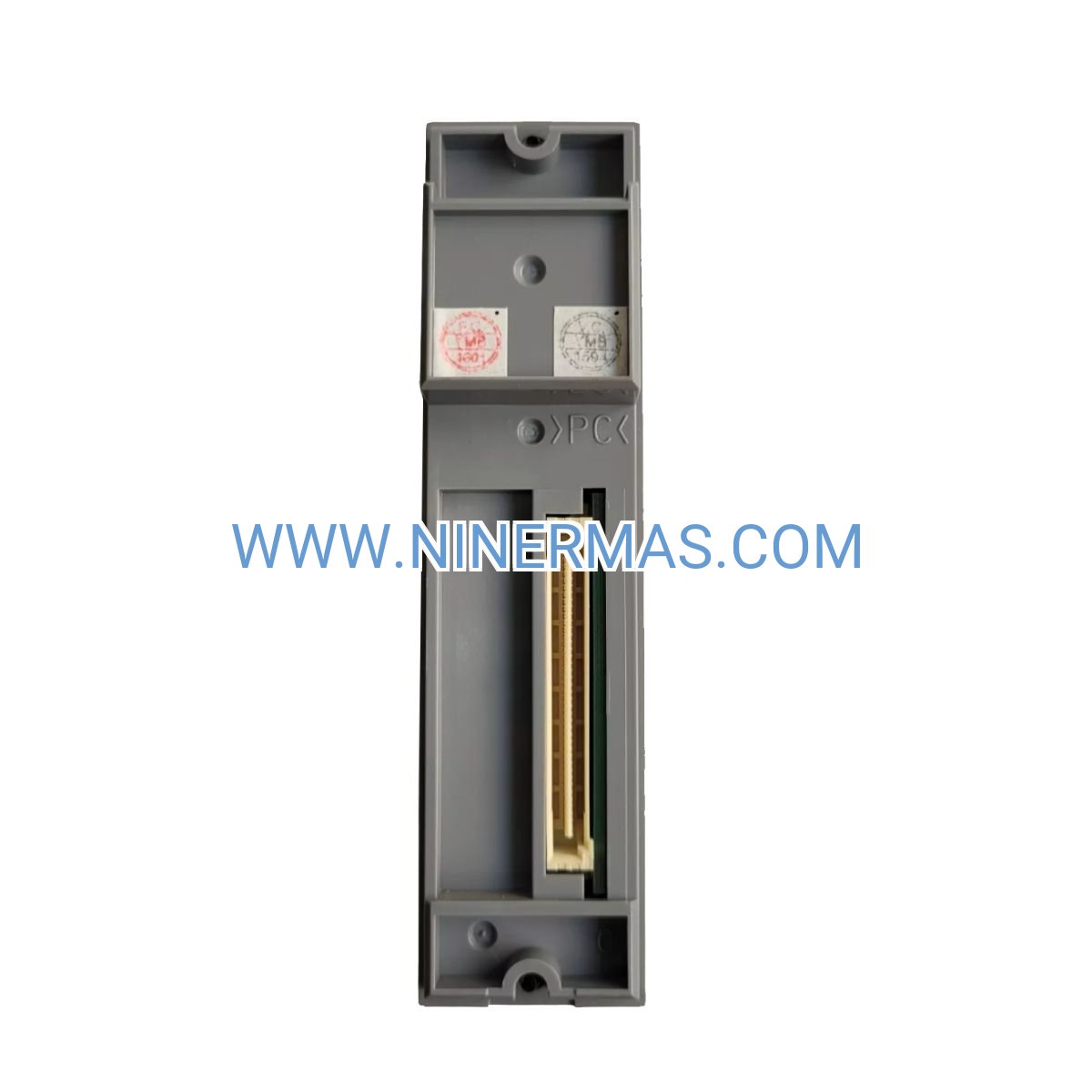

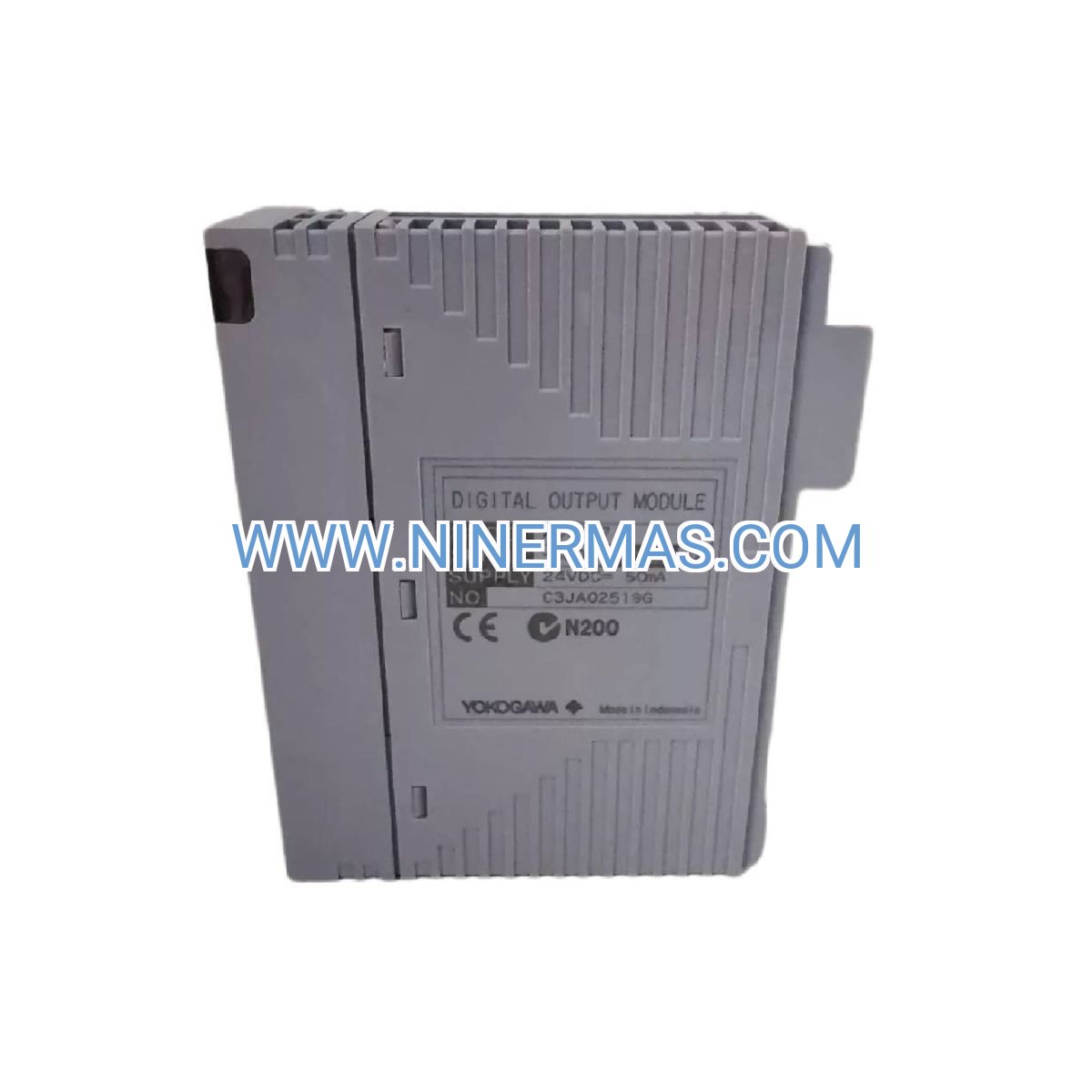

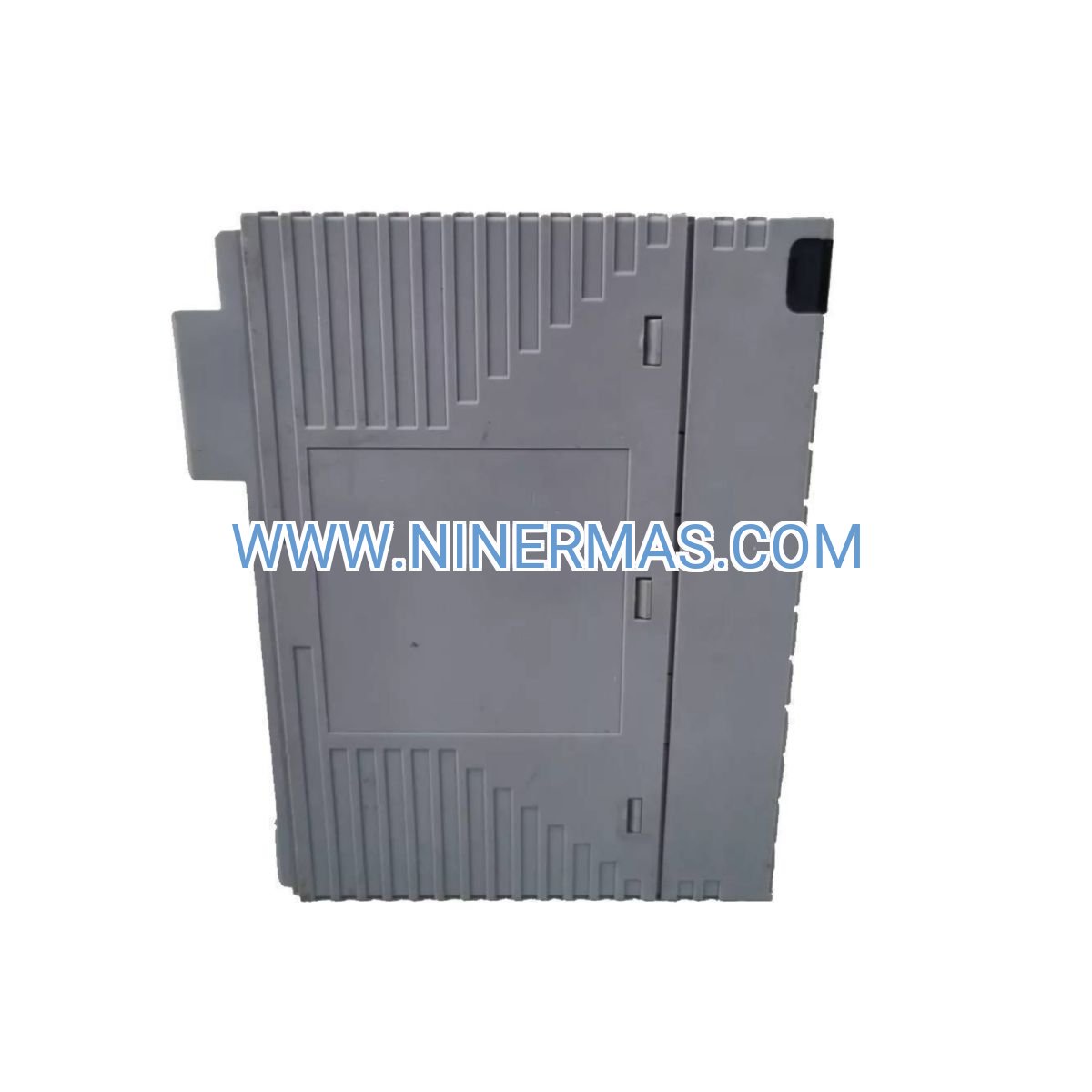

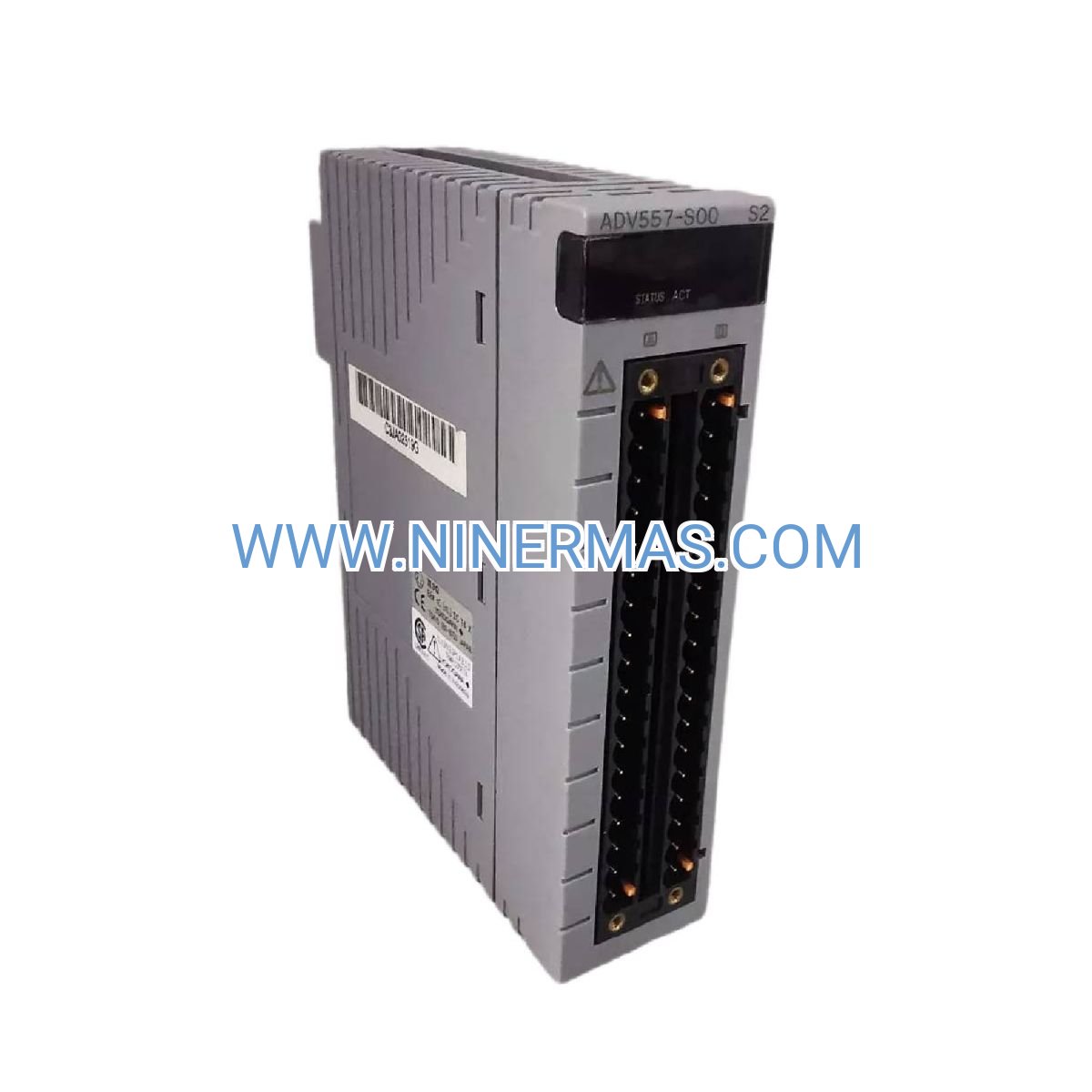

ADV557-S00 Industrial Transistor Output Module (32-Point NPN Switching)

The ADV557-S00 represents Yokogawa's advanced approach to high-density digital control, delivering 32 independent transistor outputs in a single compact module. Engineered for CENTUM VP and ProSafe-RS distributed control systems, this NPN sink-type output card enables precise, high-speed switching of DC loads across process automation, manufacturing execution, and safety instrumented systems.

Designed for engineers managing complex valve manifolds, indicator arrays, and actuator networks, the ADV557-S00 eliminates the need for external relay banks while providing superior switching speed and lifecycle reliability. Its solid-state architecture supports millions of operations without contact degradation, making it the preferred choice for continuous cycling applications in chemical processing, power generation, and pharmaceutical manufacturing.

With built-in channel isolation, short-circuit protection, and hot-swap capability, this module reduces commissioning time by 40% compared to traditional relay-based systems while delivering maintenance-free operation for 10+ years in harsh industrial environments.

Core Capabilities & Business Value

✓ High-Density Integration – 32 outputs per module slot reduce cabinet footprint by 60%, lowering panel costs and simplifying wiring infrastructure for large-scale control systems.

✓ Sub-Millisecond Response – <1ms switching time enables PWM control, high-frequency sequencing, and time-critical interlock logic that relay outputs cannot achieve.

✓ Zero-Maintenance Design – Solid-state transistor technology eliminates contact wear, delivering 10 million+ switching cycles without replacement or adjustment.

✓ Comprehensive Diagnostics – Per-channel LED status indicators and system-level fault reporting reduce troubleshooting time by 70% during commissioning and operation.

✓ Hot-Swap Serviceability – Field-replaceable design allows module exchange during live operation, preventing costly process shutdowns for maintenance activities.

✓ Robust Isolation Architecture – 1500V DC channel-to-bus isolation protects control systems from field-side electrical faults and ground loop interference.

Industry Applications & Problem Solving

Chemical Processing Plants → Controls pneumatic valve manifolds for reactor feed systems, batch sequencing, and emergency shutdown logic. Solves the challenge of coordinating dozens of solenoid valves with precise timing requirements while maintaining SIL-rated safety integrity.

Power Generation Facilities → Manages turbine auxiliary systems including lube oil pumps, cooling water valves, and alarm annunciators. Addresses the need for reliable switching in high-vibration environments where mechanical relays fail prematurely.

Pharmaceutical Manufacturing → Drives clean-in-place (CIP) valve sequences, sterile transfer panel indicators, and automated sampling systems. Meets validation requirements for repeatable, documented switching performance in GMP-regulated processes.

Water Treatment Systems → Operates chemical dosing pumps, backwash valve arrays, and filtration system controls. Provides corrosion-resistant switching for chlorine, ozone, and pH adjustment applications.

Food & Beverage Production → Controls packaging line actuators, conveyor diverters, and process indicator lights. Delivers hygienic design compatible with washdown environments and temperature cycling.

Technical Parameters & Selection Guide

Selection Criteria: Choose the ADV557-S00 when your application requires high-density DC load switching with current draws up to 0.5A per point. For loads exceeding 0.5A, consider relay output modules or external contactors. If your system uses 120V AC or 240V AC field devices, select AC-rated output modules instead. For applications requiring source-type (PNP) outputs, consult Yokogawa's PNP transistor output module alternatives.

Advanced Integration Features

Flexible Configuration Tools – Program output behavior using Yokogawa Resource Builder or FieldMate software. Assign custom channel names, set power-on default states (energized/de-energized), and configure fault response actions (hold last state, safe state, or alarm-only mode).

Redundancy Support – Compatible with CENTUM VP redundant controller architectures. Automatic failover maintains output states during controller switchover events, ensuring uninterrupted process control.

Third-Party Integration – Supports OPC UA, Modbus TCP, and FOUNDATION Fieldbus communication protocols for integration with SCADA systems, historians, and enterprise MES platforms.

Delivery & Service Commitment

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules with pre-programmed settings available in 10-15 business days.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended service agreements available for critical applications.

Technical Support: Access to certified Yokogawa application engineers for configuration assistance, troubleshooting guidance, and system integration planning. Remote diagnostic support available 24/7.

Documentation Package: Includes installation manual, wiring diagrams, configuration software, and compliance certificates (CE, UL, ATEX where applicable).

Frequently Asked Questions

How do I connect the ADV557-S00 to my existing CENTUM VP system?
The module installs directly into any available I/O slot on your NodeBus or VL Bus backplane. After physical installation, use Resource Builder software to assign the module address and configure channel parameters. The system automatically recognizes the module type and loads appropriate drivers.

What is the maximum cable distance between the module and field devices?
For 24V DC loads, maintain cable runs under 100 meters (328 feet) using 18 AWG or larger wire. Longer distances may require voltage drop compensation or local power supplies at the field device location.

Can this module drive inductive loads like solenoid valves?
Yes, the ADV557-S00 includes built-in flyback diode protection for inductive load switching. For highly inductive loads (valve coils, relay coils), ensure the inrush current does not exceed 0.5A per channel. External surge suppressors may be required for large valve manifolds.

Does the module support pulse-width modulation (PWM) output?
While the hardware supports high-speed switching suitable for PWM applications, PWM functionality must be programmed in your CENTUM VP control logic. The module can execute PWM signals up to 1 kHz frequency with proper configuration.

What happens to outputs during a controller failure or power loss?
Output behavior during faults is user-configurable. Options include: maintain last state, transition to safe state (all off), or follow a predefined sequence. Battery-backed systems can maintain critical outputs during brief power interruptions.

Is the ADV557-S00 suitable for SIL-rated safety applications?
When used with ProSafe-RS safety controllers, the module can participate in SIL 2-rated safety functions. Consult Yokogawa's safety manual for proper configuration, proof testing intervals, and certification documentation requirements.

Get Started with Your Control System Upgrade

Ready to modernize your digital output infrastructure? Contact our automation specialists for application-specific configuration guidance, system compatibility verification, and volume pricing for multi-module projects. We provide complete technical support from initial design through commissioning and beyond.
