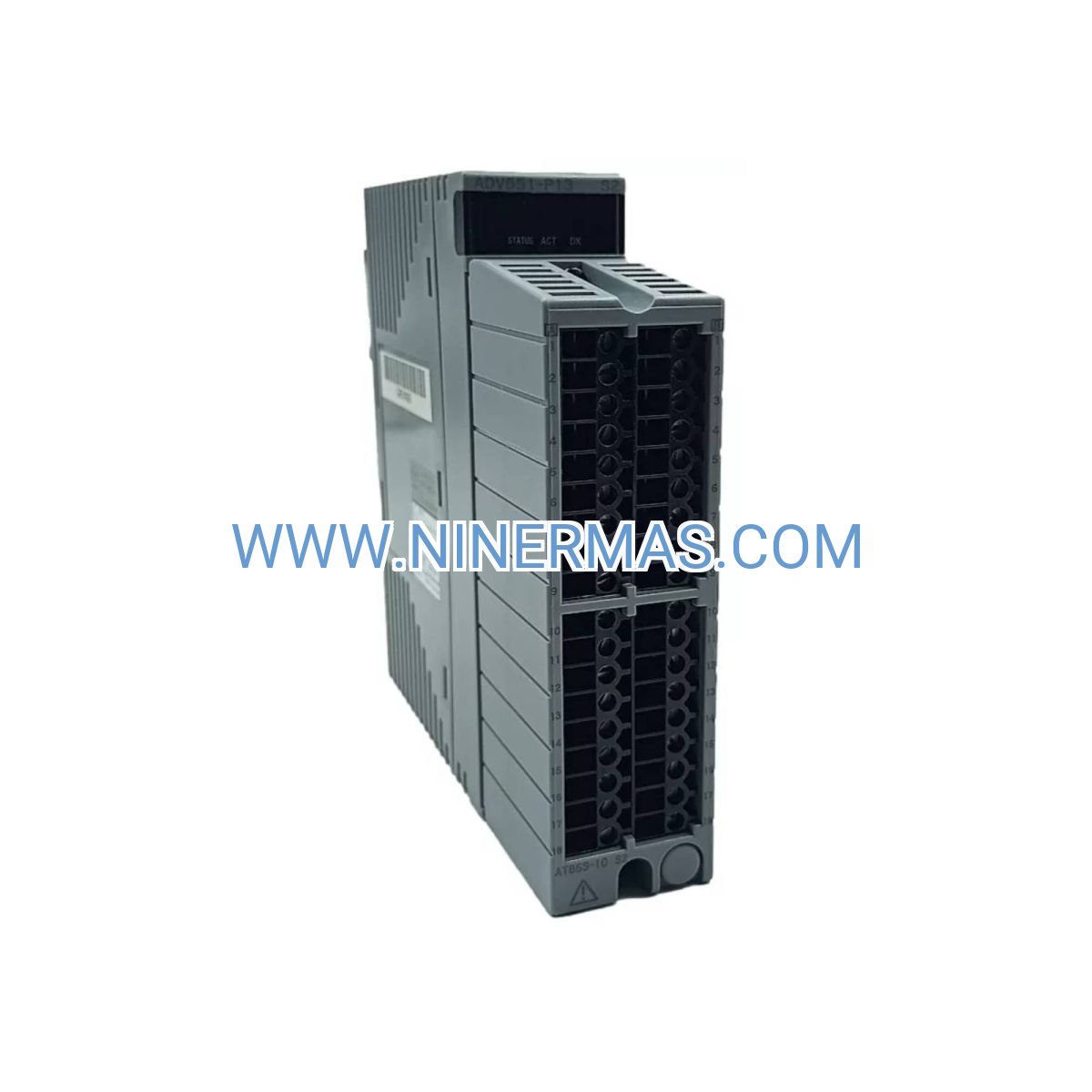

ADV151-E63/D5A00 Digital Input Module (Industrial-Grade Event Monitoring Solution)

The ADV151-E63/D5A00 is a dual-channel digital input interface designed for industrial control systems that demand precise event sequencing and hazardous-area compliance. Built by Yokogawa for CENTUM DCS platforms, this module transforms discrete field signals into time-stamped data streams with 1-millisecond resolution, enabling operators to reconstruct incident timelines and validate interlock logic in safety-critical applications.

Process engineers deploy this module when standard digital inputs cannot meet the temporal accuracy requirements of fault analysis or when installations require Zone 2/Division 2 explosion protection without external safety barriers. Its galvanically isolated architecture prevents ground loop interference while maintaining signal integrity across extended cable runs in electrically noisy environments.

With hot-swappable construction and built-in diagnostics, the ADV151-E63/D5A00 reduces unplanned downtime through predictive maintenance alerts and online module replacement capabilities—critical advantages for continuous manufacturing operations where every minute of production matters.

Key Features & Business Value

→ Sequence of Events (SOE) Recording: Captures input state changes with 1ms timestamp precision, providing forensic-quality data for root cause analysis after process upsets or equipment trips. Reduces incident investigation time by 60-80% compared to standard polling-based systems.

✓ Explosion-Protected Design: Certified for Zone 2/Division 2 hazardous locations, eliminating the need for costly intrinsic safety barriers. Simplifies wiring architecture and reduces installation costs by up to 35% in classified areas.

✓ 1500V Galvanic Isolation: Channel-to-bus isolation protects control systems from field-side electrical faults and eliminates ground loop currents. Ensures reliable operation in high-EMI environments like motor control centers and power distribution substations.

→ Hot-Swap Capability: Replace modules during operation without system shutdown or process interruption. Typical swap time under 90 seconds maintains production continuity and avoids costly batch losses.

✓ Extended Temperature Range: Operates reliably from -40°C to +70°C, supporting installations in outdoor enclosures, desert climates, and arctic facilities without supplemental climate control.

→ Per-Channel LED Diagnostics: Real-time visual indication of input status, power supply health, and communication errors accelerates troubleshooting and reduces mean time to repair (MTTR) by 40%.

Application Scenarios

Emergency Shutdown Systems (ESD): In petrochemical plants, the ADV151-E63/D5A00 monitors valve position switches and pressure relief device status within safety instrumented systems. The SOE capability documents the exact sequence of protective actions during emergency events, supporting compliance with IEC 61511 functional safety standards and providing evidence for incident reports to regulatory authorities.

Power Generation Turbine Protection: Utility operators use this module to track turbine trip relay contacts, bearing temperature alarms, and vibration sensor outputs. When a generator trips offline, the 1ms SOE resolution reveals whether the initiating event was a bearing failure, overspeed condition, or external grid fault—critical intelligence for maintenance planning and warranty claims.

Pharmaceutical Batch Processing: GMP-regulated facilities deploy the module for clean room door interlock verification and sterilization cycle confirmation. The time-stamped event log provides audit trail documentation that satisfies FDA 21 CFR Part 11 electronic record requirements, eliminating manual logbook entries and reducing validation effort.

Mining Conveyor Systems: Underground coal operations monitor emergency pull-cord switches and belt misalignment detectors across multi-kilometer conveyor networks. The explosion-proof rating allows direct installation in methane-prone areas, while SOE data pinpoints the exact location and timing of safety shutdowns across distributed systems.

Water Treatment SCADA: Municipal utilities interface the module with pump station float switches, chlorine leak detectors, and overflow alarms. The extended temperature specification supports outdoor lift station installations, and the isolation protects SCADA equipment from lightning-induced surges on long field cable runs.

Technical Parameters & Selection Guide

Selection Criteria: Choose the ADV151-E63/D5A00 when your application requires event timestamps more precise than 10ms, when installing in classified hazardous areas, or when integrating with existing Yokogawa CENTUM VP/DCS systems. For non-SOE applications or higher channel density requirements, consider standard digital input modules with 8-32 channels. Verify that your DCS supports V-Net/IP communication before ordering—this module is not compatible with Modbus, Profibus, or other third-party fieldbus protocols.

Extended Functions

Redundant System Integration: Deploy in pairs with Yokogawa's dual-redundant ESB bus architecture to achieve SIL 2/3 safety integrity levels. Automatic failover occurs within 100ms if the primary module fails, maintaining continuous monitoring without operator intervention.

Remote Diagnostics via Exaquantum: When connected to Yokogawa's plant information management system, the module streams diagnostic data to centralized maintenance dashboards. Predictive algorithms analyze wiring resistance trends and power supply voltage drift to schedule preventive maintenance before failures occur.

Custom Alarm Logic: Program complex voting schemes (2oo3, 1oo2) and time-delay filters directly in the module firmware using FieldMate configuration software. Reduces controller CPU load and improves alarm response consistency across distributed I/O networks.

Third-Party Device Compatibility: Interfaces with any 24V DC discrete output device including proximity sensors, limit switches, relay contacts, and PLC digital outputs. Wet or dry contact configurations supported through jumper selection.

Delivery & Service Assurance

Lead Time: Stock items ship within 3-5 business days. Custom configurations (non-standard firmware or special certifications) require 4-6 weeks manufacturing lead time. Expedited delivery available for critical outage situations.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans available for up to 5 years with annual calibration verification services.

Technical Support: Access to Yokogawa-certified application engineers for configuration assistance, troubleshooting, and system integration guidance. Phone and email support available during business hours (GMT+8), with 4-hour response SLA for critical production issues.

Documentation Package: Each module ships with installation manual, wiring diagrams, FieldMate configuration files, and dimensional drawings in PDF format. CAD models (STEP/IGES) and HART device description files available for download from manufacturer portal.

Frequently Asked Questions

Q: How does the ADV151-E63/D5A00 interface with non-Yokogawa control systems?
A: This module requires Yokogawa's V-Net/IP fieldbus and is designed exclusively for CENTUM VP, CENTUM CS 3000, and ProSafe-RS platforms. For integration with Allen-Bradley, Siemens, or other third-party PLCs, consider Yokogawa's Modbus/TCP gateway modules or select a vendor-neutral I/O system.

Q: What is the maximum cable distance between field devices and the module?
A: With 24V DC inputs, recommended maximum cable length is 300 meters using 0.75mm² shielded twisted-pair wire. Longer runs up to 500m are possible with voltage drop compensation or by increasing field device supply voltage to 28-30V DC.

Q: Can I retrofit this module into an existing CENTUM CS 1000 system?
A: The ADV151-E63/D5A00 is compatible with CENTUM CS 3000 R3.08 and later, CENTUM VP R5.01 and later. CS 1000 systems require migration to newer DCS platforms before this module can be deployed. Contact our engineering team for system upgrade assessments.

Q: Does the SOE function require special configuration or licensing?
A: SOE capability is standard in the module firmware and requires no additional licenses. However, viewing and exporting SOE data requires the CENTUM VP Event Analysis Package or Exaquantum/PHD historian integration—verify your DCS software includes these features.

Q: What certifications does the explosion-proof rating include?
A: The module holds ATEX Zone 2 (Europe), IECEx (international), and Class I Division 2 Groups A-D (North America) certifications. Specific certificate numbers and installation restrictions are documented in the hazardous area installation manual.

Q: How do I monitor module health and predict failures?
A: Built-in diagnostics track input circuit resistance, power supply voltage, and communication errors. Abnormal trends trigger maintenance alerts in the DCS alarm system. For advanced analytics, integrate with Yokogawa's Sushi Sensor IoT platform for cloud-based predictive maintenance.

Take the Next Step

Ready to enhance your process control system with precision event monitoring? Contact our industrial automation specialists for application-specific configuration guidance, volume pricing, or technical compatibility verification. Request a detailed datasheet, CAD drawings, or arrange a live demonstration of SOE functionality in our test lab.
