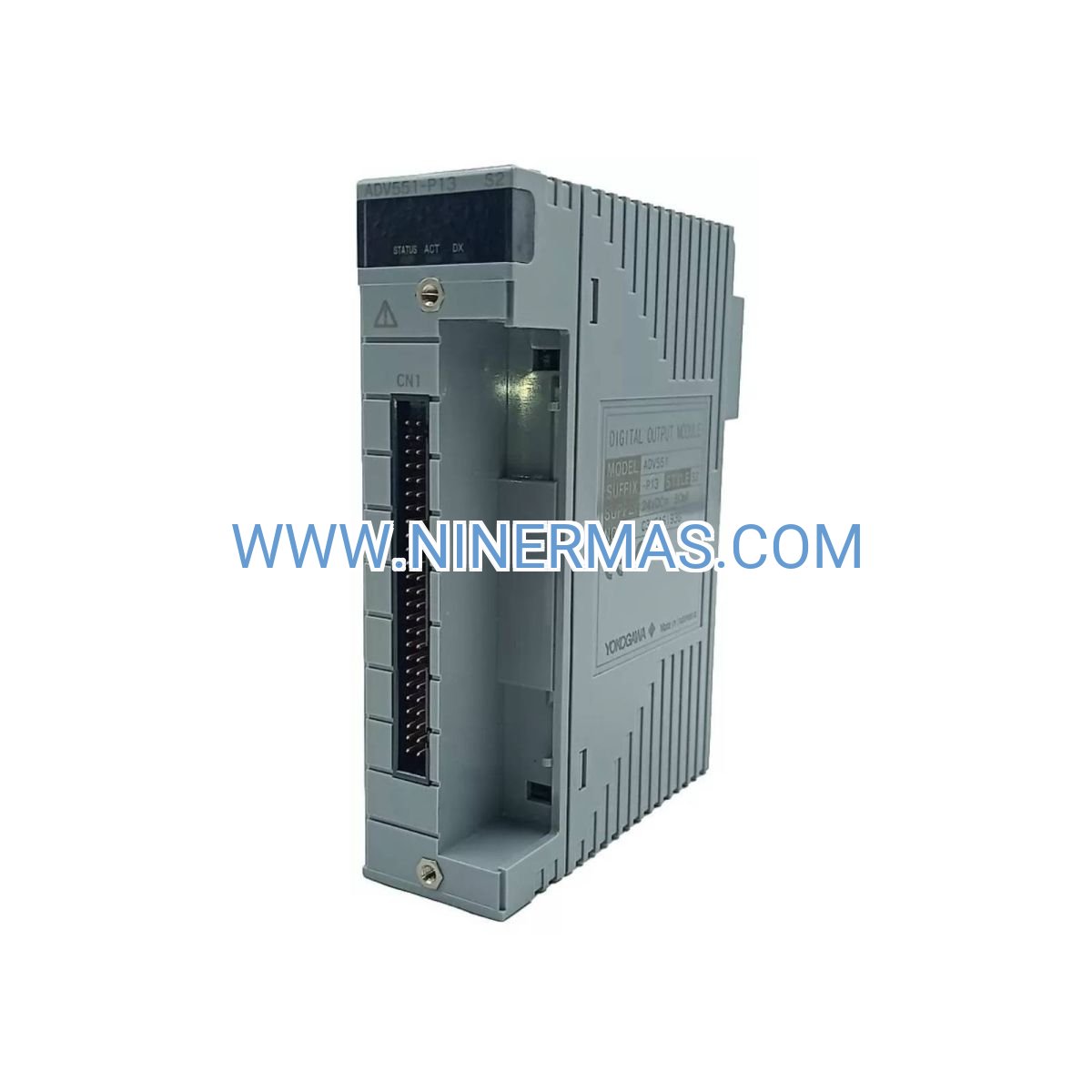

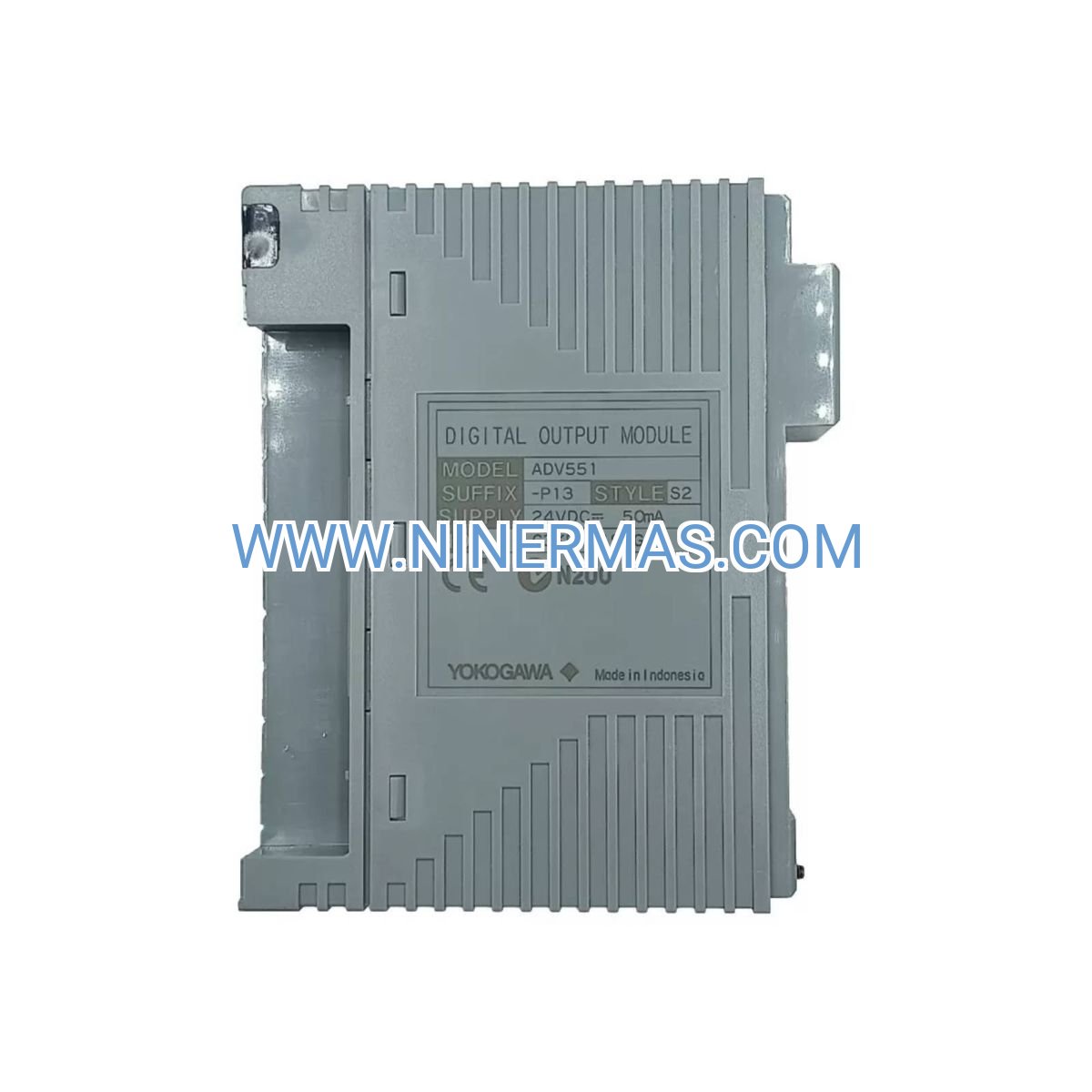

ADV551-P13 Digital Output Module (Industrial-Grade 32-Channel Controller)

The ADV551-P13 is a precision-engineered digital output module designed for mission-critical industrial automation environments. With 32 isolated 24 VDC channels, advanced pulse-width modulation, and time-proportion control, this module transforms complex process control requirements into reliable, repeatable operations. Built for integration with Yokogawa CENTUM VP and CS 3000 DCS platforms, it serves process engineers, automation integrators, and plant operators who demand zero-compromise performance in chemical processing, power generation, and manufacturing facilities.

Whether you're upgrading legacy control systems, expanding production capacity, or implementing new safety protocols, the ADV551-P13 delivers the isolation, diagnostics, and environmental resilience required for continuous operation in corrosive, high-vibration, and temperature-extreme conditions.

Core Functions & Advantages

✓ 32 Isolated Output Channels
Independent channel-to-channel and channel-to-bus isolation prevents ground loops and electrical interference, ensuring signal integrity across all outputs. Business value: Reduces troubleshooting time by up to 40% and eliminates cross-talk failures in multi-zone control applications.

✓ Dual Control Modes: Pulse & Time-Proportion
Pulse output mode enables precise actuator positioning without analog conversion, while time-proportion mode optimizes thermal cycling for valve and damper control. Business value: Extends actuator service life by 25-35% through intelligent duty-cycle management.

✓ G3 Environmental Certification
Corrosion-resistant materials and conformal coating meet ISA-71.04-2013 G3 severity level standards for harsh industrial atmospheres. Business value: Proven reliability in offshore platforms, coastal refineries, and chemical plants with aggressive ambient conditions.

✓ Hot-Swappable Architecture
Field-replaceable design allows module exchange during live operation without system shutdown or process interruption. Business value: Minimizes unplanned downtime and supports predictive maintenance strategies.

✓ Integrated Diagnostics & Status Reporting
Real-time fault detection with LED indicators and DCS-level alarm integration identifies open circuits, short circuits, and power supply anomalies. Business value: Accelerates root-cause analysis and reduces mean-time-to-repair (MTTR) by 50%.

→ Wide Operating Temperature Range
Qualified for -20°C to +70°C ambient operation, supporting installations in non-climate-controlled enclosures and outdoor cabinets. Business value: Eliminates costly HVAC requirements in remote or hazardous area installations.

Typical Application Scenarios

Chemical & Petrochemical Processing
Controls solenoid valves, motor starters, and emergency shutdown devices in batch reactors, distillation columns, and blending systems. Pain point addressed: Prevents batch contamination and off-spec production caused by valve timing errors. Value delivered: Achieves ±0.1-second valve actuation precision for recipe-critical processes.

Power Generation & Distribution
Manages circuit breaker control, load transfer switches, and auxiliary equipment in substations and combined-cycle plants. Pain point addressed: Eliminates relay chatter and contact welding in high-cycle switching applications. Value delivered: Supports 1 million+ switching cycles with zero degradation.

Pharmaceutical Manufacturing
Drives clean-in-place (CIP) valve sequencing, sterilization cycles, and material transfer interlocks in GMP-regulated facilities. Pain point addressed: Ensures audit-trail compliance and batch traceability for FDA validation. Value delivered: Provides deterministic control with <10ms response time for critical safety interlocks.

Water & Wastewater Treatment
Operates pump stations, chemical dosing systems, and aeration blowers in municipal and industrial treatment plants. Pain point addressed: Reduces energy consumption through optimized on/off cycling. Value delivered: Cuts pump motor energy usage by 15-20% via time-proportion control.

Food & Beverage Production
Coordinates conveyor systems, packaging equipment, and pasteurization controls in high-speed production lines. Pain point addressed: Prevents product damage from mechanical shock during start/stop transitions. Value delivered: Enables soft-start ramp profiles that reduce reject rates by 8-12%.

Technical Parameters & Selection Guide

Selection Criteria: Choose the ADV551-P13 when your application requires high-density digital outputs with electrical isolation, G3 environmental protection, or hot-swap capability. For applications with lower channel counts (8-16 outputs), consider the ADV557 series. For relay-based switching or higher current loads (>0.5 A), evaluate the ADV151 relay output modules. Consult factory application engineers for hazardous area classifications (Class I Div 2, ATEX Zone 2) or SIL-rated safety applications.

Extended Functions

IoT & Remote Monitoring Integration: Compatible with Yokogawa's Sushi Sensor and OpreX Asset Operations platforms for cloud-based diagnostics, predictive maintenance alerts, and energy analytics. Supports OPC UA and Modbus TCP protocols for third-party SCADA integration.

Advanced Pulse Control: Programmable pulse frequency (0.1 Hz to 10 kHz) and duty cycle (0-100%) enable stepper motor control, flow meter calibration, and variable-speed drive interfaces without external signal conditioning.

Customization Options: Factory-configurable output voltage ranges (12 VDC, 48 VDC), conformal coating upgrades (tropical, marine), and extended temperature variants (-40°C to +85°C) available for OEM and large-scale projects. Minimum order quantities apply.

Delivery Cycle & Service Guarantee

Lead Time:
→ Standard configuration: 3-5 business days (in-stock items)
→ Custom configurations: 4-6 weeks (factory order)
→ Express service: 24-48 hours (subject to availability and expedite fees)

Warranty Period:
→ 24 months from date of shipment (standard)
→ Extended warranty options: 36/60 months available

Technical Support:
→ Pre-sales application engineering consultation
→ Post-sales commissioning assistance (remote/on-site)
→ Lifetime technical support via email, phone, and web portal
→ Firmware updates and security patches (when applicable)

Documentation Included:
→ Installation & wiring manual (English, Chinese)
→ Configuration software and user guides
→ Calibration certificate and test reports
→ CAD drawings (DWG, STEP formats)
→ Spare parts catalog and recommended inventory list

Frequently Asked Questions

Q1: How do I connect the ADV551-P13 to my existing CENTUM DCS system?
A: The module mounts directly to Yokogawa's AFV10/AFV30 I/O bus via a plug-in connector. No special tools required—simply insert the module into an available slot, secure the locking lever, and configure via the engineering station. Hot-swap capability allows installation without powering down the I/O rack.

Q2: What is the maximum cable length for 24 VDC output wiring?
A: For standard 0.5 A loads, use 18 AWG (0.75 mm²) wire with a maximum run of 100 meters. For longer distances or higher loads, upsize to 16 AWG (1.0 mm²) and consult voltage drop calculations. Shielded cable is recommended in high-EMI environments; ground shields at one end only to prevent ground loops.

Q3: Can this module reduce energy consumption in my pump control application?
A: Yes. Time-proportion control mode modulates pump runtime based on process demand, eliminating continuous operation during low-flow periods. Typical energy savings range from 15-25% compared to fixed-speed on/off control. Pair with variable frequency drives (VFDs) for maximum efficiency gains.

Q4: What are the installation requirements for G3 environmental compliance?
A: Mount the module in a NEMA 4X or IP66-rated enclosure with filtered ventilation. Maintain ambient temperature within -20°C to +70°C and relative humidity below 95% non-condensing. Avoid direct exposure to corrosive gases (H₂S, SO₂, Cl₂) exceeding ISA-71.04 G3 thresholds. Periodic inspection and cleaning per Yokogawa maintenance guidelines ensure long-term reliability.

Q5: Does the ADV551-P13 support remote diagnostics and condition monitoring?
A: Yes. When integrated with Yokogawa's OpreX platform or third-party SCADA systems via OPC UA, the module reports real-time status including output current, fault codes, and operating hours. Predictive maintenance algorithms can trigger alerts for preventive replacement before failures occur.

Q6: Is this module suitable for safety instrumented systems (SIS) applications?
A: The standard ADV551-P13 is designed for basic process control (BPCS) applications. For SIL-rated safety functions, specify the ProSafe-RS variant with IEC 61508 certification. Contact our safety application specialists for SIL verification calculations and proof-test procedures.

Request Your Quote Today

Ready to enhance your process control reliability? Contact our industrial automation specialists for application-specific recommendations, volume pricing, and integration support. We provide same-day quotations, technical datasheets, and compatibility verification for your existing Yokogawa or third-party DCS infrastructure.

Email: sale@ninermas.com
Phone: +0086 187 5021 5667
Business Hours: Monday-Friday, 9:00 AM - 6:00 PM CST
