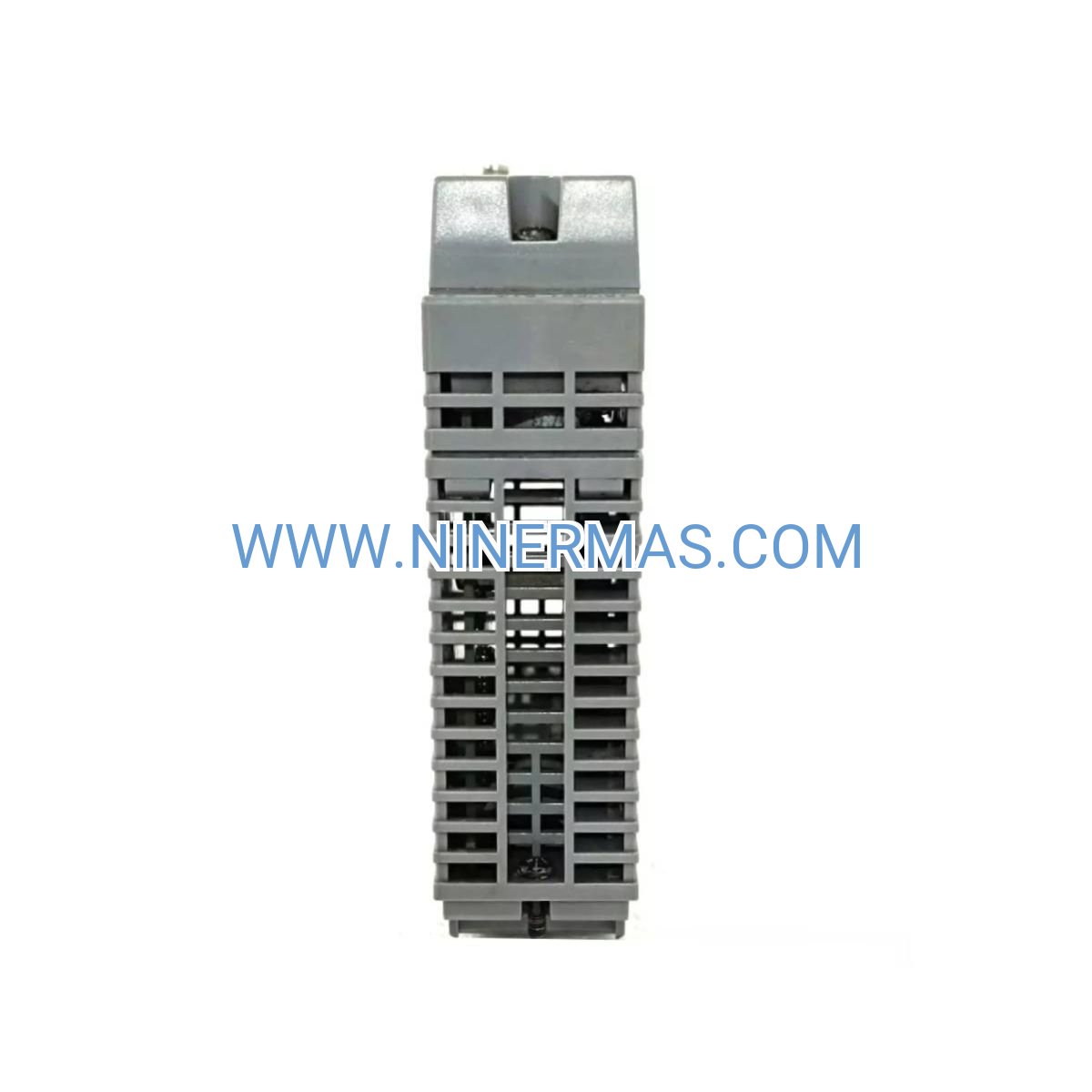

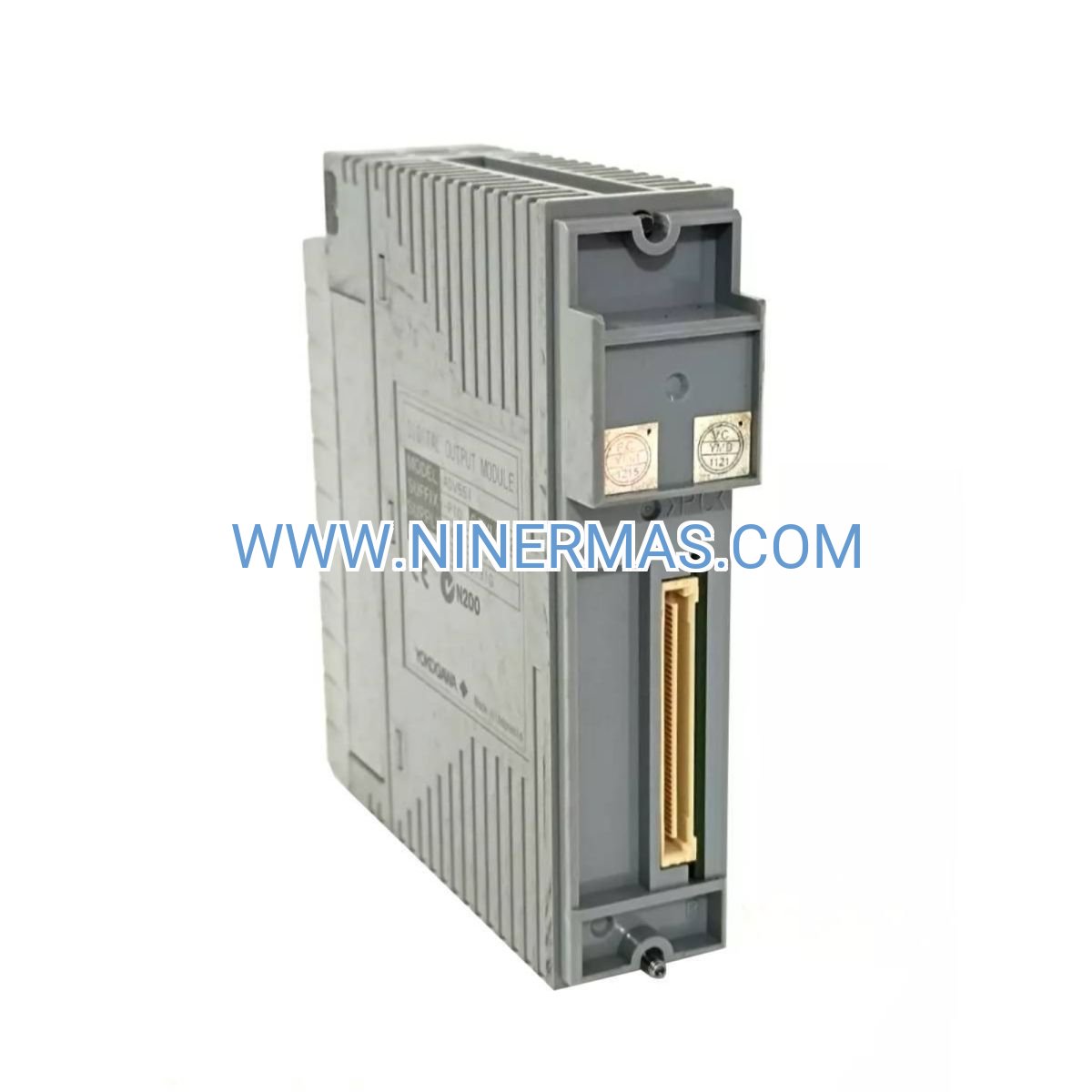

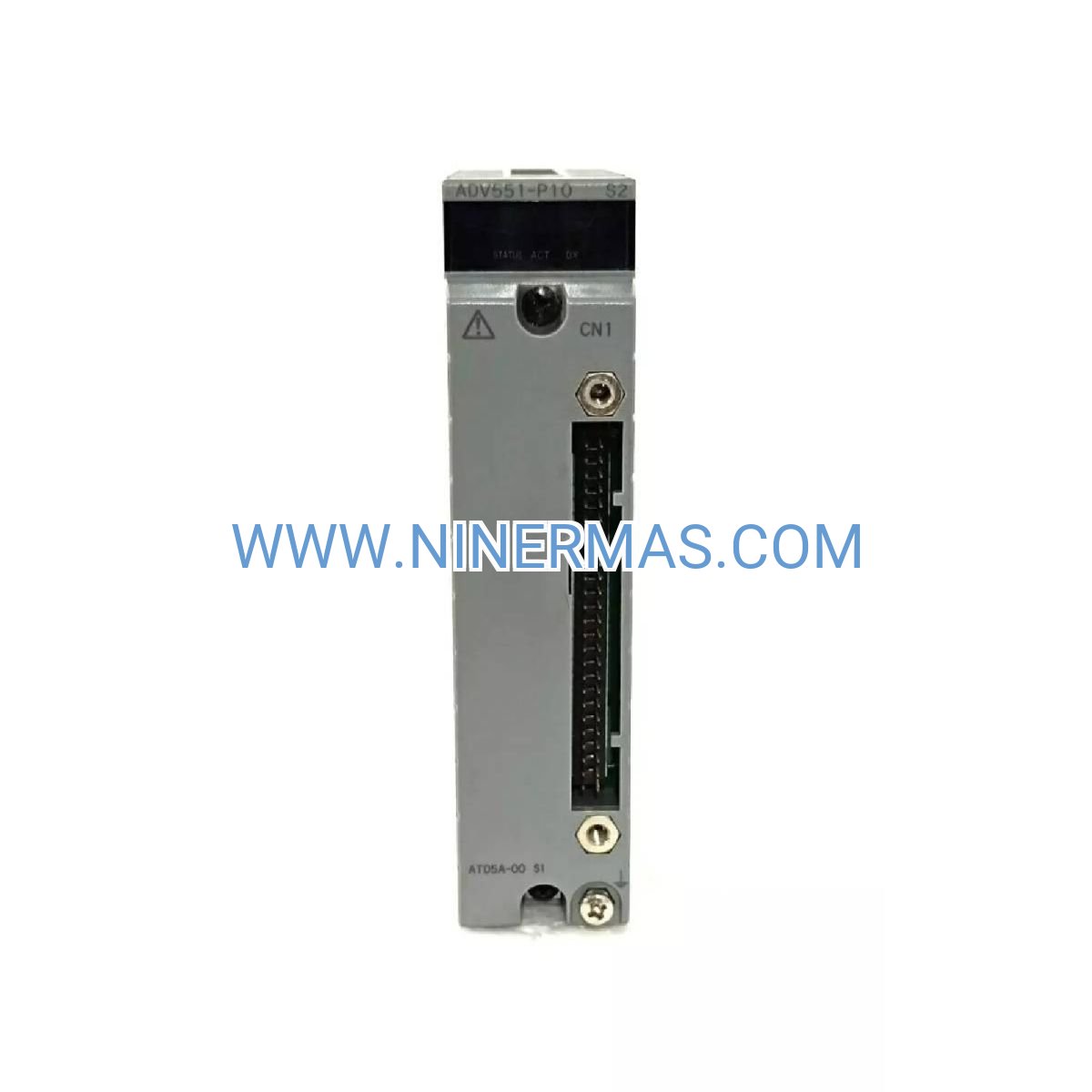

ADV551-P13 S2 Digital Output Module (Industrial-Grade 32-Point Control)

The ADV551-P13 S2 represents Yokogawa's commitment to safety-critical process automation, combining 32 isolated digital outputs with SIL2 functional safety certification in a compact, hot-swappable design. This module addresses the growing demand for high-density I/O solutions in hazardous environments where reliability, isolation integrity, and compliance with IEC 61508 standards are non-negotiable.

Designed for engineers managing complex DCS architectures in oil & gas, chemical processing, and power generation facilities, the ADV551-P13 S2 eliminates the traditional tradeoff between channel density and safety performance. Its 24 VDC isolated outputs support both pulse and time-proportional control modes, enabling precise actuation of solenoid valves, motor contactors, and alarm annunciators while maintaining electrical isolation that protects upstream control systems from field-level faults.

Whether you're retrofitting legacy systems or designing greenfield installations, this module integrates seamlessly with CENTUM VP and ProSafe-RS platforms, reducing commissioning time through auto-configuration protocols and field-proven compatibility with industry-standard fieldbus networks.

Core Capabilities & Business Value

→ SIL2 Safety Certification
Meets IEC 61508 requirements for safety instrumented systems, reducing liability exposure and simplifying compliance audits in regulated industries. Certified proof test intervals extend to 10 years under typical operating conditions.

→ 32-Channel High-Density Architecture
Consolidates control points that would traditionally require four 8-channel modules, cutting panel footprint by 60% and reducing wiring labor costs by an estimated 40 hours per cabinet during installation.

✓ Dual Output Modes
Pulse output mode supports frequency-based control up to 10 Hz for stepper motor applications, while time-proportional mode enables PWM-style thermal management of heating elements without external signal conditioning.

✓ Channel-to-Channel Isolation
2500 VAC isolation barriers prevent cross-talk between outputs and shield the backplane from transient voltage spikes, a critical feature in substations and motor control centers with high electromagnetic interference.

✓ Hot-Swap Capability
Field-replaceable design allows technicians to swap modules during operation without initiating emergency shutdown procedures, minimizing unplanned downtime in continuous process industries.

✓ Extended Temperature Range
Operates reliably from -40°C to +70°C, supporting installations in unheated enclosures, outdoor kiosks, and tropical climates without derating or forced ventilation.

Industry Applications & Problem Resolution

Petrochemical Batch Processing
Controls sequencing of pneumatic valves in reactor charging systems where SIL2-rated interlocks prevent overpressure conditions. The module's isolated outputs eliminate ground loop issues common in multi-skid installations spanning 200+ meters.

Water Treatment SCADA Networks
Manages pump starters, chlorine dosing valves, and UV lamp banks across distributed lift stations. Time-proportional output mode reduces mechanical wear on motorized actuators by 30% compared to on/off cycling.

Power Generation Auxiliary Systems
Operates cooling tower fan contactors, lube oil pump starters, and boiler feedwater valve actuators in combined-cycle plants. Hot-swap functionality supports maintenance during peak demand periods without load shedding.

Pharmaceutical Clean Room Automation
Drives sterile air damper actuators and CIP valve manifolds where contamination risks demand validated, traceable control components. SIL2 certification streamlines FDA 21 CFR Part 11 compliance documentation.

Mining Conveyor Interlocks
Provides safety-rated emergency stop outputs for belt conveyor systems spanning multiple kilometers. Pulse output mode supports proximity switch testing and diagnostic routines without manual intervention.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the ADV551-P13 S2 when your application requires SIL2-rated outputs with channel counts exceeding 16 points. For non-safety applications or lower channel densities, consider the ADV551-P10 variant. Verify that your DCS supports the module's native communication protocol (typically Vnet/IP or Modbus TCP) to avoid gateway requirements.

Advanced Integration Features

CENTUM VP Native Support
Pre-configured function blocks in the CENTUM VP library enable drag-and-drop integration, with automatic I/O mapping that reduces engineering time by 70% compared to generic Modbus modules.

Predictive Diagnostics
Built-in self-test routines monitor output driver health, load current anomalies, and isolation resistance degradation, triggering maintenance alerts 2-4 weeks before failure thresholds.

Redundancy Options
Supports 1:1 and N+1 redundancy configurations when paired with Yokogawa's redundant I/O controllers, ensuring zero data loss during module failover events.

Cybersecurity Hardening
Firmware signed with Yokogawa's PKI certificates prevents unauthorized modifications, while role-based access controls limit configuration changes to credentialed personnel.

Delivery Timeline & Service Commitments

Standard Lead Time: 4-6 weeks for factory-sealed units with full traceability documentation
Expedited Service: 10-14 business days available for critical path projects (subject to inventory)
Warranty Period: 24 months from shipment date, covering manufacturing defects and component failures
Technical Support: Lifetime access to Yokogawa-certified application engineers via email and phone
Documentation Package: Includes installation manual, wiring diagrams, SIL certificate, and CENTUM VP configuration templates

Frequently Asked Questions

Can this module interface directly with Allen-Bradley ControlLogix systems?
Yes, via Ethernet/IP gateway modules. However, native integration with Yokogawa DCS platforms provides superior diagnostic visibility and reduces latency to < 10 ms.

What is the maximum cable length between the module and field devices?
Up to 500 meters using shielded twisted-pair cable (0.75 mm² minimum conductor size). For runs exceeding 300 meters, install surge protection at both ends.

Does the SIL2 rating apply to all 32 channels simultaneously?
Yes, the safety certification covers the entire module when operated within specified environmental and electrical limits. Individual channel failures do not compromise adjacent channels due to isolation barriers.

How does time-proportional mode improve actuator lifespan?
By modulating output duty cycle (e.g., 60% on-time over a 10-second period), the module reduces mechanical stress on valve stems and motor contactors compared to rapid on/off switching, extending service intervals by 25-40%.

Is remote monitoring supported for offshore platform installations?
Fully compatible with Yokogawa's Sushi Sensor and OpreX Asset Operations platforms, enabling cloud-based diagnostics and performance trending via 4G/LTE or satellite links.

What certifications are included beyond SIL2?
CE, UL508, ATEX Zone 2 (with appropriate enclosure), and IECEx for hazardous area installations. Marine certifications (ABS, DNV) available upon request.

Next Steps: Secure Your Control System Upgrade

Contact our industrial automation specialists to discuss your specific I/O requirements, receive application-specific wiring diagrams, and obtain a detailed quotation including volume pricing for multi-module orders. Our team provides complimentary pre-sales engineering support to validate compatibility with your existing infrastructure.
