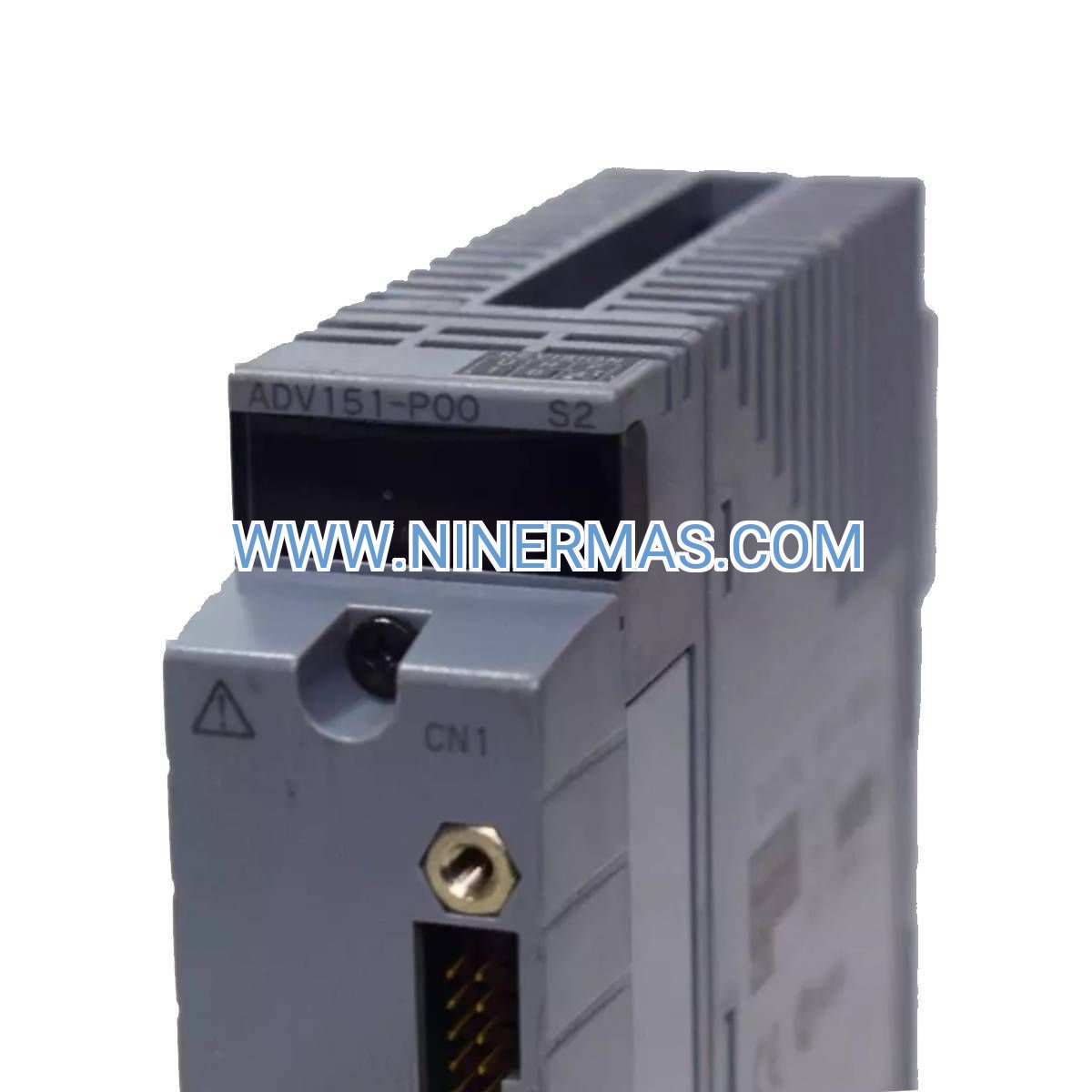

ADV151-P00 S2 Digital Input Module (Industrial-Grade 32-Channel Monitoring Solution)

The ADV151-P00 S2 represents Yokogawa's commitment to precision signal acquisition in mission-critical process control environments. This 32-channel digital input module transforms discrete field signals into actionable data for CENTUM VP and CS 3000 distributed control systems, enabling operators to monitor equipment status, alarm conditions, and process interlocks with microsecond-level accuracy.

Designed for industries where downtime translates to significant revenue loss, the ADV151-P00 S2 addresses three fundamental challenges: signal integrity in electrically noisy environments, rapid fault detection across distributed I/O networks, and seamless integration with legacy and modern control architectures. Process engineers, automation specialists, and plant maintenance teams rely on this module to bridge the gap between field devices and supervisory control layers.

Key differentiators include channel-to-channel galvanic isolation preventing ground loop interference, hot-swap capability minimizing maintenance windows, and compliance with IEC 61131 standards ensuring interoperability across multi-vendor installations. Whether retrofitting aging DCS infrastructure or commissioning greenfield facilities, the ADV151-P00 S2 delivers the reliability industrial operations demand.

Core Capabilities & Business Value

→ High-Density Signal Consolidation
32 independent input channels reduce cabinet footprint by 40% compared to 16-channel alternatives, lowering installation costs and simplifying wiring harnesses in space-constrained control rooms.

✓ Electrical Isolation Architecture
Channel-to-system and channel-to-channel isolation (1500V AC) eliminates cross-talk and protects upstream controllers from field-side voltage transients, reducing nuisance trips by up to 60%.

✓ Real-Time Diagnostic Intelligence
Built-in self-test routines detect open circuits, short circuits, and power supply anomalies within 50ms, enabling predictive maintenance strategies that extend mean time between failures (MTBF) beyond 200,000 hours.

→ Hot-Swappable Design
Replace modules under power without system shutdown—critical for continuous process industries where unplanned outages cost $50,000+ per hour in lost production.

✓ Wide Operating Temperature Range
-10°C to +55°C operational envelope supports installations in non-climate-controlled environments, from offshore platforms to desert refineries.

→ Backward Compatibility
Drop-in replacement for legacy ADV151-P00 modules preserves existing wiring infrastructure during phased modernization projects, reducing migration risk and engineering hours.

Industry Applications & Problem-Solving

Oil & Gas Production Facilities
Monitor wellhead pressure switches, emergency shutdown (ESD) valve positions, and compressor vibration sensors across distributed gathering stations. The module's explosion-proof compatibility (when paired with appropriate barriers) and extended temperature rating make it ideal for hazardous area classifications (Zone 2/Division 2).

Chemical Batch Processing
Track reactor vessel level switches, agitator motor status contacts, and safety interlock chains in multi-recipe batch operations. Isolated inputs prevent contamination between process zones, while fast scan rates (≤10ms) ensure timely detection of runaway reactions.

Power Generation & Substations
Interface with circuit breaker auxiliary contacts, transformer temperature alarms, and generator protection relays. The module's immunity to electromagnetic interference (EMI) ensures reliable operation in high-voltage switchyards where electrical noise exceeds 10V/m.

Water & Wastewater Treatment
Aggregate pump run status, filter backwash cycle indicators, and chemical feed system alarms across multi-basin treatment plants. Corrosion-resistant conformal coating withstands humid environments (95% RH non-condensing) typical of clarifier buildings.

Pharmaceutical Manufacturing
Validate clean-in-place (CIP) valve positions, autoclave door interlocks, and HVAC damper status in FDA 21 CFR Part 11-compliant installations. Audit trail capabilities support batch record documentation requirements.

Technical Parameters & Selection Criteria

Selection Guidelines: For applications requiring >32 inputs, deploy multiple modules on the same field control node (FCN). When interfacing with 48V DC systems, specify external voltage divider networks. In SIL-rated safety loops, pair with certified safety barriers and document per IEC 61511 requirements.

Advanced Integration Features

Modbus TCP/IP Gateway Compatibility
Expose digital input states to third-party SCADA platforms (Wonderware, Ignition, FactoryTalk) via OPC UA or Modbus TCP protocols, enabling hybrid control architectures without proprietary gateways.

Redundant Controller Support
Seamlessly integrates with Yokogawa's dual-redundant processor configurations (CP451-10/50 pairs), ensuring bumpless transfer during controller failover events—critical for SIL 2/3 safety instrumented systems.

Cybersecurity Hardening
Firmware-level access controls and encrypted configuration downloads align with IEC 62443 industrial cybersecurity standards, protecting against unauthorized parameter changes in networked environments.

Custom Alarm Filtering
Configure per-channel debounce timers (10-5000ms) and alarm deadbands to suppress chattering contacts and reduce operator alarm fatigue—studies show 30% improvement in response times to genuine faults.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 4-6 weeks for factory-new units; 7-10 business days for certified refurbished inventory (includes 12-month warranty matching new equipment).

Customization Options: Pre-configured modules with customer-specific channel labeling and tested wiring harnesses available with 8-week lead time—ideal for large capital projects requiring 50+ modules.

Warranty Coverage: 24-month manufacturer defect warranty covering parts and labor. Extended 60-month service agreements include annual calibration verification and priority RMA processing.

Technical Support: Access to Yokogawa-certified application engineers for integration troubleshooting, configuration file review, and performance optimization. Remote diagnostic sessions available within 4-hour response SLA.

Documentation Package: Includes installation manual (PDF/hardcopy), AutoCAD terminal block drawings, sample ladder logic for common PLC interfaces, and IEC 61850 SCL files for substation automation projects.

Frequently Asked Questions

Q: How does the ADV151-P00 S2 interface with non-Yokogawa control systems?
A: The module communicates via Yokogawa's Vnet/IP fieldbus protocol. For third-party PLC integration (Allen-Bradley, Siemens, Schneider), deploy a Yokogawa FCN gateway with EtherNet/IP or PROFINET adapters. Alternatively, use the module's Modbus RTU mapping feature for direct serial connectivity.

Q: What input current threshold triggers the ON state recognition?
A: The module registers logic HIGH when input current exceeds 7mA (typical at 24V DC with 3.3kΩ impedance). Logic LOW is recognized below 2.5mA. This 4.5mA hysteresis prevents oscillation with marginal signal sources.

Q: Can this module reduce energy costs in my facility?
A: While the module itself consumes only 4.5W, its diagnostic capabilities enable condition-based maintenance strategies. Customers report 15-20% reductions in unplanned downtime by detecting failing field devices (e.g., worn relay contacts) before catastrophic failure, indirectly lowering energy waste from emergency shutdowns.

Q: What are the physical installation requirements for cabinet mounting?
A: The module mounts on standard DIN rail (35mm × 7.5mm per IEC 60715) or directly to backplanes in Yokogawa's modular I/O chassis. Maintain 10mm clearance on sides for convection cooling. Torque terminal screws to 0.5-0.6 N·m using insulated screwdrivers.

Q: Does the ADV151-P00 S2 support remote monitoring and diagnostics?
A: Yes—when networked through a CENTUM VP system, operators access real-time channel status, historical trend data, and predictive maintenance alerts via web-based HMI dashboards. Mobile app integration (iOS/Android) enables off-site monitoring for critical alarms.

Q: How do I migrate from the original ADV151-P00 to the S2 revision?
A: The S2 maintains 100% pin compatibility with the original ADV151-P00. Simply power down the rack, swap modules, and restore power—no wiring changes or configuration uploads required. Firmware auto-detects the S2 revision and enables enhanced diagnostics.

Request Your Quotation Today

Optimize your DCS I/O architecture with proven Yokogawa reliability. Contact our industrial automation specialists for application-specific recommendations, volume pricing, and integration support. Expedited shipping available for urgent project timelines.
