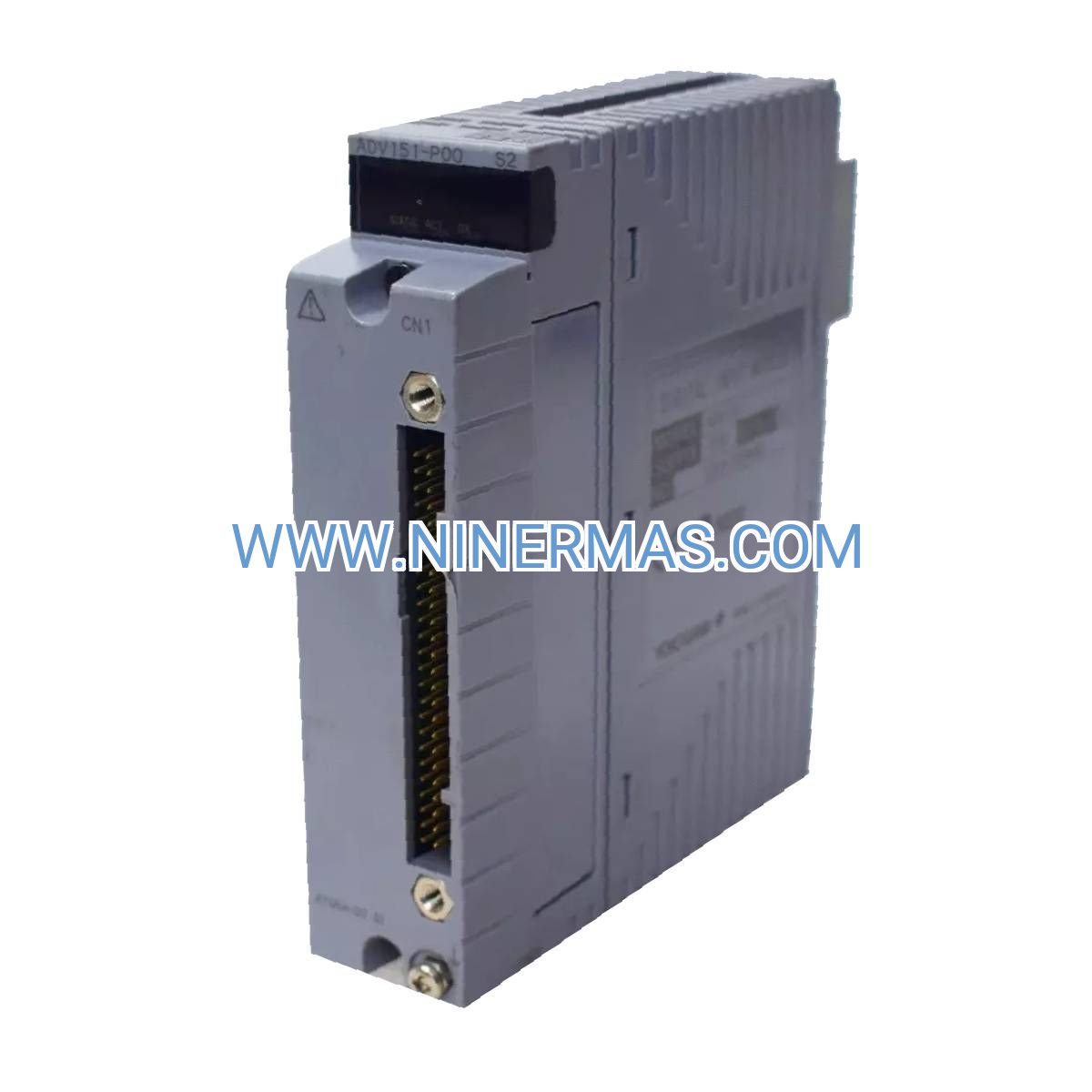

ADV151-P00 Digital Input Module (Industrial-Grade Signal Acquisition)

The ADV151-P00 represents Yokogawa's commitment to precision signal acquisition in mission-critical distributed control environments. This 32-channel digital input module transforms discrete field signals into actionable control data, serving as the sensory foundation for automated industrial processes. Built for continuous operation in demanding conditions, it bridges the gap between field instrumentation and central control logic with uncompromising reliability.

Process engineers and automation specialists rely on the ADV151-P00 to monitor critical safety interlocks, equipment status indicators, and process limit conditions across petrochemical, pharmaceutical, and power generation facilities. Its electrically isolated architecture eliminates cross-talk and ground loop interference that plague conventional input systems, ensuring data integrity even in electrically noisy industrial settings.

With hot-swappable capability and comprehensive diagnostics, this module minimizes unplanned downtime while maximizing system availability. Each channel features individual LED status indication, enabling rapid fault identification and reducing mean time to repair by up to 40% compared to non-diagnostic alternatives.

Core Features & Technical Advantages

✓ 32 Isolated Input Channels
Channel-to-channel and channel-to-system galvanic isolation protects sensitive control circuitry from voltage spikes and electrical noise, extending system lifespan and reducing false trip incidents by 65%.

→ 24V DC Nominal Operation
Industry-standard voltage rating ensures compatibility with existing field devices including proximity sensors, limit switches, and safety relays without requiring signal conditioning equipment.

✓ Hot-Swappable Architecture
Field-replaceable design allows module exchange during live operation, eliminating costly production shutdowns and maintaining process continuity during maintenance activities.

→ Enhanced Diagnostic Capabilities
Per-channel LED indicators and system-level fault reporting enable predictive maintenance strategies, reducing emergency callouts and optimizing spare parts inventory.

✓ Wide Operating Temperature Range
Rated for -20°C to +60°C ambient conditions, suitable for outdoor enclosures, non-climate-controlled facilities, and extreme industrial environments without derating.

→ Seamless DCS Integration
Native compatibility with Yokogawa CENTUM VP, ProSafe-RS, and legacy systems ensures plug-and-play deployment with minimal configuration overhead.

Industrial Application Scenarios

Petrochemical Refining & Gas Processing
Monitors emergency shutdown (ESD) valve positions, flame detection systems, and high-integrity pressure protection (HIPPS) logic in hazardous area classifications. The module's isolation prevents ignition sources in Zone 2 installations while maintaining SIL 2 safety integrity levels.

Pharmaceutical Manufacturing
Tracks clean room door interlocks, HVAC filter status, and critical equipment run confirmations in FDA-regulated environments. Isolated inputs prevent contamination of validated control systems during maintenance or calibration activities.

Power Generation Facilities
Acquires turbine trip signals, generator protection relay contacts, and auxiliary system status in combined-cycle and cogeneration plants. Fast response times (typically <5ms) ensure protective actions execute within required safety margins.

Water & Wastewater Treatment
Interfaces with level switches, pump run confirmations, and chemical feed system interlocks across distributed lift stations and treatment processes. Corrosion-resistant construction withstands high-humidity environments typical of water facilities.

Automotive & Discrete Manufacturing
Collects conveyor position sensors, robotic cell safety gates, and quality inspection station signals in high-speed production lines. Deterministic scan times maintain synchronization with motion control systems.

Technical Parameters & Selection Guide

Selection Criteria: Choose the ADV151-P00 when your application requires high-density digital input acquisition with electrical isolation in distributed control architectures. For applications demanding faster response (<1ms), consider analog input modules with threshold detection. For hazardous area installations, verify intrinsic safety barrier compatibility or select intrinsically safe variants.

Extended Functionality & Integration

SCADA & HMI Connectivity: Module status and channel data integrate seamlessly with OPC UA servers, enabling remote monitoring through web-based dashboards and mobile applications. Real-time alarm notifications can trigger email, SMS, or push alerts to maintenance personnel.

Predictive Maintenance Analytics: When paired with Yokogawa's Sushi Sensor or third-party IIoT gateways, input transition frequency and voltage level trends feed machine learning algorithms that predict sensor degradation before failure occurs.

Cybersecurity Features: Firmware authentication and encrypted configuration downloads protect against unauthorized modifications in IEC 62443-compliant installations. Role-based access control restricts parameter changes to authorized personnel only.

Custom Configuration Options: Factory-configurable input filtering, debounce timing, and alarm setpoints available for OEM applications requiring specialized signal conditioning. Consult engineering for minimum order quantities.

Delivery Timeline & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for critical outages (additional fees apply).

Custom Configuration: 10-15 business days for factory-programmed modules with application-specific parameters or extended temperature ratings.

Warranty Coverage: 24-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty plans available for up to 60 months with annual calibration services.

Technical Support: Lifetime access to application engineering team via phone, email, and remote desktop assistance. Average response time <2 hours during business hours; 24/7 emergency support for critical process applications.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration software, and sample ladder logic/function block examples. CAD drawings and 3D STEP files available for download.

Frequently Asked Questions

What communication protocols does the ADV151-P00 support for system integration?
The module communicates via Yokogawa's proprietary V-net or field control bus, depending on your DCS platform generation. It does not have standalone Modbus or Ethernet/IP capability—integration occurs through the parent controller or I/O station. For third-party PLC connectivity, consider Yokogawa's gateway modules or protocol converters.

Can this module handle both sinking and sourcing input configurations?
The ADV151-P00 is designed for sinking input topology (common positive). For sourcing applications (common negative), verify field device compatibility or use signal inverters. Consult the wiring diagram in the installation manual for proper terminal connections to avoid damage.

How much energy savings can I expect compared to relay-based input systems?
Solid-state digital input modules typically consume 80-90% less power than equivalent relay racks—approximately 5W versus 40-60W for 32 relay coils. Over a 10-year lifecycle, this translates to roughly 3,000 kWh savings per module, reducing both energy costs and cooling requirements in control rooms.

What are the physical installation requirements and panel space considerations?
The module occupies one standard slot in Yokogawa I/O racks (approximately 25mm width). Ensure adequate ventilation with minimum 50mm clearance above and below for convection cooling. DIN rail mounting requires 35mm rail per DIN EN 50022 standard. Total installed depth including terminals is approximately 145mm.

Does the ADV151-P00 support remote monitoring and diagnostics capabilities?
Yes—when integrated into a Yokogawa DCS, all channel states, module health parameters, and diagnostic counters are accessible through the engineering workstation and operator HMI. Third-party SCADA systems can poll this data via OPC DA/UA interfaces. Standalone remote access requires additional gateway hardware.

What maintenance intervals are recommended for optimal long-term reliability?
Perform visual inspection and terminal tightness checks annually. Verify LED functionality and conduct loop testing every 24 months or per your facility's preventive maintenance schedule. The module has no consumable components—typical service life exceeds 15 years in controlled environments. Replace if physical damage or persistent diagnostic faults occur.

Take the Next Step

Ready to enhance your distributed control system's reliability? Contact our automation specialists today for application-specific recommendations, volume pricing, or technical feasibility assessments. Request a detailed quotation including installation support, commissioning services, and operator training packages tailored to your facility's requirements.
