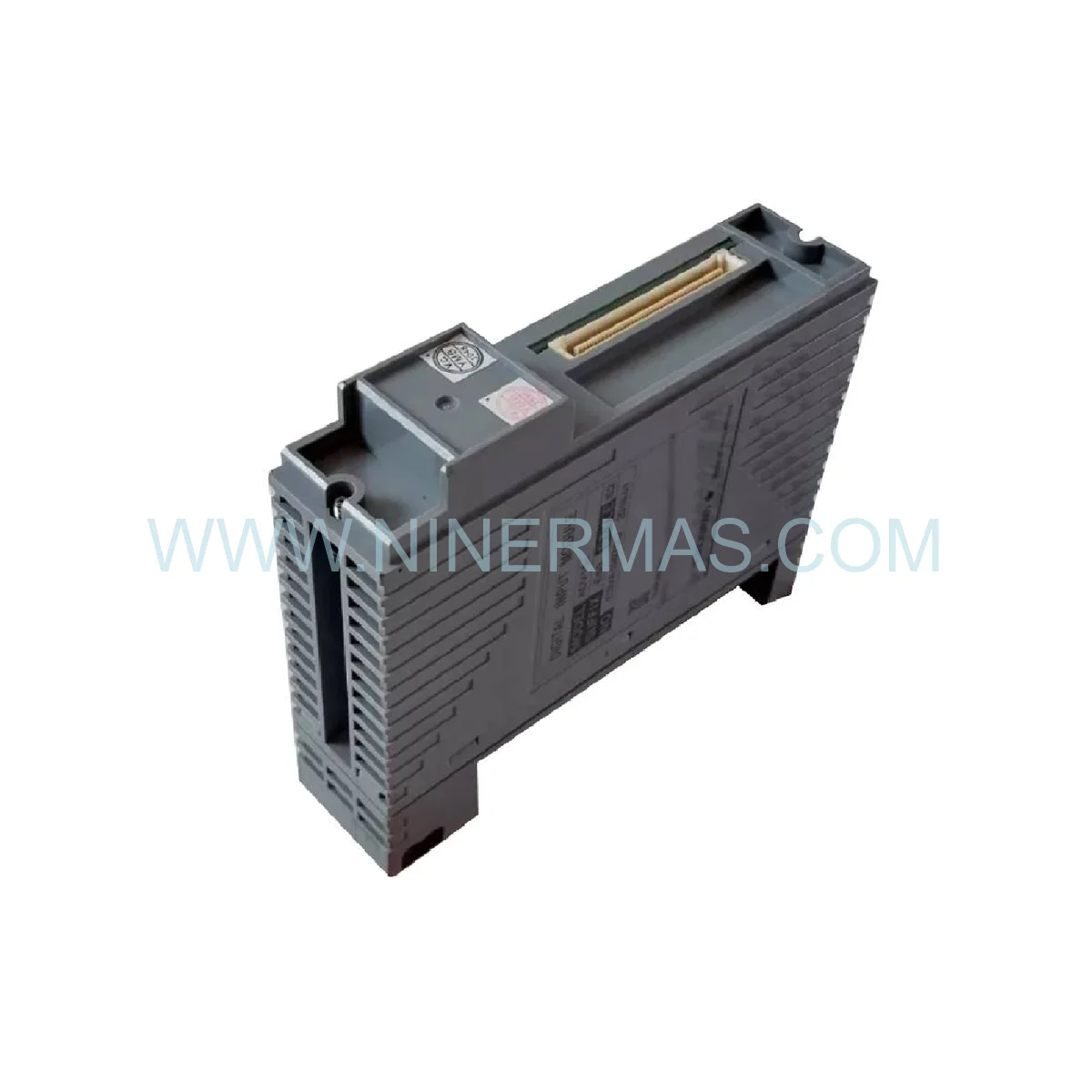

Yokogawa AAI841-S50/K4A00 (Industrial-Grade Dual Analog I/O Module)

The Yokogawa AAI841-S50/K4A00 is a high-performance analog input/output module engineered for industrial process automation and distributed control systems. This dual-function module combines 8 analog input channels with 8 analog output channels in a single compact unit, enabling simultaneous signal acquisition and control command transmission. Designed for integration with Yokogawa CENTUM VP, CENTUM CS 3000, and ProSafe-RS platforms, it delivers reliable signal processing for temperature, pressure, flow, and level control applications across manufacturing, energy, and chemical processing industries.

Process engineers and automation specialists rely on the AAI841 series to reduce panel footprint while maintaining precise analog signal management. The module addresses critical challenges in multi-loop control systems where space constraints, wiring complexity, and maintenance accessibility demand streamlined I/O architecture. With conformal coating protection (K4A00 designation) and hot-swappable capability, this module ensures continuous operation in harsh industrial environments while minimizing unplanned downtime.

Key advantages include 50% space savings versus separate I/O modules, ±0.1% signal accuracy across the full span, and plug-and-play compatibility with Yokogawa's ecosystem. The non-isolated channel design optimizes cost-efficiency for applications where inter-channel isolation is not required, making it an ideal choice for budget-conscious projects without compromising performance standards.

Core Features & Technical Advantages

→ Dual I/O Architecture: 8 analog inputs + 8 analog outputs in one module eliminate the need for separate cards, reducing installation time by 40% and cutting wiring costs significantly.

→ Multi-Signal Compatibility: Supports both 4-20 mA current loops and 1-5 V voltage signals, providing flexibility to interface with diverse sensor and actuator types without external signal converters.

→ Conformal Coating Protection (K4A00): Factory-applied protective layer shields circuitry from moisture, dust, and corrosive gases, extending MTBF (Mean Time Between Failures) by up to 35% in challenging environments.

→ Hot-Swappable Design: Replace modules during live operation without shutting down the control system, ensuring zero-downtime maintenance and rapid fault recovery.

→ High Signal Accuracy: Maintains ±0.1% of span precision across all channels, meeting stringent process control requirements for pharmaceutical, semiconductor, and food & beverage applications.

→ CENTUM Ecosystem Integration: Native compatibility with Yokogawa's CENTUM VP and CS 3000 platforms enables auto-configuration, reducing commissioning time from hours to minutes.

Industrial Application Scenarios

✓ Chemical Reactor Temperature Control: Monitor multiple thermocouples (inputs) while simultaneously controlling heating/cooling valves (outputs) to maintain precise reaction temperatures within ±0.5°C tolerance, preventing batch quality deviations.

✓ Boiler Combustion Optimization: Acquire oxygen sensor readings and flue gas temperature data (inputs) while modulating fuel flow and air damper positions (outputs) to achieve optimal combustion efficiency and reduce fuel consumption by 8-12%.

✓ Water Treatment pH Balancing: Continuously measure pH levels and chemical dosing flow rates (inputs) while controlling acid/base injection pumps (outputs), ensuring treated water meets discharge standards and avoiding regulatory penalties.

✓ HVAC System Coordination: Track zone temperatures and humidity levels (inputs) while adjusting chiller output and damper positions (outputs) to maintain comfort conditions while reducing energy costs by 15-20%.

✓ Pharmaceutical Fermentation Monitoring: Collect dissolved oxygen, pH, and temperature data (inputs) while regulating agitator speed and nutrient feed rates (outputs) to optimize cell growth and maximize yield per batch.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AAI841-S50/K4A00 when your application requires simultaneous input/output functionality within a single module footprint. Opt for this model if your process operates in humid or corrosive environments where conformal coating provides essential protection. For applications demanding electrical isolation between channels (e.g., ground loop prevention), consider the AAI835-H53 isolated variant instead. Verify that your control system supports non-isolated I/O architecture before specifying this module.

Extended Functions & Integration Capabilities

IoT & Remote Monitoring: When paired with Yokogawa's STARDOM or e-RT3 Plus edge controllers, the AAI841 module enables cloud connectivity for remote diagnostics, predictive maintenance alerts, and real-time performance dashboards accessible via mobile devices.

Advanced Diagnostics: Built-in self-test routines continuously monitor channel health, detecting open circuits, short circuits, and signal drift conditions. Diagnostic data integrates with CENTUM's alarm management system for proactive maintenance scheduling.

Customization Options: Factory configuration services available for pre-programmed signal ranges, custom terminal labeling, and application-specific calibration certificates. Consult with our engineering team for projects requiring specialized configurations or extended temperature ratings.

Delivery Timeline & Service Guarantee

Standard Lead Time: 3-5 business days for in-stock units; expedited shipping available for urgent projects.

Custom Configuration: 7-10 business days for factory-configured modules with specialized settings or extended testing.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship; extended warranty plans available upon request.

Technical Support: Lifetime access to our application engineering team for installation guidance, troubleshooting assistance, and system optimization recommendations. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration software, and calibration certificate. Digital resources include CAD drawings, 3D STEP files, and sample ladder logic programs.

Frequently Asked Questions

Q: How does the AAI841 module interface with existing CENTUM VP systems?
A: The module connects directly to CENTUM VP's I/O bus via standard terminal blocks. Auto-configuration features detect the module upon installation, automatically populating I/O tags and signal ranges in the engineering database. No manual parameter entry required for standard 4-20 mA signals.

Q: What is the maximum cable distance between the module and field devices?
A: For 4-20 mA current loops, maximum recommended distance is 1000 meters using shielded twisted-pair cable. For 1-5 V voltage signals, limit cable runs to 100 meters to minimize noise interference and voltage drop effects.

Q: Can this module reduce energy consumption in my control system?
A: Yes. By consolidating I/O functions, the AAI841 reduces overall power consumption by approximately 30% compared to using separate input and output modules. Lower heat generation also decreases cooling requirements in control cabinets.

Q: What installation requirements must be met for proper operation?
A: Mount the module on standard 35mm DIN rail within a grounded control cabinet. Maintain ambient temperature between -10°C and +55°C, ensure adequate ventilation (minimum 50mm clearance above/below), and use shielded cables with proper grounding to minimize EMI susceptibility.

Q: Does the conformal coating affect field serviceability?
A: No. The K4A00 conformal coating protects circuitry without impeding access to terminal blocks or diagnostic LEDs. Field technicians can perform standard maintenance tasks (terminal tightening, visual inspection, module replacement) without special tools or coating removal procedures.

Q: Is remote monitoring and diagnostics supported?
A: Yes, when integrated with CENTUM VP's network architecture. The module's diagnostic data streams to the operator station, enabling remote monitoring of channel status, signal quality, and fault conditions. Integration with Yokogawa's Sushi Sensor platform enables predictive maintenance analytics.

Request Your Quote Today

Optimize your process control architecture with the Yokogawa AAI841-S50/K4A00 analog I/O module. Contact our industrial automation specialists for application-specific recommendations, volume pricing, and technical consultation. Our team provides complimentary system design reviews to ensure optimal module selection for your project requirements.
