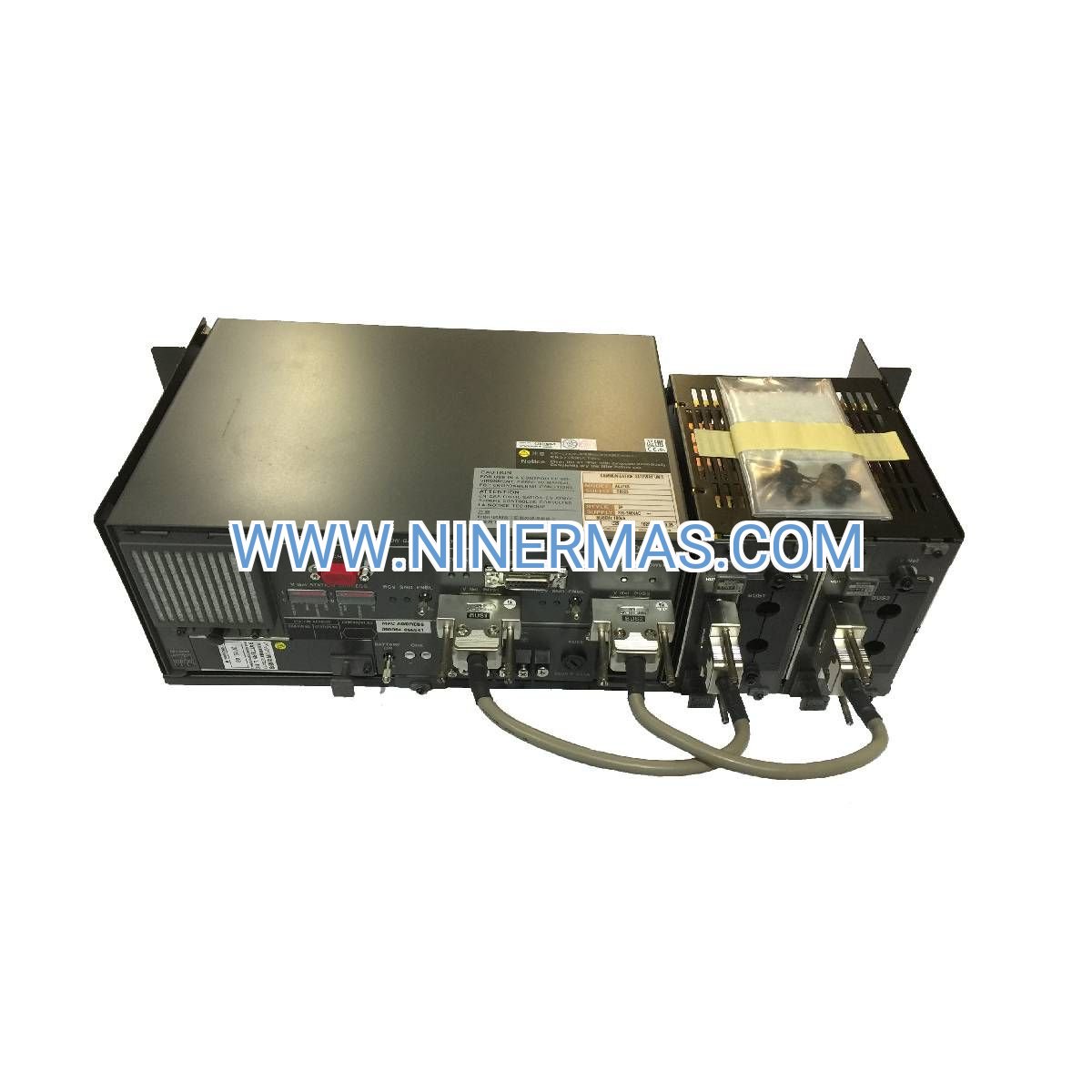

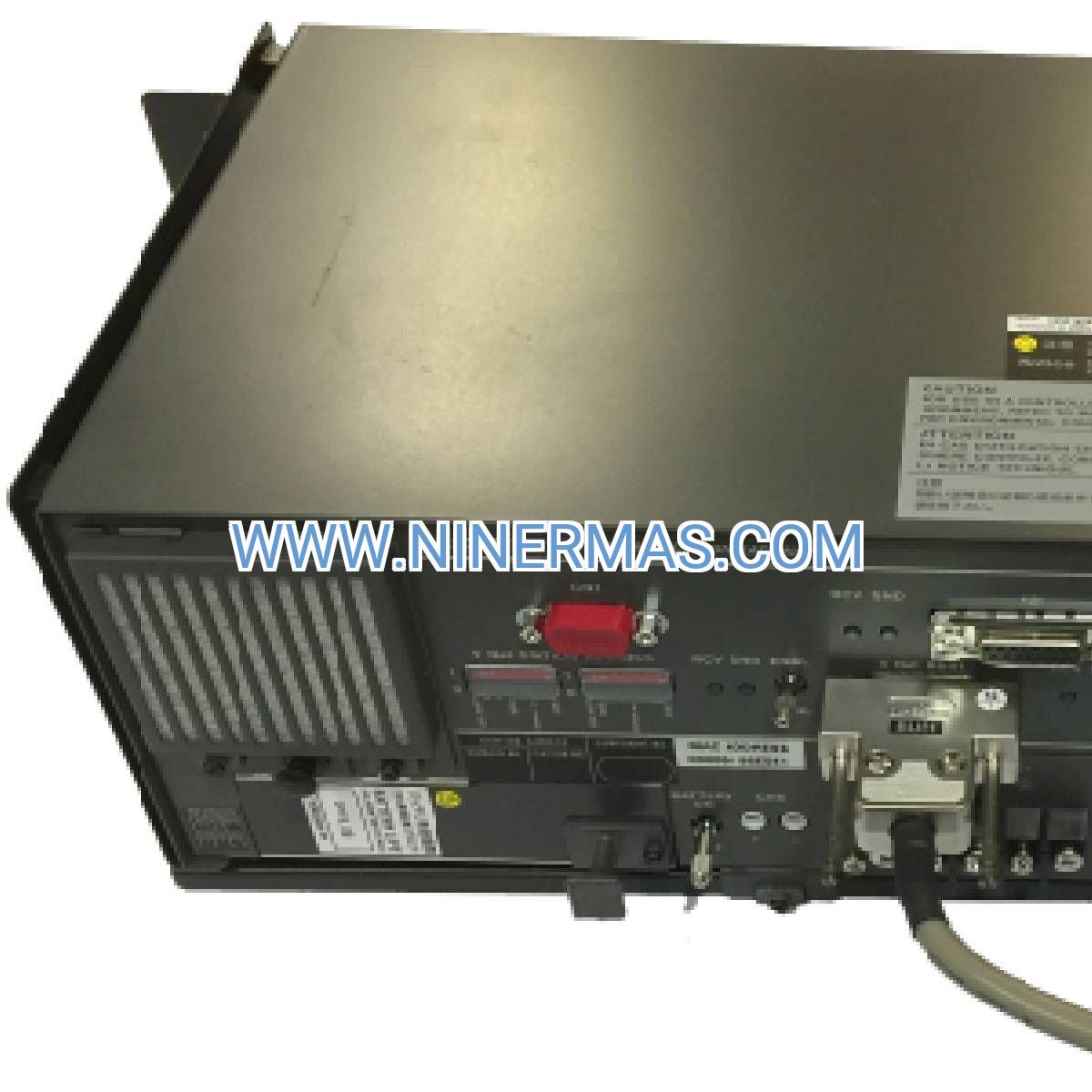

ACG10S-F8123 Industrial Communication Gateway (Yokogawa CENTUM VP3 Compatible)

The ACG10S-F8123 represents Yokogawa's advanced solution for bridging disparate automation networks in mission-critical industrial environments. Designed as a high-performance protocol translator, this gateway unit eliminates communication barriers between legacy distributed control systems and contemporary supervisory platforms, ensuring uninterrupted data flow across your entire process infrastructure.

Engineered for process manufacturers facing integration challenges during system modernization, the ACG10S-F8123 delivers enterprise-grade connectivity without requiring costly field device replacements. Plant engineers, system integrators, and automation managers rely on this gateway to extend the operational lifespan of proven control architectures while adopting next-generation monitoring capabilities.

What sets this communication module apart is its intelligent protocol handling engine combined with industrial-hardened construction—offering simultaneous multi-protocol translation, redundant operation support, and zero-downtime firmware updates that keep production lines running at peak efficiency.

Core Features & Business Value

✓ Universal Protocol Translation Engine
Natively supports Modbus RTU/TCP, OPC DA/UA, and Yokogawa VNet/IP protocols, eliminating the need for multiple gateway devices. Business Impact: Reduces hardware costs by 35-50% compared to single-protocol solutions while simplifying network architecture.

✓ High-Density I/O Processing
Handles up to 2,048 data points with deterministic 100ms scan cycles, ensuring real-time synchronization across distributed control loops. Business Impact: Enables centralized monitoring of complex processes without performance degradation or data loss.

✓ Dual Ethernet + Serial Connectivity
Equipped with redundant 10/100 Mbps Ethernet ports plus RS-232/485 interfaces for maximum flexibility in brownfield installations. Business Impact: Preserves existing serial device investments while enabling modern Ethernet-based SCADA integration.

✓ Hot-Swappable Redundancy Architecture
Supports active-standby configurations with automatic failover in under 2 seconds, maintaining process continuity during maintenance events. Business Impact: Achieves 99.9%+ uptime in critical applications where communication failures could trigger costly production shutdowns.

✓ Web-Based Configuration Interface
Embedded HTTP server provides intuitive setup wizards and real-time diagnostics without proprietary software licenses. Business Impact: Cuts commissioning time by 40% and reduces dependency on specialized vendor support.

✓ Industrial-Grade Environmental Tolerance
Operates reliably in 0-55°C ambient temperatures with CE/UL/CSA certifications for hazardous area deployment. Business Impact: Ensures consistent performance in harsh refinery, chemical plant, and outdoor utility installations.

Application Scenarios Across Industries

→ Petroleum Refining & Petrochemical Complexes
Challenge: Aging DCS networks using proprietary protocols cannot communicate with modern plant-wide information management systems (PIMS).
Solution: The ACG10S-F8123 acts as a bidirectional translator, exposing legacy process data via standard OPC UA interfaces while maintaining existing control logic integrity.
Value Delivered: Enables predictive analytics and advanced process control without disrupting proven safety-critical systems.

→ Chemical Manufacturing & Batch Processing
Challenge: Multiple production lines use incompatible control platforms, preventing unified batch tracking and quality management.
Solution: Deploy gateway units at each line to aggregate recipe parameters, alarm states, and production metrics into a centralized historian database.
Value Delivered: Achieves full batch genealogy traceability and reduces quality incidents by 25% through real-time deviation detection.

→ Power Generation & Cogeneration Facilities
Challenge: Turbine control systems, emissions monitoring equipment, and balance-of-plant controllers operate on isolated networks.
Solution: The gateway's multi-protocol capability consolidates data from Modbus RTU sensors, OPC-enabled PLCs, and proprietary DCS modules onto a single Ethernet backbone.
Value Delivered: Improves plant efficiency by 3-5% through coordinated optimization of combustion, steam, and electrical generation processes.

→ Water & Wastewater Treatment Systems
Challenge: Geographically distributed pump stations and treatment plants require secure remote monitoring without exposing control networks to cyber threats.
Solution: Configure gateways with VPN tunneling and protocol filtering to provide read-only SCADA access while blocking unauthorized write commands.
Value Delivered: Reduces emergency response times by 60% while maintaining IEC 62443 cybersecurity compliance.

→ Pharmaceutical & Biotech Manufacturing
Challenge: FDA 21 CFR Part 11 compliance demands complete audit trails for all process parameter changes across legacy and new equipment.
Solution: Gateway timestamps and logs every data transaction with cryptographic signatures, feeding compliant historians and MES platforms.
Value Delivered: Passes regulatory audits while enabling paperless batch record systems that cut documentation costs by 40%.

Technical Parameters & Selection Guide

Selection Criteria for Your Application:

Choose the ACG10S-F8123 if you need:
→ Integration between Yokogawa CENTUM VP/VP3 systems and third-party SCADA platforms
→ Simultaneous protocol conversion (e.g., Modbus slave + OPC UA server)
→ Redundant gateway operation for high-availability applications
→ Legacy serial device connectivity alongside modern Ethernet networks

Consider alternative models if:
→ Your application requires only single-protocol translation (simpler models available)
→ You need wireless connectivity (explore ACG20 series with Wi-Fi/4G options)
→ Data point count exceeds 2,048 tags (upgrade to ACG30 enterprise gateway)

Extended Capabilities & Integration Options

Industrial IoT & Cloud Connectivity
The gateway supports MQTT publish/subscribe for direct integration with AWS IoT Core, Azure IoT Hub, and private cloud historians. Secure TLS 1.3 encryption ensures data integrity during transmission to analytics platforms.

Advanced Diagnostics & Predictive Maintenance
Built-in SNMP v3 agent enables network management systems to monitor gateway health metrics including CPU load, memory utilization, and communication error rates. Configurable email/SMS alerts notify maintenance teams before failures occur.

Custom Protocol Development
Yokogawa offers SDK licensing for customers requiring proprietary protocol support. Our engineering team can develop and deploy custom drivers within 4-6 weeks for specialized equipment integration.

Cybersecurity Hardening
Optional security package includes role-based access control (RBAC), encrypted configuration backups, and IEC 62443-compliant firewall rules. Supports integration with industrial DMZ architectures and unidirectional gateways.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units | 4-6 weeks for factory-configured systems with custom protocols

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 5-year service contracts available with annual health checks.

Technical Support: Lifetime access to Yokogawa's global support network including 24/7 emergency hotline, remote diagnostics, and on-site commissioning assistance (fees apply for on-site services).

Documentation Package: Each unit ships with installation manual, quick-start guide, protocol configuration templates, and AutoCAD drawings for panel integration. Firmware updates and user manuals available via secure download portal.

Frequently Asked Questions

Q1: How does the ACG10S-F8123 gateway interface with existing CENTUM VP3 systems?
A: The gateway connects via standard Ethernet to the CENTUM VP3 VNet/IP network. Configuration is performed through the gateway's web interface—no modifications to existing DCS programming are required. Data mapping uses Yokogawa's tag database structure for seamless integration.

Q2: What is the maximum cable distance for RS-485 serial connections?
A: Standard RS-485 supports up to 1,200 meters (4,000 feet) at 9,600 baud. For longer distances, use fiber optic converters or Ethernet-based serial servers. The gateway auto-detects baud rates from 1,200 to 115,200 bps.

Q3: Can this gateway reduce energy consumption in my control network?
A: Yes—by consolidating multiple single-protocol gateways into one multi-protocol unit, you eliminate redundant power supplies and network switches. Typical installations see 20-30% reduction in communication infrastructure energy use. The gateway itself consumes only 15W maximum.

Q4: What are the physical installation requirements for rack mounting?
A: The unit requires a standard 19-inch equipment rack with 1U (44mm) vertical space. Minimum clearance of 50mm on sides for ventilation. Mounting hardware and grounding lugs are included. DIN rail mounting kits available separately for panel installations.

Q5: Does the gateway support remote monitoring and configuration changes?
A: Absolutely. The embedded web server is accessible via any modern browser over secure HTTPS. For remote sites, configure VPN access or use Yokogawa's cloud-based gateway management service (subscription required). All configuration changes are logged with timestamps and user credentials.

Q6: How do I ensure continuous operation during gateway firmware updates?
A: Deploy gateways in redundant pairs with automatic failover. During updates, the standby unit assumes active role within 2 seconds. Firmware uploads via FTP complete in 3-5 minutes with automatic rollback if validation fails. Updates can be scheduled during planned maintenance windows.

Ready to Modernize Your Industrial Network?

The ACG10S-F8123 gateway eliminates integration complexity while future-proofing your automation infrastructure. Our technical specialists are standing by to assess your specific protocol requirements and recommend the optimal configuration for your application.

Next Steps:
→ Request a detailed quotation with your I/O point count and protocol requirements
→ Schedule a virtual consultation to review your network architecture
→ Download technical datasheets and configuration examples
→ Inquire about demo unit availability for proof-of-concept testing
