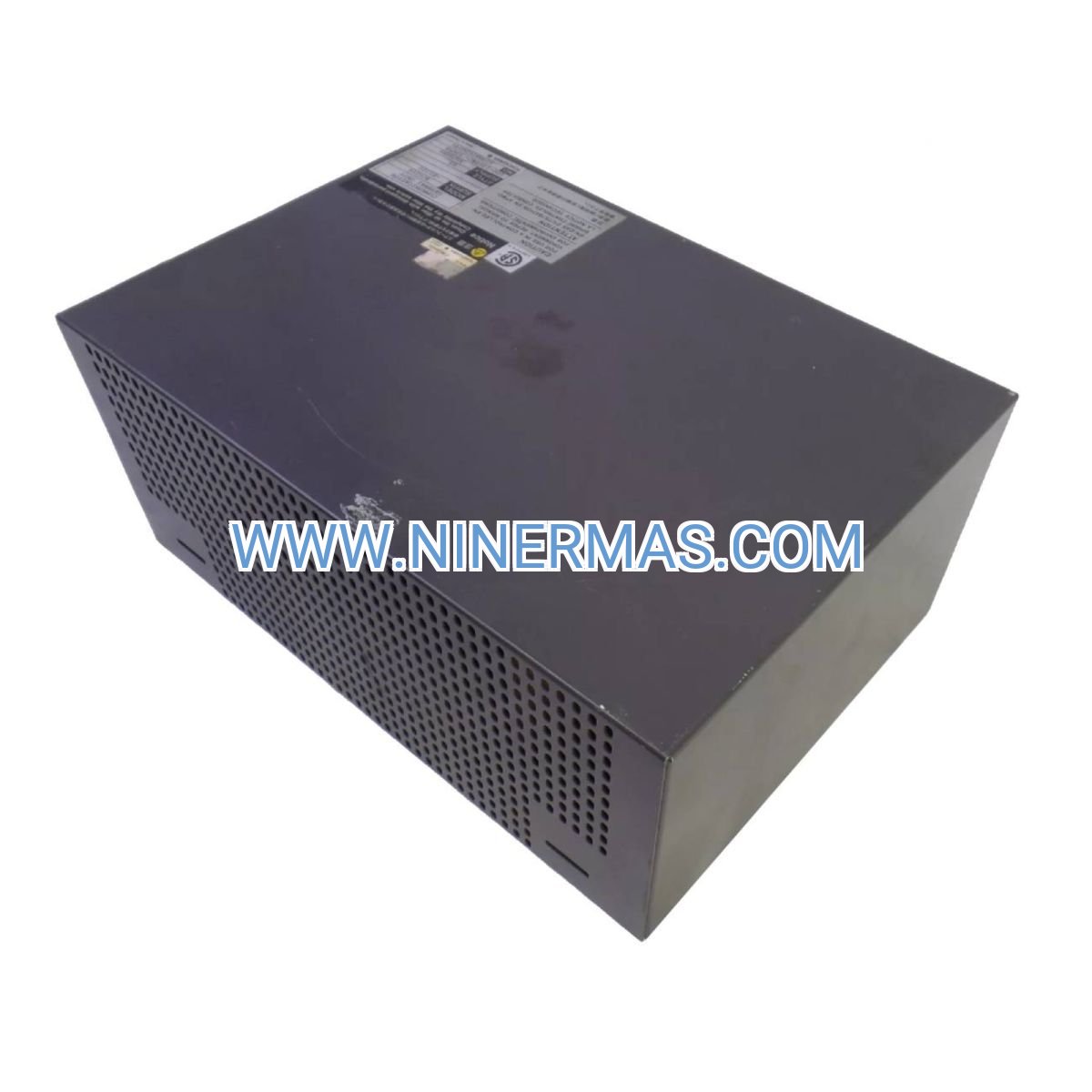

ACG10S-F2121 S4 Communication Gateway (Industrial-Grade Protocol Translator)

The ACG10S-F2121 S4 represents Yokogawa's fourth-generation frame-mode gateway architecture, engineered to eliminate protocol incompatibility across distributed control environments. This industrial-grade translator enables real-time data flow between PROFIBUS field networks, MODBUS supervisory systems, and Ethernet/IP plant infrastructure—without custom programming or middleware dependencies.

Designed for process engineers managing heterogeneous automation estates, this gateway addresses the critical challenge of vendor lock-in while preserving existing capital investments. Whether integrating legacy PROFIBUS instrumentation with modern cloud-connected SCADA platforms or consolidating multi-vendor networks post-acquisition, the S4 revision delivers deterministic performance under continuous industrial operation.

Key differentiators include hardware-accelerated frame processing for sub-10ms latency, dual-port Ethernet redundancy for failover protection, and field-upgradeable firmware that extends operational lifespan beyond typical 10-year automation refresh cycles. Certified for Zone 2 hazardous locations and rated for -20°C to +60°C ambient extremes.

Core Capabilities & Business Value

→ Universal Protocol Translation Engine
Native support for PROFIBUS-DP, MODBUS RTU/TCP, Ethernet/IP, and DeviceNet eliminates the need for multiple gateway devices. Reduces cabinet space requirements by 40% compared to single-protocol converters while simplifying spare parts inventory.

✓ Frame-Mode Architecture for High-Throughput Applications
Optimized data packetization achieves 12 Mbps transfer rates with <1% overhead. Ideal for applications requiring 500+ I/O points or sub-second update cycles, such as batch process control or high-speed packaging lines.

✓ Zero-Downtime Redundancy Configuration
Hot-swappable dual-gateway setup with automatic failover detection. Maintains communication integrity during maintenance windows or component failures—critical for continuous process industries where unplanned downtime costs $50K+ per hour.

✓ Diagnostic Intelligence with Predictive Alerts
Built-in traffic analysis monitors packet loss, latency spikes, and protocol errors. Web-based dashboard provides real-time health metrics and generates SNMP traps for proactive maintenance—reducing troubleshooting time from hours to minutes.

✓ Secure Communication Channels
S4 revision adds TLS 1.3 encryption, role-based access control, and audit logging to meet IEC 62443 cybersecurity standards. Protects against unauthorized configuration changes and man-in-the-middle attacks in connected OT environments.

✓ Firmware Lifecycle Management
Remote updates via Ethernet eliminate site visits for feature additions or security patches. Backward-compatible with ACG10S-F2121 S1/S2/S3 configurations, protecting migration investments.

Proven Application Scenarios

Chemical Processing – Multi-Vendor Instrumentation Unification
A specialty chemicals manufacturer consolidated 15-year-old PROFIBUS flowmeters, new MODBUS analyzers, and Ethernet/IP valve actuators into a single Yokogawa CENTUM VP DCS. The ACG10S-F2121 S4 eliminated three legacy gateways, reducing annual maintenance contracts by $18K while improving data refresh rates from 5 seconds to 500ms.

Power Generation – SCADA System Migration
During a coal-to-gas conversion project, an IPP needed to integrate existing MODBUS RTU protective relays with a new Ethernet/IP-based SCADA platform. Deploying the S4 gateway avoided rewiring 200+ field devices, cutting migration costs by 60% and compressing the project timeline from 8 months to 4 months.

Automotive Assembly – MES Integration for Traceability
A Tier 1 supplier connected DeviceNet torque tools and PROFIBUS vision systems to their SAP MES via Ethernet/IP. Real-time production data now flows to enterprise analytics, enabling predictive quality control that reduced scrap rates by 12% within six months.

Water Treatment – Regional SCADA Consolidation
A municipal utility unified 12 remote pump stations (each with different legacy PLCs) into a centralized SCADA system. The ACG10S-F2121 S4's multi-protocol capability eliminated the need for site-specific gateway programming, standardizing the network architecture across all facilities.

Food & Beverage – Batch Recipe Management
A dairy processor integrated PROFIBUS temperature sensors and MODBUS dosing pumps with their batch control system. The gateway's deterministic frame processing ensures ingredient additions occur within ±0.5-second timing windows, maintaining product consistency across 24/7 production runs.

Technical Parameters & Selection Guide

Selection Criteria: Choose the ACG10S-F2121 S4 when your application requires simultaneous multi-protocol support with deterministic performance. For networks exceeding 2,048 I/O points, consider the ACG10S-F8123 high-capacity variant. If only MODBUS-to-Ethernet translation is needed, the ALE111-S00 module offers a cost-optimized alternative.

Advanced Integration Features

IoT Connectivity & Cloud Data Pipelines
The S4 revision includes OPC UA server functionality, enabling direct connectivity to Azure IoT Hub, AWS IoT Core, or on-premises historians like OSIsoft PI. Stream process data to cloud analytics platforms without compromising OT network security through built-in data diode functionality.

Custom Data Mapping Profiles
FieldMate configuration software provides graphical tag mapping with drag-and-drop simplicity. Save protocol conversion templates for rapid deployment across multiple sites. Import/export configurations via XML for version control and disaster recovery.

Modular Expansion Capability
Optional fiber-optic communication cards extend network reach beyond standard 100-meter Ethernet limits. Ideal for distributed facilities like wastewater treatment plants or mining operations where control rooms are located kilometers from field equipment.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for stock configurations (ACG10S-F2121 S4 with standard firmware)
Custom Configuration: 10-15 business days for pre-programmed gateways with customer-specific protocol mappings
Warranty Period: 24 months from shipment date, covering manufacturing defects and component failures
Technical Support: Lifetime email/phone support with 4-hour response SLA during business hours (GMT+8)
Documentation Package: Installation manual, protocol configuration guide, FieldMate software license, CAD drawings (STEP/DXF), and sample ladder logic for common PLC integrations

Frequently Asked Questions

Can the ACG10S-F2121 S4 interface with Allen-Bradley ControlLogix PLCs?
Yes, via Ethernet/IP protocol support. The gateway appears as a generic Ethernet/IP adapter in RSLogix 5000, allowing direct tag mapping to ControlLogix controllers. Configuration requires importing the provided EDS file into Studio 5000.

What is the maximum cable distance for PROFIBUS connections?
Up to 1,200 meters at 93.75 kbps using RS-485 twisted-pair cabling. For longer distances, deploy PROFIBUS repeaters every 1,000 meters or upgrade to fiber-optic communication modules (available as accessory).

Does frame-mode operation reduce energy consumption compared to polling-based gateways?
Yes—frame-mode architecture transmits data only when values change, reducing network traffic by 30-70% in typical process applications. Lower CPU utilization translates to 15-20% power savings versus continuous polling designs, meaningful in solar-powered remote installations.

How do I configure redundant gateway pairs for failover protection?
Connect both gateways to the same Ethernet network and enable the "Redundancy Mode" setting in FieldMate. The primary gateway broadcasts heartbeat signals; if the secondary detects three consecutive missed heartbeats (configurable 1-10 seconds), it assumes active role within 500ms. Detailed setup instructions are provided in Chapter 7 of the installation manual.

Is the gateway compatible with wireless Ethernet bridges for remote site connectivity?
Yes, when paired with industrial-grade 802.11 or cellular routers. Ensure the wireless link maintains <50ms latency and <1% packet loss for reliable PROFIBUS/MODBUS operation. We recommend Moxa or Phoenix Contact wireless infrastructure for mission-critical deployments.

What cybersecurity measures protect against unauthorized configuration changes?
The S4 revision implements three-tier user authentication (Viewer/Operator/Administrator), TLS-encrypted web interface, and configuration change logging with timestamp/user tracking. Disable unused protocols and enable IP whitelisting to further harden the device against network-based attacks.

Start Your Integration Project Today

Eliminate protocol barriers in your automation infrastructure with the ACG10S-F2121 S4. Our application engineers provide complimentary network assessments to identify optimal gateway placement and configuration strategies for your specific environment.

Next Steps: Contact our technical sales team with your network topology diagram and protocol requirements. We'll deliver a customized integration proposal within 48 hours, including gateway quantity recommendations, configuration templates, and total cost of ownership analysis.
