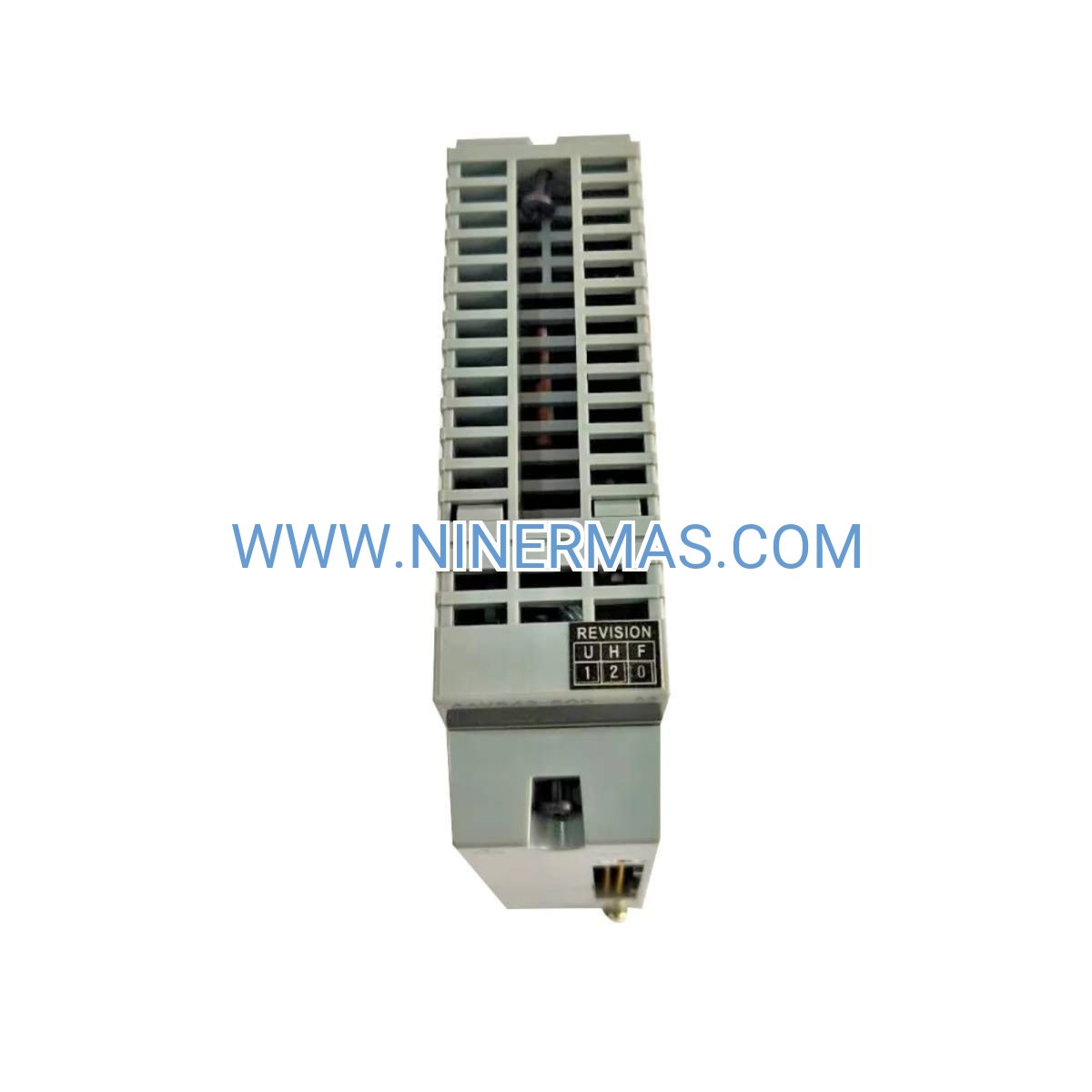

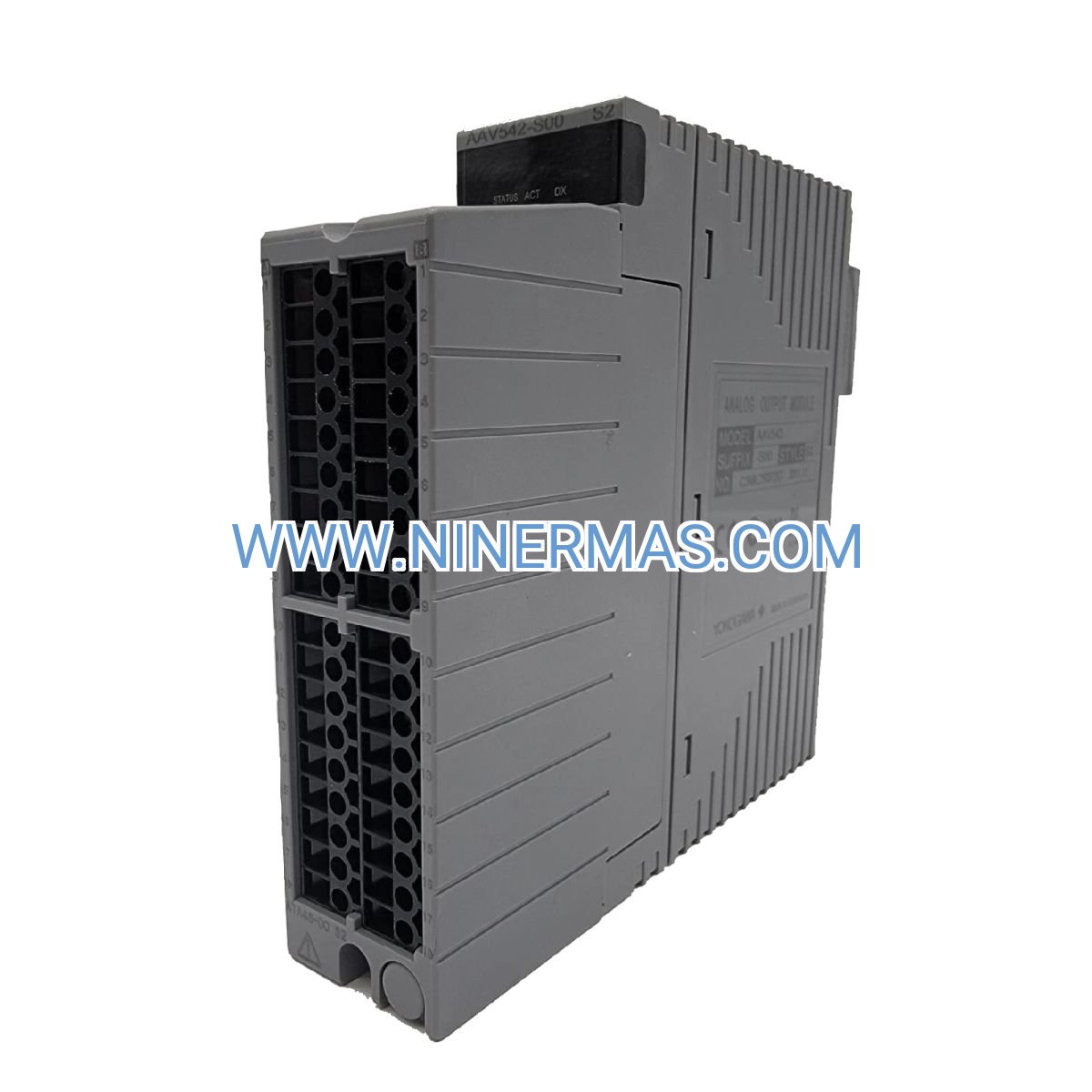

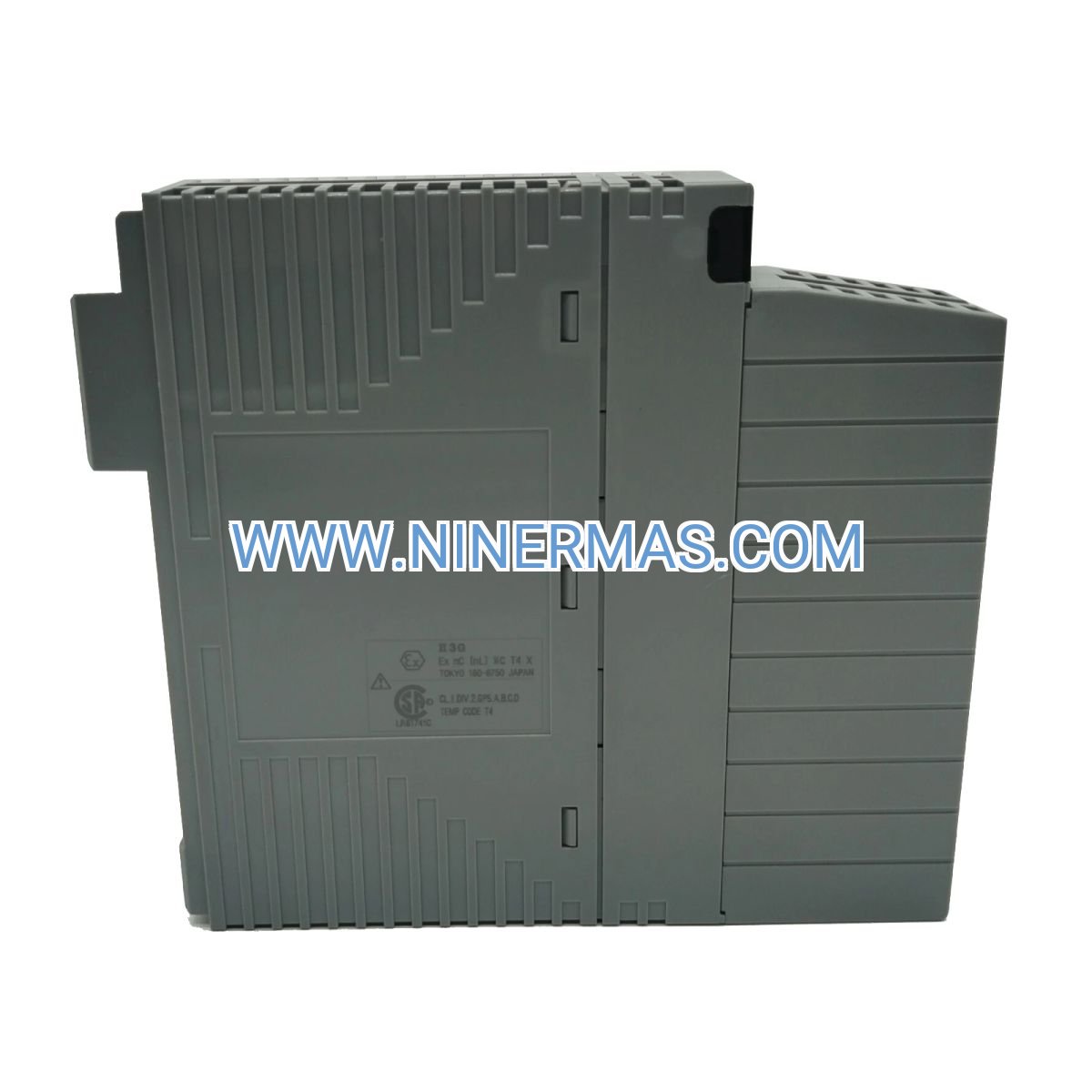

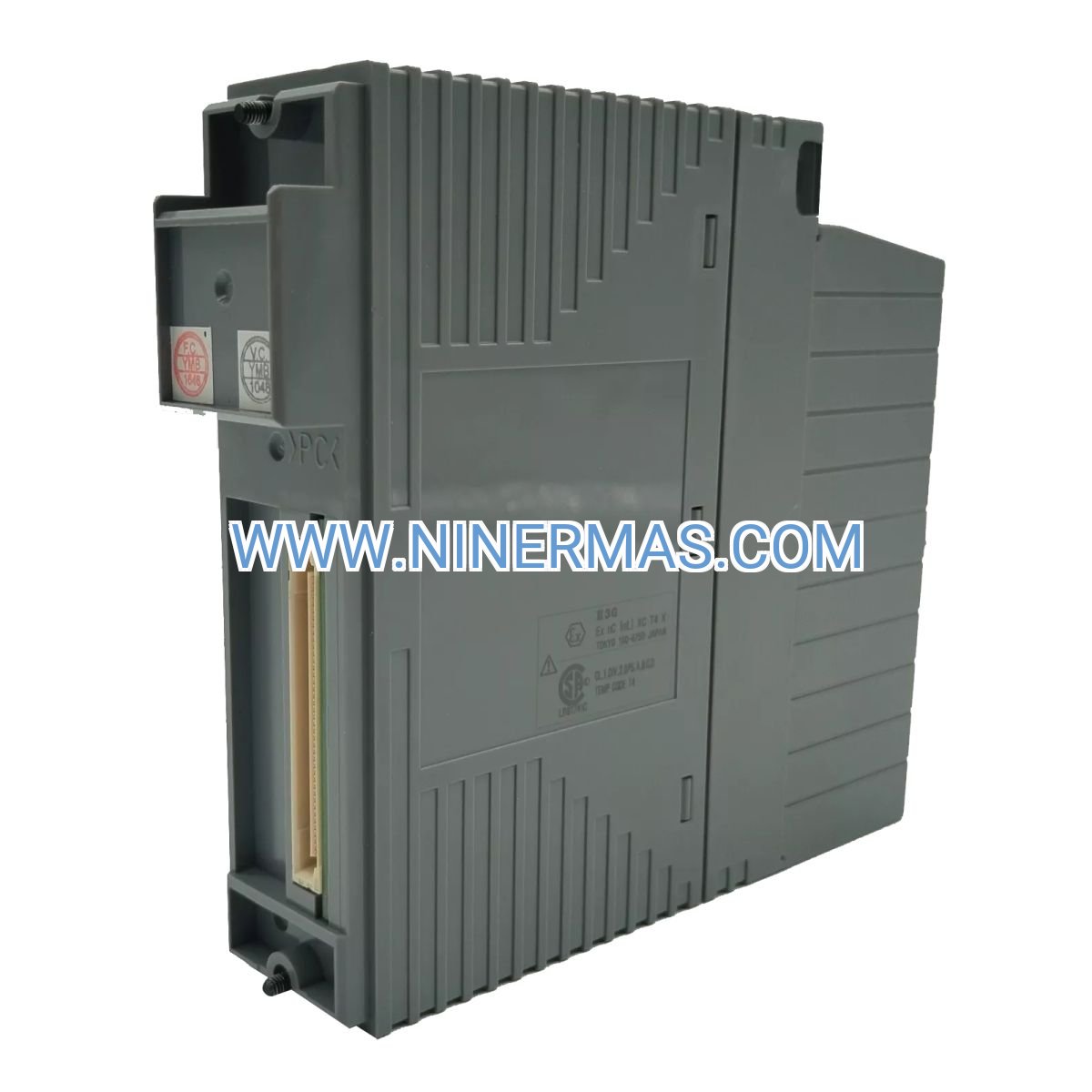

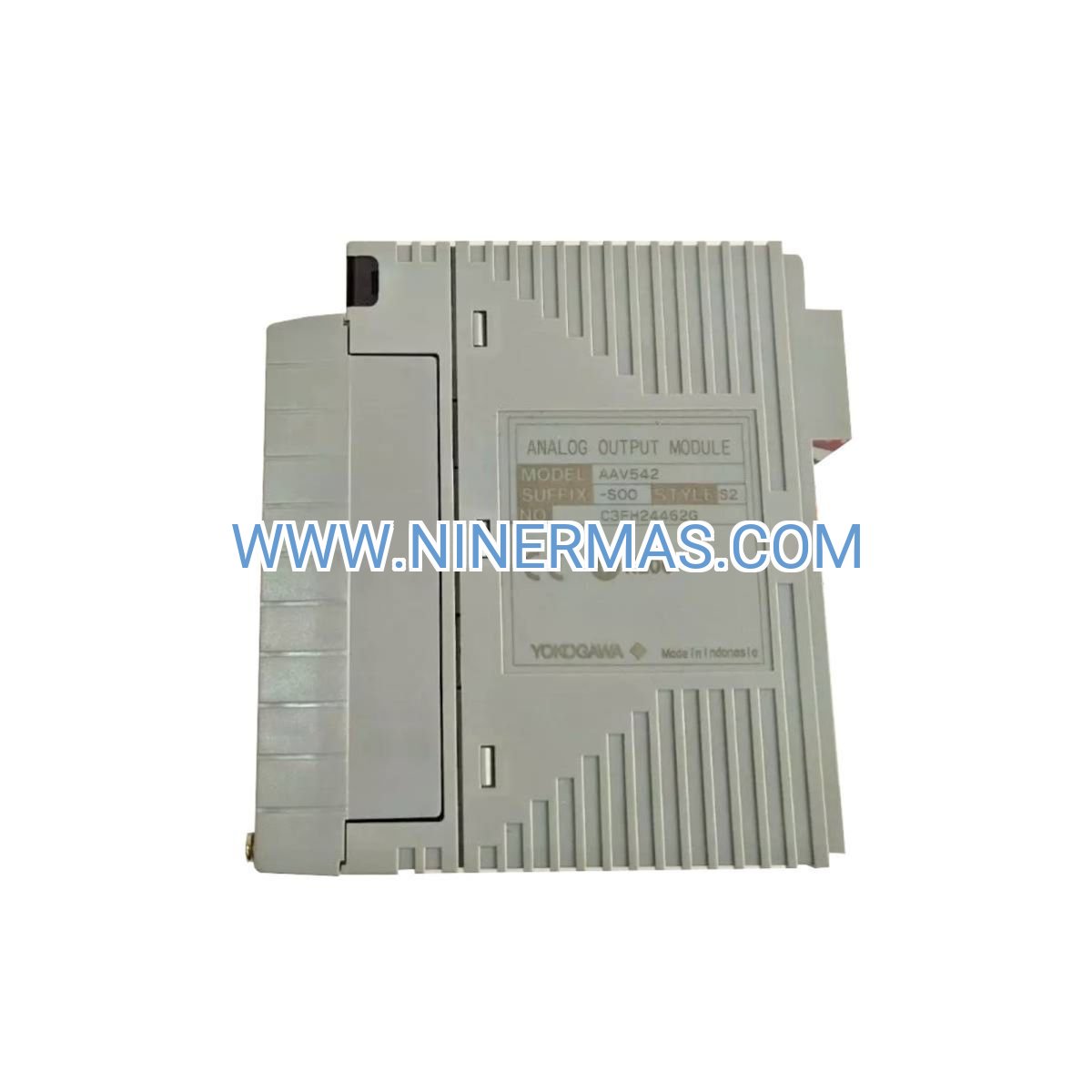

AAV542-S00 Voltage Output Module (Industrial-Grade 16-Channel Analog Controller)

The AAV542-S00 represents Yokogawa's commitment to precision analog control in mission-critical industrial environments. This 16-channel voltage output module transforms digital control signals into accurate ±10V DC outputs, enabling seamless command of actuators, control valves, and variable speed drives across process industries. Engineered for integration with CENTUM VP and ProSafe-RS distributed control systems, it delivers the reliability and performance demanded by continuous manufacturing operations.

Industrial facilities face constant pressure to maintain tight process control while minimizing equipment complexity and cost. The AAV542-S00 addresses these challenges through its non-isolated architecture that balances performance with economic efficiency, making it ideal for applications where channel-to-channel isolation is not mandated. Process engineers and automation specialists rely on this module to bridge the gap between digital control logic and analog field devices, ensuring responsive, stable control loops that directly impact product quality and operational efficiency.

With 12-bit resolution delivering 4096 discrete output steps and ±0.1% full-scale accuracy, the AAV542-S00 provides the granular control necessary for sophisticated process regulation. Its 10ms per-channel update rate ensures real-time responsiveness to dynamic process conditions, while robust EMI/RFD shielding maintains signal integrity in electrically harsh industrial settings.

Core Features & Benefits

• ✓ 16 Independent Channels: Control multiple field devices from a single module, reducing cabinet space requirements and simplifying system architecture while lowering per-point installation costs.
• ✓ Bipolar ±10V DC Output Range: Native support for bidirectional control signals eliminates the need for external signal conditioning, enabling direct interface with VFDs, servo drives, and reversible actuators.
• ✓ 12-Bit Digital Resolution: 4096-step output granularity ensures smooth, stepless control across the entire signal range, minimizing process oscillation and improving loop stability for critical parameters like temperature, pressure, and flow.
• ✓ ±0.1% Full-Scale Accuracy: Precision analog conversion maintains setpoint fidelity throughout the control range, reducing steady-state error and enabling tighter process tolerances that translate to improved product consistency.
• ✓ 10ms Channel Update Time: Fast signal refresh rate supports responsive control loops capable of tracking rapid process changes, essential for batch operations, cascade control strategies, and disturbance rejection.
• ✓ DIN Rail Mounting: Standard industrial mounting format accelerates installation, facilitates cabinet layout optimization, and simplifies future system expansion or module replacement during maintenance windows.

Application Scenarios

Chemical Processing - Reactor Temperature Control: In exothermic reaction vessels, the AAV542-S00 modulates cooling water valve position through precise voltage signals to jacketed heat exchangers. The module's high resolution prevents temperature overshoot that could compromise product quality or trigger safety interlocks, while its fast update rate enables rapid response to reaction rate changes during batch transitions.

Oil & Gas - Compressor Anti-Surge Control: Natural gas compression stations deploy the AAV542-S00 to command anti-surge valve actuators that protect centrifugal compressors from damaging flow reversals. The bipolar output range supports both opening and closing commands with a single signal wire, while ±0.1% accuracy ensures the valve positions precisely at the calculated surge prevention point.

Power Generation - Boiler Feedwater Regulation: Steam power plants utilize multiple AAV542-S00 channels to control feedwater pump speed via VFD voltage inputs, maintaining drum level within narrow operating bands. The module's reliability and accuracy directly impact thermal efficiency and prevent costly boiler trips that reduce grid availability.

Pharmaceutical Manufacturing - Clean Room HVAC Control: Sterile production environments require precise control of supply air dampers and variable air volume boxes to maintain classified space pressurization. The AAV542-S00's 16-channel capacity consolidates control of multiple zones, while its low power consumption reduces heat load in temperature-sensitive control panels.

Water Treatment - pH Neutralization Systems: Municipal and industrial wastewater facilities employ the AAV542-S00 to modulate chemical dosing pump speeds, achieving target pH levels before discharge. The module's linearity across the full output range ensures proportional chemical addition that minimizes reagent waste and prevents permit violations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AAV542-S00 when your application requires cost-effective multi-channel voltage output without channel-to-channel isolation. This module is optimal for systems where all field devices share a common ground reference and electrical noise levels are moderate. For applications in high-EMI environments or where ground loop isolation is necessary, consider the AAV542-S50 isolated variant. Verify that connected devices accept ±10V input signals and present minimum 1kΩ input impedance. For current loop applications (4-20mA), select the AAI543 series instead.

Extended Functions

Diagnostic Capabilities: Integrated channel status LEDs provide immediate visual indication of output activity, accelerating commissioning and troubleshooting. The module reports diagnostic data to the host DCS, enabling predictive maintenance strategies that identify degrading field wiring or receiver faults before they impact process control.

Hot-Swap Support: When configured in redundant system architectures, the AAV542-S00 supports online replacement without process interruption, minimizing downtime during scheduled maintenance or emergency repairs. Bumpless transfer logic ensures smooth transition between primary and backup modules.

Calibration & Scaling: Software-configurable output scaling allows engineers to map control system engineering units directly to field device input ranges without external signal conditioners. Zero and span adjustments compensate for field wiring voltage drops, maintaining accuracy at the point of use.

System Integration: The module seamlessly integrates with Yokogawa's FieldMate device management software for centralized configuration, calibration record keeping, and asset documentation. This integration streamlines compliance with regulatory requirements in validated industries like pharmaceuticals and food processing.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules or large quantity orders may require 2-3 weeks for factory preparation and quality verification.

Warranty Coverage: All AAV542-S00 modules include a comprehensive 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs are available for critical applications requiring enhanced support.

Technical Support: Access to Yokogawa-certified application engineers for pre-sales system design consultation, commissioning assistance, and post-installation troubleshooting. Support includes wiring diagram review, configuration file validation, and integration guidance for third-party DCS platforms.

Documentation Package: Each module ships with installation manual, wiring diagrams, dimensional drawings, and calibration certificates. Digital resources include CAD models for panel layout, configuration templates, and sample control logic for common applications.

Frequently Asked Questions

Q: Can the AAV542-S00 interface directly with Siemens or Allen-Bradley PLCs?
A: While designed for Yokogawa DCS platforms, the module can interface with third-party controllers that support standard voltage output modules via appropriate communication gateways or I/O racks. Consult factory application engineers for specific PLC compatibility verification and wiring requirements.

Q: What is the maximum cable length between the module and field devices?
A: For ±10V signals, recommended maximum cable length is 100 meters using shielded twisted-pair wire (minimum 18 AWG). Longer distances may require signal repeaters or conversion to 4-20mA current loops to maintain accuracy and noise immunity.

Q: How does non-isolated architecture affect system grounding strategy?
A: All 16 channels share a common ground reference, requiring careful attention to single-point grounding practices. Ensure all connected field devices reference the same ground potential to prevent ground loops. For applications with multiple ground references, specify the isolated AAV542-S50 variant.

Q: Does the module support HART communication protocol?
A: No, the AAV542-S00 is a pure analog output module without digital communication overlay. For applications requiring device diagnostics via HART, consider Yokogawa's smart transmitter and positioner families that integrate HART natively.

Q: What power supply voltage does the module require?
A: The AAV542-S00 operates from the host DCS backplane power supply, typically 24V DC. Verify compatibility with your specific CENTUM VP or ProSafe-RS chassis power specifications. No external power supply is required.

Q: Can individual channels be disabled or bypassed during operation?
A: Yes, the host DCS control logic can place individual channels in manual mode or force specific output values without affecting other channels. This capability supports partial system commissioning and facilitates maintenance on individual control loops.

Take the Next Step

Ready to enhance your process control system with proven Yokogawa analog output technology? Our application specialists are available to discuss your specific requirements, provide system integration guidance, and prepare detailed quotations. Contact us today to receive technical datasheets, compatibility verification for your existing DCS platform, and volume pricing for multi-module projects.
