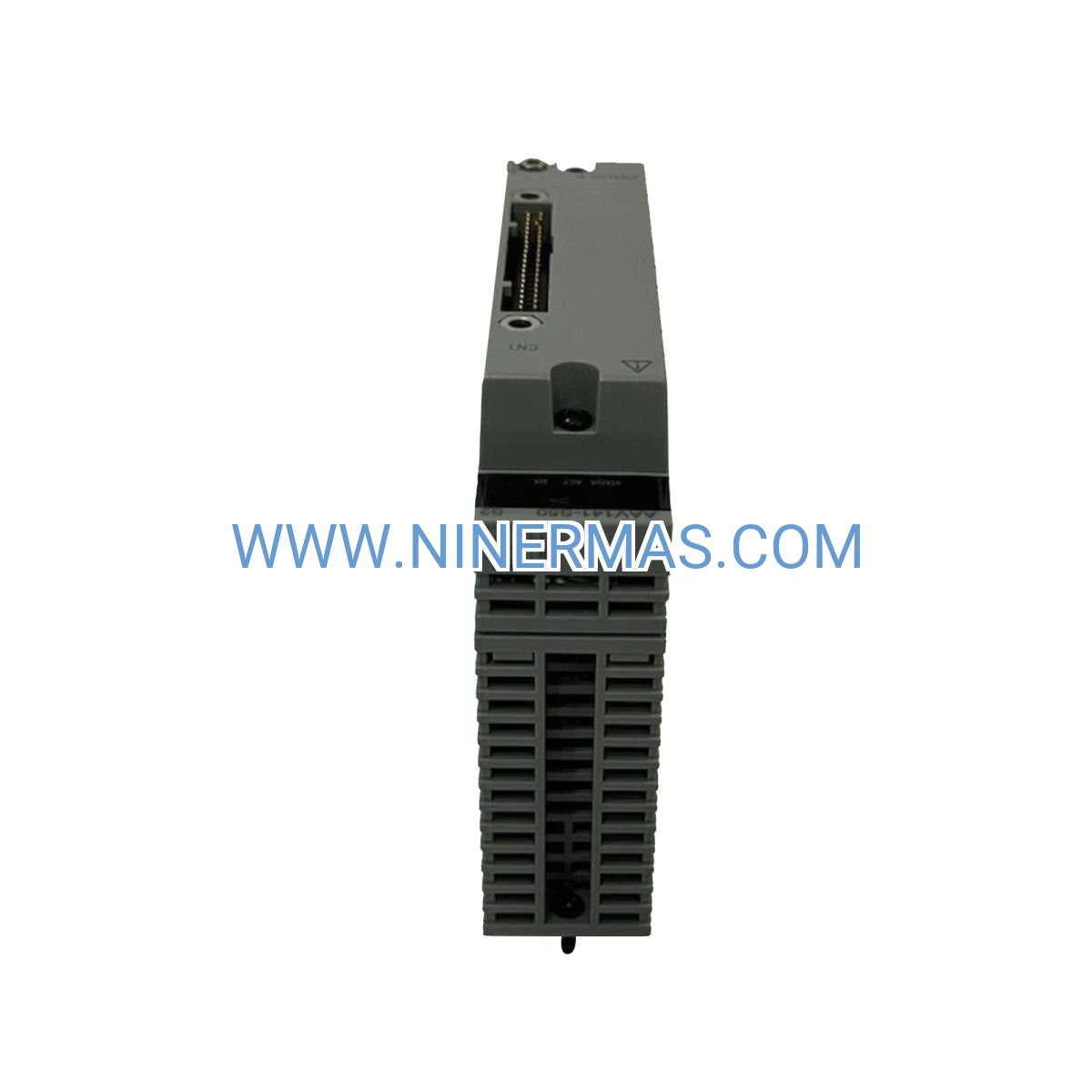

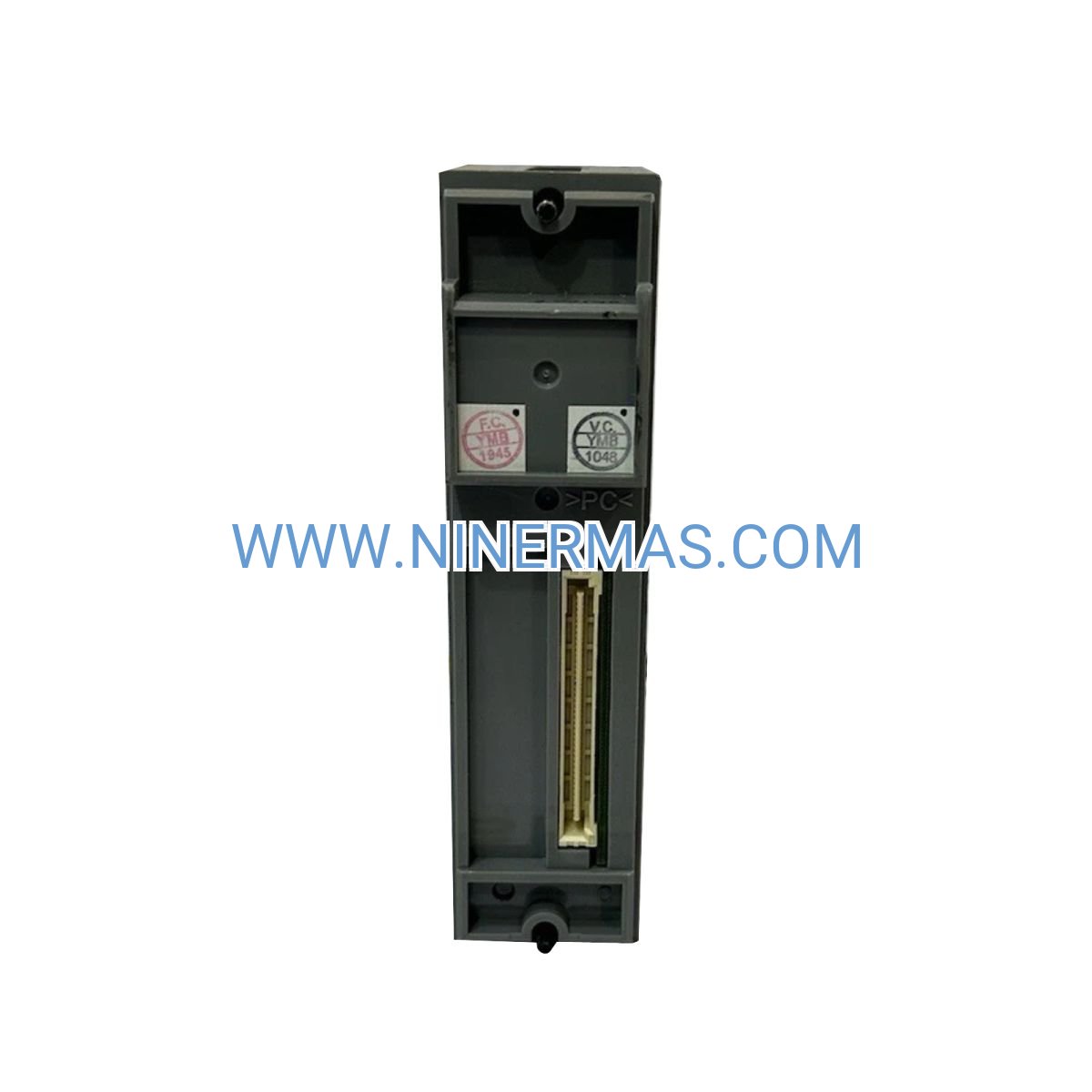

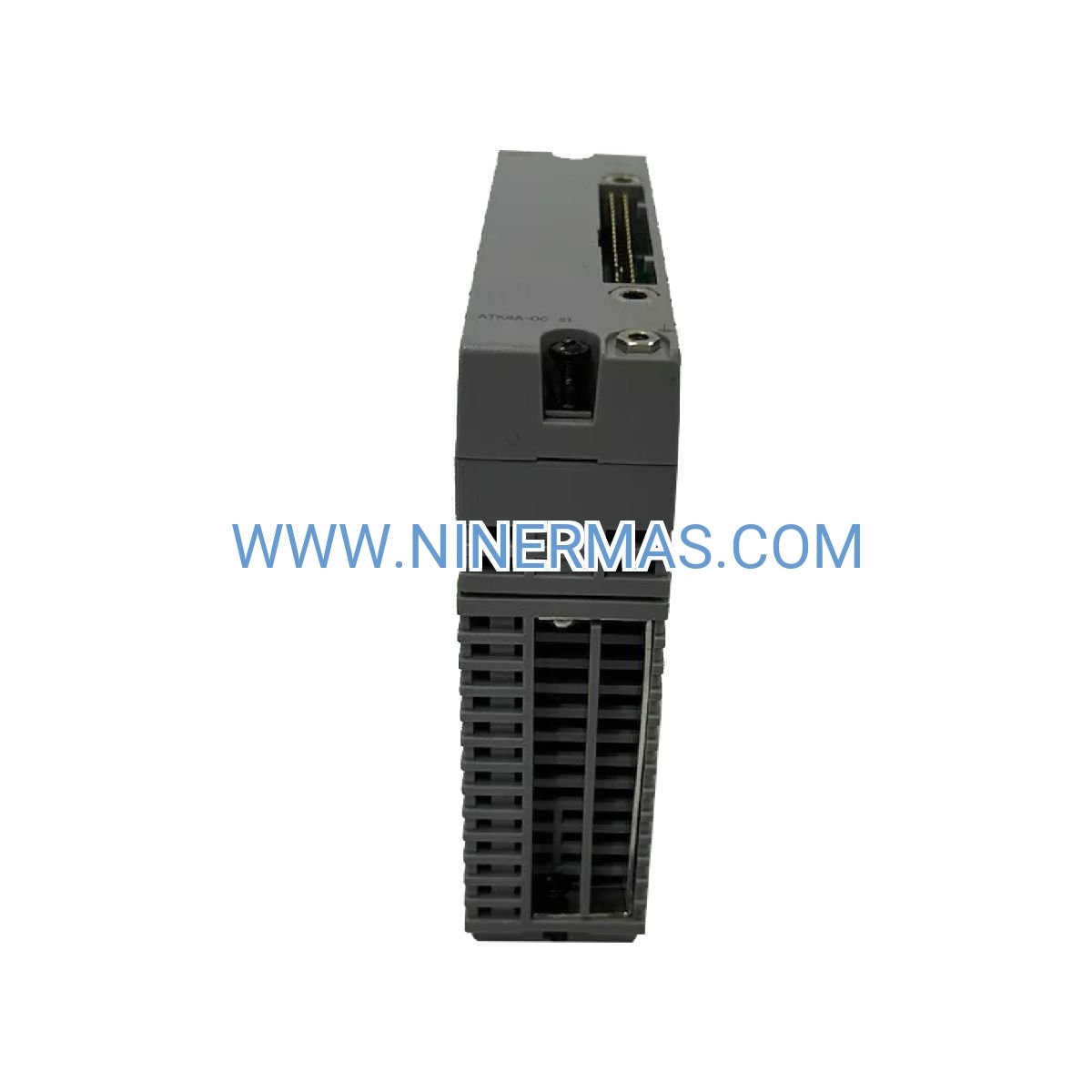

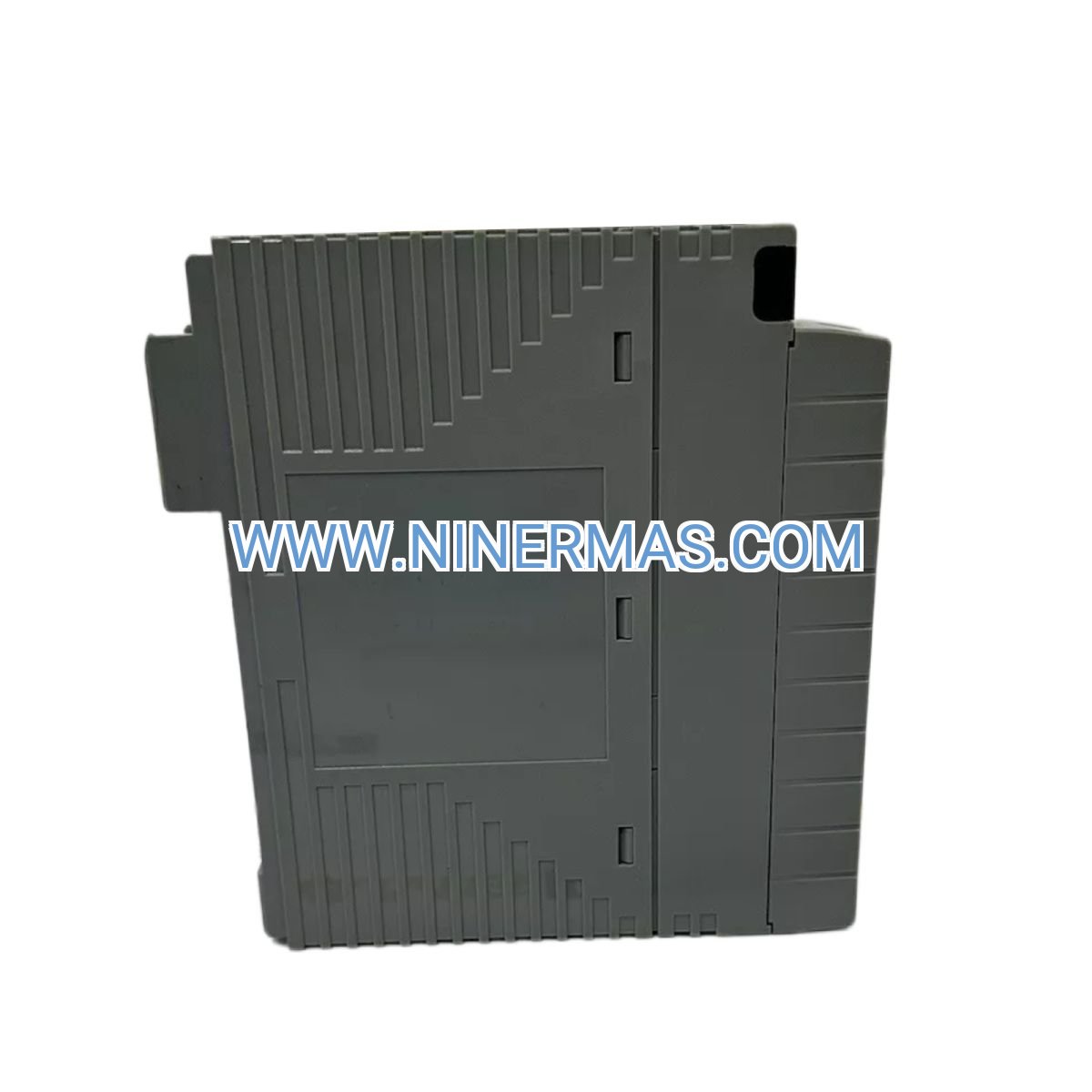

AAP135-S50/K4A00 Pulse Input Module (Industrial-Grade DCS Component)

The AAP135-S50/K4A00 is an 8-channel pulse input module engineered for high-reliability distributed control systems. Designed by Yokogawa, this module captures pulse and frequency signals with field-to-system isolation, delivering precise data acquisition for flow measurement, totalizer applications, and event counting in process automation environments.

Industrial facilities face challenges with signal integrity, system downtime, and measurement accuracy in critical processes. The AAP135-S50/K4A00 addresses these pain points through isolated input architecture and optional dual-redundant configuration (K4A00), ensuring continuous operation even during component failures. Process engineers, instrumentation technicians, and automation integrators rely on this module for custody transfer metering, batch control, and production monitoring applications.

Key advantages include field-proven isolation technology that eliminates ground loop interference, seamless integration with CENTUM VP and ProSafe-RS platforms, and hot-swappable design that minimizes maintenance downtime. The module's compact footprint and DIN rail mounting simplify installation in space-constrained control cabinets.

Core Features & Benefits

✓ 8 Isolated Pulse Input Channels
Simultaneous monitoring of multiple flow meters, turbine sensors, or event counters with independent channel isolation preventing cross-talk and ensuring measurement integrity.

✓ Field-System Isolation Technology
Electrical isolation between field devices and control system protects against voltage spikes, reduces electromagnetic interference, and extends equipment lifespan by up to 40%.

✓ Dual-Redundant Configuration (K4A00 Option)
Automatic failover capability maintains 99.99% uptime in mission-critical applications, eliminating single points of failure in custody transfer and safety-instrumented systems.

✓ Wide Frequency Range Processing
Accepts pulse inputs from 0.1 Hz to 10 kHz, accommodating diverse sensor types from low-flow applications to high-speed production line counters.

✓ Hot-Swappable Design
Replace modules during operation without system shutdown, reducing maintenance windows from hours to minutes and maximizing production availability.

✓ Diagnostic LED Indicators
Real-time visual status feedback accelerates troubleshooting, cutting diagnostic time by 60% compared to modules without front-panel indicators.

Application Scenarios

→ Petrochemical Custody Transfer Metering
In oil & gas terminals, the AAP135-S50/K4A00 processes turbine meter pulses for fiscal measurement of crude oil, refined products, and LNG. The redundant configuration meets API MPMS standards, while field isolation prevents measurement errors caused by electrical noise from nearby pump VFDs. Facilities report 99.97% measurement availability with automated failover protection.

→ Water Treatment Flow Totalization
Municipal water plants deploy this module to monitor influent/effluent flows, chemical dosing pumps, and distribution network meters. The 8-channel capacity consolidates multiple measurement points into a single I/O card, reducing hardware costs by 35% while maintaining ±0.1% totalizer accuracy for regulatory compliance reporting.

→ Manufacturing Production Counting
Bottling lines, packaging systems, and assembly operations use pulse inputs to track unit production, reject rates, and line efficiency. Integration with CENTUM VP batch management enables real-time OEE calculation, helping manufacturers achieve 15-20% throughput improvements through data-driven optimization.

→ Power Generation Fuel Flow Monitoring
Combined-cycle plants monitor natural gas consumption, coal feed rates, and auxiliary fuel systems using the AAP135-S50/K4A00. The module's -20°C to +60°C operating range supports outdoor installations, while redundancy ensures continuous heat rate calculations critical for economic dispatch decisions.

→ Pharmaceutical Batch Control
Bioreactor facilities track ingredient addition via positive displacement pump pulses, maintaining GMP-compliant batch records. The module's isolated inputs prevent ground loops in stainless steel process equipment, eliminating the measurement drift issues that plagued previous installations.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the AAP135-S50/K4A00 when your application requires redundant pulse input processing for high-availability systems. For non-redundant applications, consider the standard AAP135-S50 variant. If you need analog input capabilities alongside pulse counting, evaluate the AAI141-S50 analog module for hybrid I/O configurations. Verify that your pulse source output matches the module's input specifications (contact closure requires dry contact; NPN/PNP requires 24VDC logic levels).

Extended Functions

IoT Integration & Remote Monitoring
The AAP135-S50/K4A00 integrates with Yokogawa's Sushi Sensor platform and OpreX Asset Operations and Optimization suite, enabling cloud-based analytics, predictive maintenance alerts, and mobile dashboard access. MQTT/OPC UA connectivity allows data streaming to third-party SCADA systems and enterprise historians.

Advanced Totalizer Functions
Built-in 32-bit counters support grand totals, batch totals, and rate-of-change calculations without external programming. Configurable scaling factors convert raw pulse counts to engineering units (gallons, cubic meters, kilograms) directly within the module firmware.

Customization Options
Factory configuration services available for pre-programmed scaling, custom terminal labeling, and application-specific firmware. Consult with NINERMAS engineering team for projects requiring specialized input filtering, extended temperature ranges (-40°C to +70°C), or hazardous area certifications (Zone 2, Division 2).

Delivery & Service Assurance

Lead Time:
• Standard Configuration: 3-5 business days (in-stock items)
• Custom Configuration: 10-15 business days
• Express Shipping: Available for critical downtime situations

Warranty Coverage:
18-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans available for up to 5 years with priority RMA processing.

Technical Support:
• 24/7 hotline for troubleshooting assistance
• Remote diagnostic support via secure VPN connection
• On-site commissioning services available in major industrial regions
• Quarterly firmware updates with security patches and feature enhancements

Documentation Package:
Each module ships with installation manual, wiring diagrams, configuration software (FieldMate), calibration certificate, and compliance declarations. Digital resources include 3D CAD models (STEP format), PLC integration examples, and video tutorials.

Frequently Asked Questions

Q: How do I interface the AAP135-S50/K4A00 with my existing CENTUM VP system?
A: The module connects to CENTUM VP via the AFV10/AFV30 field control unit using the proprietary Vnet/IP network. Configuration is performed through the Engineering Workstation using pre-built function blocks. Hot-swapping is supported without interrupting other I/O modules on the same bus.

Q: What is the maximum cable length between pulse transmitters and the input module?
A: For contact closure inputs, maximum cable length is 500 meters using shielded twisted-pair cable. NPN/PNP inputs support up to 300 meters. Longer distances require signal repeaters or 4-20mA pulse converters to maintain signal integrity.

Q: Can this module reduce energy consumption compared to older I/O systems?
A: Yes. The AAP135-S50/K4A00 consumes 3.5W per module versus 8-12W for legacy pulse input cards. In a typical 200-point I/O system, this translates to 40% lower power consumption and reduced cooling requirements in control room environments.

Q: What are the installation requirements for redundant operation?
A: Redundant configuration requires two AAP135-S50/K4A00 modules installed in separate AFV units with independent power supplies. Field wiring connects to both modules via splitter terminals. The system automatically synchronizes pulse counts and switches to the backup module within 50 milliseconds upon primary failure detection.

Q: Does the module support remote monitoring and diagnostics?
A: Absolutely. Through CENTUM VP's web-based HMI or the OpreX mobile app, operators can view real-time pulse counts, diagnostic status, and historical trends. Email/SMS alerts notify maintenance teams of input failures, wiring faults, or out-of-range frequency conditions.

Q: How does this module handle high-frequency pulse inputs without losing counts?
A: The module employs hardware-based pulse detection with 10 kHz maximum frequency capability and 100 nanosecond pulse width resolution. Internal buffering prevents count loss during communication delays, ensuring ±1 count accuracy even at maximum input rates.

Take the Next Step

Ready to enhance your DCS pulse input capabilities? Contact our industrial automation specialists for application-specific recommendations, pricing quotations, and technical consultations. We offer free system compatibility assessments and can arrange demonstration units for proof-of-concept testing in your facility.

For immediate assistance, reach out via email at sale@ninermas.com or call +0086 187 5021 5667 to speak with a certified Yokogawa solutions engineer.
