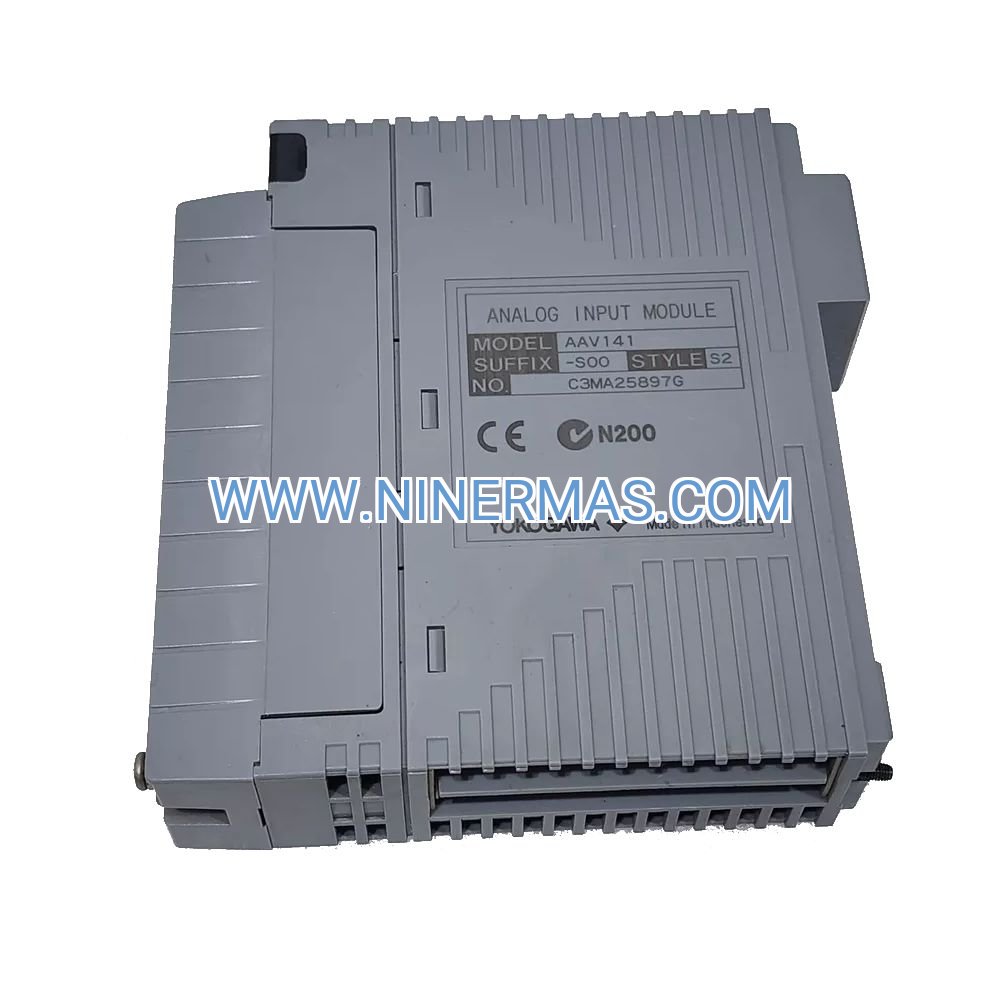

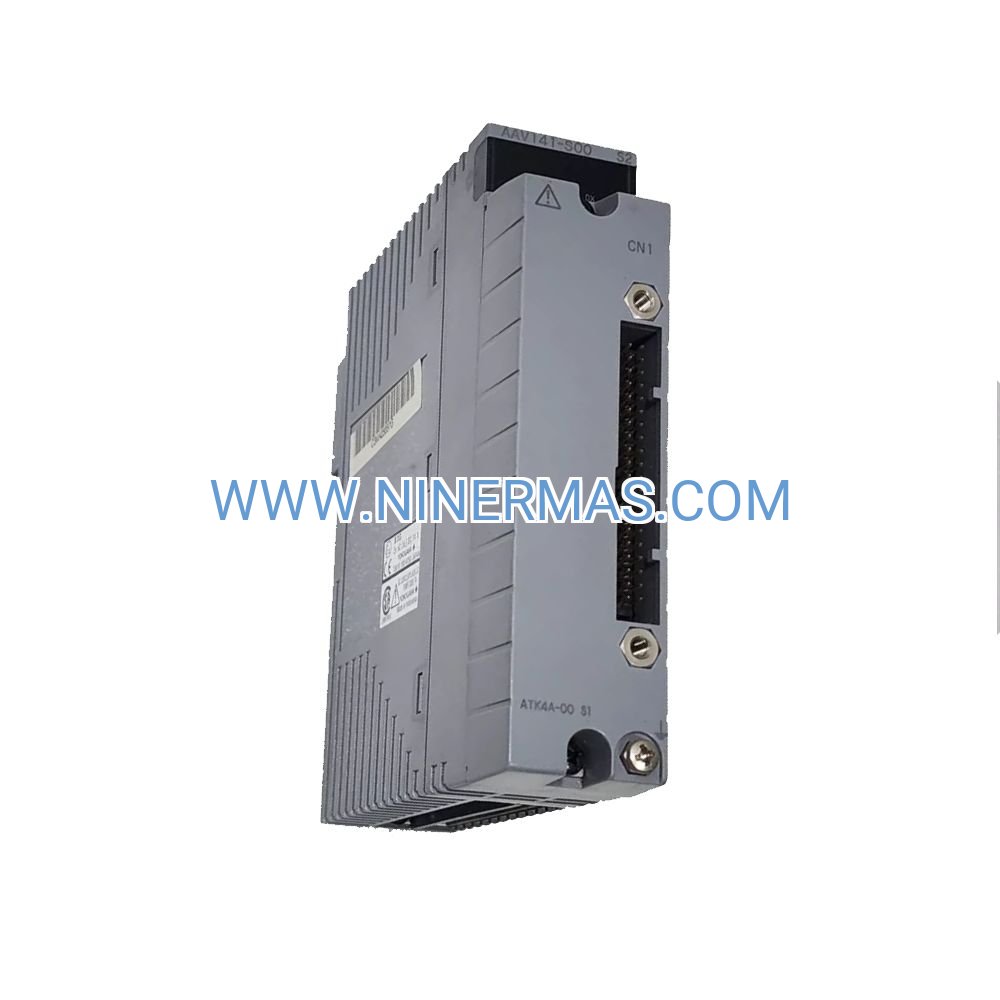

AAV141-S00-S2 Analog Input Module (Industrial-Grade Multi-Point Data Acquisition)

The AAV141-S00-S2 represents Yokogawa's solution for high-density signal acquisition in distributed control architectures. This 16-channel analog input module converts field instrumentation signals into precision digital values, enabling real-time process visibility across chemical processing, power generation, oil & gas, and discrete manufacturing operations. Engineered for seamless integration with CENTUM VP control platforms, it delivers reliable performance in environments where measurement accuracy directly impacts product quality, safety compliance, and operational efficiency.

Process engineers deploy this module when multiple transmitters share common electrical ground references, eliminating the cost premium of isolated I/O while maintaining measurement integrity. Its non-isolated architecture suits applications where galvanic separation isn't mandated by hazardous area classifications or electromagnetic interference concerns. From reactor temperature profiling to utility distribution monitoring, the AAV141-S00-S2 transforms analog field signals into actionable control system intelligence.

With 16-bit analog-to-digital conversion and sub-second scan rates, this module captures process dynamics that slower legacy systems miss. Whether you're retrofitting aging DCS infrastructure or expanding existing CENTUM VP installations, the AAV141-S00-S2 provides the measurement foundation for advanced control strategies, predictive analytics, and regulatory compliance documentation.

Core Features & Benefits

→ 16-Channel Capacity – Monitor sixteen independent 4-20mA or 1-5VDC signals through a single I/O card, reducing rack space consumption and simplifying cabinet layouts. Each channel operates independently with dedicated A/D conversion, preventing crosstalk between measurement points.

→ 16-Bit Resolution – Achieve 0.0015% measurement granularity across the full input span, resolving process variations that 12-bit systems overlook. This precision supports tight control loops in batch reactors, blending operations, and quality-critical manufacturing processes.

→ 100ms Scan Cycle – Update all sixteen channels every tenth of a second, providing responsive data for cascade control, feedforward compensation, and alarm detection. The deterministic scan rate ensures predictable control loop performance across varying system loads.

→ Dual Signal Compatibility – Auto-detect current loop (4-20mA) or voltage (1-5VDC) inputs without manual configuration switches. This flexibility accelerates commissioning when integrating mixed transmitter populations or migrating from legacy control systems.

→ Hot-Swap Capability – Replace modules during live operation without shutting down the entire I/O rack or disrupting adjacent control loops. Maintenance teams appreciate the ability to swap suspected faulty cards while processes continue running, minimizing production interruptions.

→ Diagnostic LED Indicators – Instantly identify channel health through front-panel status lights—green confirms normal operation, red flags open circuits, short circuits, or out-of-range signals. Troubleshooting time drops from hours to minutes when visual diagnostics pinpoint problem channels.

Application Scenarios

✓ Chemical Batch Processing
In pharmaceutical synthesis and specialty chemical production, the AAV141-S00-S2 monitors reactor temperatures, jacket pressures, agitator speeds, and ingredient flow rates. Recipe-driven batch controllers rely on these measurements to execute precise heating ramps, maintain pH setpoints, and trigger sequential operations. The module's accuracy supports validation protocols required for FDA compliance and ISO 9001 quality systems.

✓ Refinery Process Units
Distillation columns, catalytic crackers, and hydrotreaters generate dozens of temperature, pressure, and flow measurements that feed cascade control schemes. Deploy the AAV141-S00-S2 to consolidate transmitter signals from common process areas, reducing wiring costs while maintaining the measurement density needed for advanced process control (APC) optimization.

✓ Power Plant Auxiliary Systems
Boiler feedwater pumps, cooling tower circuits, and fuel handling equipment require continuous monitoring to prevent equipment damage and maintain grid stability. The module tracks bearing temperatures, vibration levels, lube oil pressures, and flow rates—feeding data to both control loops and condition monitoring systems that schedule predictive maintenance.

✓ Food & Beverage Manufacturing
Pasteurization, fermentation, and CIP (clean-in-place) systems demand precise temperature and pressure control to ensure product safety and consistency. The AAV141-S00-S2 provides the measurement infrastructure for HACCP compliance, capturing time-stamped process data that auditors review during facility inspections.

✓ Water Treatment Facilities
Municipal and industrial water treatment plants monitor pH, turbidity, chlorine residual, and flow rates across multiple process stages. The module's multi-channel design consolidates measurements from clarifiers, filters, and disinfection systems, supporting SCADA visualization and regulatory reporting requirements.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AAV141-S00-S2 when your application involves multiple transmitters sharing a common electrical reference (non-hazardous areas, single-point grounding systems). For applications requiring channel-to-channel isolation—such as hazardous area installations or systems with multiple ground potentials—consider the isolated variant AAI141-S00-S2. Verify that your CENTUM VP system firmware supports this module revision before ordering.

Extended Functions

Software Configuration Tools: Yokogawa's Resource Configurator software enables drag-and-drop I/O assignment, custom engineering unit scaling (°C, bar, kg/h), and alarm threshold programming. Export configuration files for version control and disaster recovery documentation.

Redundancy Support: Pair with redundant CENTUM VP controllers and I/O networks for fault-tolerant architectures in critical process units. The module participates in automatic failover sequences, ensuring continuous measurement availability during controller switchovers.

Third-Party Integration: OPC UA and Modbus TCP gateways allow external SCADA systems, historians, and MES platforms to access AAV141-S00-S2 data streams. This interoperability supports plant-wide analytics initiatives and corporate reporting dashboards.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days to Asia-Pacific destinations, 7-10 days for Europe and Americas. Custom-configured modules with factory programming require 4-6 weeks from order confirmation.

Warranty Coverage: Yokogawa factory warranty covers defects in materials and workmanship for 18 months from shipment date. Extended warranty options available for critical spares inventory programs.

Technical Support: Access to application engineers with CENTUM VP certification for pre-sales system design consultation, commissioning assistance, and post-installation troubleshooting. Remote diagnostic support available via secure VPN connections.

Documentation Package: Each module ships with installation manual, wiring diagrams, dimensional drawings, and calibration certificates. Downloadable resources include configuration examples, firmware release notes, and compatibility matrices.

Frequently Asked Questions

Q: Can this module interface with third-party transmitters from Rosemount, Endress+Hauser, or Siemens?
A: Yes, the AAV141-S00-S2 accepts standard 4-20mA and 1-5VDC signals from any manufacturer's transmitters. Verify that transmitter loop power requirements don't exceed the module's 24VDC supply capacity (typically 30mA per channel).

Q: What's the maximum cable distance between field transmitters and the I/O module?
A: For 4-20mA current loops, cable runs up to 1,500 meters (5,000 feet) are feasible with proper wire gauge selection. Voltage inputs should remain under 100 meters to minimize noise pickup and voltage drop errors.

Q: Does the module support HART communication protocol for smart transmitter diagnostics?
A: No, the AAV141-S00-S2 is an analog-only module without HART pass-through capability. For HART-enabled I/O, specify Yokogawa's AAH series modules that combine analog measurement with digital communication.

Q: How does non-isolated design affect measurement accuracy in electrically noisy environments?
A: Non-isolated modules perform well when all field devices share a clean, single-point ground reference. In environments with variable frequency drives, welding equipment, or multiple ground potentials, isolated modules (AAI141-S00-S2) provide superior noise rejection.

Q: Can I mix 4-20mA and 1-5VDC signals on the same module?
A: Yes, each channel auto-detects signal type independently. Configure scaling parameters in the Resource Configurator software to match each channel's actual input range.

Q: What firmware version compatibility should I verify before installation?
A: Consult Yokogawa's I/O module compatibility matrix for your specific CENTUM VP system revision. Generally, VP R6.01 and later support all AAV141 variants, but confirm with your system integrator to avoid compatibility issues.

Ready to Enhance Your Process Measurement Infrastructure?

Contact our automation specialists to discuss your CENTUM VP system expansion requirements, I/O point allocation strategies, and integration with existing field instrumentation. We provide detailed quotations, technical datasheets, and application-specific configuration guidance to ensure successful project execution.
