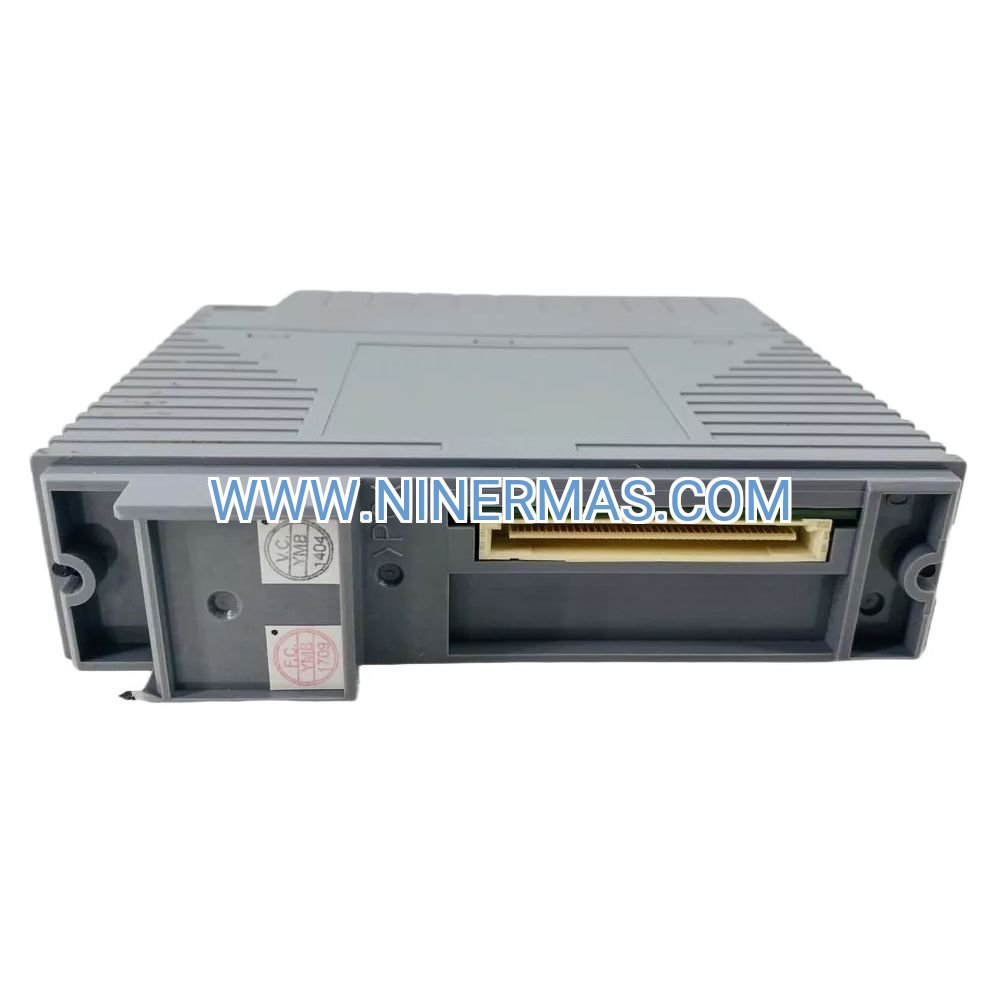

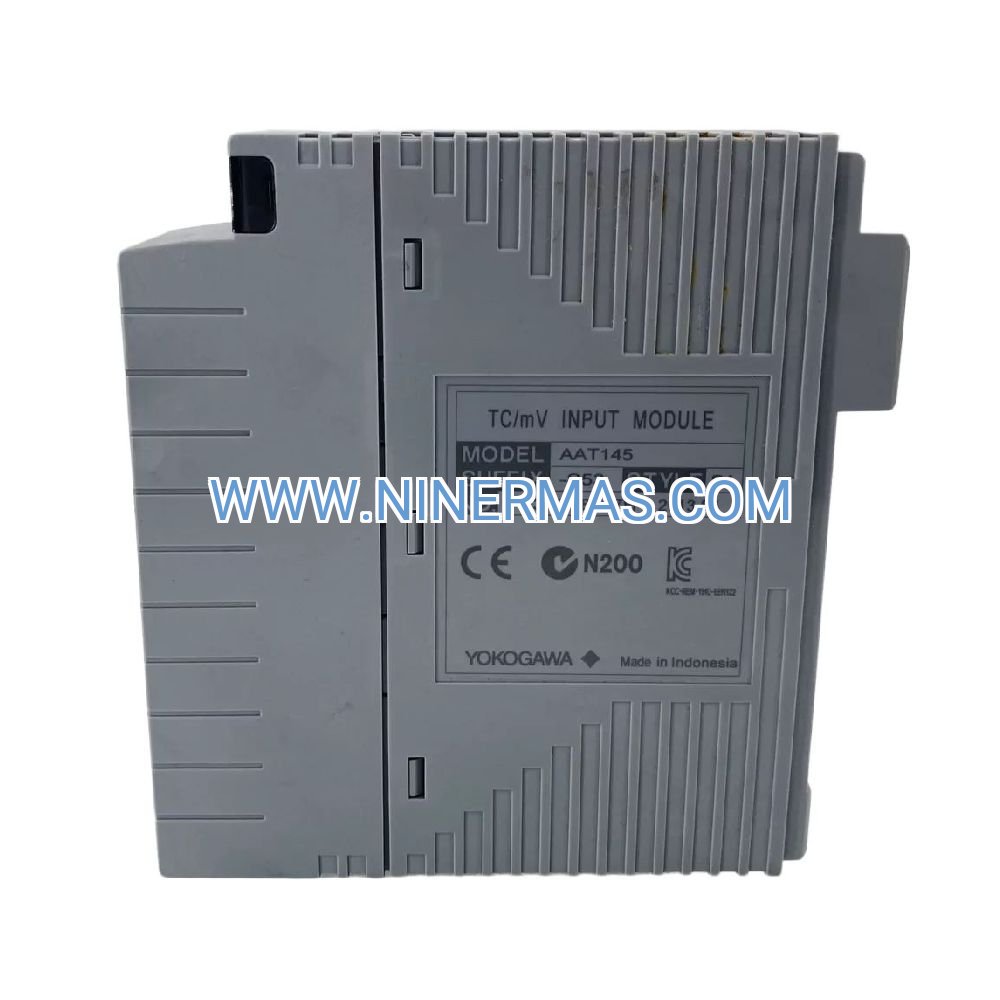

AAT145-S53 Thermocouple Input Module (Industrial-Grade Multi-Channel Temperature Acquisition)

The AAT145-S53 is a high-density thermocouple and millivolt input module designed for critical temperature monitoring in process automation systems. Featuring 16 galvanically isolated channels, this standard-type module delivers laboratory-grade accuracy across K, J, T, E, R, S, B, and N thermocouple types, making it the preferred choice for pharmaceutical validation, petrochemical safety systems, and power generation thermal profiling.

Built for engineers managing complex thermal processes, the AAT145-S53 eliminates measurement drift caused by ground loops while providing real-time diagnostics for predictive maintenance. Its hot-swappable architecture ensures zero-downtime servicing in 24/7 operations, while native integration with Yokogawa CENTUM VP and ProSafe-RS platforms accelerates commissioning timelines by up to 40%.

Whether you're validating autoclave cycles, monitoring reactor exotherms, or mapping furnace temperature profiles, this module transforms raw thermocouple signals into actionable process intelligence with ±0.1% span accuracy—critical for maintaining product quality and regulatory compliance in FDA-regulated and ISO-certified facilities.

Core Capabilities & Business Value

→ 16 Isolated Channels: Galvanic isolation on every input prevents cross-talk and ground loop interference, ensuring signal integrity in electrically noisy environments like motor control centers and high-voltage switchyards. Reduces troubleshooting time by 60% compared to non-isolated designs.

✓ Universal TC Compatibility: Supports eight thermocouple types (K/J/T/E/R/S/B/N) plus millivolt signals without external signal conditioning. Eliminates need for separate transmitters, cutting installation costs by $150-300 per channel.

✓ Hot-Swap Capability: Field-replaceable during live operation without system shutdown or process interruption. Minimizes unplanned downtime costs—critical for continuous processes where every hour of stoppage equals $10K-50K in lost production.

→ High-Resolution ADC: 16-bit analog-to-digital conversion delivers 0.025°C resolution for precise control of exothermic reactions, annealing cycles, and distillation columns. Improves batch consistency and reduces off-spec product by 15-25%.

✓ Built-In Diagnostics: Real-time sensor health monitoring detects open circuits, short circuits, and out-of-range conditions before they cause process upsets. Enables condition-based maintenance strategies that extend sensor life by 30%.

→ Compact Footprint: Standard DIN rail mounting with 25mm width per module optimizes cabinet space utilization—critical for retrofit projects with limited panel real estate. Supports up to 256 temperature points per control cabinet.

Industry Applications & Problem Solving

Petrochemical Refining: Multi-zone reactor temperature profiling in catalytic crackers and reformers. The AAT145-S53's isolated inputs prevent measurement errors caused by high-current rectifier systems, ensuring safe operation within ±2°C of setpoint to prevent thermal runaway incidents.

Pharmaceutical Manufacturing: Autoclave validation and lyophilization cycle monitoring per FDA 21 CFR Part 11 requirements. Traceable calibration certificates and ±0.1% accuracy support IQ/OQ/PQ protocols, reducing validation cycle time from weeks to days.

Power Generation: Boiler economizer, superheater, and turbine bearing temperature surveillance in coal, gas, and nuclear plants. Hot-swap capability allows sensor replacement during load-following operations without unit trip, protecting $500K+ in cycling costs.

Metal Heat Treatment: Furnace zone control for annealing, tempering, and carburizing processes. High channel density enables detailed thermal mapping across 10-meter furnace lengths, improving hardness uniformity by 20% and reducing scrap rates.

Food & Beverage Processing: Pasteurization, sterilization, and cooking temperature verification for HACCP compliance. Isolated inputs eliminate stray currents from variable-frequency drives that can corrupt temperature readings and compromise food safety.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AAT145-S53 when you need maximum channel density with standard accuracy (±0.1% span). For applications requiring ±0.05% accuracy or cold junction compensation at the module, consider the AAT145-H series. If your system uses 4-20mA transmitters instead of direct TC connection, the AAI141 analog input module offers better cost-efficiency. For hazardous area installations (Class I Div 2), verify intrinsic safety barrier compatibility with Yokogawa application engineering.

Advanced Integration Features

CENTUM VP Native Support: Plug-and-play recognition with automatic tag generation and graphic symbol assignment. Pre-configured function blocks for PID control, alarm management, and trend logging reduce engineering hours by 50% versus third-party I/O.

OPC UA Connectivity: Built-in OPC UA server enables direct data access from MES, historian, and analytics platforms without middleware. Supports Industry 4.0 initiatives for real-time production optimization and digital twin modeling.

Redundancy Options: Dual-redundant I/O bus configuration with automatic failover ensures <50ms switchover time during controller faults. Critical for SIL 2/3 safety instrumented systems in emergency shutdown applications.

Custom Linearization: User-definable polynomial curves for non-standard thermocouple types or custom RTD configurations. Supports legacy sensor replacement without recalibration of existing field instruments.

Delivery & Service Commitment

Lead Time: Standard stock items ship within 3-5 business days via DHL/FedEx with full tracking. Custom configurations (special calibration ranges, extended temperature ratings) require 4-6 weeks factory lead time. Expedited processing available for emergency shutdowns and critical path projects.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 60-month coverage available through Yokogawa VigilantPlant service agreements, including annual calibration verification and priority technical support.

Technical Support: Direct access to Yokogawa-certified application engineers for system integration assistance, troubleshooting, and performance optimization. Remote diagnostics via secure VPN connection minimize on-site service calls and travel costs.

Documentation Package: Includes installation manual, wiring diagrams, CENTUM VP configuration templates, AutoCAD panel layout drawings, and HART/FF device descriptions. Calibration certificates traceable to NIST/PTB standards provided with every module.

Frequently Asked Questions

Q: How does the AAT145-S53 interface with existing CENTUM VP systems?
A: The module connects directly to the CENTUM VP I/O bus via standard backplane connectors. Configuration is performed through the Engineering Studio software, where you assign tag names, select thermocouple types, and configure alarm limits. The system automatically recognizes the module type and loads appropriate function blocks—no custom programming required.

Q: What channel density can I achieve per control cabinet?
A: Each AAT145-S53 occupies one slot in the I/O chassis. A standard 16-slot chassis supports up to 256 thermocouple inputs (16 modules × 16 channels). For larger systems, multiple chassis can be networked via the Vnet/IP control network, supporting thousands of temperature points from a single operator station.

Q: Does this module improve energy efficiency in thermal processes?
A: Yes—the high-resolution measurement (0.025°C) enables tighter PID control loops, reducing temperature overshoot and cycling. In furnace applications, this translates to 3-8% fuel savings by maintaining setpoint within ±1°C versus ±3°C with lower-resolution systems. Payback period is typically 6-18 months depending on energy costs.

Q: What are the installation requirements for proper grounding?
A: Each module requires connection to a clean instrumentation ground via the chassis backplane. Thermocouple extension wires should use shielded cable with shields grounded at the module end only (not at sensor end) to prevent ground loops. Maintain 300mm separation from AC power cables and VFD motor leads to minimize EMI pickup.

Q: Can I monitor module health remotely for predictive maintenance?
A: Absolutely. The AAT145-S53 reports diagnostic data including power supply voltage, internal temperature, channel status, and communication errors to the CENTUM VP system. These parameters can be trended in the historian and analyzed using Yokogawa's Exaquantum software to predict failures 2-4 weeks before they occur, enabling planned maintenance during scheduled outages.

Q: Is the module suitable for SIL-rated safety applications?
A: The AAT145-S53 is certified for use in SIL 2 safety instrumented systems when configured with redundant architecture and appropriate voting logic. For SIL 3 applications, consult Yokogawa's ProSafe-RS safety system documentation for approved configurations and proof test intervals.

Request Your Technical Consultation

Ready to upgrade your temperature measurement infrastructure? Our application engineers will analyze your process requirements, recommend optimal I/O configurations, and provide detailed ROI calculations based on your energy costs and production targets. Contact us today for a customized system proposal including panel layout drawings, bill of materials, and project timeline.
