Yokogawa AAT145-S50 S1 TC/mV Input Module | 16-Channel Isolated Temperature Sensor

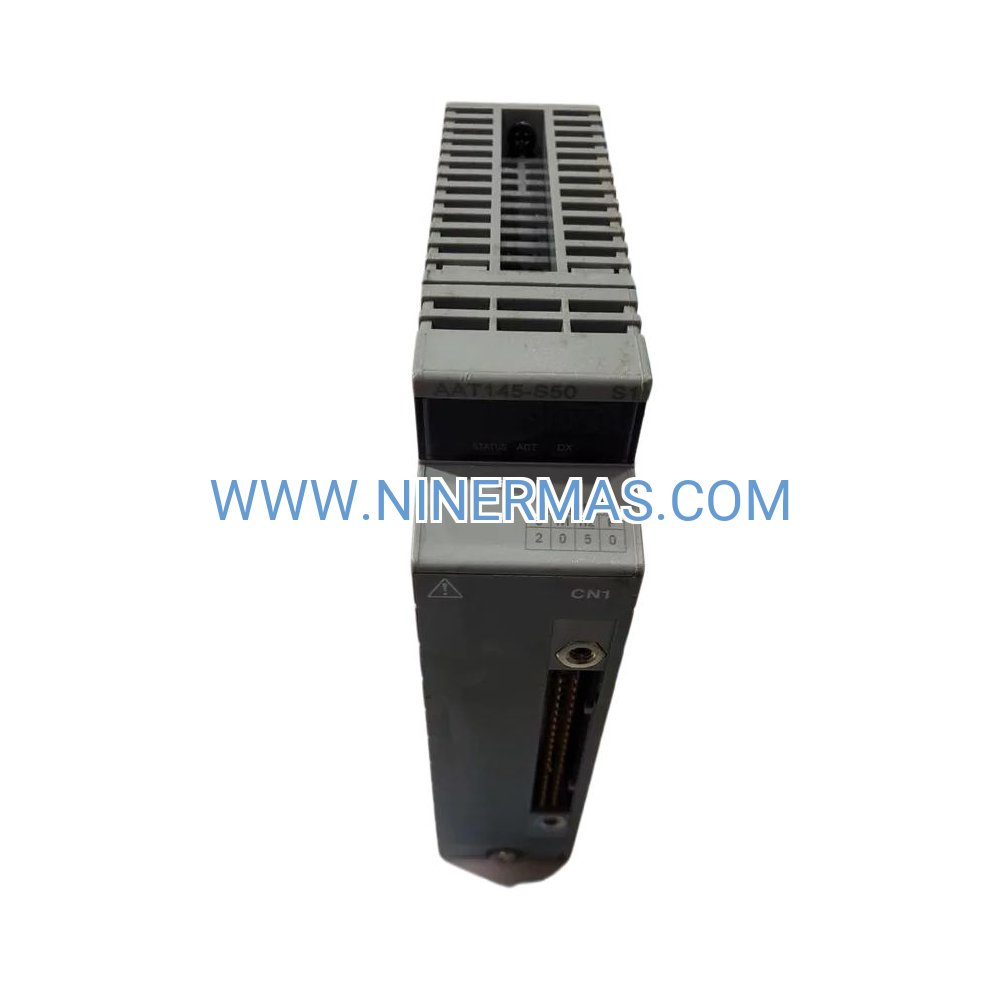

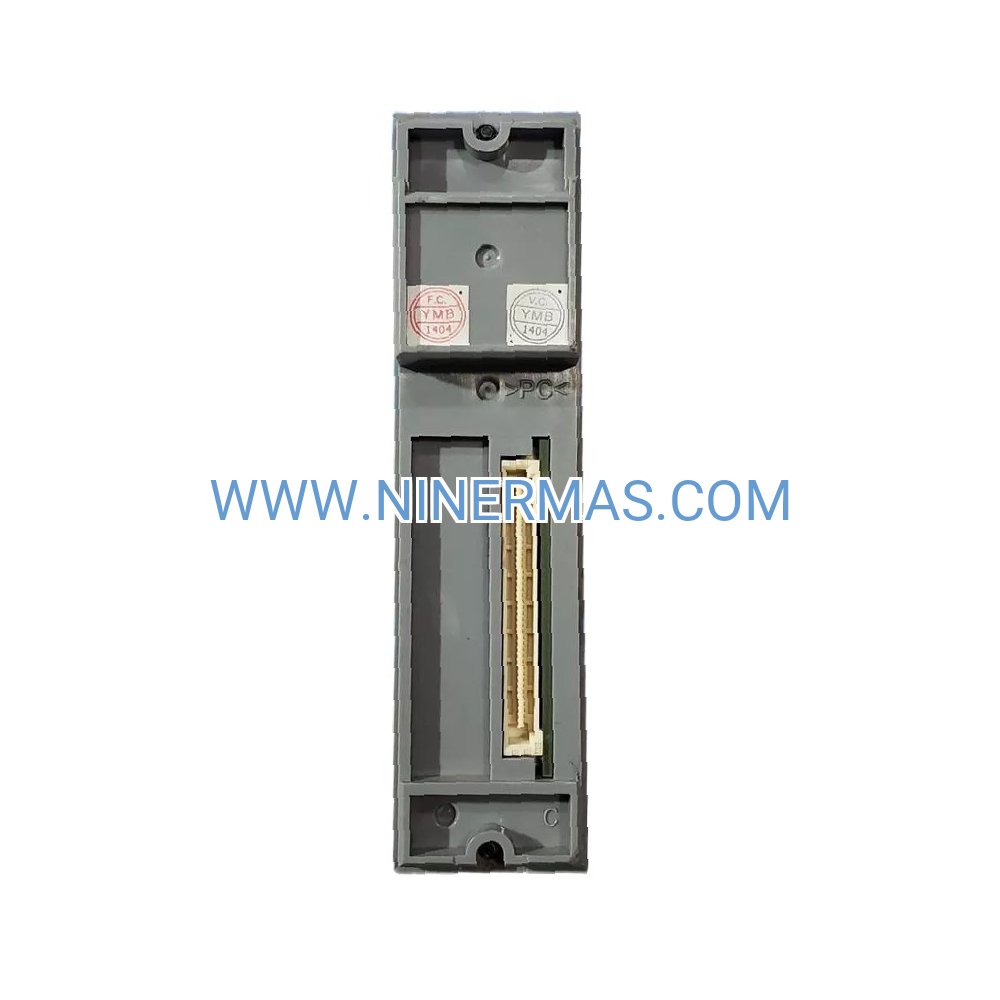

AAT145-S50 S1 Temperature Input Module (Industrial-Grade Multi-Sensor Interface)

The AAT145-S50 S1 represents Yokogawa's advanced solution for multi-point temperature acquisition in mission-critical industrial environments. Engineered for CENTUM VP distributed control architectures, this 16-channel isolated input card delivers laboratory-grade precision across thermocouple, RTD, millivolt, and potentiometer signal types—eliminating the need for multiple specialized modules while reducing cabinet footprint and wiring complexity.

Process engineers and automation specialists rely on the AAT145-S50 S1 to consolidate diverse temperature sensing requirements into a single, field-proven platform. Whether monitoring exothermic reactions in chemical synthesis, tracking thermal gradients across distillation towers, or validating heat treatment cycles in metallurgy, this module provides the measurement integrity and diagnostic capabilities demanded by modern industrial operations.

With 500V channel-to-channel isolation, built-in cold junction compensation, and automatic sensor fault detection, the AAT145-S50 S1 transforms raw sensor signals into actionable process data while safeguarding against electrical interference and installation errors that compromise measurement quality.

Core Features & Business Value

→ Universal Signal Compatibility
Accepts 12 thermocouple types (B, C, E, J, K, L, N, R, S, T, U, W), Pt100/JPt100 RTDs, DC millivolt sources, and potentiometer inputs on any channel. Eliminates inventory complexity and simplifies spare parts management by replacing 3-4 specialized modules with one versatile solution.

✓ Galvanic Isolation Architecture
500V DC isolation between all 16 channels prevents ground loop currents and common-mode voltage errors. Maintains measurement accuracy in electrically noisy environments typical of motor control centers, VFD installations, and high-power switching equipment.

✓ Precision Measurement Engine
±0.1% of span accuracy with 16-bit resolution ensures regulatory compliance for FDA 21 CFR Part 11, ISO 9001, and ASME BPE applications. Cold junction compensation accuracy of ±0.5°C eliminates external reference requirements for thermocouple installations.

✓ Intelligent Diagnostics
Real-time burnout detection with configurable upscale/downscale response alerts operators to open circuits, sensor degradation, or wiring faults before process upsets occur. Reduces unplanned downtime by 15-25% compared to passive input systems.

✓ Hot-Swappable Design
Field-replaceable without system shutdown or ESB bus interruption. Automatic configuration download from redundant controllers minimizes MTTR to under 5 minutes during emergency replacements.

✓ Wide Environmental Range
Operates reliably from -10°C to +55°C ambient with conformal coating protection against humidity, dust, and corrosive atmospheres. Suitable for non-climate-controlled enclosures in tropical, desert, and offshore installations.

Application Scenarios & Pain Points Solved

Chemical & Petrochemical Processing
Monitor reactor jacket temperatures, reboiler duty, and crystallizer zones with mixed TC/RTD sensor arrays. The AAT145-S50 S1's multi-signal capability eliminates the need for separate TC and RTD modules, reducing panel space by 40% and cutting installation labor by 30%. Typical deployments include polymerization reactors (Type K TCs for 0-400°C), distillation columns (Pt100 RTDs for ±0.2°C stability), and heat exchanger banks (Type J TCs for cost-effective monitoring).

Oil & Gas Production
Track wellhead temperatures, separator vessel thermal profiles, and pipeline heat tracing systems across remote unmanned facilities. Channel isolation prevents measurement corruption from cathodic protection systems and AC-induced voltages common in pipeline corridors. Supports SIL 2 safety instrumented functions when paired with certified safety controllers.

Power Generation & Cogeneration
Acquire boiler economizer outlet temps (Type K), turbine bearing RTDs (Pt100), condenser vacuum (Type T), and feedwater heater cascades on a single module. Reduces I/O cabinet count in balance-of-plant systems while maintaining the measurement accuracy required for heat rate optimization and emissions compliance.

Pharmaceutical & Biotech Manufacturing
Validate autoclave sterilization cycles, lyophilizer shelf temperatures, and fermentation vessel thermal mapping with FDA-compliant accuracy and traceability. Built-in diagnostics provide the sensor health monitoring required for 21 CFR Part 11 electronic records and GAMP 5 validation protocols.

Metals & Mining
Survive the vibration, EMI, and temperature extremes of smelting furnaces, annealing ovens, and kiln operations. Type R and S thermocouple support enables direct measurement up to 1800°C for precious metal refining and ceramic sintering applications.

Technical Parameters & Selection Criteria

Selection Guidance: Choose the AAT145-S50 S1 when you need to consolidate multiple sensor types in a single I/O module, require channel-to-channel isolation for ground loop immunity, or must achieve ±0.1% accuracy for regulatory compliance. For applications requiring faster scan rates (<50ms), consider the AAI143 high-speed analog input module. For intrinsically safe installations in Zone 0/1 hazardous areas, specify the ASI133 barrier-integrated variant.

Extended Capabilities & System Integration

Redundancy & High Availability: Deploy in dual-redundant configurations with automatic failover when paired with AFV10D or AFV30D field control units. The module supports hot-standby operation with bumpless transfer, ensuring zero data loss during controller switchovers.

Predictive Maintenance: Leverage built-in sensor drift detection and wire resistance monitoring to schedule calibration and replacement before failures occur. Diagnostic data integrates with Yokogawa's Exaquantum PIMS and FieldMate device management software for enterprise-wide asset health tracking.

Cybersecurity Compliance: Firmware supports IEC 62443 security standards with encrypted configuration files and role-based access control. Audit trails log all parameter changes for forensic analysis and regulatory inspections.

Custom Linearization: Program up to 20-point custom linearization tables for non-standard thermocouples, thermistors, or proprietary sensor types. Ideal for research applications and specialty alloy temperature measurement.

Delivery, Warranty & Technical Support

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations (special calibration ranges, extended temperature ratings) require 4-6 weeks factory lead time.

Warranty Coverage: 12-month comprehensive warranty covering materials, workmanship, and calibration accuracy. Extended 36-month coverage available for critical infrastructure projects.

Technical Assistance: Pre-sales application engineering support includes sensor selection, wiring diagrams, and thermal analysis. Post-installation services cover commissioning assistance, troubleshooting, and performance optimization.

Documentation Package: Each module ships with installation manual, configuration software, AutoCAD terminal drawings, and calibration certificate traceable to NIST/PTB standards.

Frequently Asked Questions

Can I mix Type K thermocouples and Pt100 RTDs on the same AAT145-S50 module?
Absolutely. Each of the 16 channels operates independently with software-selectable input types. You can configure channels 1-8 for Type K TCs and channels 9-16 for Pt100 RTDs without any hardware changes or jumper settings.

What wire gauge should I use for thermocouple connections to minimize errors?
For runs under 100 meters, 20 AWG (0.5mm²) thermocouple extension wire provides optimal balance between cost and accuracy. Longer runs or high-EMI environments benefit from 18 AWG twisted-shielded pairs with the shield grounded at the module end only.

Does the module support 2-wire RTD connections or only 3-wire and 4-wire?
The AAT145-S50 S1 supports 2-wire, 3-wire, and 4-wire RTD configurations. However, 2-wire connections introduce lead resistance errors of 0.2-0.5°C per ohm. For accuracy-critical applications, always use 3-wire (compensates for lead resistance) or 4-wire (eliminates lead resistance entirely) connections.

How do I configure the burnout detection direction for upscale vs. downscale indication?
Burnout direction is set via the CENTUM VP engineering software during channel configuration. Upscale (sensor reads high on failure) is recommended for safety-critical applications where you want alarms to trigger on sensor faults. Downscale is preferred for non-critical monitoring where you want to distinguish between actual low temperatures and sensor failures.

Is the module compatible with FOUNDATION Fieldbus or HART temperature transmitters?
No, the AAT145-S50 S1 accepts only direct sensor signals (TC, RTD, mV, POT). For FOUNDATION Fieldbus or HART transmitter integration, use the Yokogawa ALR121 or ALR111 analog input modules which support 4-20mA with digital overlay protocols.

What is the maximum cable length for thermocouple inputs before accuracy degrades?
With proper thermocouple extension wire and shielding, cable runs up to 300 meters maintain specification accuracy. Beyond 300m, consider using 2-wire temperature transmitters at the sensor location to convert TC signals to 4-20mA for long-distance transmission.

Ready to Upgrade Your Temperature Monitoring Infrastructure?

The AAT145-S50 S1 delivers the measurement precision, diagnostic intelligence, and system integration capabilities that modern industrial operations demand. Whether you're retrofitting legacy systems, expanding existing CENTUM VP installations, or designing greenfield facilities, this module provides a future-proof foundation for temperature data acquisition.

Contact our automation specialists today for application-specific recommendations, integration support, and volume pricing on complete I/O solutions. We maintain deep inventory of the entire Yokogawa CENTUM VP ecosystem—from processor modules to power supplies—ensuring single-source procurement and coordinated technical support.
