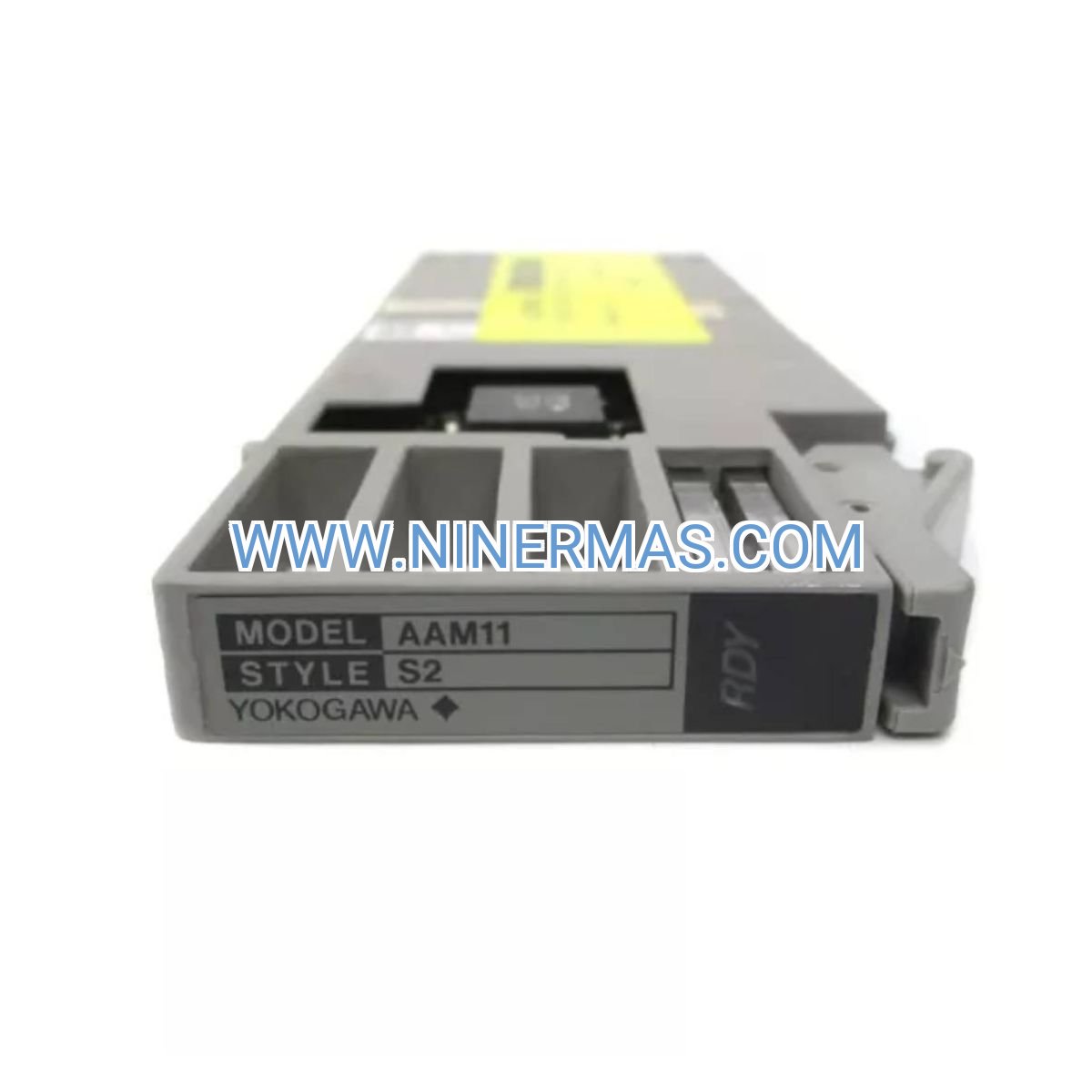

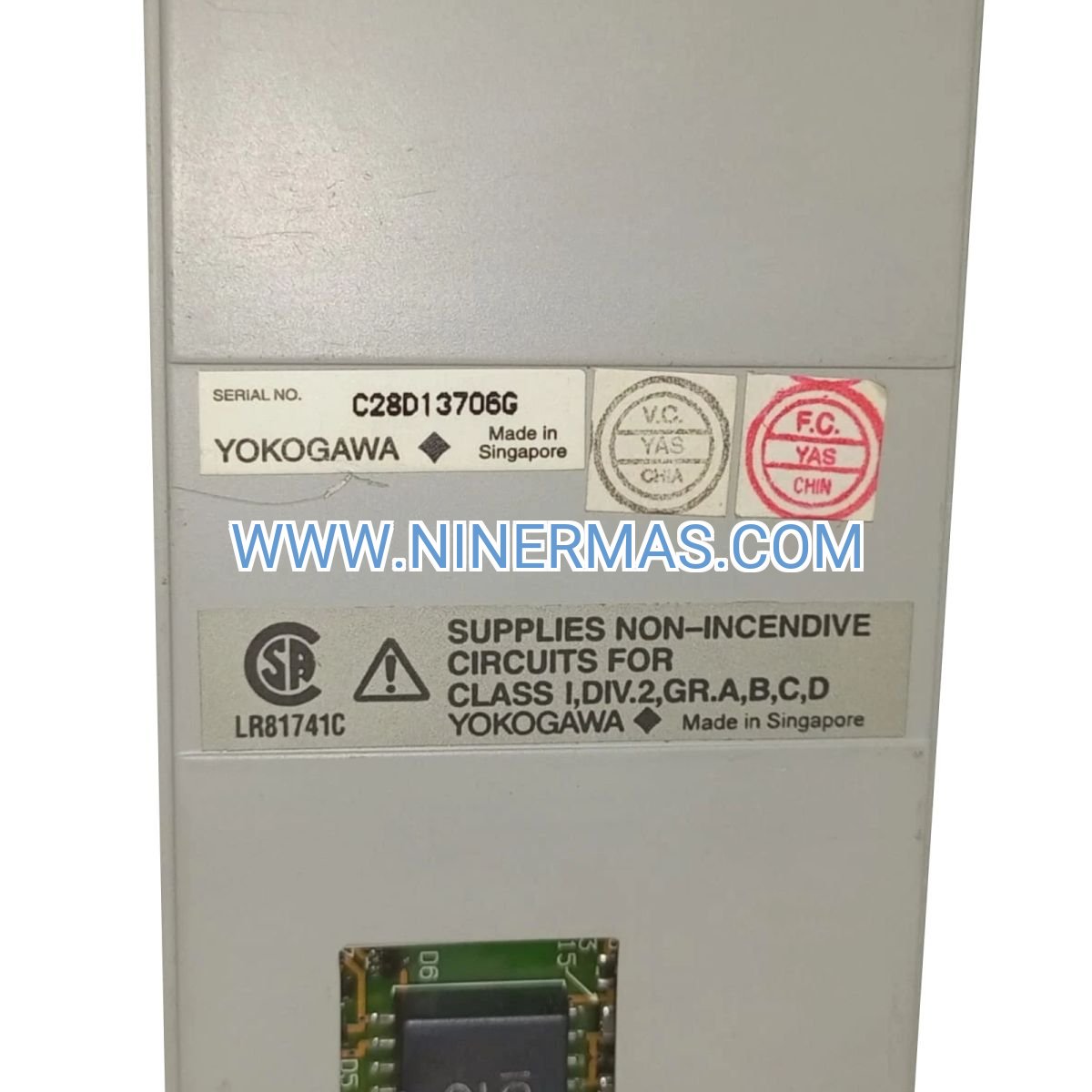

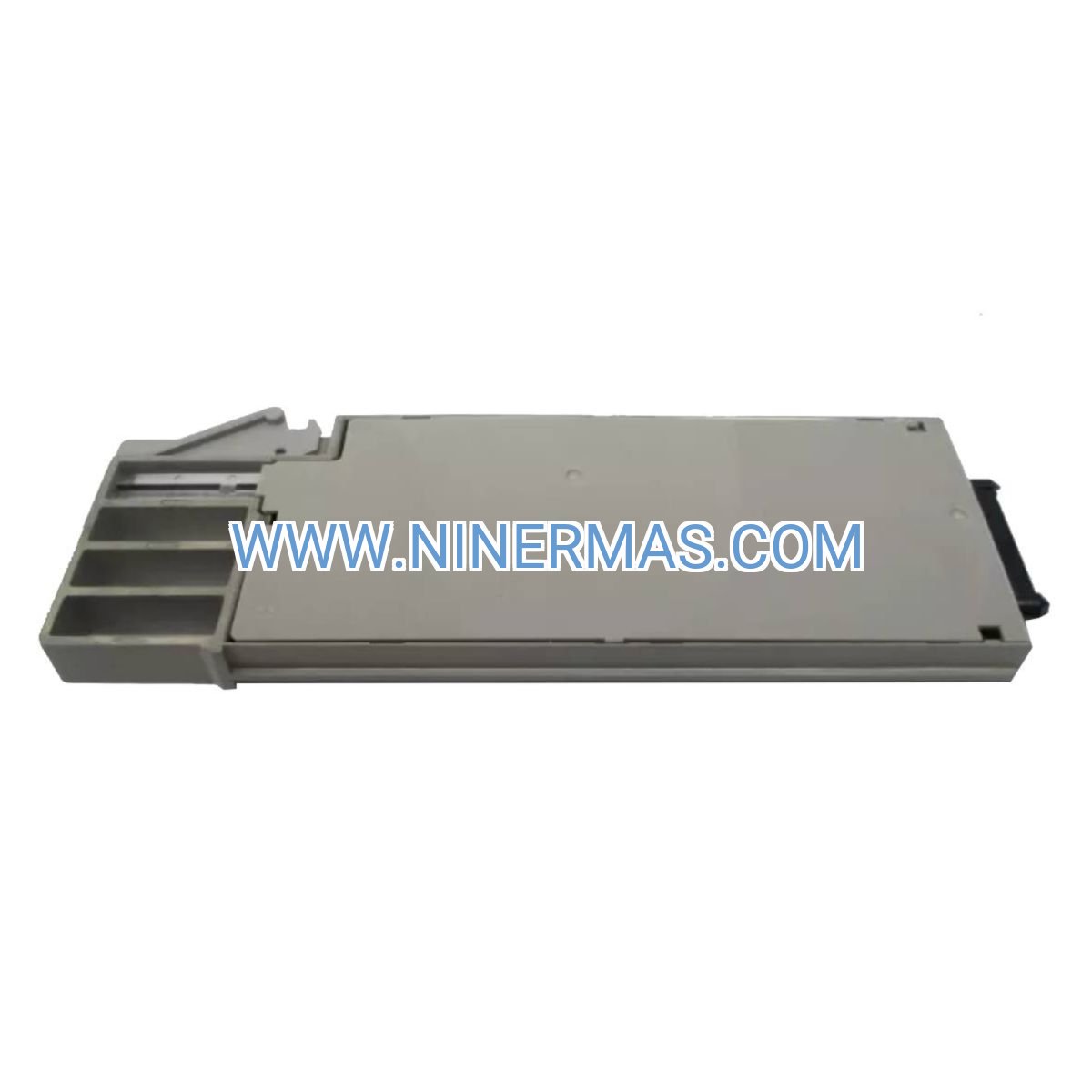

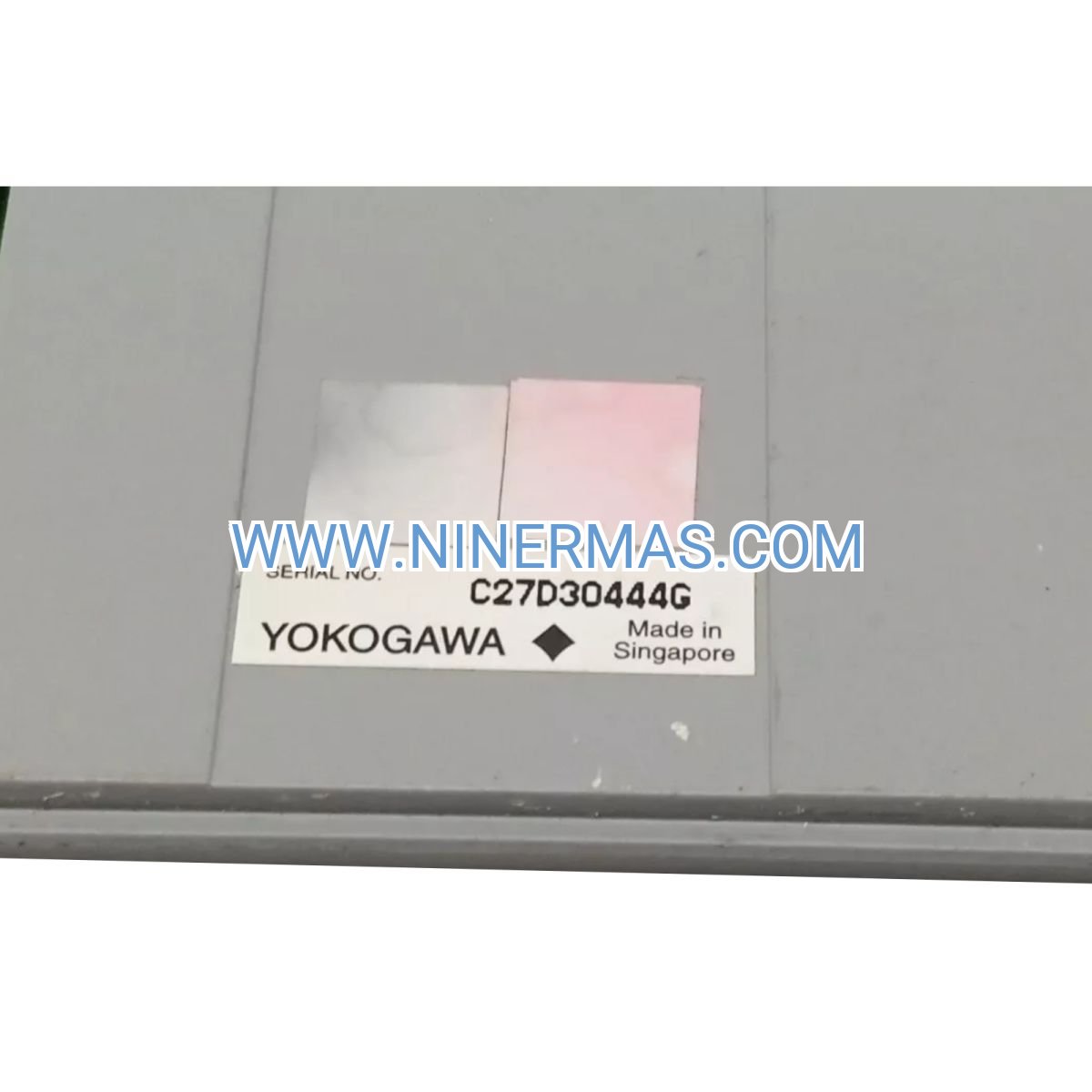

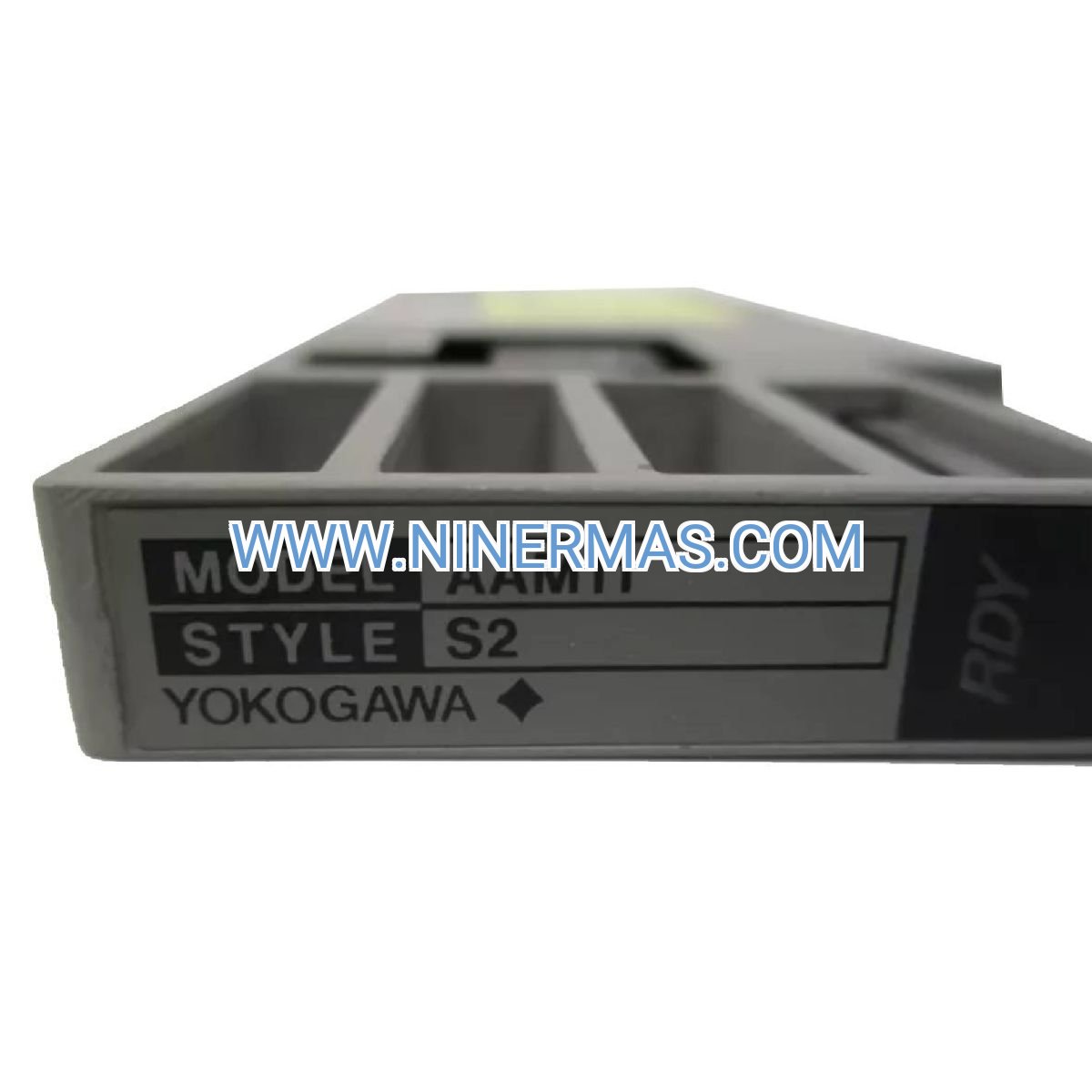

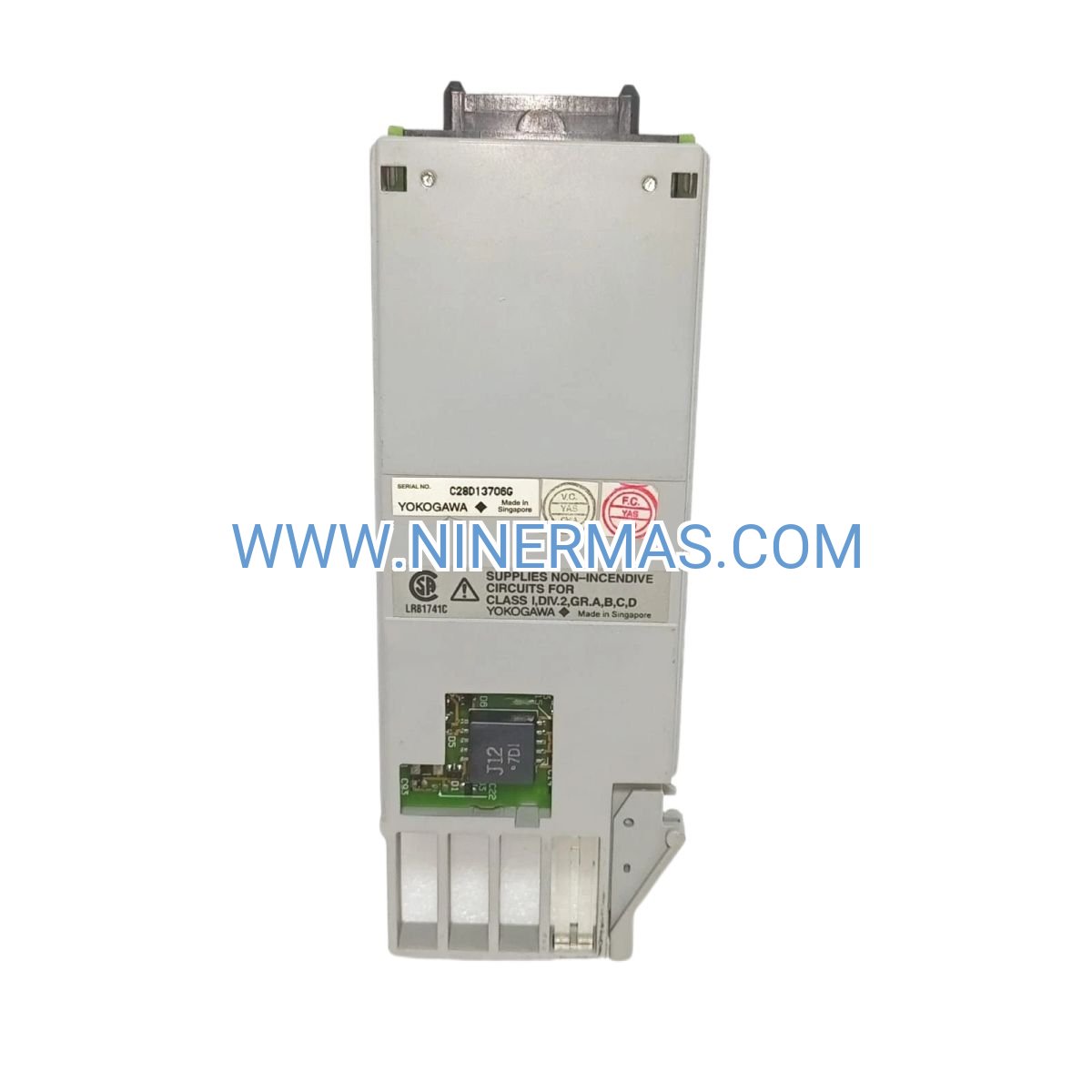

AAM11 S2 Analog Input Module (Industrial-Grade Multi-Channel Signal Processor)

The AAM11 S2 represents Yokogawa's advanced solution for high-density analog signal acquisition in mission-critical distributed control environments. This 16-channel input module transforms field instrumentation signals into precision digital data streams, enabling real-time process visibility across chemical, pharmaceutical, energy, and manufacturing operations.

Designed for seamless integration with CENTUM VP, CENTUM CS 3000, and ProSafe-RS platforms, the AAM11 S2 addresses the fundamental challenge of accurate, reliable signal conversion in harsh industrial settings. Process engineers and automation specialists rely on this module to maintain tight control loops, reduce measurement uncertainty, and ensure regulatory compliance in validated systems.

With 16-bit resolution, individual channel isolation, and hot-swap capability, the AAM11 S2 delivers the performance and uptime required for continuous process industries where every data point matters.

Core Capabilities & Technical Advantages

→ 16 Differential Analog Inputs
Individual channel isolation eliminates cross-talk and ground loop interference, ensuring measurement integrity even in electrically noisy environments. Each input operates independently with configurable signal ranges.

✓ Multi-Range Signal Compatibility
Supports 4-20mA current loops, 1-5V DC, and 0-10V DC inputs with per-channel configuration flexibility. Adapts to diverse field instrumentation without external signal conditioning, reducing installation complexity and cost.

→ 16-Bit A/D Conversion Precision
Delivers ±0.1% full-scale accuracy with 65,536 discrete measurement levels. This resolution enables detection of subtle process variations critical for quality control, energy optimization, and early fault detection.

✓ 100ms Simultaneous Sampling
All 16 channels acquire data concurrently every 100 milliseconds, providing synchronized process snapshots essential for coordinated control strategies and accurate material balance calculations.

→ Hot-Swappable Architecture
Replace or upgrade modules during live operation without system shutdown or process interruption. Diagnostic LEDs provide instant channel-level status visibility for rapid troubleshooting.

✓ Extended Temperature Reliability
Operates continuously from 0°C to 55°C with maintained accuracy specifications. Ruggedized design withstands vibration, humidity, and electromagnetic interference common in industrial control cabinets.

Industry Applications & Use Cases

Chemical Processing & Petrochemicals
Monitor reactor temperatures, distillation column pressures, and flow rates across multi-stage processes. The AAM11 S2's accuracy supports tight composition control and batch repeatability in specialty chemical production.

Pharmaceutical Manufacturing
Track critical process parameters in GMP-validated systems including fermentation temperatures, sterile filtration pressures, and clean room environmental conditions. Audit-trail integration ensures 21 CFR Part 11 compliance.

Oil & Gas Production
Acquire wellhead pressures, separator levels, and pipeline flow measurements in upstream and midstream facilities. Intrinsically safe barrier compatibility enables deployment in hazardous area classifications.

Power Generation
Capture turbine vibration signatures, boiler drum levels, and emissions monitoring data. High sampling rates support protective relay coordination and predictive maintenance analytics.

Water & Wastewater Treatment
Measure pH, conductivity, dissolved oxygen, and turbidity across treatment stages. Multi-range inputs accommodate both low-level sensor signals and high-level transmitter outputs in unified I/O architecture.

Technical Specifications & Selection Guide

Selection Criteria: Choose the AAM11 S2 when your application requires high channel density (16 inputs per slot), mixed signal types on a single module, or hot-swap maintenance capability. For applications needing higher accuracy (<±0.05%), consider the AAH series. For thermocouple or RTD inputs, specify the AAT temperature input modules.

Advanced Integration Features

CENTUM Platform Compatibility: Native support for CENTUM VP R6.x, CENTUM CS 3000 R3.x, and ProSafe-RS SIL 2/3 safety systems via standard I/O bus protocol. Auto-configuration through system engineering tools eliminates manual parameter entry.

Diagnostic Intelligence: Built-in self-test routines detect open circuits, short circuits, and out-of-range conditions with per-channel alarm generation. Predictive maintenance alerts identify degrading field wiring before process impact.

Redundancy Support: Operates in dual-redundant I/O configurations for high-availability applications. Automatic failover ensures continuous data acquisition during module replacement or failure events.

Cybersecurity Hardening: Firmware-level access controls and encrypted backplane communication protect against unauthorized configuration changes in IEC 62443-compliant architectures.

Delivery Timeline & Support Services

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-fresh orders with full traceability documentation.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended service agreements available for critical spares programs.

Technical Support: Pre-sales application engineering assistance, post-sales commissioning guidance, and lifetime firmware update access. Regional support centers provide 24/7 emergency troubleshooting.

Documentation Package: Includes installation manual, wiring diagrams, configuration templates, calibration certificates, and compliance declarations. Digital asset library provides CAD drawings and HART/FF device descriptions.

Frequently Asked Questions

Q: Can the AAM11 S2 interface directly with 2-wire transmitters?
A: Yes, when configured for 4-20mA current input mode, the module provides loop power compatibility with standard 2-wire transmitters. External loop power supplies connect to dedicated terminals on the module's field wiring connector.

Q: What is the maximum cable distance between field instruments and the AAM11 S2?
A: For 4-20mA current loops, distances up to 1,500 meters are supported with appropriate cable sizing (typically 18 AWG shielded twisted pair). Voltage inputs should be limited to 100 meters to minimize noise pickup and voltage drop effects.

Q: Does this module support HART communication protocol?
A: The AAM11 S2 passes HART digital signals transparently when used with HART-compatible field devices. A separate HART multiplexer module is required for asset management and device configuration functions.

Q: How does the module perform in high-vibration environments?
A: The AAM11 S2 meets IEC 60068-2-6 vibration specifications (10-150 Hz, 1G acceleration) and is suitable for installation in control rooms with rotating equipment. For severe vibration applications, consider shock-mount cabinet installations.

Q: Can I mix different signal types on the same module?
A: Absolutely. Each of the 16 channels is independently configurable for 4-20mA, 1-5V DC, or 0-10V DC operation through software settings. This flexibility reduces spare parts inventory and simplifies system expansion.

Q: What cybersecurity features protect against unauthorized access?
A: The module operates within the CENTUM system's security framework, supporting role-based access control, configuration change logging, and encrypted backplane communication. Physical access to the module requires cabinet key lock authorization.

Request Technical Consultation

Our industrial automation specialists are ready to assist with application-specific configuration, system integration planning, and lifecycle cost analysis. Contact us for detailed datasheets, reference architectures, and project quotations tailored to your process requirements.
