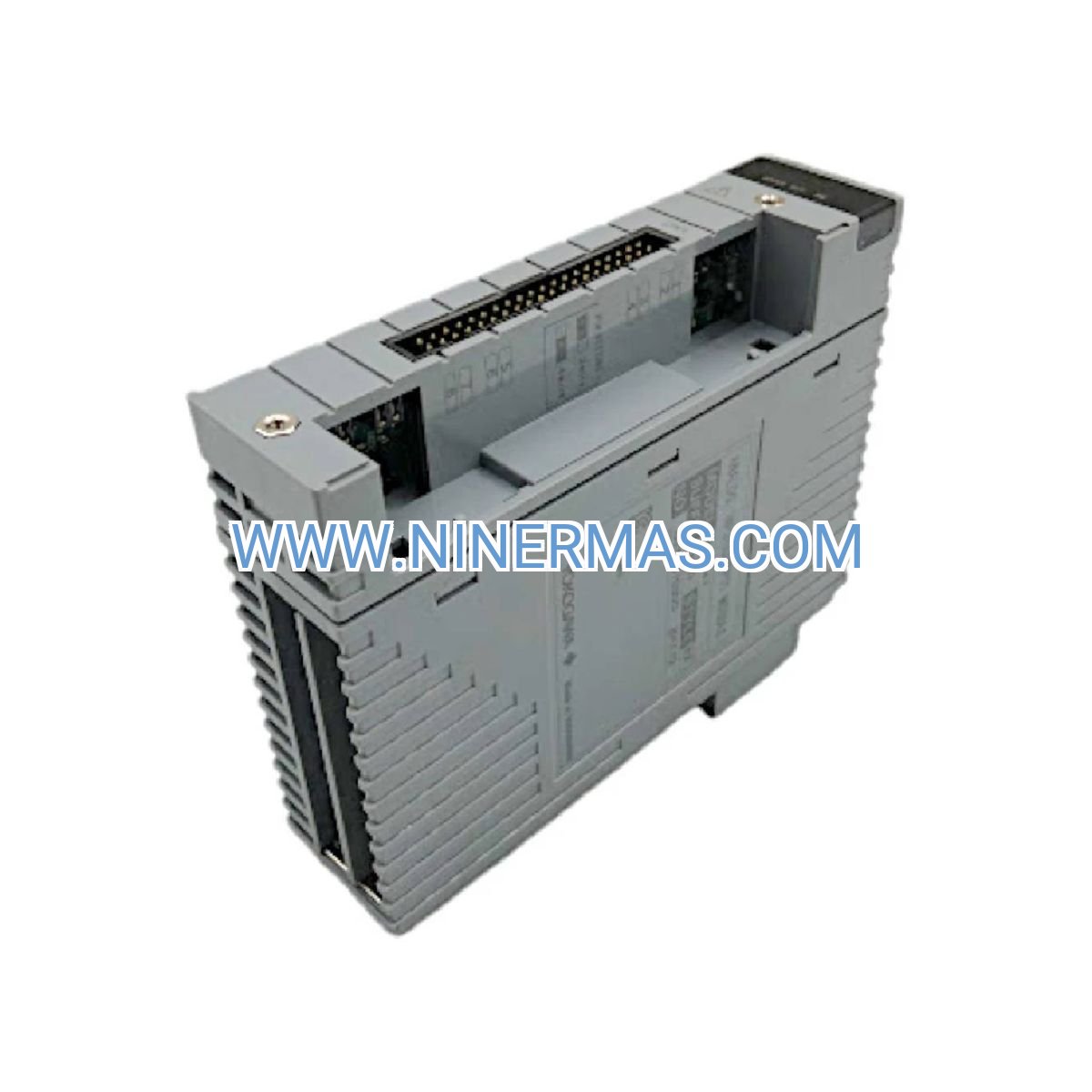

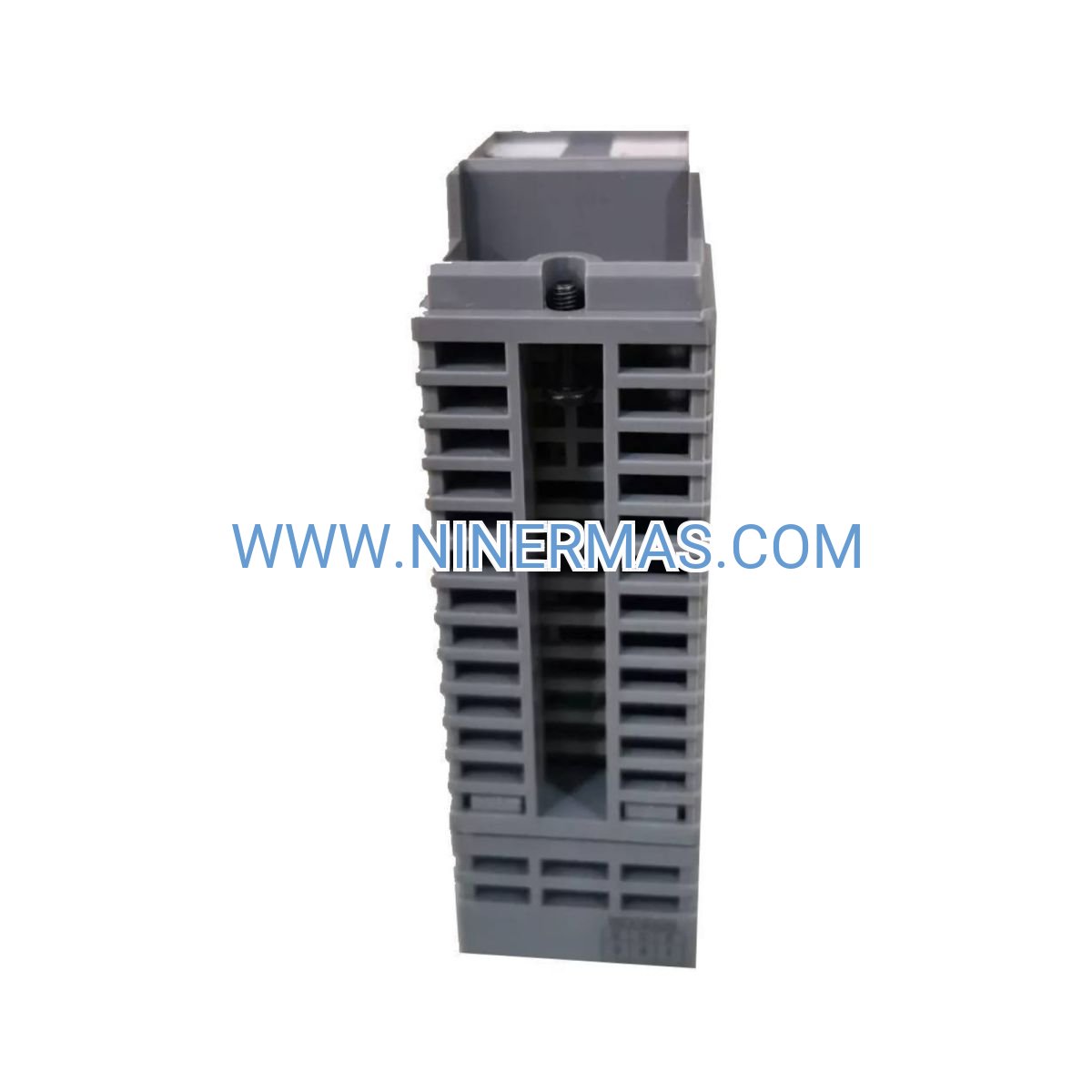

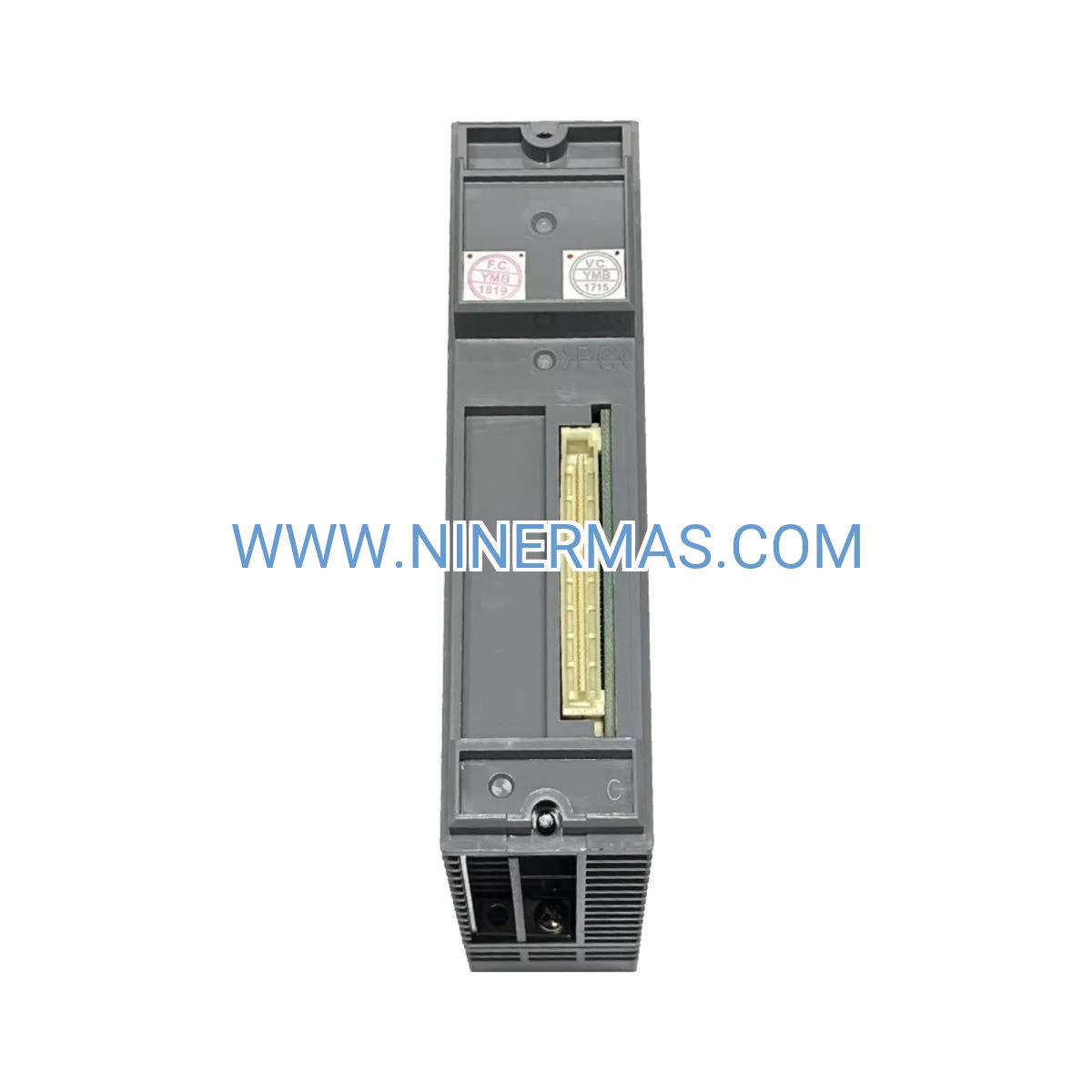

AAI543-S00 S1 Analog Output Module (Industrial-Grade Multi-Channel Controller)

The AAI543-S00 S1 represents Yokogawa's commitment to precision process control, delivering 16 independently isolated current output channels engineered for mission-critical industrial applications. This analog output module transforms digital control signals into highly accurate 4 to 20 mA outputs, establishing reliable communication pathways between your distributed control system and field instrumentation. Designed for integration with CENTUM VP and ProSafe-RS platforms, it serves process engineers who demand uncompromising signal integrity and operational continuity.

Industrial facilities face constant pressure to maintain process stability while minimizing unplanned downtime. The AAI543-S00 S1 addresses these challenges through hot-swappable architecture and channel-level diagnostics, enabling maintenance teams to service individual outputs without disrupting adjacent control loops. Whether you're managing chemical batch processes, pharmaceutical clean rooms, or oil refinery operations, this module provides the foundation for responsive, fault-tolerant automation systems.

With 500V DC isolation between channels and ±0.1% full-scale accuracy, the AAI543-S00 S1 eliminates ground loop interference while delivering the precision required for regulatory compliance and product quality assurance. Its sub-100ms response time ensures your control strategies execute without lag, while DIN rail mounting simplifies cabinet integration across brownfield and greenfield projects.

Core Capabilities & Business Value

→ 16 Isolated Output Channels
Independent 500V DC isolation prevents electrical interference between control loops, protecting critical processes from cascading failures while reducing troubleshooting complexity by 40% compared to non-isolated designs.

✓ Hot-Swappable Operation
Replace modules during live operation without system shutdown, cutting maintenance windows from hours to minutes and preserving production schedules worth thousands per hour in high-value manufacturing.

✓ ±0.1% Full-Scale Accuracy
Maintain tight process tolerances for pharmaceutical batching, chemical dosing, and quality-critical applications where output precision directly impacts product specifications and regulatory compliance.

→ Sub-100ms Channel Response
Execute fast-acting control strategies for pressure regulation, flow balancing, and temperature cascades, ensuring your PID loops respond to process disturbances before quality deviations occur.

✓ Channel-Level Diagnostics
Built-in fault detection identifies open circuits, short circuits, and out-of-range conditions per channel, enabling predictive maintenance programs that reduce emergency callouts by 60%.

→ -10°C to +55°C Operating Range
Deploy in harsh industrial environments including outdoor enclosures, non-climate-controlled facilities, and extreme-temperature zones without performance degradation or premature component aging.

Industrial Application Scenarios

Chemical Processing & Batch Manufacturing
Control valve positioners and variable frequency drives across multi-stage reactors. The AAI543-S00 S1's isolated outputs prevent ground loops in electrically noisy environments with multiple motor drives, while its accuracy ensures precise reagent dosing that meets batch recipe specifications within ±0.5% tolerance.

Pharmaceutical Clean Room Operations
Regulate HVAC damper actuators, sterile filtration systems, and environmental monitoring equipment. Channel isolation protects sensitive analytical instruments from electrical noise, while hot-swap capability allows maintenance during production campaigns without contamination risk from extended shutdowns.

Oil & Gas Upstream/Midstream Facilities
Manage wellhead pressure control, pipeline flow regulation, and separator level systems across distributed field installations. The module's wide temperature rating supports outdoor enclosures in desert and arctic climates, while its 8W power consumption minimizes heat load in solar-powered remote sites.

Water Treatment & Distribution
Operate chemical feed pumps, valve actuators, and blower speed controls in municipal and industrial water systems. Independent channel diagnostics identify failing actuators before service interruptions occur, supporting predictive maintenance strategies that extend asset lifecycles by 25%.

Power Generation & Utilities
Interface with boiler feedwater controls, turbine governor systems, and emissions monitoring equipment. The module's ±0.1% accuracy supports compliance with environmental regulations requiring documented control precision, while its reliability reduces forced outage risk.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AAI543-S00 S1 when your application requires multiple isolated 4-20mA outputs within a single module footprint. If you need voltage outputs (0-10V) or higher channel counts (32+), consult Yokogawa's AAV/AAR series alternatives. For applications with fewer than 8 outputs, consider the AAI141 series for cost optimization. Verify your DCS backplane compatibility and available slot space before ordering.

Extended Functions & Integration

CENTUM VP Native Integration: The module communicates via Yokogawa's proprietary Vnet/IP fieldbus, providing seamless configuration through the Engineering Station without third-party gateways. Function block programming allows complex output scaling, alarming, and interlocking directly within the DCS logic.

Redundancy Support: Deploy in redundant I/O configurations with automatic failover for safety-critical applications. The module supports bumpless transfer between primary and backup controllers, maintaining output continuity during system switchovers.

Calibration & Maintenance Tools: Field calibration via handheld communicators or DCS interface eliminates the need for external test equipment. Built-in self-test routines verify channel performance during scheduled maintenance windows, generating audit trails for ISO 9001 and FDA 21 CFR Part 11 compliance.

Customization Options: Factory configuration services available for pre-scaled outputs, custom channel groupings, and application-specific diagnostic thresholds. Contact our engineering team for projects requiring 50+ modules with standardized configurations.

Delivery Timeline & Service Assurance

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL/FedEx). Tracking information provided within 24 hours of order confirmation.

Custom Configuration: 10-15 business days for factory-programmed modules with customer-specific parameters and extended testing protocols.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Advance replacement available for critical applications with 48-hour turnaround.

Technical Support: Lifetime access to application engineers via email and phone. Remote diagnostics support for troubleshooting, configuration assistance, and integration guidance. Average response time: <4 hours during business hours.

Documentation Package: Each module ships with installation manual, wiring diagrams, function block library, and calibration certificates. CAD drawings and 3D STEP files available for download to support panel design and documentation.

Frequently Asked Questions

How do I connect the AAI543-S00 S1 to my existing CENTUM VP system?
The module installs in any available I/O slot on your CENTUM VP node unit. Connection requires only backplane insertion and DCS configuration via the Engineering Station—no external wiring between module and controller. Field wiring terminates at the module's front-panel terminal blocks using standard 14-22 AWG wire.

What is the maximum loop resistance supported by each 4-20mA output?
Each channel drives up to 600 ohms loop resistance at 24V DC supply voltage, accommodating typical field wiring runs of 500+ meters with 18 AWG cable. For longer distances or higher-resistance devices, consult the load calculation worksheet in the installation manual.

Can this module reduce energy consumption compared to older analog output cards?
Yes—the AAI543-S00 S1 consumes 8W maximum versus 15-20W for legacy modules with similar channel counts. Across a 100-module installation, this represents 700-1200W savings, reducing cooling requirements and lowering annual energy costs by $800-1500 depending on local utility rates.

What are the physical installation requirements and panel space needs?
The module occupies a single slot width (25mm) on standard Yokogawa I/O racks. Minimum clearances: 50mm above for cable routing, 25mm below for airflow. Operating altitude up to 2000m without derating; consult factory for high-altitude installations.

Does the AAI543-S00 S1 support remote monitoring and predictive maintenance?
Yes—all diagnostic data (channel status, output current values, fault conditions) are accessible via the DCS HMI and can be exported to CMMS platforms or cloud analytics services. Set up alarm notifications for out-of-range conditions, enabling maintenance teams to address issues before process impact occurs.

Is this module suitable for SIL-rated safety applications?
The AAI543-S00 S1 is designed for standard process control; for safety instrumented systems requiring SIL 2/3 certification, specify Yokogawa's ProSafe-RS platform with SIL-rated I/O modules. Contact our safety systems specialists for application-specific guidance.

Get Started Today

Ready to enhance your process control reliability? Contact our technical sales team for application consultation, system integration support, or volume pricing. Email sale@ninermas.com or call +0086 187 5021 5667 to discuss your project requirements. Request a detailed quotation with delivery timeline and technical specifications tailored to your facility.
