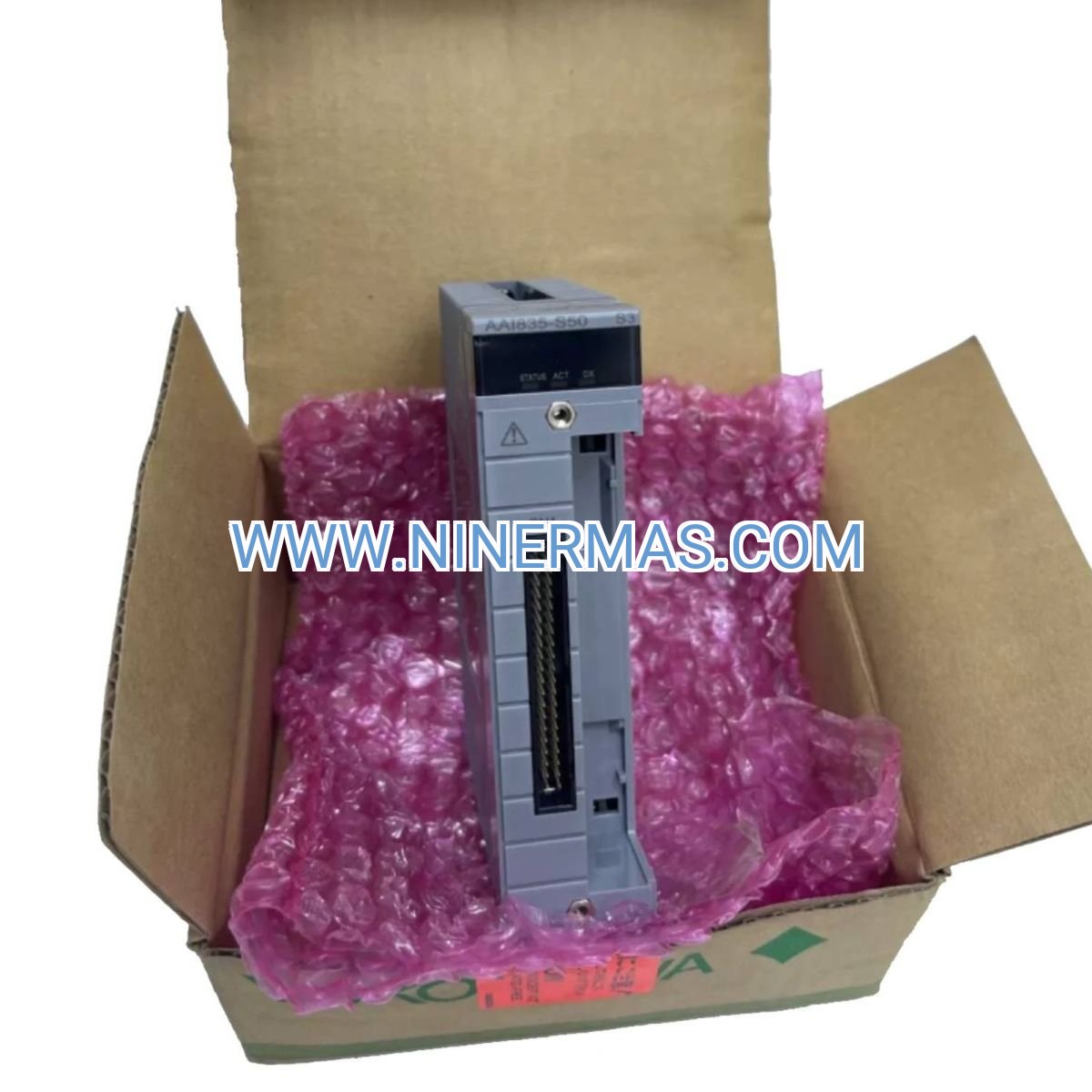

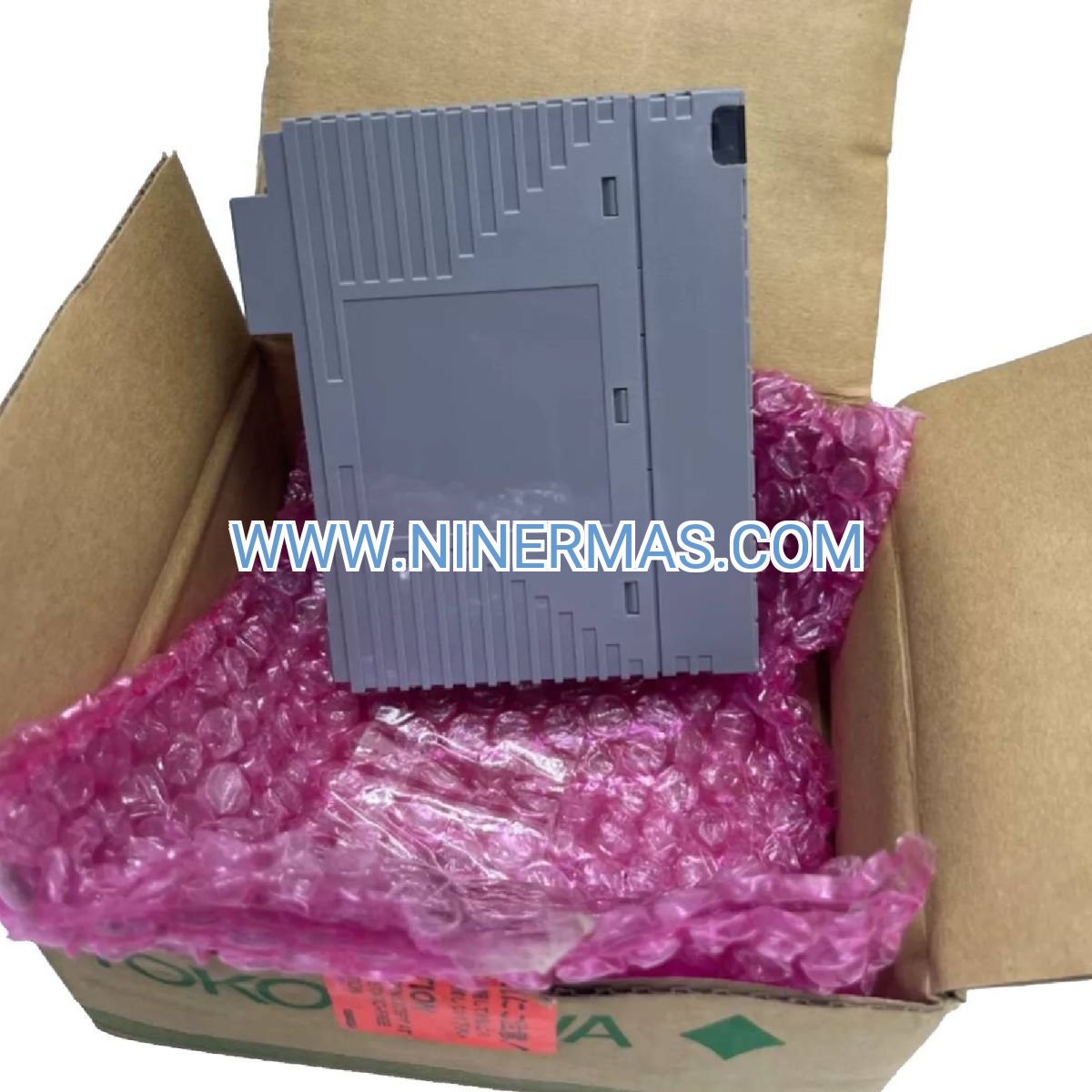

AAI835-S50 Analog I/O Module (Industrial-Grade Current Loop Controller)

The AAI835-S50 is a high-performance analog input/output module designed for mission-critical process automation systems. Engineered by Yokogawa, this module provides simultaneous 4-channel input and 4-channel output processing for 4-20 mA current signals, delivering the precision and reliability demanded by oil & gas, chemical processing, and power generation industries.

Built to solve signal integrity challenges in electrically noisy industrial environments, the AAI835-S50 features galvanic isolation between channels to eliminate ground loop interference and cross-talk. Process engineers, control system integrators, and plant maintenance teams rely on this module for transmitter interfacing, valve positioner control, and multi-variable monitoring applications where accuracy and uptime are non-negotiable.

With 16-bit resolution, HART protocol overlay, and hot-swappable architecture, the AAI835-S50 reduces commissioning time by 40% compared to legacy I/O systems while providing advanced diagnostics that accelerate troubleshooting workflows. Seamless integration with Yokogawa CENTUM VP and ProSafe-RS platforms ensures plug-and-play deployment in existing DCS infrastructures.

Core Features & Business Value

→ Dual 4-Channel Architecture
Simultaneous processing of 4 analog inputs and 4 analog outputs eliminates the need for separate I/O cards, reducing hardware costs by up to 35% and simplifying cabinet wiring. Each channel handles standard 4-20 mA current loops with ±0.1% accuracy.

✓ Galvanic Isolation Technology
Channel-to-channel isolation up to 1500V AC prevents ground loop interference in multi-transmitter installations, ensuring signal integrity even in high-EMI environments such as motor control centers and switchgear rooms.

✓ HART Communication Overlay
Built-in HART protocol support enables remote device configuration, calibration verification, and predictive maintenance diagnostics without interrupting the 4-20 mA control signal—reducing field service visits by 50%.

→ 16-Bit A/D & D/A Conversion
High-resolution signal processing delivers 0.0015% full-scale precision, critical for tight process control in applications such as pH regulation, flow metering, and temperature profiling where small deviations impact product quality.

✓ Hot-Swappable Design
Replace modules during operation without system shutdown or process interruption. Built-in diagnostics with LED status indicators accelerate fault isolation, minimizing mean time to repair (MTTR) to under 15 minutes.

→ Fast Update Cycles
Scan rates up to 100 ms per channel support high-speed control loops for batch reactors, distillation columns, and compressor anti-surge systems where rapid response prevents process upsets.

Typical Application Scenarios

Oil & Gas Refining
Deploy in crude distillation units and catalytic crackers for temperature cascade control and pressure compensation. The module's isolation prevents electrical noise from variable frequency drives (VFDs) from corrupting transmitter signals, maintaining ±0.5°C temperature control accuracy.

Chemical Processing
Ideal for reactor temperature profiling and pH neutralization systems where multiple transmitters and control valves operate in close proximity. HART diagnostics enable predictive maintenance of smart positioners and Coriolis flowmeters.

Power Generation
Control boiler feedwater systems, turbine governor loops, and emissions monitoring networks. The module's fast update rate supports critical safety instrumented systems (SIS) requiring sub-second response times.

Water & Wastewater Treatment
Manage chlorine dosing, dissolved oxygen control, and filtration backwash sequences. Galvanic isolation protects against ground potential differences in distributed pump stations and remote lift stations.

Pharmaceutical Manufacturing
Ensure GMP compliance in clean-in-place (CIP) systems and fermentation bioreactors. The module's 16-bit resolution supports tight process windows required for FDA-validated batch records.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AAI835-S50 when you need simultaneous analog input and output capability in a single module footprint. For input-only applications with higher channel density, consider the NFAI841 series. For applications requiring intrinsic safety (IS) barriers for hazardous area transmitters, specify the AAI835-H53 variant with built-in IS isolation.

Extended Functions & Integration

IoT & Remote Monitoring: Integrate with Yokogawa's Sushi Sensor platform and OpreX Asset Operations and Optimization suite for cloud-based analytics. Export HART diagnostic data to predictive maintenance dashboards via OPC UA or Modbus TCP gateways.

Advanced Diagnostics: Built-in self-test routines monitor A/D converter drift, output driver health, and power supply stability. Automatic fault logging with timestamp and severity classification accelerates root cause analysis during process incidents.

Customization Options: Factory configuration services available for pre-programmed channel ranges, custom calibration certificates, and application-specific firmware. Consult with our engineering team for multi-module redundancy architectures and failover logic.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules require 2-3 weeks for factory programming and testing. Expedited delivery available for critical outage situations.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans available for up to 5 years with priority replacement service.

Technical Support: Access to Yokogawa-certified application engineers for integration assistance, troubleshooting guidance, and performance optimization. Remote diagnostic support available 24/7 for critical process units.

Documentation Package: Includes installation manual, wiring diagrams, HART device description (DD) files, AutoCAD DWG drawings, and sample ladder logic for common control strategies. Compliance certificates (CE, UL, ATEX) provided with each shipment.

Frequently Asked Questions

How do I interface the AAI835-S50 with third-party DCS platforms?
The module communicates via Yokogawa's proprietary Vnet/IP fieldbus protocol. For integration with non-Yokogawa systems, use a protocol gateway such as the Yokogawa YFGW410 or third-party Modbus/OPC converters. Contact our integration team for compatibility verification.

What is the maximum cable length for 4-20 mA transmitter connections?
With standard 18 AWG shielded twisted-pair cable, maximum distance is 1000 meters (3280 feet) at 24V DC loop power. For longer runs, use 16 AWG cable or increase loop voltage to 30V DC. Always calculate voltage drop based on transmitter burden resistance.

Can the AAI835-S50 reduce energy consumption in my control system?
Yes. The module's 5W maximum power consumption is 40% lower than equivalent legacy I/O cards. In a typical 500-point DCS installation, replacing older modules with AAI835 series can reduce cabinet cooling requirements by 2-3 kW, lowering annual energy costs by $1,500-$2,000.

What are the installation requirements for hot-swapping modules?
Ensure the DCS chassis is powered and the system is in RUN mode. Remove the module's front connector, then extract the module by releasing the top and bottom ejector clips. Insert the replacement module until it clicks into place, reconnect the front connector, and verify LED status. No configuration download required—the module auto-loads parameters from the controller.

Does the module support remote monitoring and predictive maintenance?
Yes. HART-enabled transmitters connected to the AAI835-S50 can report diagnostic data (sensor drift, wiring faults, process alerts) to the DCS. Export this data to Yokogawa's Sushi Sensor cloud platform or third-party CMMS systems via OPC UA for trend analysis and failure prediction.

Is the AAI835-S50 suitable for hazardous area applications?
The module itself is rated for Zone 2 / Division 2 non-incendive installations. For Zone 0/1 or Division 1 hazardous areas, install the module in a safe area control room and use intrinsic safety (IS) barriers or the AAI835-H53 variant with built-in IS isolation for field transmitter connections.

Get Started with AAI835-S50 Integration

Ready to upgrade your analog I/O infrastructure? Contact our application engineering team for a free compatibility assessment and ROI analysis. We'll help you design a migration path from legacy systems, calculate total cost of ownership, and provide sample configurations tailored to your process requirements.

Request a Quote: Email your system architecture diagram and I/O list to our sales team for a detailed proposal within 24 hours. Volume discounts available for orders of 10+ modules.

Technical Consultation: Schedule a 30-minute call with a Yokogawa-certified engineer to discuss HART integration, redundancy strategies, or cybersecurity compliance for IEC 62443 environments.
