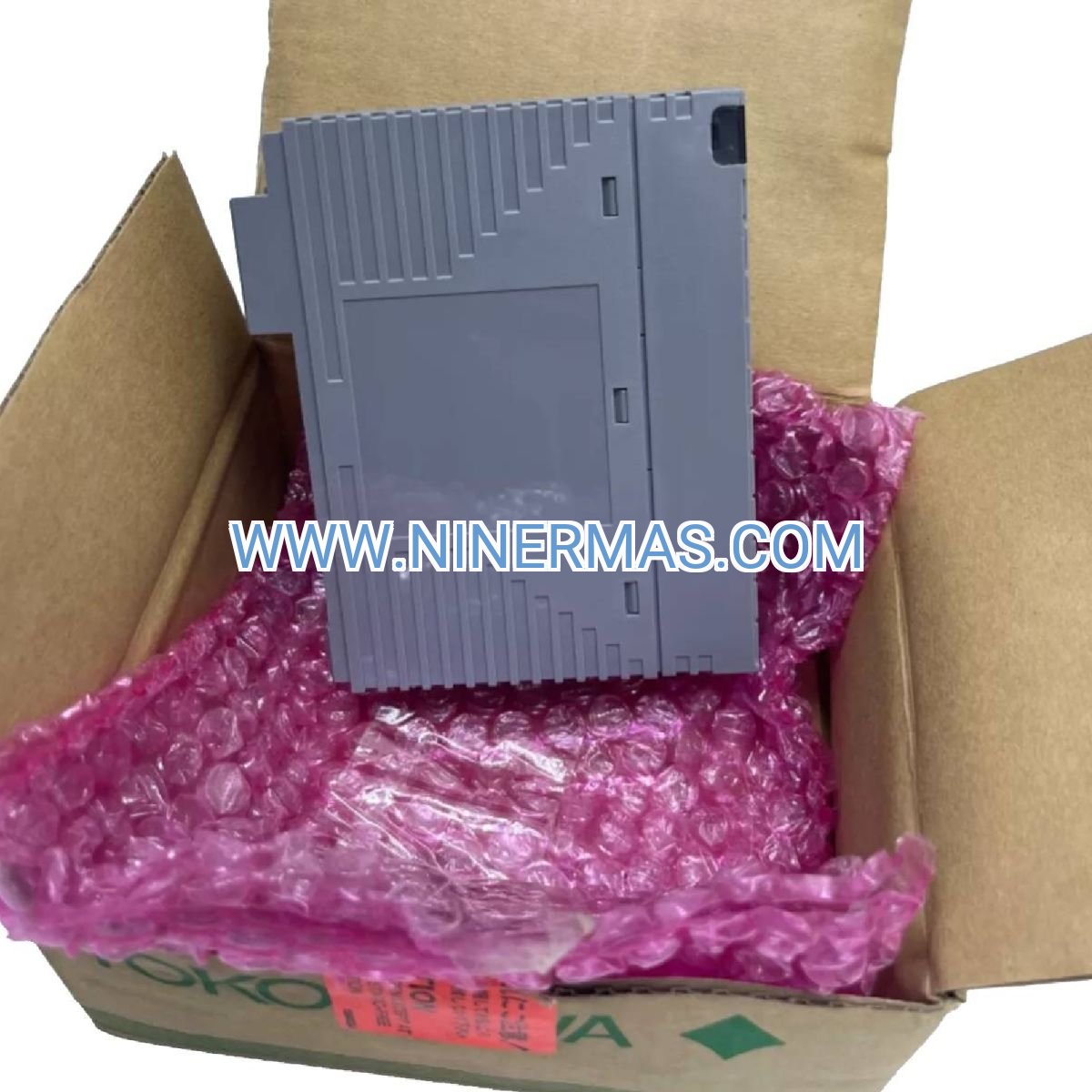

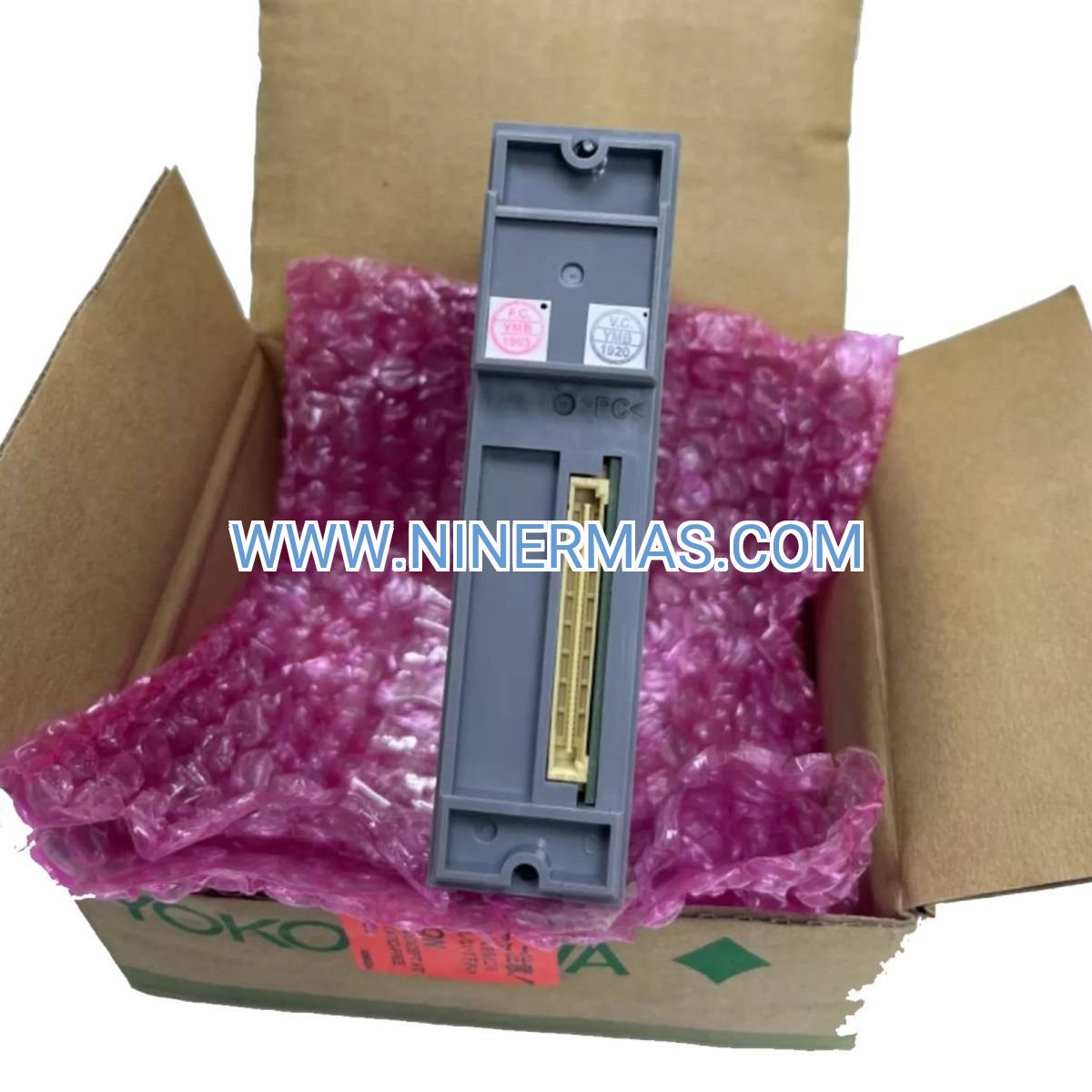

AAI543-H53-S1 Analog Output Module (Industrial-Grade HART Communication)

The AAI543-H53-S1 is a high-performance 16-channel analog output module designed for mission-critical process automation in hazardous industrial environments. Engineered with channel-to-channel galvanic isolation and integrated HART protocol support, this module enables simultaneous analog control and digital diagnostics over standard 4-20mA current loops. Ideal for petrochemical facilities, pharmaceutical manufacturing, and upstream oil & gas operations requiring intrinsically safe I/O solutions with SIL 2 functional safety compliance.

Process engineers and control system integrators choose the AAI543-H53-S1 when precision, reliability, and hazardous area certification are non-negotiable. Whether you're upgrading legacy DCS infrastructure or designing greenfield installations, this module delivers the performance and safety credentials demanded by regulated industries worldwide.

Key differentiators include hot-swappable architecture for maintenance without process interruption, comprehensive self-diagnostics for predictive maintenance, and seamless compatibility with Yokogawa CENTUM VP/CS 3000 platforms. The H53 intrinsic safety barrier qualification allows direct installation in Zone 1/Division 1 classified locations, eliminating costly external safety barriers.

Core Capabilities & Technical Advantages

→ Channel Isolation Technology: Each of the 16 outputs features independent galvanic isolation up to 1500V AC, preventing ground loop interference and ensuring signal integrity even in electrically noisy industrial environments. This architecture protects downstream field devices and maintains control accuracy across all channels simultaneously.

→ HART Protocol Integration: Bidirectional digital communication overlaid on 4-20mA signals enables remote device configuration, real-time diagnostics, and calibration verification without interrupting the primary control loop. Access device health data, adjust parameters, and troubleshoot issues from the control room.

→ Intrinsic Safety Certification: Factory-certified for Zone 1 and Division 1 hazardous locations (H53 designation), allowing direct connection to field instruments in explosive atmospheres. Eliminates external safety barriers, reduces installation costs, and simplifies system architecture.

→ Hot-Swap Capability: Replace or service the module during live operation without shutting down the control system. Automatic configuration download and bumpless transfer ensure continuous process control during maintenance activities.

✓ Precision Performance: 12-bit resolution with ±0.1% accuracy across the full 4-20mA range delivers precise control for critical process variables including temperature, pressure, flow, and level regulation.

✓ Diagnostic Intelligence: Continuous self-monitoring detects output loop faults, power supply anomalies, communication errors, and module health status. Predictive alerts enable proactive maintenance before failures impact production.

Industrial Application Scenarios

Petrochemical Reactor Control: Manage multi-zone temperature profiles in catalytic reactors where precise analog outputs regulate heating/cooling valves. The module's isolation prevents cross-talk between control loops, while HART diagnostics provide early warning of valve positioner degradation or wiring issues.

Pharmaceutical Batch Processing: Control chemical dosing pumps and ingredient addition systems in GMP-compliant manufacturing. SIL 2 certification supports safety instrumented functions, and the hot-swap feature allows maintenance during campaign changeovers without contamination risk from system shutdowns.

Water Treatment Chemical Injection: Regulate chlorine, coagulant, and pH adjustment chemical feed rates with 0.1% accuracy. Channel isolation ensures independent control of multiple treatment stages, while HART communication enables remote calibration verification to maintain regulatory compliance.

Oil & Gas Wellhead Control: Deploy in Zone 1 offshore platforms and onshore production facilities to control choke valves, separator level controls, and gas lift injection rates. Intrinsic safety certification eliminates external barriers, reducing panel space and installation complexity.

Power Generation Turbine Systems: Provide analog setpoints to fuel control valves, steam admission systems, and auxiliary equipment in combined-cycle plants. The module's -40°C to +70°C operating range supports outdoor equipment installations.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the AAI543-H53-S1 when your application requires intrinsically safe analog outputs in classified areas. For non-hazardous locations, consider the AAI543-S50 variant to reduce costs. If your system uses foundation fieldbus or PROFIBUS instead of HART, evaluate Yokogawa's ALF or APF series modules. For safety-critical applications requiring SIL 3 certification, specify the ProSafe-RS platform with redundant I/O architecture.

Advanced Integration Features

CENTUM Platform Compatibility: Native integration with Yokogawa CENTUM VP DCS, CENTUM CS 3000, and legacy CENTUM V systems via Vnet/IP deterministic control network. Supports both standalone and redundant controller configurations with automatic failover.

Asset Management Integration: Full compatibility with Yokogawa PRM (Plant Resource Manager) for centralized device configuration, calibration management, and lifecycle tracking. HART variables automatically populate into the asset database for condition-based maintenance programs.

Third-Party System Connectivity: OPC UA and Modbus TCP gateways enable data exchange with non-Yokogawa SCADA systems, historians, and MES platforms. Standard Ethernet connectivity simplifies integration into converged plant networks.

Cybersecurity Hardening: Firmware supports secure boot, encrypted configuration files, and role-based access control. Compliant with IEC 62443 industrial cybersecurity standards for defense-in-depth protection.

Delivery Timeline & Service Commitment

Standard Lead Time: 4-6 weeks for factory-new modules with full manufacturer warranty and certification documentation. Expedited 10-day delivery available for critical outage situations (subject to stock availability).

Warranty Coverage: 24-month comprehensive warranty covering defects in materials and workmanship. Extended warranty programs available for up to 60 months with annual health checks.

Technical Support: Lifetime access to application engineering support including loop tuning assistance, HART configuration guidance, and troubleshooting diagnostics. Remote support available via secure VPN connection.

Documentation Package: Complete technical manual set including installation drawings, wiring diagrams, HART device descriptions (DD files), SIL certification reports, and hazardous area approval certificates. All documentation provided in PDF and printed formats.

Frequently Asked Questions

Q: How does the AAI543-H53-S1 interface with existing HART field devices?
A: The module functions as a HART master, allowing you to configure and monitor intelligent field devices directly from the DCS operator interface. Standard 4-20mA wiring is used—no special cabling required. The HART digital signal is superimposed on the analog current loop using frequency shift keying (FSK) modulation.

Q: What is the maximum cable distance for maintaining HART communication reliability?
A: HART protocol supports cable runs up to 3000 meters (10,000 feet) using standard twisted-pair instrumentation cable. For optimal signal integrity in noisy environments, limit runs to 1500 meters and use shielded cable with proper grounding practices.

Q: Can this module reduce energy consumption compared to older analog output cards?
A: Yes. The AAI543-H53-S1 consumes approximately 8W per module versus 15-20W for legacy I/O cards, representing a 40-60% reduction in power consumption. In large systems with hundreds of I/O points, this translates to measurable energy savings and reduced cooling requirements.

Q: What installation requirements apply for Zone 1 hazardous area deployment?
A: The module must be installed in an approved intrinsically safe barrier enclosure rated for the area classification. All field wiring must use blue-coded intrinsically safe cable with proper segregation from non-IS circuits. Grounding must follow manufacturer specifications to maintain certification validity.

Q: Does the hot-swap capability require special tools or training?
A: No special tools are needed. The module uses keyed connectors that prevent incorrect insertion. Replacement procedures can be performed by trained technicians following standard lockout-tagout protocols. The DCS automatically downloads configuration data to the new module upon insertion.

Q: How does channel isolation improve control system reliability?
A: Galvanic isolation prevents electrical faults in one output channel from affecting adjacent channels. If a field device shorts or a cable is damaged, only that specific loop is impacted—the remaining 15 channels continue normal operation. This architecture dramatically improves system availability in critical processes.

Request Technical Consultation

Our industrial automation specialists are ready to assist with application engineering, system integration planning, and technical specifications review. Contact us for detailed datasheets, CAD drawings, SIL certification documentation, or to discuss your specific process control requirements.
