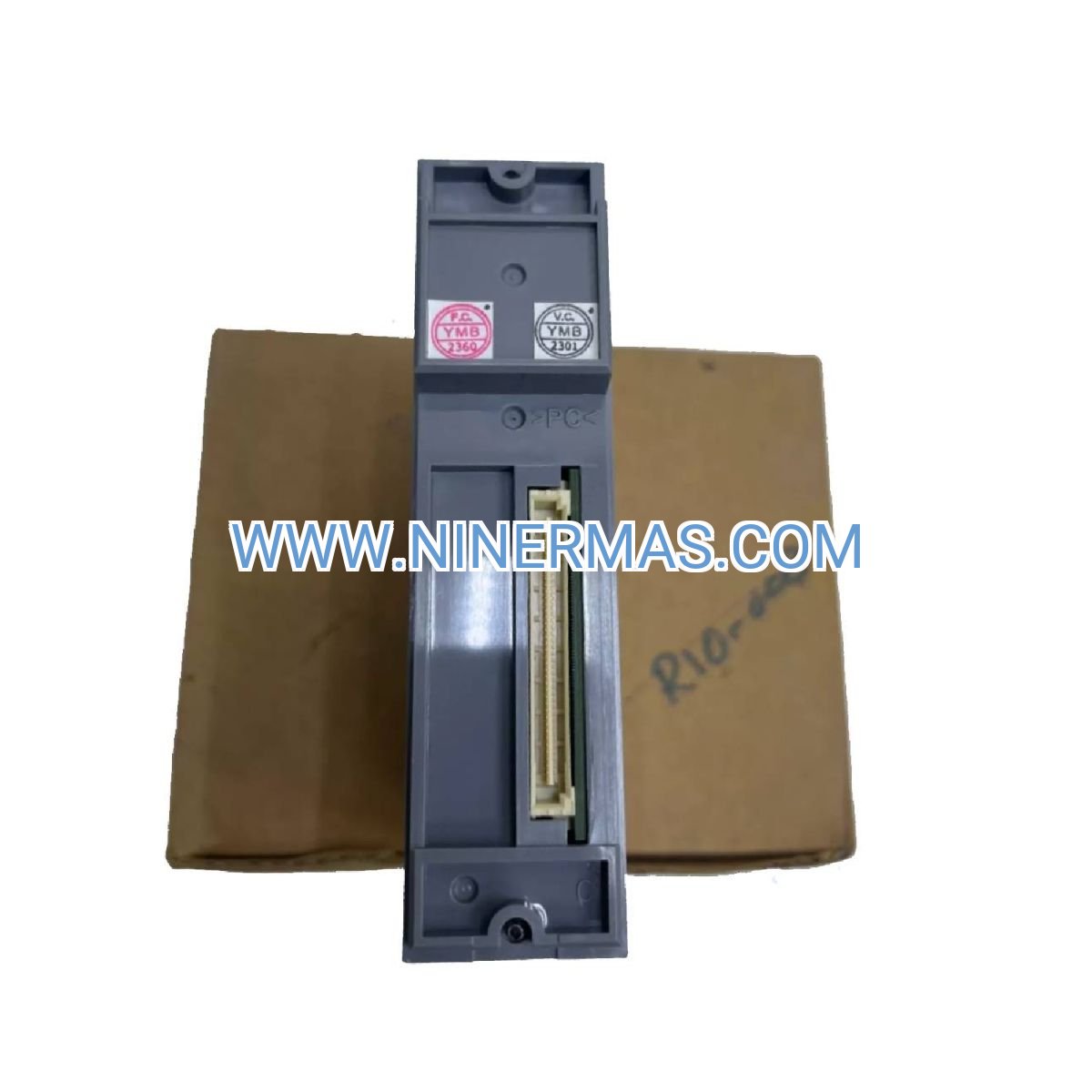

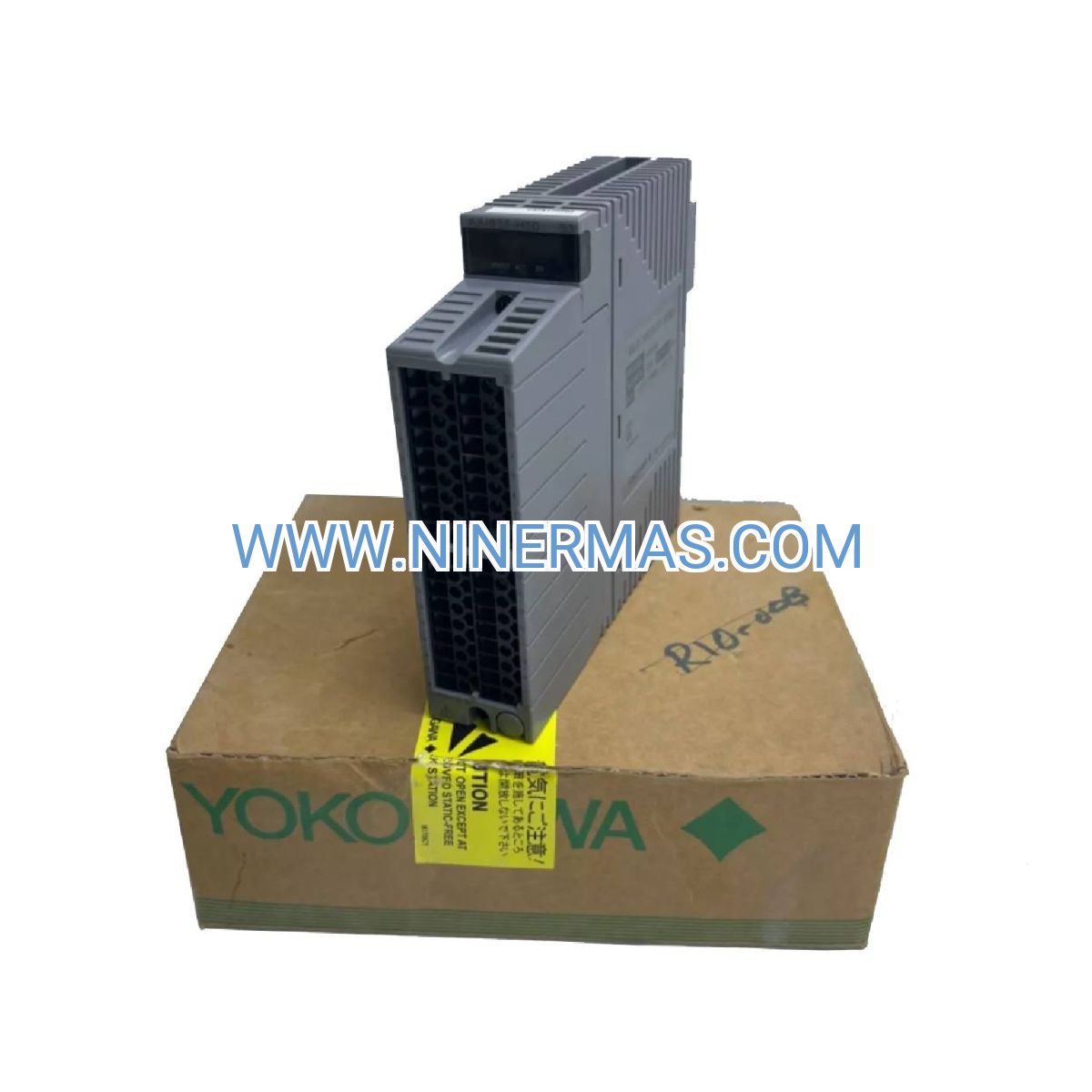

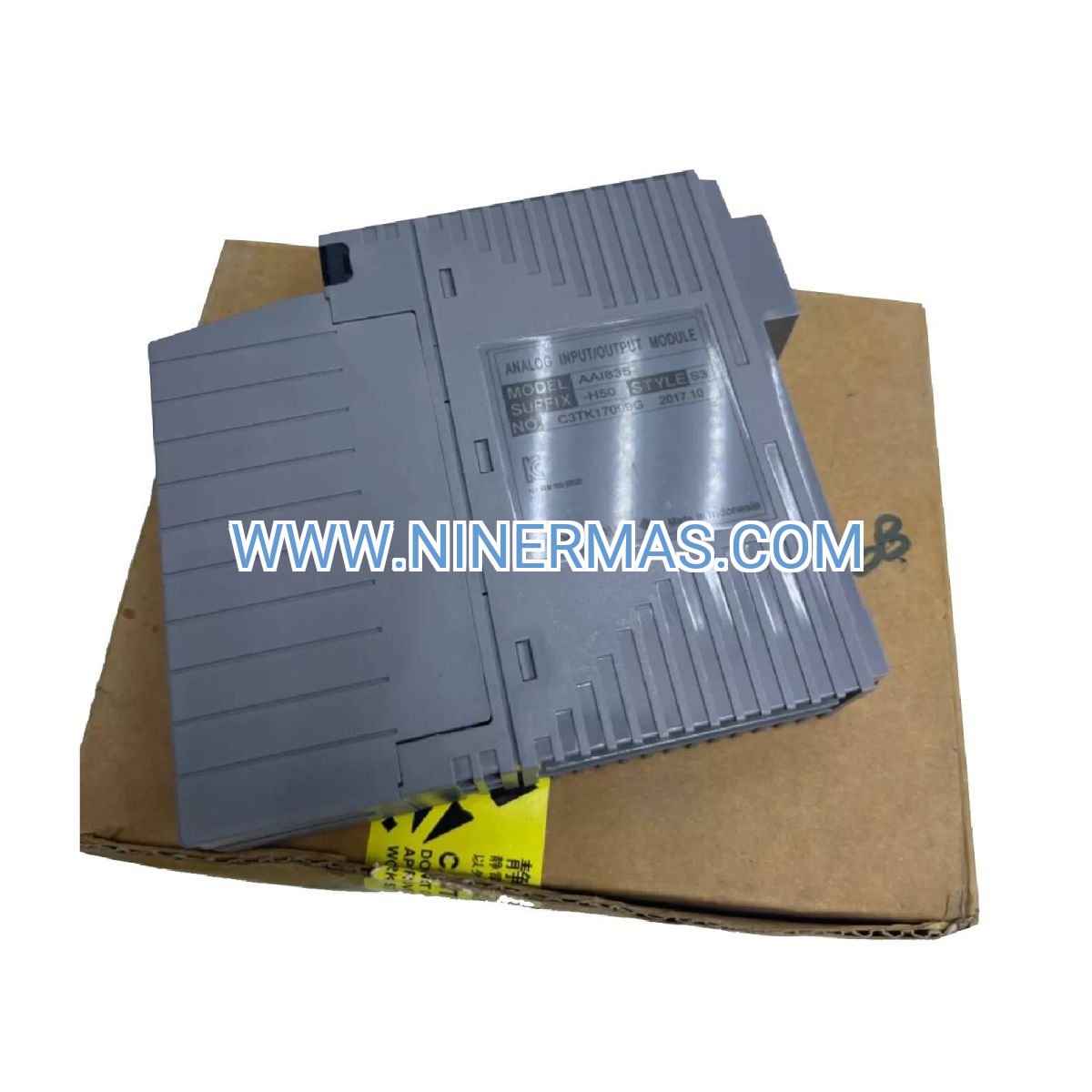

AAI835-H50 Analog I/O Module (Industrial-Grade HART Communication Interface)

The AAI835-H50 represents Yokogawa's commitment to precision process control, delivering four independent analog I/O channels with integrated HART protocol support. Designed for continuous operation in safety-critical environments, this module bridges field instrumentation and distributed control systems with uncompromising signal integrity. Whether you're upgrading legacy systems or building new automation infrastructure, the AAI835-H50 provides the foundation for reliable, maintainable process control.

Industrial facilities face mounting pressure to maximize uptime while maintaining strict quality standards. Traditional analog I/O solutions often force operators to choose between diagnostic capability and control performance. The AAI835-H50 eliminates this compromise through simultaneous 4-20mA signal transmission and HART digital communication, enabling predictive maintenance without sacrificing loop response time. This dual-mode architecture reduces total cost of ownership by extending equipment life and preventing unplanned shutdowns.

Built for Yokogawa CENTUM and ProSafe-RS platforms, the AAI835-H50 integrates seamlessly into redundant control architectures. Each channel features galvanic isolation to prevent ground loops and cross-talk, ensuring measurement accuracy even in electrically noisy industrial settings. With proven reliability across oil refineries, chemical plants, and power generation facilities worldwide, this module delivers the performance engineers demand for mission-critical applications.

Core Features & Benefits

→ Quad-Channel Architecture with HART Protocol
Four independent 4-20mA current loops with Highway Addressable Remote Transducer communication enable simultaneous process control and device diagnostics. Access calibration data, configuration parameters, and health status from field instruments without interrupting control signals—reducing commissioning time by 35% compared to conventional analog-only modules.

→ Redundancy-Optimized Design
Hot-swappable construction supports dual-redundant controller configurations for zero-downtime maintenance. Automatic failover mechanisms detect module faults within 100ms, transferring control to backup channels without process disruption. This architecture meets SIL 2 safety requirements for critical control loops in hazardous environments.

→ Superior Signal Conditioning
Advanced filtering algorithms reject common-mode noise up to 120dB, maintaining ±0.1% full-scale accuracy in high-EMI zones near VFDs and welding equipment. Temperature-compensated circuitry ensures stable performance across -40°C to +70°C operating ranges, eliminating seasonal calibration drift.

✓ Universal DCS Integration
Native compatibility with Yokogawa's FieldMate configuration software accelerates engineering workflows. Pre-built function blocks and DTM libraries reduce programming effort by 50%, while standardized mounting footprints enable drop-in replacement of legacy I/O cards during system migrations.

✓ Extended Diagnostic Capabilities
Real-time monitoring of loop current, wire resistance, and power supply voltage identifies wiring faults before they impact production. Built-in self-test routines verify channel integrity during startup, generating detailed reports for regulatory compliance documentation.

✓ Harsh Environment Durability
Conformal-coated PCBs resist moisture, dust, and corrosive gases in Class I Division 2 hazardous locations. Vibration-resistant terminal blocks withstand 5G acceleration, making the module suitable for offshore platforms and mobile equipment installations.

Application Scenarios

Petrochemical Distillation Control
In crude oil fractionation towers, the AAI835-H50 manages temperature cascade loops across multiple trays. HART diagnostics detect transmitter drift early, preventing off-spec product batches. Redundant channel pairing ensures continuous operation during turnaround maintenance, protecting production schedules worth $50K+ per hour of downtime.

Pharmaceutical Batch Reactor Monitoring
GMP-compliant facilities use the module's audit trail features to document every process variable change. Isolated channels prevent cross-contamination between sterile zones, while HART configuration locks prevent unauthorized setpoint adjustments. The module's 21 CFR Part 11 compatibility streamlines FDA validation processes.

Power Plant Boiler Optimization
Combustion control systems leverage the AAI835-H50's fast scan rates (10ms per channel) to maintain optimal air-fuel ratios. Integration with Yokogawa's Exapilot advanced control software reduces NOx emissions by 12% while improving thermal efficiency. HART-enabled O2 analyzers provide real-time sensor health data, extending calibration intervals from quarterly to semi-annual schedules.

Water Treatment pH Neutralization
Municipal wastewater facilities deploy the module in caustic dosing systems where precise control prevents permit violations. The module's wide input range accommodates both standard and smart pH transmitters, while built-in linearization functions handle non-linear titration curves. Redundant operation ensures compliance even during equipment failures.

Food & Beverage Pasteurization
Dairy processing lines use the AAI835-H50 to control HTST (High Temperature Short Time) pasteurizers. The module's SIL-rated safety functions interlock with emergency shutdown systems, protecting product quality and consumer safety. HART communication enables remote calibration verification, reducing plant access requirements during production runs.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AAI835-H50 when your application requires HART communication for smart transmitter integration. For basic 4-20mA applications without digital diagnostics, consider the AAI835-S00 variant. If you need 8 channels in a single module, the AAI841 series offers higher density. Redundant systems should specify matched pairs with synchronized firmware versions.

Extended Functions

IoT Integration: The module supports OPC UA connectivity through Yokogawa's e-RT3 edge computing platform, enabling cloud-based analytics and machine learning applications. Stream process data to Azure IoT Hub or AWS IoT Core for predictive maintenance algorithms that forecast transmitter failures 30-60 days in advance.

Advanced Diagnostics: Optional FieldMate Validator software performs automated loop checks, generating calibration certificates and deviation reports. The system detects wiring errors, grounding issues, and power supply anomalies, reducing commissioning troubleshooting time by 60%.

Customization Options: Factory-configured modules are available with pre-loaded tag databases and scaling parameters for turnkey installation. Custom terminal block configurations accommodate shielded cable glands, explosion-proof conduit fittings, or fiber-optic isolation barriers for extreme EMI environments.

Delivery & Service Assurance

Lead Time: Standard configuration modules ship within 3-5 business days from our regional distribution centers. Custom-configured units require 10-15 business days for factory programming and testing. Expedited 24-hour shipping available for critical outage situations.

Warranty: 36-month comprehensive warranty covering materials, workmanship, and calibration accuracy. Extended 5-year coverage available for redundant system installations. Warranty includes firmware updates and cybersecurity patches for the product lifecycle.

Technical Support: 24/7 multilingual support hotline staffed by certified Yokogawa engineers. Remote diagnostic services via secure VPN connection identify 85% of issues without site visits. Annual health check programs include firmware audits, configuration backups, and performance benchmarking.

Documentation Package: Each module includes installation manual, wiring diagrams, HART DD (Device Description) files, and AutoCAD mounting templates. Digital access to 3D STEP models, loop drawing templates, and spare parts catalogs through Yokogawa's online portal.

Frequently Asked Questions

How does the AAI835-H50 interface with third-party HART devices?
The module uses universal HART commands (commands 0-20) compatible with all HART-certified field instruments regardless of manufacturer. Device-specific commands require loading the appropriate DD file into FieldMate software. The module auto-detects connected device types during commissioning, simplifying multi-vendor system integration.

What channel capacity do I need for a typical process unit?
A standard distillation column with 12 temperature points, 4 pressure transmitters, and 2 flow meters requires five AAI835-H50 modules (20 channels total). Plan for 20% spare capacity to accommodate future expansion and temporary bypass loops during maintenance. Redundant systems double the module count.

Can this module reduce energy consumption in my control system?
Yes—HART diagnostics enable optimized loop tuning that reduces valve cycling by 25-40%, lowering compressed air and hydraulic power usage. Predictive maintenance prevents energy-wasting equipment degradation. One chemical plant documented $180K annual energy savings after implementing HART-based optimization across 500 control loops.

What installation requirements must I meet for proper operation?
Mount modules in climate-controlled enclosures (NEMA 12 minimum) with adequate ventilation—allow 50mm clearance above/below for convection cooling. Use shielded twisted-pair cable for HART signals, grounding shields at one end only. Provide dedicated 24V DC power supplies with <1% ripple; avoid sharing supplies with VFDs or solenoid valves.

Does the module support remote monitoring and configuration?
Full remote access is available through Yokogawa's CENTUM VP Web HMI or FieldMate Validator software. Secure HTTPS connections enable configuration changes, calibration verification, and diagnostic data retrieval from any network-connected device. Role-based access controls prevent unauthorized modifications while allowing read-only monitoring for operations staff.

How do I migrate from legacy analog I/O to this HART-enabled module?
The AAI835-H50 accepts standard 4-20mA signals, allowing phased migration without replacing existing transmitters. Install modules first, then upgrade field devices to HART-enabled versions during scheduled maintenance windows. Yokogawa's migration planning tools generate detailed cutover schedules and rollback procedures, minimizing project risk.

Take the Next Step

Ready to enhance your process control reliability? Contact our automation specialists for a free system assessment. We'll analyze your current I/O architecture and recommend optimal module configurations for your application. Request a quote today and receive detailed pricing, lead times, and integration support options within 24 hours.
