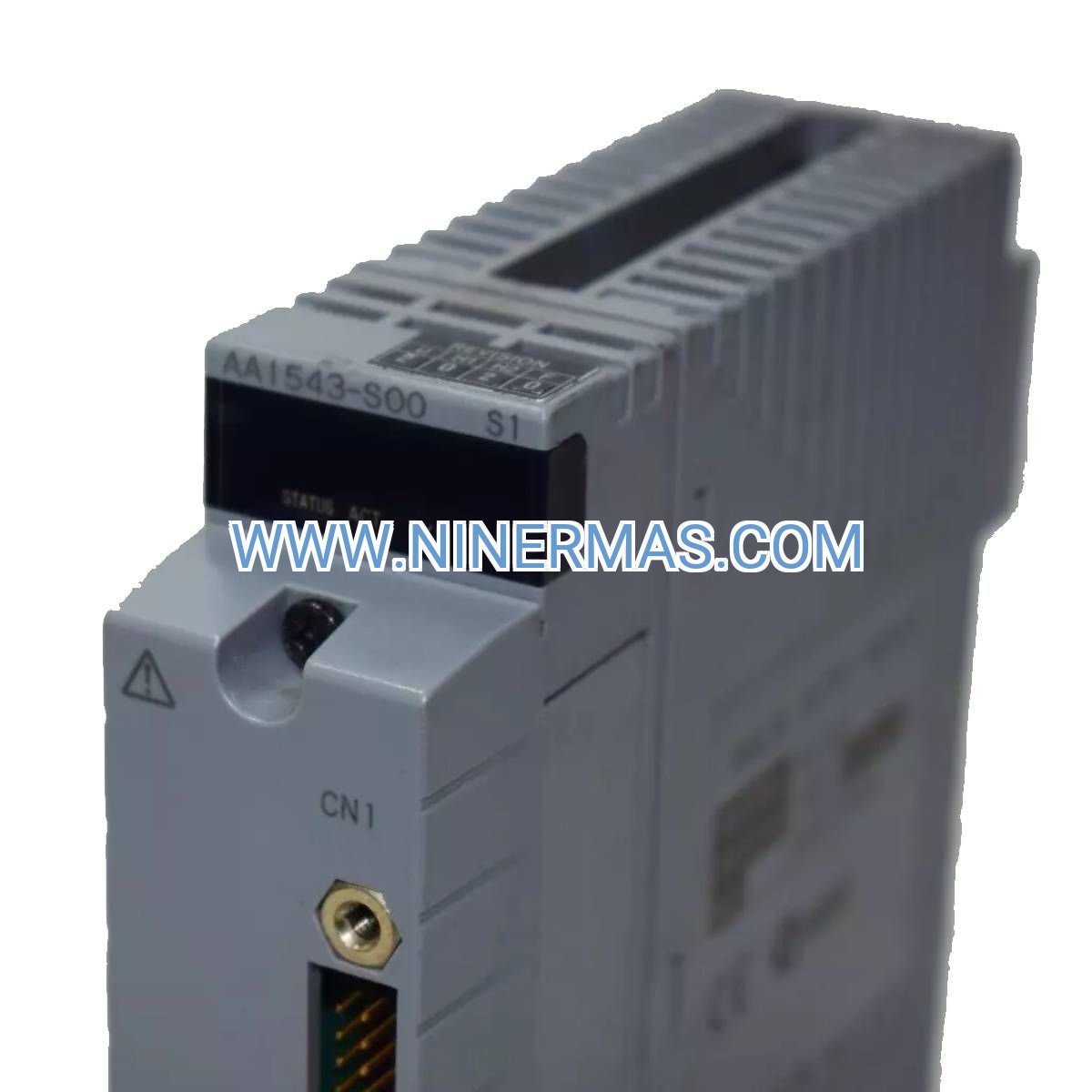

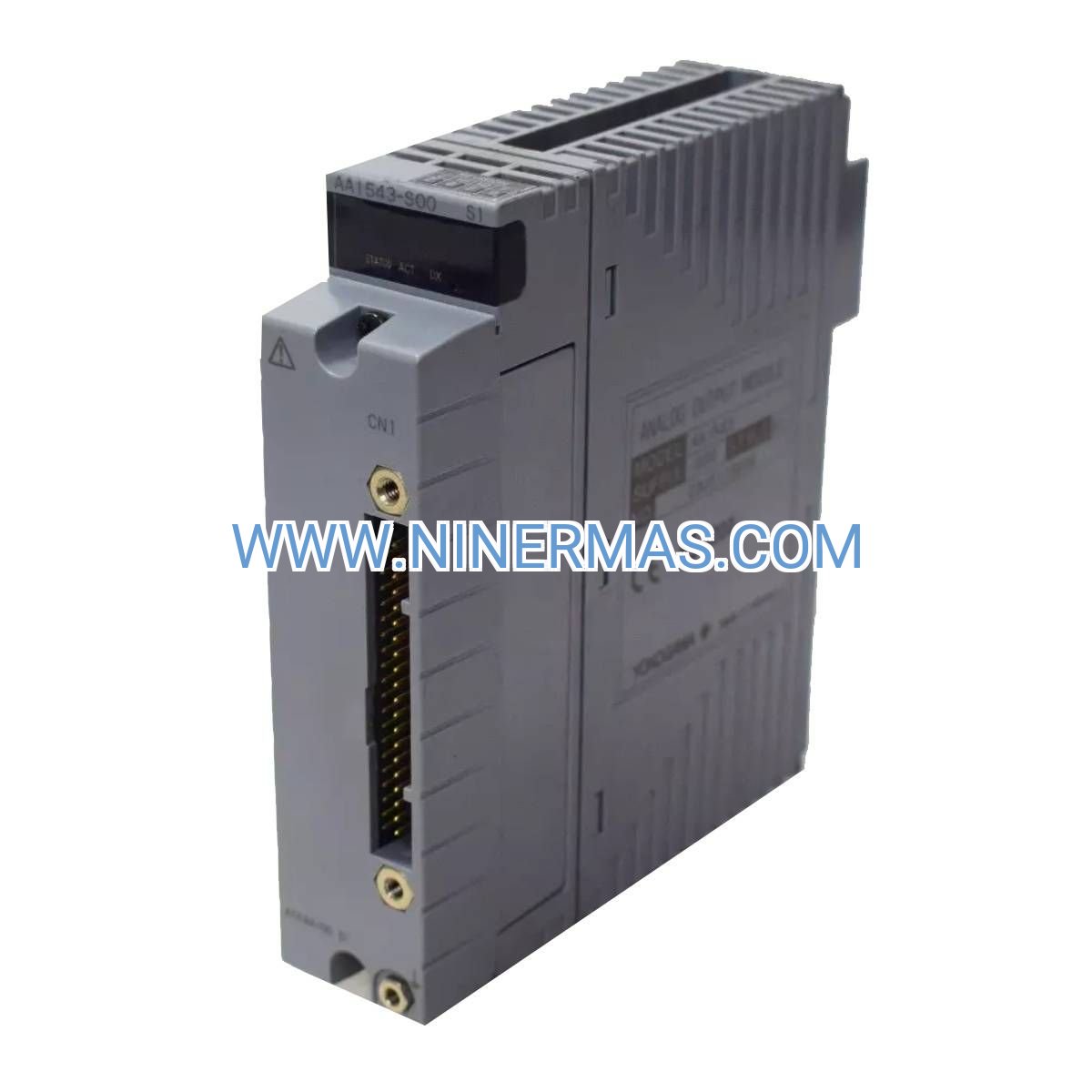

AAI543-H50 S1 Analog Output Module (Industrial-Grade 4-20mA Control)

The Yokogawa AAI543-H50 S1 delivers precision analog control for industrial automation systems where reliability cannot be compromised. This 16-channel module provides galvanically isolated 4-20mA outputs with redundant architecture, ensuring continuous operation in critical process environments. Designed for seamless integration with CENTUM VP and ProSafe-RS platforms, it serves as the backbone for valve control, flow regulation, and actuator positioning across petrochemical, power generation, and pharmaceutical industries.

Built for engineers who demand both performance and uptime, the AAI543-H50 S1 combines high-density I/O with hot-swappable capability—allowing field replacement without process shutdown. Its S1 redundancy configuration provides automatic failover protection, while channel-to-channel isolation eliminates ground loop interference that plagues conventional output modules.

Whether you're upgrading legacy control systems or designing new installations, this module offers proven reliability backed by Yokogawa's 500,000+ hour MTBF rating and global certification portfolio (CE, UL, FM, ATEX, IECEx).

Core Features & Industrial Benefits

✓ 16 Isolated Analog Outputs
Maximize cabinet space efficiency with high-density I/O architecture. Each channel features independent galvanic isolation (channel-to-channel and channel-to-bus), preventing electrical noise propagation and ground loop formation in distributed control networks.

✓ Redundant S1 Configuration
Achieve zero-downtime operation with dual-redundant design. Automatic bumpless transfer maintains control integrity during controller failover events, critical for safety instrumented systems (SIS) and continuous process applications.

✓ 16-Bit Resolution with ±0.1% Accuracy
Deliver precise control signals for demanding applications. Superior D/A conversion ensures accurate valve positioning and flow regulation, reducing process variability and improving product quality in batch manufacturing.

✓ Hot-Swappable Field Replacement
Minimize maintenance downtime with removable terminal block design. Replace modules during operation without process interruption or extensive rewiring—reducing mean time to repair (MTTR) by up to 70%.

✓ Built-In Diagnostics & Status Monitoring
Accelerate troubleshooting with LED indicators and self-diagnostic capabilities. Real-time fault detection identifies open circuits, short circuits, and out-of-range conditions before they impact process performance.

→ Global Compliance Certification
Deploy confidently across international facilities with CE, UL, FM, ATEX, and IECEx approvals. Meets stringent safety standards for hazardous area installations (Zone 2/Division 2).

Application Scenarios Across Industries

Petrochemical Refineries
Control valve positioners and flow control loops in distillation columns, reactor vessels, and pipeline distribution systems. The module's isolated outputs prevent ground-induced measurement errors in electrically noisy refinery environments, while redundancy ensures continuous operation during planned maintenance or unexpected failures.

Power Generation Facilities
Manage turbine governor control, combustion air dampers, and feedwater regulation in coal, gas, and combined-cycle plants. Redundant architecture meets NERC reliability standards, and 100ms update rates provide responsive control for load-following applications.

Pharmaceutical Manufacturing
Maintain precise temperature, pressure, and flow control in batch reactors, fermentation vessels, and sterile filling lines. FDA 21 CFR Part 11 compliant when integrated with validated CENTUM VP systems, supporting GMP documentation requirements.

Water & Wastewater Treatment
Operate distributed pump control networks, chemical dosing systems, and aeration basin regulation. Galvanic isolation eliminates ground loop interference across geographically dispersed treatment facilities, reducing false alarms and improving system stability.

Pulp & Paper Production
Regulate consistency control, bleaching chemical addition, and dryer section steam valves. High channel density reduces control cabinet footprint in space-constrained mill environments, while hot-swap capability minimizes production losses during maintenance.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AAI543-H50 S1 when your application requires redundant control architecture with isolated outputs. For non-redundant applications, consider the standard AAI543-S50 variant. Verify compatibility with your CENTUM VP system version (R6.01 or later recommended). Ensure adequate cabinet cooling to maintain ambient temperature below 55°C when operating at maximum channel loading.

Extended Functionality & System Integration

V-net/IP Network Integration
Seamlessly connects to CENTUM VP field control stations via high-speed V-net/IP control network. Supports both simplex and redundant controller configurations with automatic synchronization and bumpless transfer capability.

ATK4-00 S1 Terminal Block
Field wiring terminates on removable screw-type terminal block with clearly labeled connection points. Spring-loaded terminal retention ensures vibration-resistant connections in high-vibration environments. Color-coded wiring diagrams simplify installation and reduce commissioning time.

Advanced Diagnostic Features
Real-time monitoring of output current, loop resistance, and power supply status. Predictive maintenance alerts identify degrading field wiring before failures occur, reducing unplanned downtime by up to 40%.

Customization Options
Factory configuration services available for pre-programmed channel ranges, custom calibration certificates, and extended temperature testing. Contact our engineering team for project-specific requirements including special certifications or accelerated delivery schedules.

Delivery Timeline & Service Guarantee

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL, FedEx, UPS). Tracking information provided within 24 hours of order confirmation.

Custom Configuration: 10-15 business days for factory-programmed modules with custom calibration or special testing requirements.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures. Extended warranty programs available for critical applications requiring 3-5 year coverage.

Technical Support: Lifetime access to Yokogawa-certified application engineers for configuration assistance, troubleshooting guidance, and system optimization recommendations. Remote diagnostic support available 24/7 for emergency situations.

Documentation Package: Each module ships with installation manual, wiring diagrams, calibration certificate, and compliance declarations. CAD drawings and CENTUM VP configuration files available for download from our technical library.

Frequently Asked Questions

How does the AAI543-H50 S1 connect to existing CENTUM VP systems?
The module mounts directly into CENTUM VP I/O racks and communicates via the V-net/IP control network. It's automatically recognized by the system configurator software, requiring only logical assignment of output channels to control loops. No special interface cards or protocol converters needed.

What is the maximum cable distance for 4-20mA output signals?
With standard 18 AWG shielded cable, reliable operation extends to 1,500 meters (4,920 feet) per channel. For longer distances, use 16 AWG cable or consider installing field-mounted signal conditioners. Loop resistance should not exceed 600 ohms including field device and wiring.

Can this module reduce energy consumption in my control system?
Yes—the AAI543-H50 S1 consumes only 5.5W maximum (approximately 0.34W per channel), representing a 30-40% reduction compared to legacy analog output modules. When deployed across large distributed control systems, cumulative energy savings can exceed 2,000 kWh annually per 100 modules.

What are the installation requirements for redundant operation?
Redundant configuration requires dual field control stations, redundant power supplies, and paired AAI543-H50 S1 modules. Field wiring connects to both modules via the ATK4-00 S1 terminal blocks using diode isolation networks (supplied separately). Consult Yokogawa installation manual HIS-D0006 for detailed wiring diagrams.

Does the module support remote monitoring and diagnostics?
Full diagnostic data is accessible through CENTUM VP HIS (Human Interface Station) workstations, including real-time output current values, fault status, and historical trend data. Integration with Yokogawa's Exaquantum plant information management system enables advanced analytics and predictive maintenance workflows.

Is the AAI543-H50 S1 suitable for hazardous area installations?
Yes—when installed in appropriately rated enclosures, the module meets ATEX Zone 2 and IECEx requirements for gas/vapor hazardous locations. For Zone 1/Division 1 applications, consult Yokogawa's intrinsically safe barrier solutions or consider the AAI543-H53 variant with enhanced protection.

Ready to Upgrade Your Control System?

Contact our industrial automation specialists today for technical consultation, system compatibility verification, and volume pricing. Our team provides complimentary application engineering support to ensure optimal module selection and configuration for your specific process requirements.

Request a quote now or speak with a certified Yokogawa expert to discuss your project timeline and delivery options.
