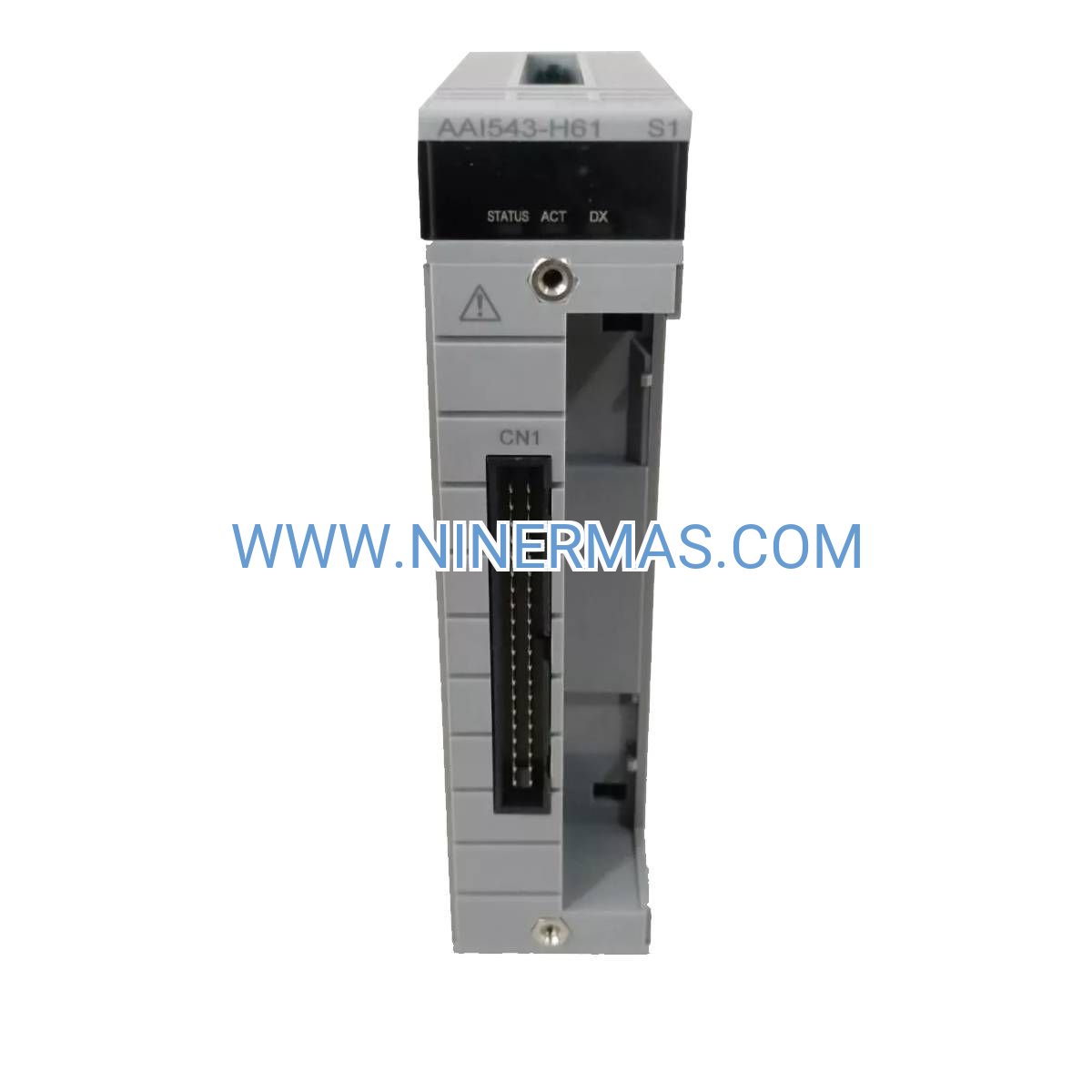

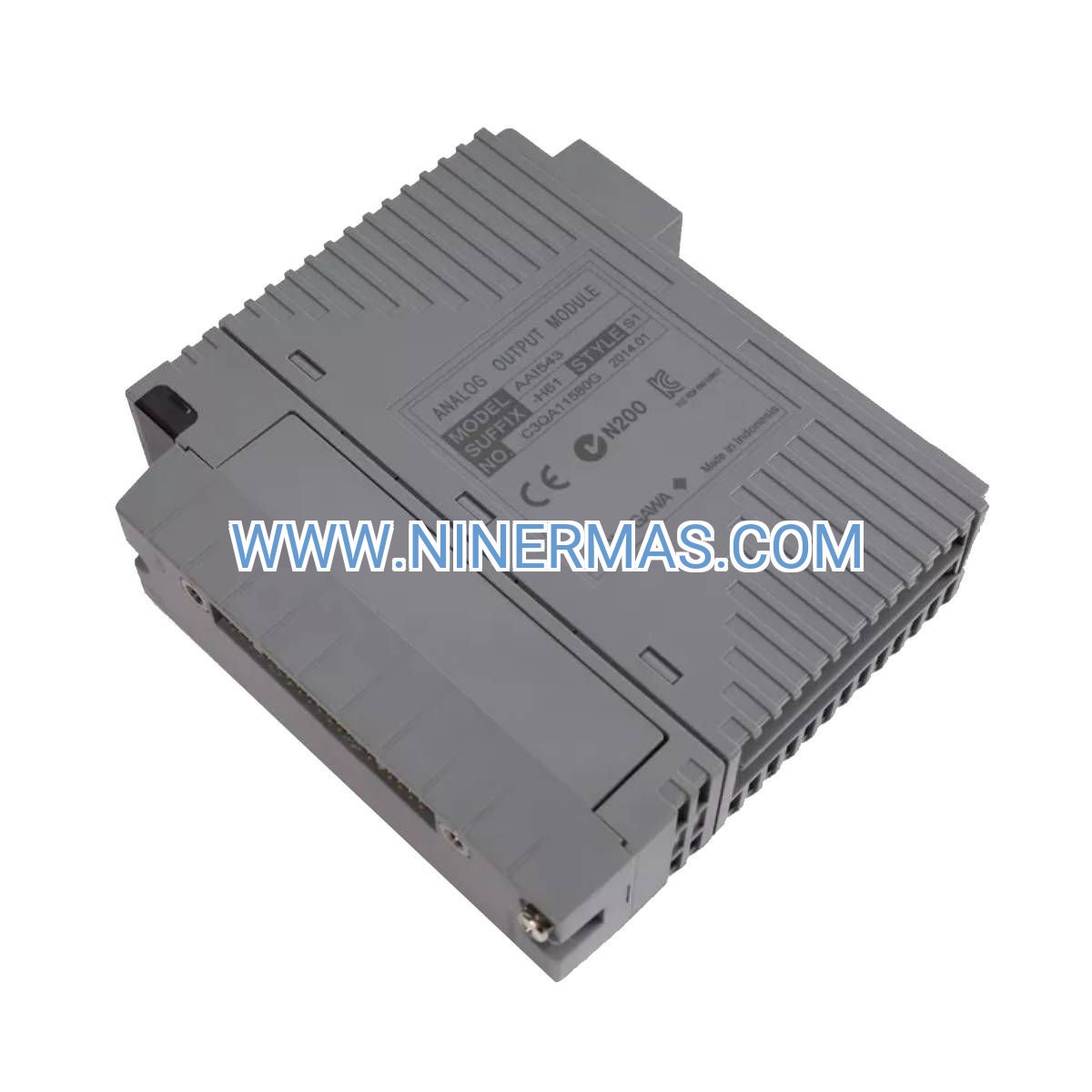

AAI543-H61 Analog Output Module (Industrial-Grade Multi-Channel Controller)

The AAI543-H61 is a precision-engineered analog output module delivering 16 independently isolated 4-20 mA current loop channels for mission-critical industrial control applications. Built for seamless integration with distributed control systems, this module combines robust galvanic isolation technology with hot-swappable architecture to ensure uninterrupted process operations in demanding manufacturing environments.

Designed for process engineers and automation specialists managing complex control loops across chemical processing, power generation, and discrete manufacturing facilities, the AAI543-H61 addresses the persistent challenge of signal integrity degradation in electrically noisy industrial settings. Its channel-to-channel isolation architecture eliminates ground loop interference while maintaining ±0.1% accuracy across all 16 outputs simultaneously.

Key differentiators include field-proven reliability in extreme temperature ranges (-40°C to +70°C), comprehensive diagnostic capabilities with real-time fault detection, and native compatibility with Yokogawa CENTUM VP/CS 3000 platforms—enabling rapid deployment without custom interface development.

Core Features & Technical Advantages

✓ Galvanic Isolation Architecture
Each of the 16 output channels features independent electrical isolation (channel-to-channel and channel-to-bus), preventing cross-contamination of control signals and protecting against voltage transients up to 1500V. This translates to measurably lower maintenance costs and extended mean time between failures (MTBF) in multi-grounded industrial networks.

✓ Hot-Swap Maintenance Capability
Field-replaceable design allows module extraction and installation during live system operation without disrupting adjacent I/O channels or requiring DCS shutdown. Reduces planned maintenance windows by up to 75% compared to legacy fixed-mount systems.

✓ Enhanced Serial Bus (ESB) Interface
High-speed deterministic communication protocol ensures <100ms update rates per channel with built-in error detection and automatic retry mechanisms. Supports daisy-chain topologies up to 100 meters without signal repeaters.

✓ Comprehensive Diagnostics Suite
Real-time monitoring of output current levels, open-circuit detection, short-circuit protection, and module health status accessible via standard engineering workstations. Predictive maintenance alerts reduce unplanned downtime by identifying degradation trends before failure occurs.

✓ Compact High-Density Design
16 channels in a single FIO slot footprint optimizes cabinet space utilization—achieving 40% better density than comparable dual-slot solutions while maintaining full isolation specifications and thermal performance.

✓ Extended Operating Range
Qualified for -40°C to +70°C ambient operation without derating, making it suitable for outdoor enclosures, non-climate-controlled facilities, and extreme industrial environments where standard electronics fail.

Industrial Application Scenarios

→ Chemical Process Control
In continuous chemical manufacturing, the AAI543-H61 drives pneumatic control valves regulating reactant flow rates, temperature control loops, and pressure management systems. The isolated outputs prevent ground potential differences between field instruments and control room equipment from introducing measurement errors that could compromise batch quality or trigger false alarms.

→ Power Generation & Distribution
Utility-scale power plants deploy these modules to control turbine governor systems, boiler feedwater regulation, and emissions control actuators. The module's ability to maintain accuracy during electrical grid disturbances ensures compliance with strict regulatory requirements while the hot-swap feature enables maintenance during peak demand periods without load shedding.

→ Oil & Gas Production Facilities
Offshore platforms and remote wellhead installations leverage the AAI543-H61's extended temperature rating and isolation capabilities to control separator level systems, compressor anti-surge valves, and pipeline pressure regulators in hazardous area classifications where electrical noise from VFDs and high-power motors is prevalent.

→ Water & Wastewater Treatment
Municipal treatment facilities use these modules to modulate chemical dosing pumps, aeration blower speeds, and filtration system backwash cycles. The diagnostic features provide early warning of valve positioner failures or wiring degradation, preventing environmental compliance violations.

→ Pharmaceutical Manufacturing
Clean room environments require the module's contamination-free operation for controlling sterile filtration systems, bioreactor temperature cascades, and aseptic filling line actuators where process validation demands documented signal integrity and traceability.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AAI543-H61 when your application requires more than 8 isolated analog outputs in a single I/O location, when ground potential differences exceed 50V between field devices, or when cabinet space constraints demand maximum channel density. For applications with fewer than 8 outputs or where isolation is not critical, consider lower-density alternatives to optimize cost-per-point.

Extended Functionality & Integration Options

DCS Platform Compatibility: Native support for Yokogawa CENTUM VP, CENTUM CS 3000, and ProSafe-RS systems via standard FIO racks. Configuration and diagnostics accessible through Resource Builder, FieldMate, and PRM (Plant Resource Manager) tools without third-party drivers.

Redundancy Support: Compatible with dual-redundant ESB configurations for high-availability applications requiring <1 second failover times. Automatic bumpless transfer maintains output states during controller switchover events.

Calibration & Maintenance: Factory-calibrated with NIST-traceable certificates. Field recalibration supported via software without module removal. Recommended verification interval: 24 months under normal operating conditions.

Customization Options: Available with conformal coating for corrosive atmosphere protection (specify -C suffix). Extended temperature variants (-55°C to +85°C) available for specialized applications—consult factory for lead times.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-direct orders with custom configurations. Expedited shipping available for critical outage situations.

Warranty Coverage: 24-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for installations in severe service environments.

Technical Support: Pre-sales application engineering assistance, post-installation commissioning support, and lifetime technical consultation via phone/email. On-site startup services available in major industrial regions.

Documentation Package: Includes installation manual, wiring diagrams, configuration templates, dimensional drawings, and compliance certificates (CE, UL, ATEX where applicable). Digital documentation accessible via QR code on module label.

Frequently Asked Questions

Q: How does the AAI543-H61 interface with non-Yokogawa DCS platforms?
A: While optimized for Yokogawa systems, the module can integrate with third-party controllers supporting ESB protocol via gateway devices. Modbus RTU and HART protocol converters are available for legacy system integration—contact our engineering team for compatibility assessment.

Q: What is the maximum cable distance between the module and field devices?
A: Standard 4-20 mA current loops support up to 1000 meters (3280 feet) with 18 AWG shielded twisted-pair cable. Actual distance depends on cable capacitance and field device input impedance—consult wiring guidelines for specific installations.

Q: Can individual channels be configured for different output ranges?
A: The AAI543-H61 is factory-configured for 4-20 mA operation across all 16 channels. For applications requiring mixed signal types (voltage/current) or alternative ranges (0-20 mA, 10-50 mA), consider the AAI841 series with software-selectable output modes.

Q: Does the module support HART communication over the 4-20 mA signal?
A: This model provides analog-only output. For HART-enabled analog output with digital communication overlay, specify the AAI543-H61/H variant which includes HART multiplexer functionality on all 16 channels.

Q: What diagnostic information is available during operation?
A: Real-time diagnostics include per-channel output current monitoring, open-circuit detection, short-circuit protection, module temperature, power supply status, and communication health. Alarms are configurable via DCS engineering tools with severity levels and automatic logging.

Q: Is the module suitable for SIL-rated safety applications?
A: The standard AAI543-H61 is designed for process control applications. For safety instrumented systems requiring SIL 2/3 certification, use the ProSafe-RS platform with certified safety I/O modules that include comprehensive diagnostic coverage and proven-in-use documentation.

Take the Next Step

Ready to enhance your process control system with proven isolation technology? Our application engineers are available to review your specific requirements, provide detailed integration guidance, and recommend the optimal configuration for your facility. Contact us today for a technical consultation, request a formal quotation, or inquire about evaluation units for proof-of-concept testing.
