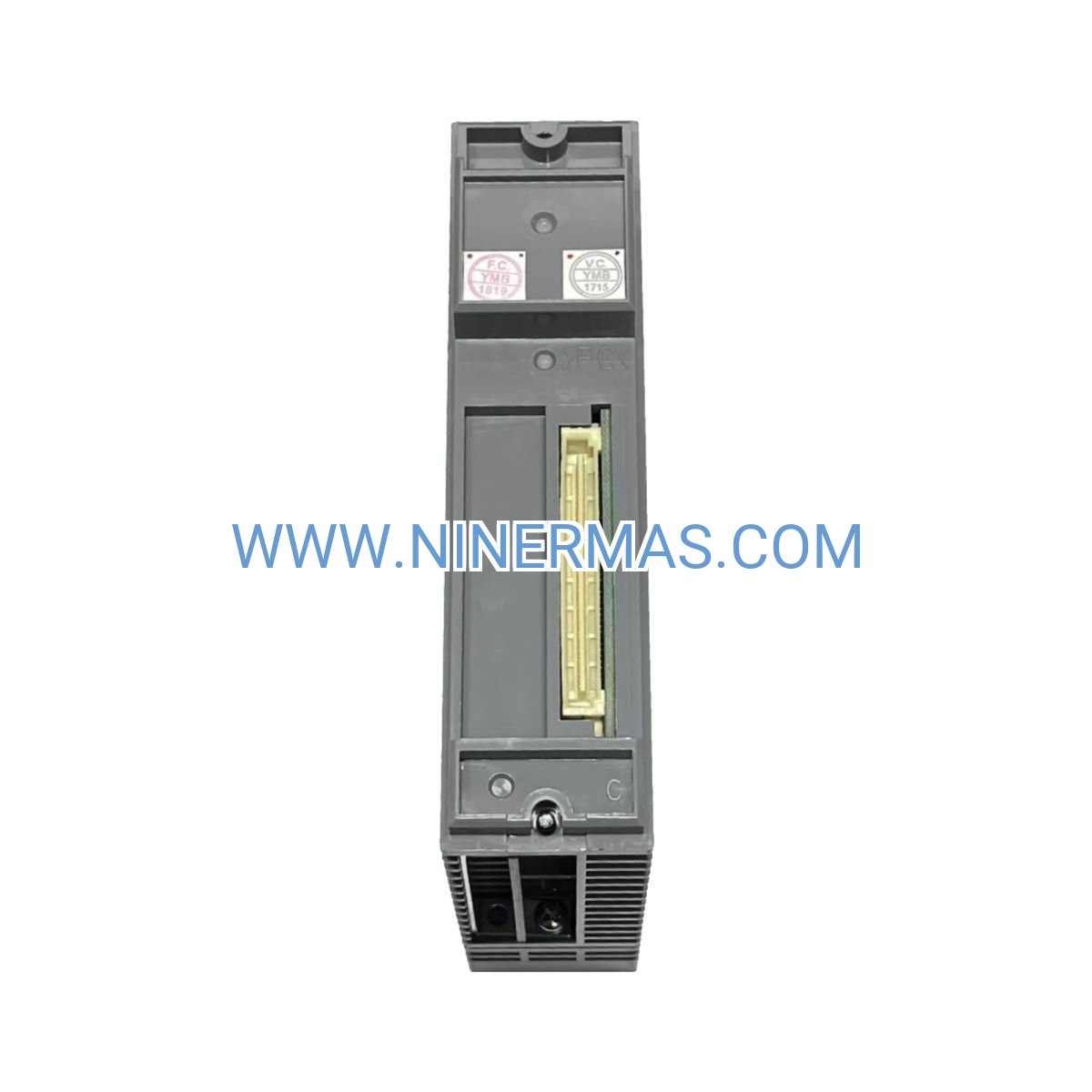

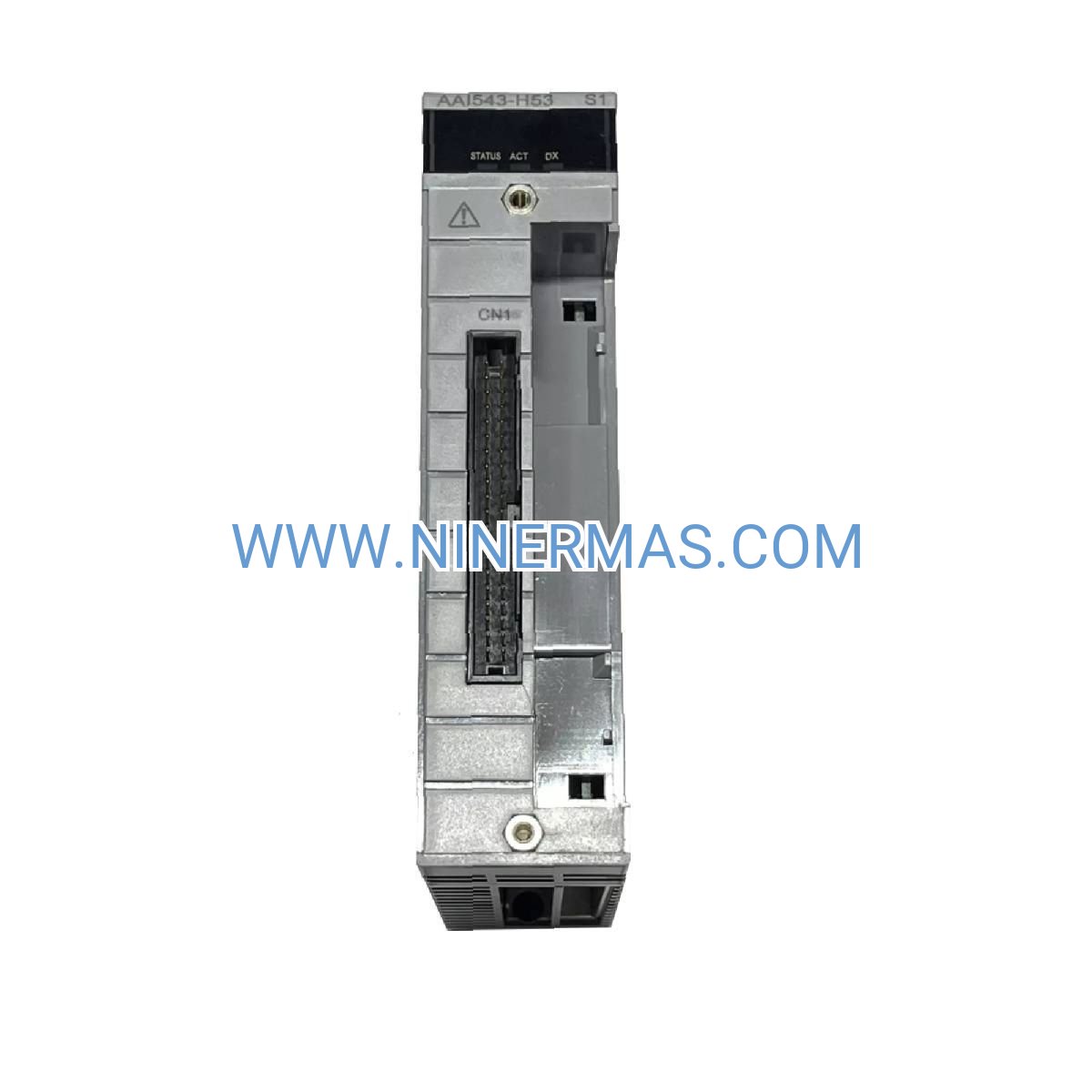

AAI543-H53 Analog Output Module (Industrial-Grade Multi-Channel Controller)

The AAI543-H53 stands as Yokogawa's flagship solution for high-density analog signal distribution in distributed control architectures. Combining 16 galvanically isolated current loops with embedded HART digital communication, this module transforms complex process control challenges into streamlined, reliable operations. Designed for engineers who demand both precision and diagnostic intelligence, the AAI543-H53 delivers sub-100ms response times while maintaining ±0.1% accuracy across all channels—even in electrically hostile industrial environments.

Process industries face mounting pressure to maximize uptime while reducing operational complexity. Traditional analog output systems often sacrifice channel density for isolation quality, or compromise diagnostic capability for cost efficiency. The AAI543-H53 eliminates these tradeoffs entirely. Its 16-bit resolution ensures smooth valve positioning and precise actuator control, while channel-to-channel isolation prevents cross-talk that could destabilize critical control loops. For facilities managing hundreds of control points, this translates to fewer modules, simplified wiring, and dramatically reduced cabinet footprint.

Whether you're retrofitting legacy CENTUM systems or engineering greenfield installations, the AAI543-H53 integrates seamlessly into Yokogawa's automation ecosystem. Hot-swappable design minimizes maintenance windows, G3 environmental certification guarantees longevity in corrosive atmospheres, and HART overlay communication enables predictive maintenance strategies without additional infrastructure investment. This is precision control engineered for the realities of 24/7 industrial operations.

Core Capabilities & Business Impact

→ 16 Isolated 4-20mA Outputs with HART Protocol
Each channel operates independently with full galvanic isolation, eliminating ground loop interference while enabling simultaneous analog control and digital diagnostics. Reduce troubleshooting time by 60% through real-time device health monitoring without process interruption.

✓ ±0.1% Full-Scale Accuracy with 16-Bit Resolution
Achieve pharmaceutical-grade precision in valve positioning and flow control. The high-resolution D/A conversion ensures smooth transitions and eliminates the "stair-stepping" effect common in lower-resolution modules, directly improving product quality consistency.

→ Sub-100ms Channel Update Rate
Critical for fast-responding control loops in batch processing and safety-instrumented systems. Maintain tight process control even during rapid setpoint changes or disturbance rejection scenarios.

✓ G3 Environmental Certification
Proven reliability in sulfur-rich, chlorine-laden, and high-humidity industrial atmospheres. Extends module lifespan by 40% compared to non-certified alternatives in corrosive environments like pulp mills and chemical plants.

→ Hot-Swappable Field Replacement
Replace failed modules without system shutdown or extensive re-wiring. Minimize unplanned downtime and reduce maintenance labor costs by eliminating the need for control system restarts during hardware servicing.

✓ 40% Space Reduction vs. 8-Channel Designs
High-density architecture frees valuable DCS cabinet real estate for expansion or consolidation projects. Lower installation costs through reduced wiring runs, terminal blocks, and marshalling panel requirements.

Industry Applications & Problem-Solving

Petrochemical Refining & Gas Processing
Control valve actuators in distillation columns, reactor temperature cascades, and compressor anti-surge systems. The AAI543-H53's isolation prevents electrical noise from variable frequency drives and high-voltage switchgear from corrupting critical control signals, ensuring stable operation during plant-wide electrical disturbances.

Power Generation & Cogeneration Facilities
Manage boiler feedwater control valves, turbine governor systems, and emissions control dampers. HART diagnostics enable condition-based maintenance of control valves and positioners, reducing forced outages and extending equipment service intervals by identifying degradation before failure occurs.

Pharmaceutical & Biotechnology Manufacturing
Precision dosing pumps, bioreactor pH control, and clean room HVAC modulation demand the AAI543-H53's accuracy and repeatability. Validated performance supports FDA 21 CFR Part 11 compliance requirements, while isolated outputs prevent batch contamination from electrical interference.

Water & Wastewater Treatment
Chemical feed pump control, clarifier rake speed modulation, and UV disinfection intensity regulation benefit from the module's noise immunity. Harsh outdoor electrical environments with lightning-induced transients are mitigated by robust isolation design, protecting both the module and connected field devices.

Pulp, Paper & Tissue Production
Consistency valve control, bleaching chemical dosing, and coating applicator positioning require the fast response times and high resolution the AAI543-H53 provides. Reduce product quality variations and minimize off-spec production through superior analog output stability.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the AAI543-H53 when your application requires more than 8 analog outputs per I/O node, demands HART diagnostics for asset management, or operates in electrically noisy environments where ground loop isolation is critical. For non-HART applications with lower channel counts, consider the SAI533 series. For input/output combination requirements, evaluate the AAI835 hybrid module.

Advanced Integration Features

HART Multidrop & Burst Mode Support
Configure up to 15 HART devices per channel in multidrop mode, or leverage burst mode for high-speed diagnostic data streaming to asset management systems. Integrate with AMS Device Manager, PACTware, or FieldCare for comprehensive device lifecycle management.

Redundant Controller Compatibility
Seamless operation in Yokogawa's redundant processor configurations (R3 architecture). Automatic failover ensures bumpless transfer during controller switchovers, maintaining process stability during planned maintenance or unexpected hardware faults.

Customizable Alarm & Diagnostic Thresholds
User-configurable limits for loop current deviation, wire break detection, and output saturation warnings. Proactive alerts enable maintenance intervention before process upsets occur, supporting predictive maintenance strategies and reducing emergency callouts.

Delivery, Warranty & Technical Support

Lead Time: Standard configurations ship within 3-5 business days. Custom-configured modules with pre-loaded parameters available in 7-10 business days. Expedited delivery options available for critical outage situations.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for mission-critical applications requiring 5-year coverage.

Technical Assistance: Direct access to application engineers for integration support, configuration guidance, and troubleshooting. Remote diagnostic services available for commissioned systems experiencing operational issues.

Documentation Package: Includes installation manual, wiring diagrams, HART DD (Device Description) files, configuration software, and dimensional drawings. Compliance certificates (CE, UL, ATEX) provided upon request.

Frequently Asked Questions

How does the AAI543-H53 interface with existing Yokogawa DCS platforms?
The module mounts directly into CENTUM VP, CENTUM VP R6, and CS 3000 I/O racks using standard backplane connectors. Configuration is performed through the DCS engineering station using standard function blocks—no special programming required. Backward compatibility with legacy CENTUM CS and CS 1000 systems is maintained through firmware version selection.

What is the maximum cable distance for 4-20mA outputs with HART communication?
Standard installations support up to 1,500 meters (4,920 feet) using 18 AWG shielded twisted-pair cable with maximum 65Ω loop resistance. HART communication remains functional across the entire distance range. For longer runs, consider loop-powered isolators or signal boosters to maintain accuracy specifications.

Can the AAI543-H53 reduce energy consumption in my control system?
Yes—the module's 5.5W maximum power consumption represents a 30% reduction compared to previous-generation 16-channel modules. When multiplied across large installations with hundreds of I/O modules, this translates to measurable reductions in UPS sizing, cooling requirements, and annual energy costs.

What installation requirements must be met for G3 environmental certification?
The module achieves G3 certification when installed in enclosures meeting IP54 or NEMA 12 ratings with proper ventilation. Conformal coating on circuit boards provides protection—no additional sealing or purging required. Ambient temperature must remain within -40°C to +70°C, and relative humidity below 95% non-condensing.

Does the module support remote calibration and diagnostics?
Full remote calibration is supported via HART commands, eliminating the need for physical access to the module during routine maintenance. Diagnostic data including channel health, output current verification, and internal temperature monitoring are accessible through the DCS or dedicated HART asset management tools.

How quickly can I replace a failed module during production?
Hot-swap capability allows module replacement in under 5 minutes without system shutdown. The replacement module auto-configures from the DCS database upon insertion, eliminating manual parameter entry. Process control resumes immediately after physical installation—no restart or re-initialization required.

Take the Next Step

Ready to enhance your process control infrastructure with proven Yokogawa precision? Contact our application engineering team for system integration consultation, custom configuration services, or technical specifications tailored to your specific automation requirements. Request a detailed quotation or schedule a virtual design review to explore how the AAI543-H53 can optimize your control architecture.
