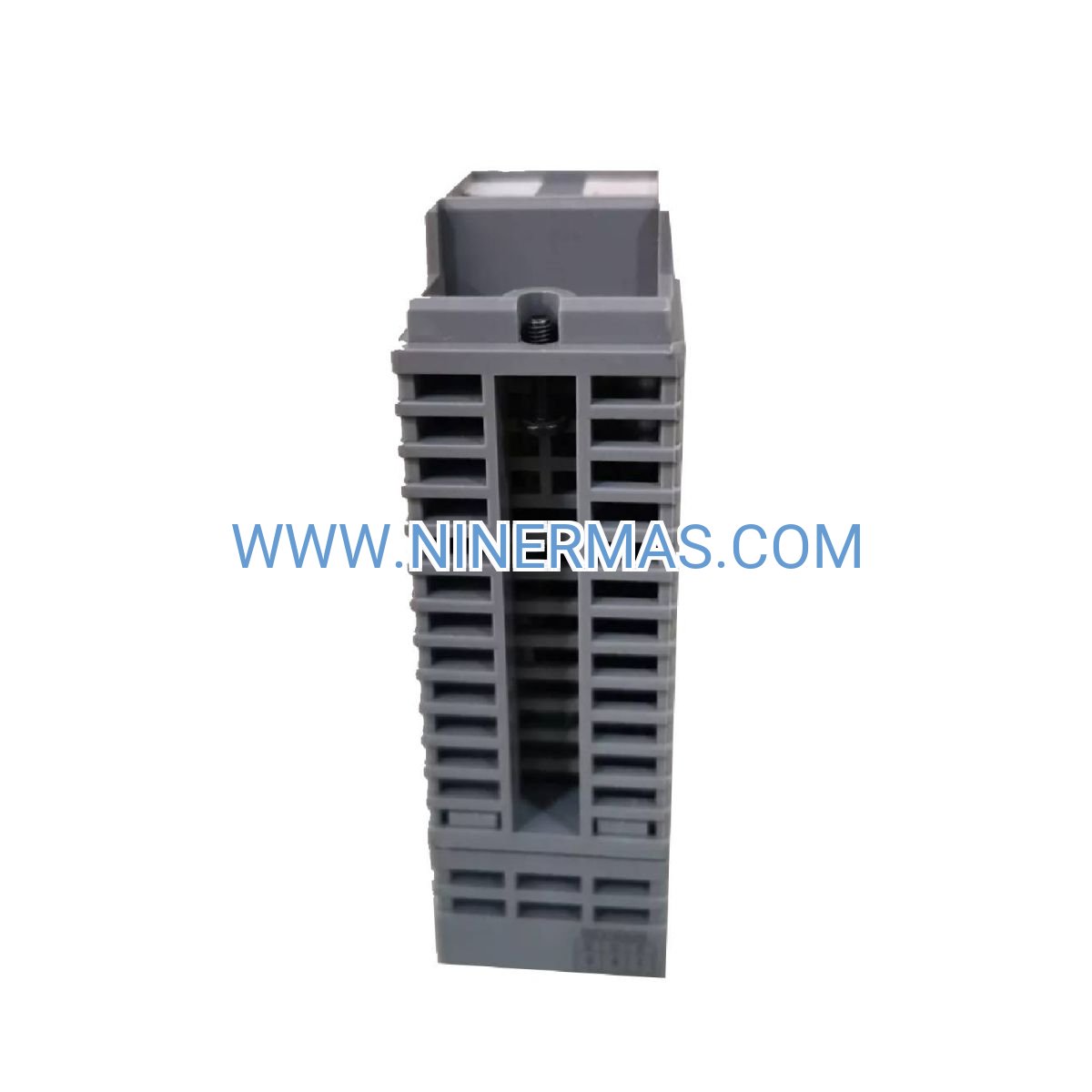

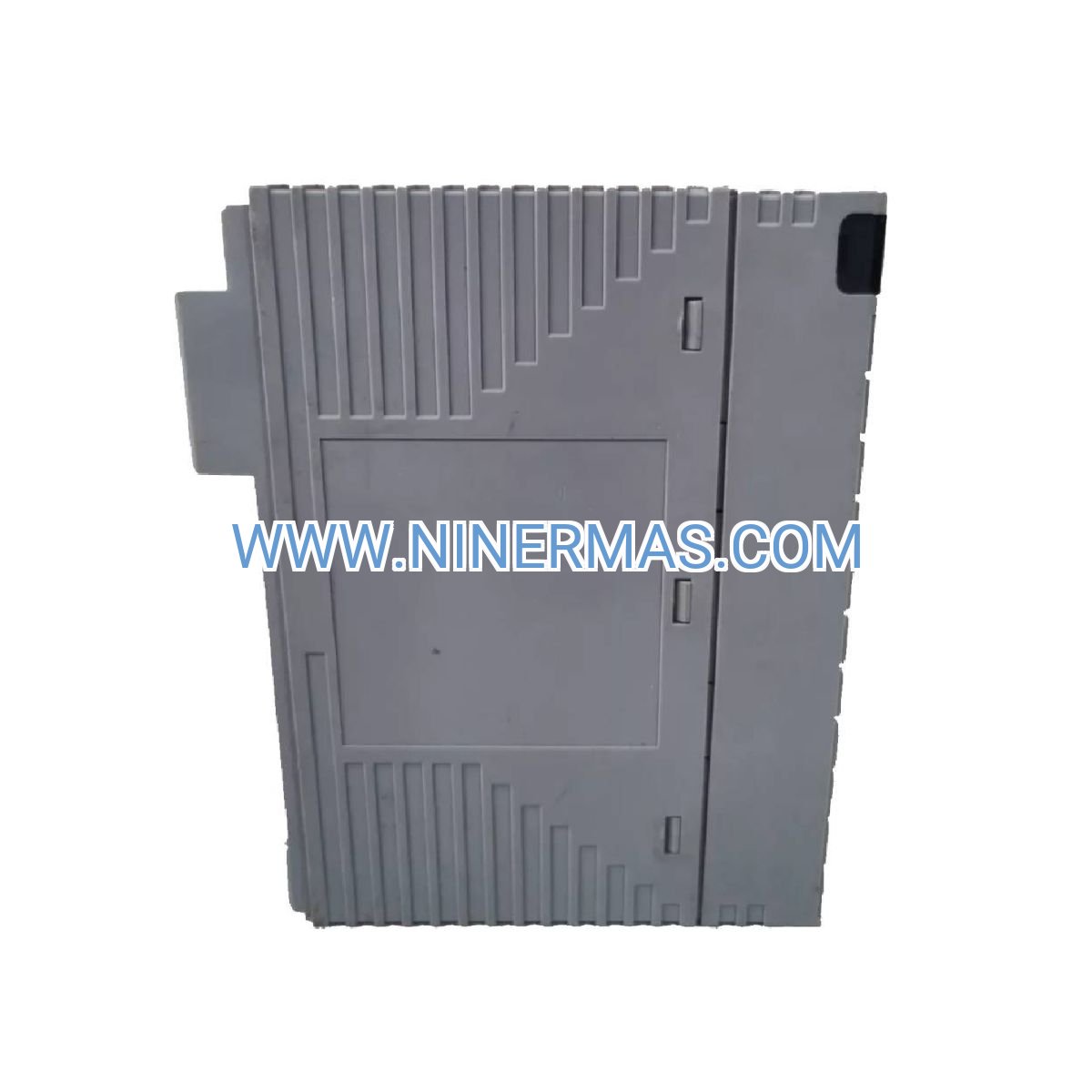

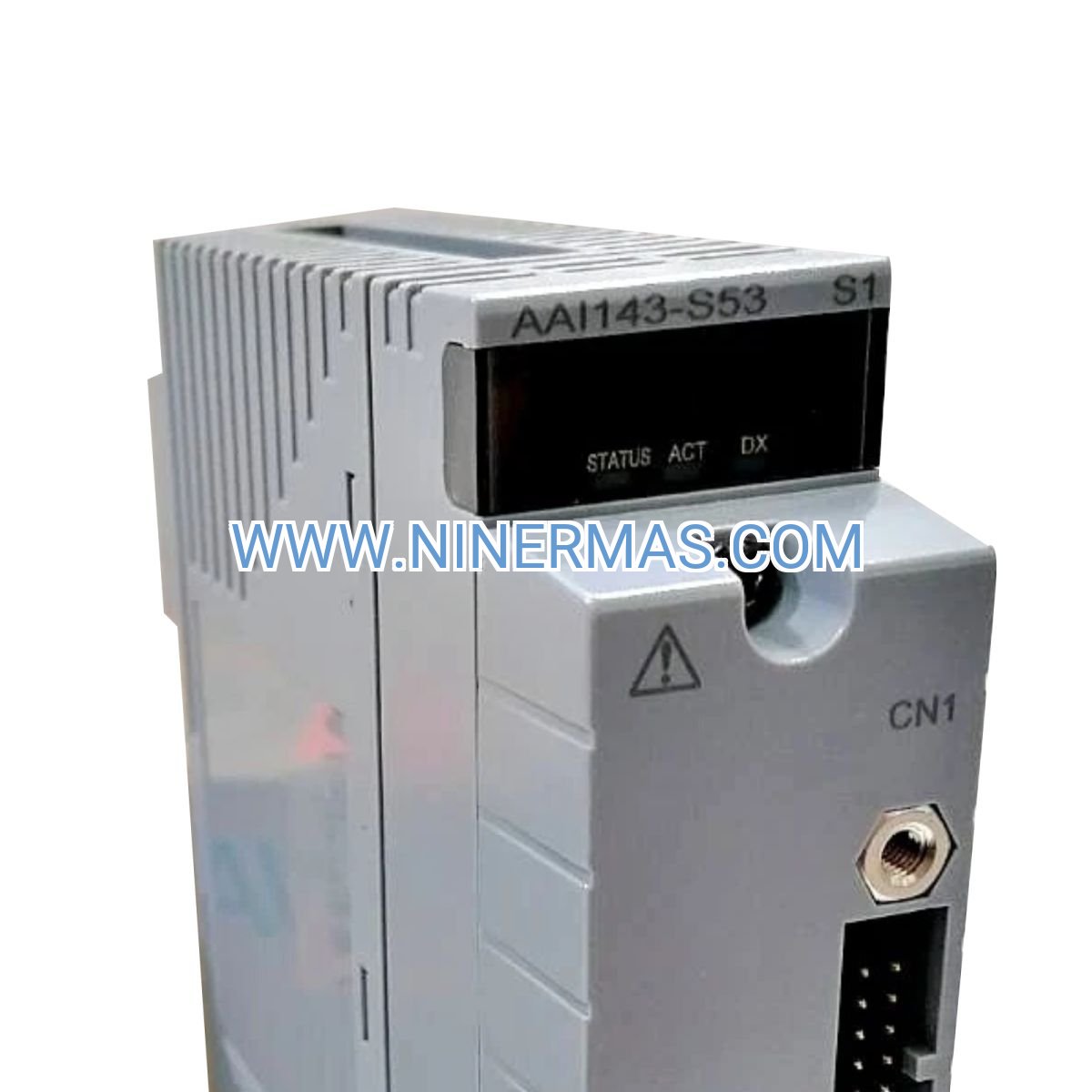

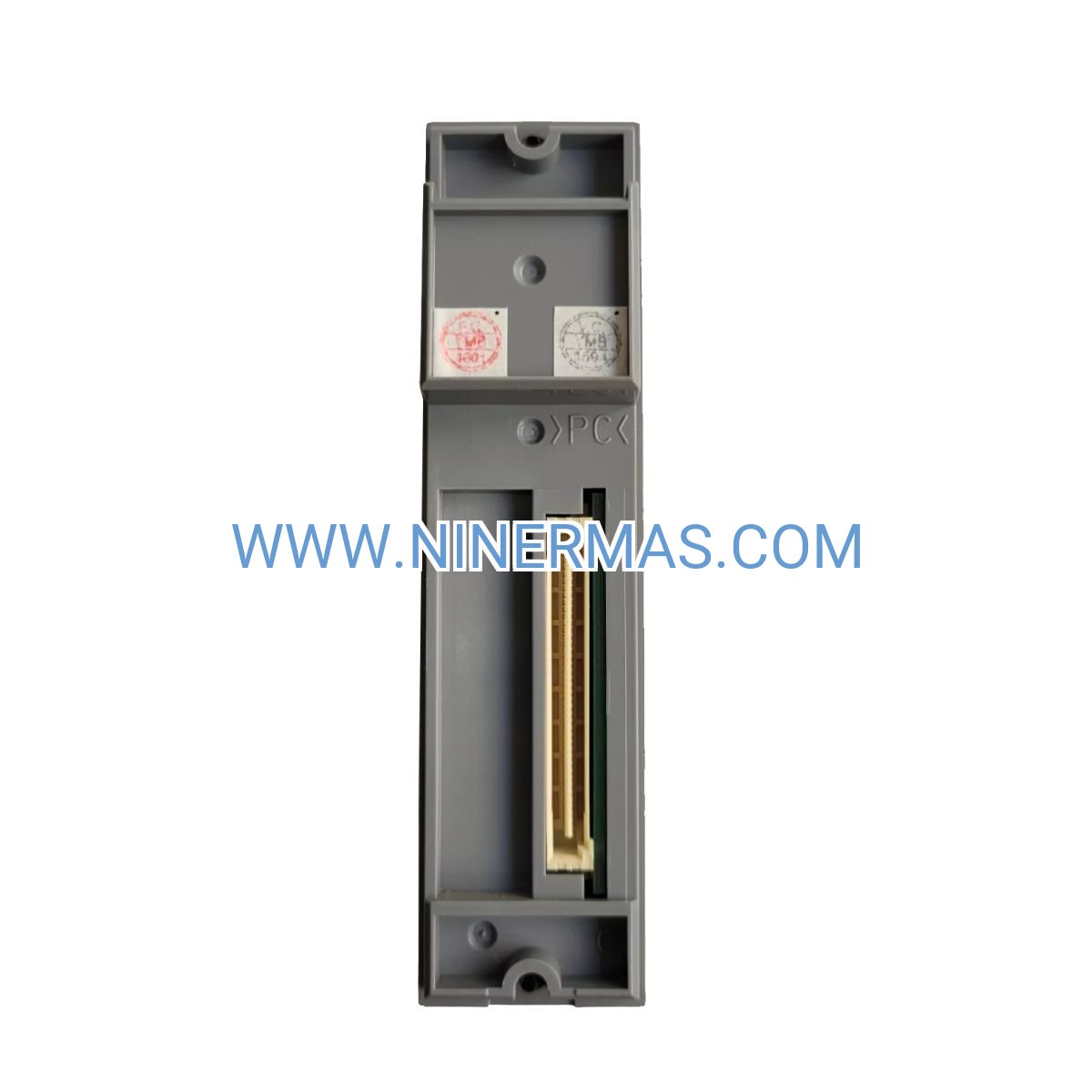

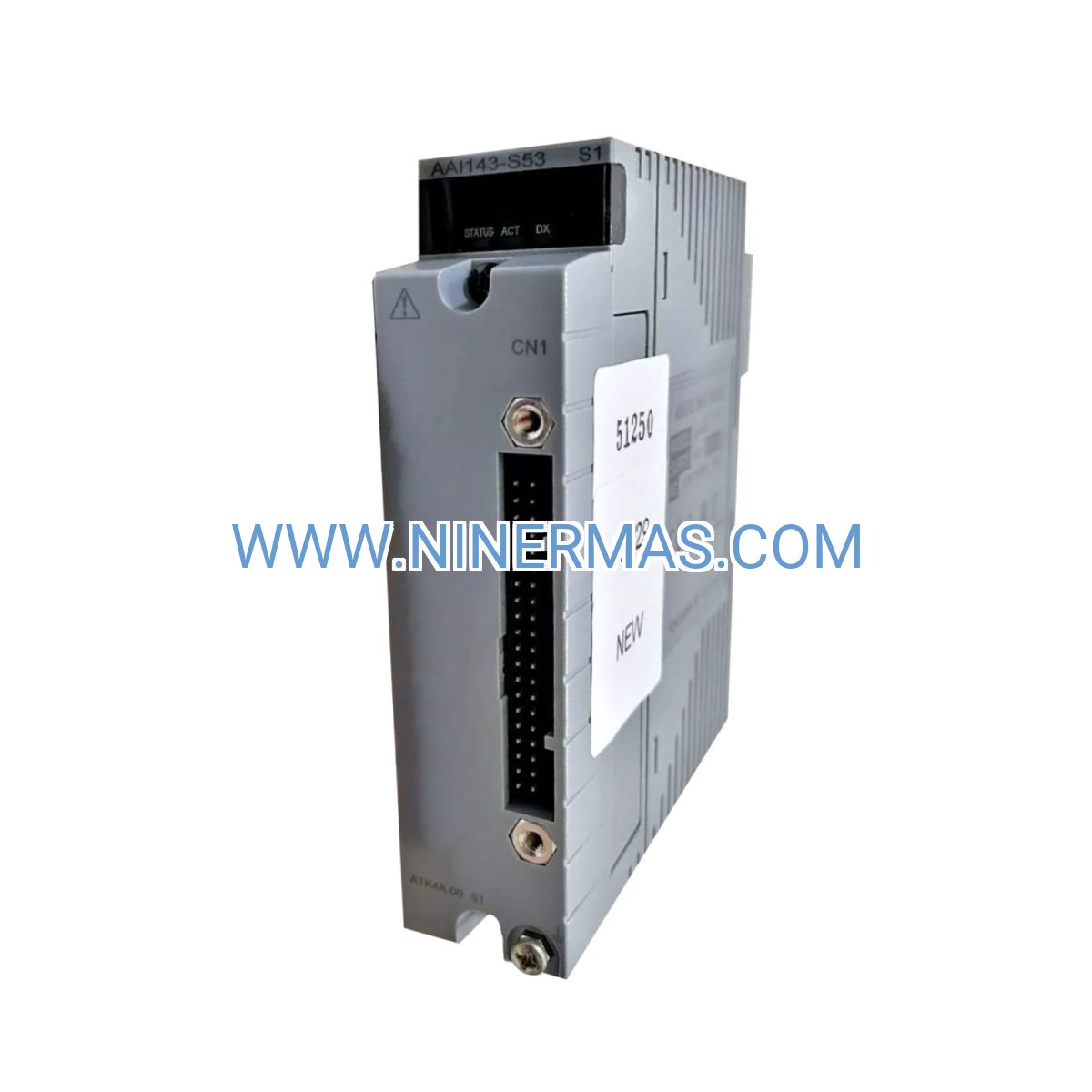

AAI143-S53 S1 (Industrial-Grade 16-Channel Isolated Analog Input Module)

The AAI143-S53 S1 is a precision-engineered analog input module designed for demanding industrial automation environments where signal integrity and diagnostic capability cannot be compromised. Built for seamless integration with Yokogawa CENTUM VP distributed control systems, this module delivers 16 independently isolated 4-20mA input channels with full HART protocol support, enabling simultaneous process measurement and intelligent device communication. Whether you're managing complex petrochemical processes, pharmaceutical batch operations, or power generation systems, the AAI143-S53 S1 provides the reliability and performance required for mission-critical applications.

Process engineers and automation specialists face constant challenges: ground loop interference, signal degradation, limited I/O density, and the need for predictive maintenance data. The AAI143-S53 S1 addresses these pain points through advanced galvanic isolation (1500V channel-to-bus, 500V channel-to-channel), high-resolution 16-bit sigma-delta conversion, and transparent HART multiplexing that extracts diagnostic intelligence without interrupting control loops. This module is purpose-built for industries where uptime, accuracy, and regulatory compliance are non-negotiable.

With proven field performance across 25,000+ global installations and MTBF exceeding 520,000 hours, the AAI143-S53 S1 represents Yokogawa's commitment to industrial excellence. The S1 hardware revision incorporates enhanced EMI filtering, upgraded isolation barriers meeting IEC 61010-1 CAT II standards, and adaptive noise rejection algorithms that maintain ±0.1% accuracy even in electrically hostile environments. For operations requiring maximum I/O density, diagnostic transparency, and long-term reliability, this module sets the industry benchmark.

Core Features & Benefits

→ 16 Independently Isolated Input Channels
Eliminate ground loop interference and cross-channel noise with 1500V AC channel-to-bus and 500V AC channel-to-channel isolation. Each input operates as an independent measurement point, preventing fault propagation and ensuring that a single channel failure never compromises adjacent signals—critical for safety instrumented systems and regulatory compliance.

✓ Full HART Protocol Transparency
Access transmitter diagnostics, secondary process variables, and remote calibration data without additional wiring or communication infrastructure. The integrated HART multiplexer enables predictive maintenance strategies that reduce unplanned downtime by 30-40% through early detection of sensor drift, wiring faults, and environmental stress conditions.

✓ Precision 16-Bit A/D Conversion
Achieve ±0.1% of span accuracy at 25°C with temperature drift limited to ±0.01%/°C. The sigma-delta conversion architecture delivers superior noise rejection and linearity across the full 4-20mA range, ensuring measurement integrity for critical quality parameters, emissions monitoring, and batch recipe control.

✓ High-Density I/O Architecture
Maximize cabinet space efficiency with 16 channels per module—double the density of legacy 8-channel designs. Compatible with both AFV standard nests and AMN high-speed nests, the module supports flexible system scaling from small skid-mounted units to enterprise-wide DCS installations with thousands of I/O points.

✓ Hot-Swap Capability with State Restoration
Perform module replacement during live operation without process interruption or manual reconfiguration. Automatic state restoration retrieves channel assignments, alarm thresholds, and HART polling schedules from the CENTUM VP controller, reducing maintenance windows from hours to minutes.

✓ Enhanced S1 Revision Features
Benefit from improved EMI filtering, extended temperature operation (-20°C to +60°C), and NAMUR NE43 sensor fault detection. The S1 firmware includes adaptive filtering that automatically adjusts response time versus noise rejection based on detected interference patterns, maintaining optimal performance across varying electrical environments.

Application Scenarios

Refinery & Petrochemical Processing
Deploy the AAI143-S53 S1 for dense transmitter arrays monitoring temperature, pressure, and flow across distillation columns, reactor vessels, and pipeline networks. The module's robust isolation prevents ground loop issues in facilities with multiple power sources and long cable runs, while HART diagnostics enable condition-based maintenance of critical field instruments. Typical installations include crude distillation units (40-60 temperature points), catalytic crackers (pressure and flow monitoring), and tank farm level measurement systems.

Pharmaceutical Manufacturing & Bioprocessing
Meet FDA 21 CFR Part 11 and EU GMP requirements with traceable, high-accuracy measurements for batch reactor control, clean room environmental monitoring, and critical quality attribute tracking. The module's ±0.1% accuracy supports tight process control windows for API synthesis, fermentation, and sterile filling operations. HART transparency provides electronic batch records with transmitter serial numbers, calibration dates, and diagnostic status—essential for regulatory audits and validation protocols.

Power Generation & Utilities
Ensure reliable operation of boiler feedwater control, turbine vibration monitoring, and emissions measurement systems. The AAI143-S53 S1's extended temperature range and vibration resistance (3G) make it suitable for harsh power plant environments, while its fast scan cycle (configurable down to 50ms) supports dynamic control loops for load following and frequency regulation. Common applications include steam drum level control, combustion air flow measurement, and continuous emissions monitoring systems (CEMS).

Water & Wastewater Treatment
Optimize treatment processes with simultaneous monitoring of pH, dissolved oxygen, turbidity, and flow across multiple process stages. The module's HART capability extracts diagnostic data from intelligent analyzers while maintaining backward compatibility with legacy 4-20mA transmitters, enabling phased modernization without wholesale system replacement. Typical deployments include activated sludge aeration control, chemical dosing systems, and effluent quality monitoring.

Metals & Mining Operations
Withstand extreme industrial environments with proven resistance to vibration, humidity (5-95% RH non-condensing), and transient voltage spikes up to 2500V. The module's isolated architecture is ideal for grinding circuits, flotation cells, and smelting operations where electrical noise and ground potential differences challenge conventional I/O systems. HART diagnostics support remote monitoring of geographically dispersed mining sites.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AAI143-S53 S1 when your application requires (1) high I/O density with individual channel isolation, (2) HART diagnostic capability for predictive maintenance, (3) proven reliability in safety-critical or regulated industries, or (4) integration with existing Yokogawa CENTUM VP infrastructure. For applications not requiring HART protocol, consider the AAI143-S00 S1 standard version. For high-density terminal configurations, evaluate the AAI143-H53 S1 variant.

Extended Functions

IoT & Remote Monitoring Integration: The module's HART data can be extracted via Yokogawa's Exaquantum plant information management system (PIMS) or third-party OPC UA servers, enabling cloud-based analytics, mobile dashboards, and enterprise-wide asset performance management. Integration with predictive maintenance platforms (e.g., Yokogawa Sushi Sensor) allows machine learning algorithms to identify subtle degradation patterns invisible to traditional alarm systems.

Advanced Diagnostic Features: Built-in self-test routines verify A/D converter linearity, isolation barrier integrity, and communication path health during startup and on-demand. NAMUR NE43 fault detection provides early warning of open circuits, short circuits, and out-of-range conditions with distinct alarm codes for rapid troubleshooting. Channel-specific diagnostic counters track cumulative operating hours, alarm events, and communication errors for lifecycle management.

Customization Options: Factory configuration services available for pre-programmed channel ranges, custom alarm thresholds, and application-specific HART polling schedules. Consult with Yokogawa engineering for specialized requirements such as intrinsically safe (IS) barrier integration, redundant power supply configurations, or seismic-qualified mounting for nuclear applications.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules require 2-3 weeks for factory programming and testing. Expedited delivery available for critical outage situations—contact our technical sales team for emergency support options.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 5 years, including advance replacement and on-site spare module stocking for high-availability applications.

Technical Support: Lifetime access to Yokogawa's global support network, including 24/7 hotline for critical issues, remote diagnostic assistance, and firmware update notifications. Regional service centers provide on-site commissioning, calibration verification, and troubleshooting services.

Documentation Package: Each module ships with installation manual, wiring diagrams, CENTUM VP configuration templates, HART device description files (DDFs), and IEC 61508 SIL certification documentation. CAD drawings and 3D STEP models available for download from Yokogawa's engineering portal.

Frequently Asked Questions

Q: Can the AAI143-S53 S1 interface with non-Yokogawa DCS platforms?
A: While designed for CENTUM VP systems, the module can integrate with third-party DCS platforms supporting Yokogawa's V-net protocol via gateway devices. However, full HART transparency and hot-swap functionality may be limited. Consult with our integration specialists for compatibility verification with your specific control system.

Q: What is the maximum cable length between transmitters and the AAI143-S53 S1 module?
A: For 4-20mA signals, maximum cable length depends on wire gauge and loop resistance. With 18 AWG shielded cable, distances up to 1500 meters are achievable while maintaining ±0.1% accuracy. HART communication remains reliable up to 3000 meters with proper cable selection (low capacitance, <200 pF/m). Refer to Yokogawa's wiring guidelines for specific installation scenarios.

Q: How does the module's energy efficiency compare to legacy analog input cards?
A: At 6.5W maximum power consumption for 16 channels, the AAI143-S53 S1 achieves approximately 0.4W per channel—40% lower than previous-generation 8-channel modules. For a typical 500-point I/O system, this translates to 200W reduction in cabinet heat load, potentially eliminating the need for additional cooling equipment and reducing annual energy costs by $150-300 depending on local electricity rates.

Q: What installation requirements are necessary for optimal HART communication performance?
A: HART protocol requires minimum loop resistance of 250Ω (provided by the module's input impedance). Use shielded twisted-pair cable with capacitance below 200 pF/m, maintain cable separation from high-voltage power lines (minimum 300mm), and ensure proper grounding at the DCS cabinet only (avoid multiple ground points). The module's adaptive filtering automatically compensates for moderate cable capacitance variations.

Q: Is the AAI143-S53 S1 suitable for safety instrumented systems (SIS) applications?
A: Yes, the module is certified for use in SIL 2 safety loops per IEC 61508 when configured with appropriate redundancy and diagnostic coverage. The S1 revision's enhanced self-diagnostics achieve >95% diagnostic coverage for dangerous failures. For SIL 3 applications, deploy in redundant configurations with voting logic. Consult Yokogawa's SIL certification documentation for detailed safety manual and proof test procedures.

Q: Can I mix HART-enabled and conventional 4-20mA transmitters on the same module?
A: Absolutely. The AAI143-S53 S1 maintains full backward compatibility with legacy 4-20mA devices. HART polling is configurable per channel, allowing you to enable diagnostics only for intelligent transmitters while conventional devices operate normally. This flexibility supports phased modernization strategies without requiring wholesale field instrument replacement.

Ready to Enhance Your Process Control System?

The AAI143-S53 S1 delivers the precision, reliability, and diagnostic intelligence required for modern industrial automation. Whether you're upgrading an existing CENTUM VP installation or designing a new process control system, our technical specialists are ready to assist with module selection, system architecture, and integration planning.

Contact our team today: Request a detailed quotation, schedule a technical consultation, or arrange for on-site application engineering support. We maintain ready stock for immediate shipment and offer flexible procurement options including consignment inventory programs for large-scale projects.
