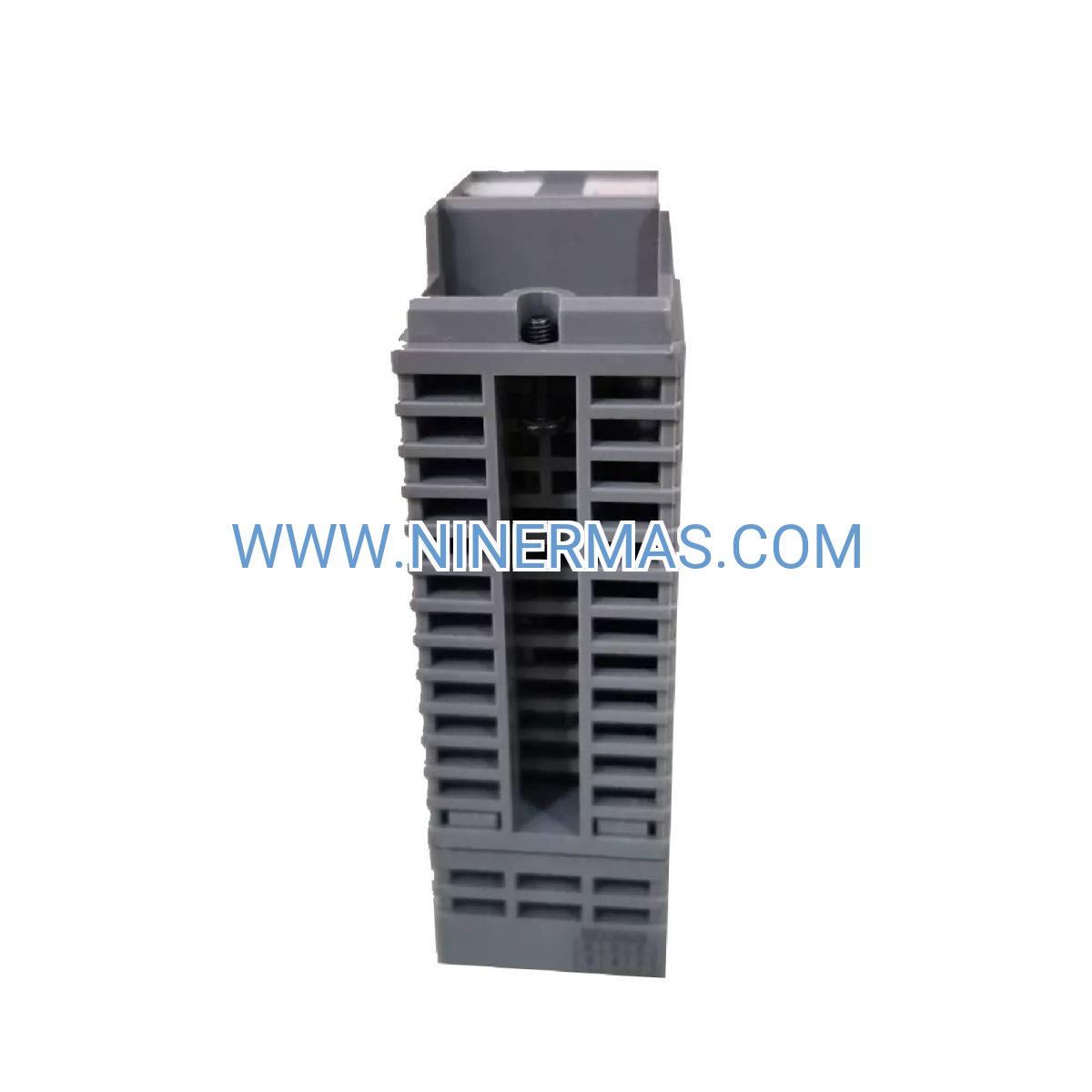

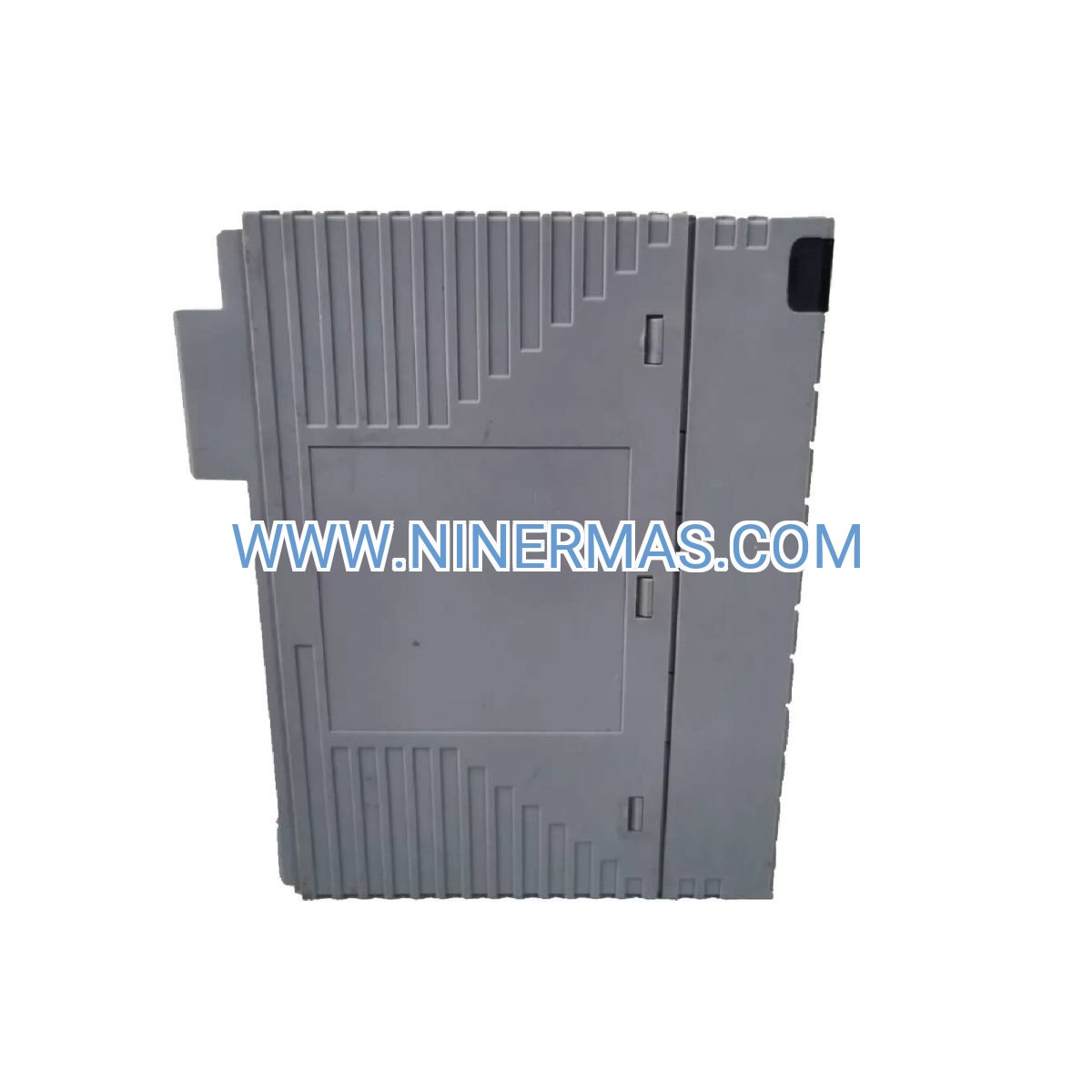

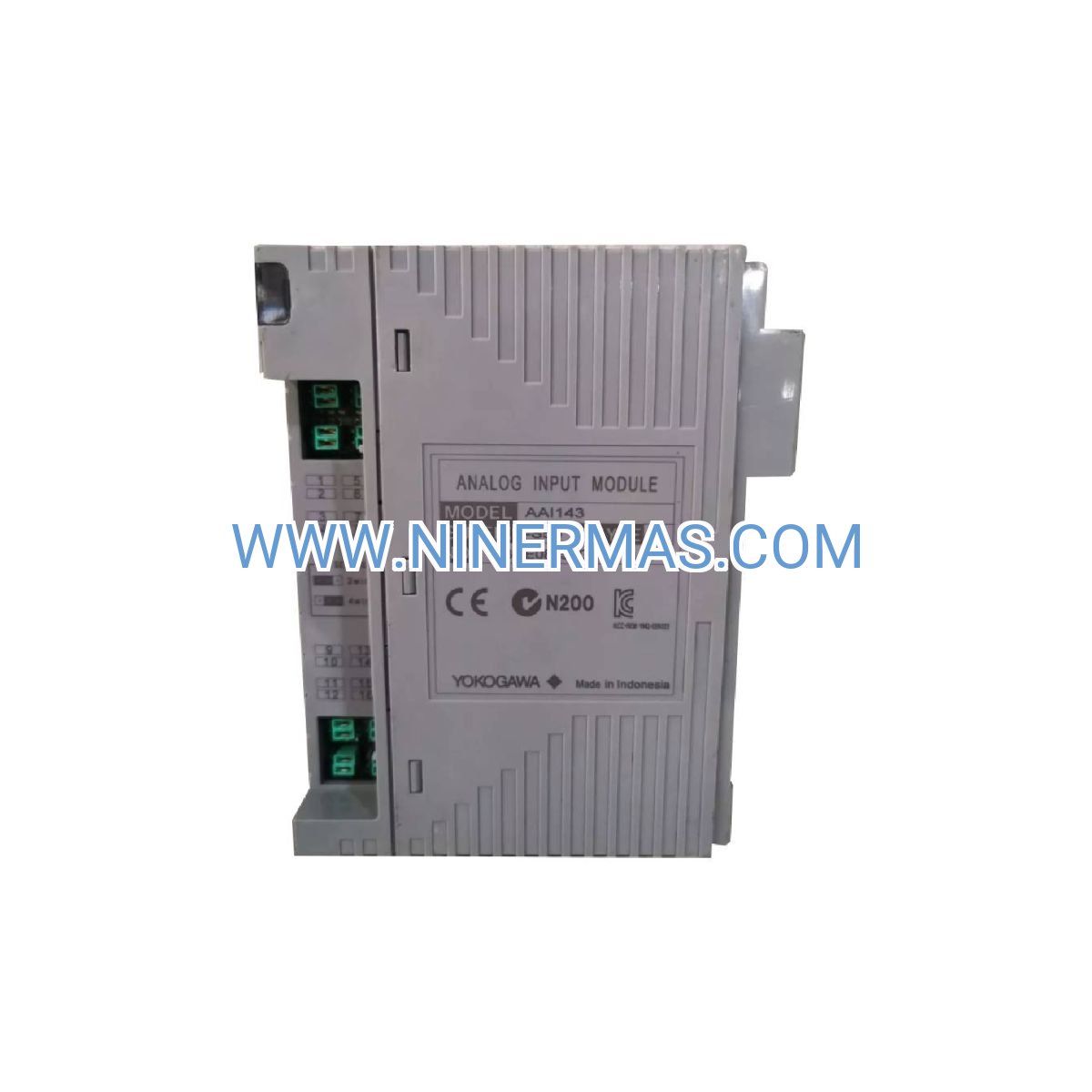

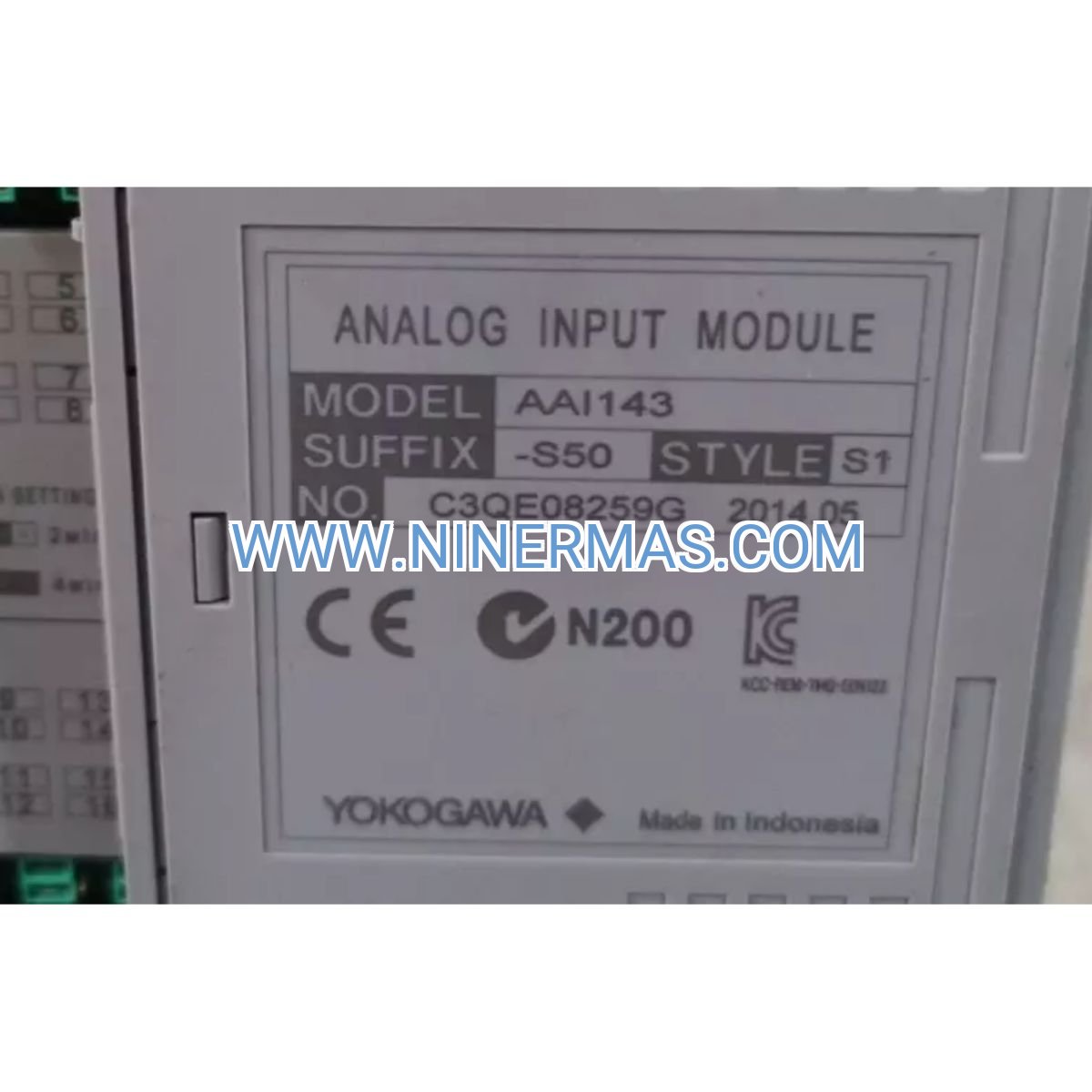

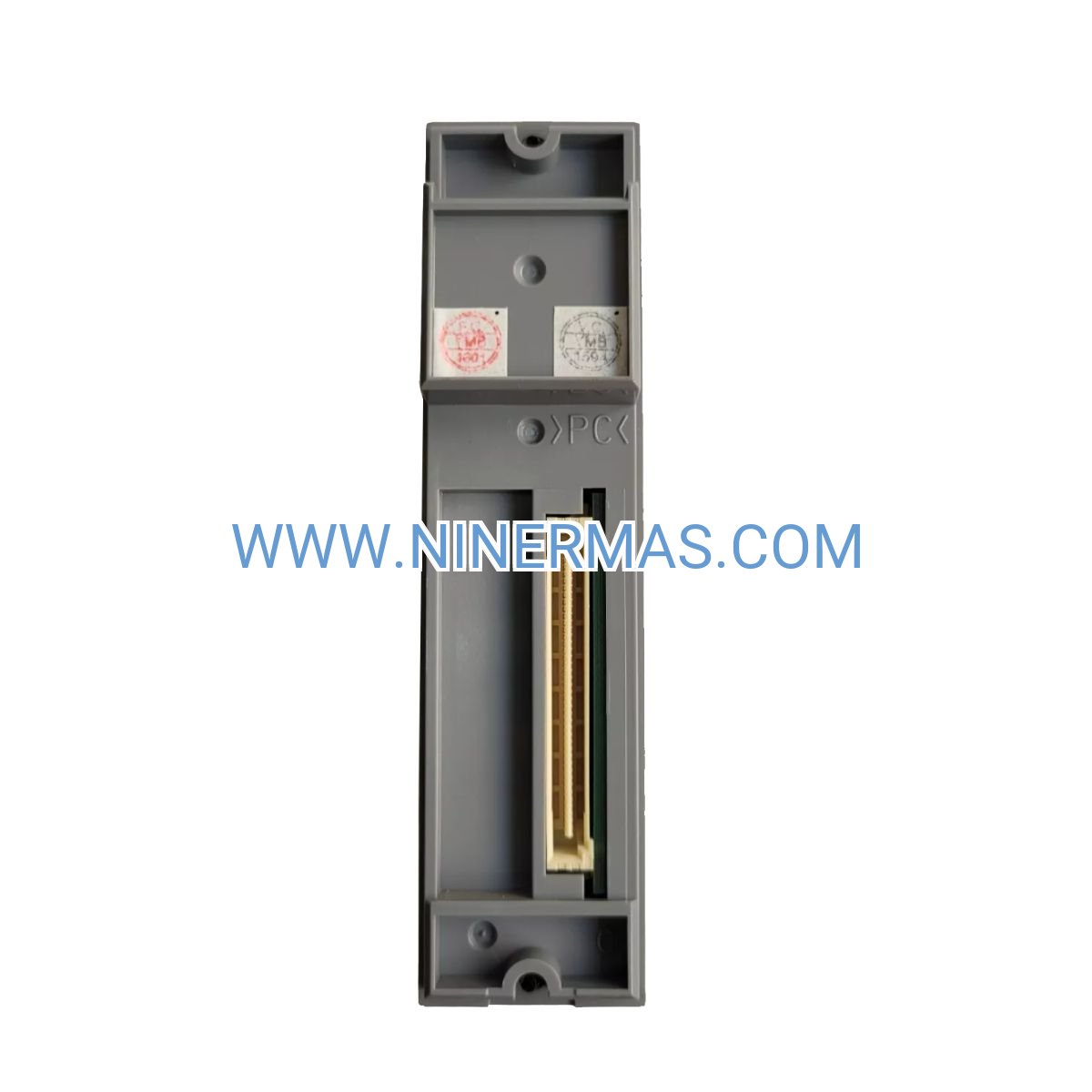

AAI143-S50 Analog Input Module (Industrial-Grade Signal Acquisition)

The AAI143-S50 represents Yokogawa's advanced solution for high-density analog signal processing in mission-critical industrial environments. This 16-channel isolated input module transforms standard 4-20mA current loop signals into precise digital values, enabling real-time monitoring of process variables across refineries, chemical plants, and power generation facilities.

Designed for integration with CENTUM VP and CS3000 distributed control systems, this module addresses the fundamental challenge of maintaining signal integrity in electrically noisy industrial settings. Each channel features galvanic isolation to eliminate ground loop interference, while 16-bit resolution ensures measurement accuracy for temperature, pressure, flow, and level transmitters.

Process engineers and automation specialists rely on the AAI143-S50 for applications demanding continuous uptime and regulatory compliance. Hot-swappable architecture minimizes maintenance downtime, dual-redundant system compatibility ensures failover protection, and field-proven reliability reduces total cost of ownership across the asset lifecycle.

Core Features & Benefits

✓ 16 Isolated Input Channels
Independent channel isolation prevents cross-talk and ground loop errors, protecting measurement accuracy in multi-ground potential installations. Reduces troubleshooting time by 40% compared to non-isolated designs.

✓ 4-20mA Current Loop Compatibility
Universal acceptance of industry-standard transmitter signals eliminates interface complexity. Direct connection to temperature, pressure, flow, and level sensors without external signal conditioning.

✓ 16-Bit A/D Conversion Resolution
High-resolution digitization captures subtle process variations critical for quality control and optimization. Supports measurement spans from 0.1% to full-scale with repeatable accuracy.

✓ Hot-Swappable Module Design
Replace or upgrade modules during live operation without system shutdown. Reduces planned maintenance windows and unplanned downtime costs by up to 60%.

✓ Dual-Redundant System Support
Seamless integration with redundant controller architectures ensures continuous operation during controller failover events. Meets SIL 2 safety integrity requirements for critical loops.

✓ CENTUM VP/CS3000 Native Integration
Plug-and-play compatibility with Yokogawa's flagship DCS platforms accelerates commissioning and simplifies spare parts management across multi-site operations.

Typical Application Scenarios

→ Oil & Gas Refining Operations
Monitor distillation column temperatures, reactor pressures, and product flow rates across atmospheric and vacuum units. Channel isolation prevents electrical interference from variable frequency drives and high-voltage switchgear, ensuring measurement reliability in Class I Division 2 hazardous areas.

→ Chemical Process Manufacturing
Acquire signals from pH sensors, conductivity meters, and analytical transmitters in batch reactors and continuous polymerization lines. Isolated inputs protect sensitive measurement circuits from ground potential differences between process vessels and control rooms.

→ Power Generation Facilities
Interface with boiler drum level transmitters, turbine vibration monitors, and emissions analyzers in coal-fired, combined-cycle, and nuclear power plants. Hot-swap capability enables preventive maintenance without unit derating or shutdown.

→ Pharmaceutical Production
Capture critical process parameters for FDA-regulated manufacturing including fermentation temperatures, sterile filtration pressures, and clean-in-place flow verification. 16-bit resolution supports tight process control windows required for batch record compliance.

→ Water & Wastewater Treatment
Process influent flow rates, clarifier levels, and dissolved oxygen concentrations across municipal and industrial treatment plants. Rugged construction withstands high-humidity environments and temperature cycling.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AAI143-S50 when your application requires high channel density (16 inputs per module slot), electrical isolation for noise immunity, or integration with existing Yokogawa CENTUM systems. For applications with 1-5V or thermocouple inputs, consider the AAI141 or AAT141 module variants. Verify compatibility with your specific CENTUM VP or CS3000 system revision before ordering.

Extended Functions

Advanced Diagnostics: Built-in self-test routines continuously monitor A/D converter health, power supply stability, and communication bus integrity. Predictive maintenance alerts notify operators of degrading performance before failures occur.

Flexible Scaling & Engineering Units: Configure input scaling, square root extraction for flow measurement, and custom engineering units through CENTUM engineering tools. Supports linear, square root, and user-defined characterization curves.

Alarm & Event Management: Programmable high/high-high and low/low-low alarm thresholds with configurable deadbands and time delays. Integrates with CENTUM alarm management for prioritized operator notification.

Cybersecurity Features: Firmware authentication and encrypted configuration downloads protect against unauthorized modifications. Complies with IEC 62443 industrial cybersecurity standards.

Delivery & Service

Lead Time: Standard delivery 2-4 weeks for stock items; 6-8 weeks for factory-configured modules with custom firmware or extended temperature ratings.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications.

Technical Support: Access to Yokogawa-certified application engineers for system integration assistance, configuration troubleshooting, and performance optimization. 24/7 emergency support hotline for production-critical issues.

Documentation: Complete package includes installation manual, wiring diagrams, CENTUM configuration templates, and calibration certificates. CAD drawings and 3D STEP models available for panel design.

Frequently Asked Questions

Q: How does the AAI143-S50 connect to my existing CENTUM VP system?
A: The module mounts to standard Yokogawa I/O bases (AFV10/AFV30 series) and communicates via the VNet/IP field control network. Configuration is performed through the CENTUM VP engineering station using standard function blocks.

Q: What is the maximum cable length between transmitters and the AAI143-S50?
A: 4-20mA current loops support cable runs up to 1000 meters (3280 feet) using twisted-pair shielded cable. Longer distances may require signal repeaters or consideration of FOUNDATION Fieldbus alternatives.

Q: Can I mix different signal types on the same module?
A: No, the AAI143-S50 is dedicated to 4-20mA current inputs. For voltage signals (1-5V), use the AAI141 module. For thermocouple or RTD inputs, specify the AAT141 or AAR181 modules respectively.

Q: Does this module support HART communication for smart transmitters?
A: The standard AAI143-S50 does not include HART multiplexing. For HART-enabled analog input, specify the AAI143-H53 variant which provides simultaneous 4-20mA measurement and HART digital communication.

Q: What power supply voltage does the module require?
A: The AAI143-S50 operates from the standard Yokogawa I/O base power supply (24V DC nominal, 19.2-30V DC range). No external power connections are required beyond the base unit.

Q: Is the module suitable for SIL-rated safety applications?
A: When used with ProSafe-RS safety controllers, the AAI143-S50 supports SIL 2 safety integrity levels per IEC 61508. For SIL 3 applications, consult Yokogawa for certified safety module configurations.

Get Started Today

Enhance your process control system with proven Yokogawa analog input technology. Contact our application specialists to discuss your specific requirements, request detailed technical specifications, or obtain a project quotation. Our team can assist with module selection, system integration planning, and migration strategies for legacy DCS upgrades.
