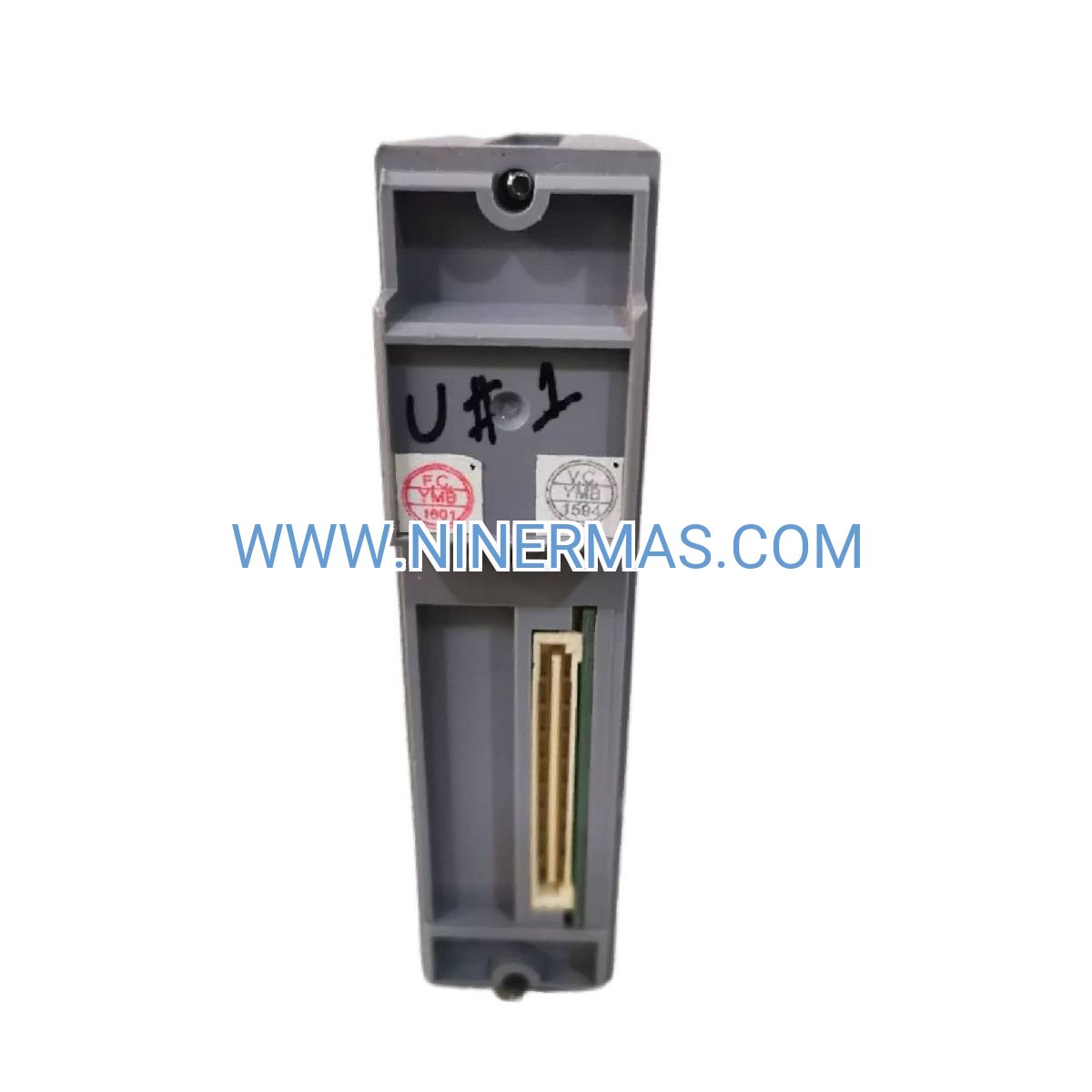

Yokogawa AAI143-H00 S2 – Industrial-Grade Redundant Analog Input Module

The Yokogawa AAI143-H00 S2 represents a mission-critical signal acquisition solution for process industries demanding zero-downtime performance. Engineered with dual-redundant S2 architecture, this 16-channel analog input module transforms standard 4-20 mA field signals into high-fidelity digital data while maintaining continuous HART protocol communication—even during component failures or maintenance cycles.

Designed for seamless integration with Yokogawa CENTUM VP and ProSafe-RS distributed control platforms, the AAI143-H00 S2 addresses the core challenge of reliable data acquisition in safety-critical environments. Process engineers in oil refineries, chemical plants, and power generation facilities rely on this module to maintain operational visibility during planned maintenance or unexpected hardware faults.

What sets this module apart is its combination of channel-level galvanic isolation, 16-bit resolution, and hot-swappable redundancy—delivering measurement accuracy of ±0.1% span while eliminating single points of failure in your control architecture.

Core Capabilities & Business Value

→ Dual-Redundant S2 Architecture
Automatic failover between primary and backup modules ensures uninterrupted signal acquisition during hardware failures, scheduled maintenance, or firmware updates. Eliminates costly process shutdowns and meets SIL-rated safety requirements for critical control loops.

→ 16-Bit Precision with Galvanic Isolation
Transformer-based isolation on each of 16 channels prevents ground loops and electrical noise interference, maintaining ±0.1% accuracy even in high-EMI industrial environments. Reduces calibration frequency and improves regulatory compliance for process validation.

→ Integrated HART Protocol Support
Bi-directional HART communication on all channels enables remote diagnostics, configuration, and access to secondary process variables without interrupting the 4-20 mA control signal. Cuts commissioning time by 40% and enables predictive maintenance strategies.

✓ Hot-Swappable Installation
Removable terminal blocks and live-insertion capability allow module replacement without system shutdown or wiring changes. Minimizes mean time to repair (MTTR) and supports 24/7 operational requirements.

✓ Wide Operating Temperature Range
-40°C to +70°C ambient rating supports installation in harsh environments including outdoor enclosures, hazardous area cabinets, and high-temperature process areas without additional cooling infrastructure.

✓ Compact High-Density Design
Space-efficient form factor accommodates 16 isolated channels in a single module slot, reducing cabinet footprint by up to 60% compared to legacy I/O systems while lowering installation and wiring costs.

Industry Applications & Problem-Solving

Oil & Gas Production Facilities
Monitor wellhead pressures, separator levels, and pipeline flow rates across distributed offshore platforms and remote gathering stations. S2 redundancy ensures continuous data availability for emergency shutdown systems (ESD) and production optimization algorithms, preventing revenue loss from unplanned shutdowns.

Chemical Manufacturing & Batch Processing
Acquire reactor temperature, pressure, and pH signals for FDA-validated pharmaceutical production or hazardous chemical synthesis. HART diagnostics enable real-time sensor health monitoring, reducing batch rejection rates and supporting 21 CFR Part 11 compliance documentation.

Power Generation & Utilities
Integrate turbine vibration sensors, boiler drum levels, and emissions monitoring instruments into CENTUM VP control systems. Redundant architecture meets NERC reliability standards while galvanic isolation protects against electrical transients during grid disturbances or lightning strikes.

Water & Wastewater Treatment
Connect flow meters, chlorine analyzers, and turbidity sensors across multi-site SCADA networks. Wide temperature rating supports outdoor installation in pump stations and lift facilities, while HART communication simplifies regulatory reporting for EPA discharge permits.

Pulp & Paper Mills
Monitor consistency transmitters, basis weight scanners, and moisture analyzers in high-vibration machine environments. Precision 16-bit conversion maintains quality control tolerances while hot-swap capability supports continuous production schedules without planned downtime.

Technical Specifications & Selection Guide

Selection Criteria: Choose the AAI143-H00 S2 when your application requires continuous availability (>99.9% uptime), safety-rated control loops (SIL 2/3), or regulatory compliance mandating redundant architectures. For non-critical monitoring applications, consider the single-channel AAI143-H00 S1 variant to optimize cost.

Advanced Integration Features

Vnet/IP Network Connectivity: Native integration with Yokogawa's deterministic field control network ensures <10 ms update rates and synchronized data acquisition across distributed I/O racks. Supports fiber-optic and copper Ethernet topologies for flexible installation.

Engineering Studio Configuration: Graphical configuration tools enable drag-and-drop channel assignment, HART device mapping, and alarm threshold setup without manual coding. Built-in simulation mode validates logic before commissioning.

Predictive Diagnostics: Embedded self-test routines monitor A/D converter drift, isolation barrier integrity, and power supply health. Automated alerts trigger maintenance work orders before failures impact production.

Cybersecurity Hardening: Firmware signed with cryptographic certificates, role-based access controls, and audit logging meet IEC 62443 industrial cybersecurity standards for critical infrastructure protection.

Delivery Timeline & Support Services

Standard Lead Time: 4-6 weeks for factory-new units with full manufacturer warranty
Express Availability: 48-hour shipment available for in-stock inventory (contact for current availability)
Warranty Coverage: 24-month manufacturer defect warranty with advance replacement option
Technical Support: Lifetime application engineering assistance via phone/email, including configuration file review and troubleshooting guidance
Documentation Package: Includes installation manual, wiring diagrams, HART device descriptors (DD files), and sample Engineering Studio configuration templates

Frequently Asked Questions

How does the S2 redundancy configuration handle module switchover during failures?
The S2 architecture maintains synchronized operation between primary and backup modules with automatic failover in <100 ms. The system controller detects module faults via diagnostic registers and seamlessly transitions to the backup module without data loss or process interruption. Manual switchback is configurable after fault resolution.

What is the maximum cable length for 4-20 mA field devices connected to this module?
With standard 18 AWG shielded twisted-pair cable, maximum distance is 1500 meters (4900 feet) at 20 mA signal level. For longer runs or high-noise environments, use 16 AWG cable or install signal isolators at the field device to maintain accuracy specifications.

Can I access HART variables while the module is operating in redundant mode?
Yes, HART communication remains active on both primary and backup modules simultaneously. The Engineering Studio software automatically routes HART commands to the active module, ensuring continuous access to diagnostics, configuration parameters, and secondary process variables during normal operation and failover events.

Does this module support intrinsically safe (IS) field devices in hazardous areas?
The AAI143-H00 S2 is designed for installation in safe areas (Zone 2/Division 2) and requires external IS barriers (such as Yokogawa's MTL or Pepperl+Fuchs units) when connecting to field devices in Zone 0/Division 1 hazardous locations. Consult your area classification drawings for proper barrier selection.

What energy efficiency improvements does this module offer compared to legacy I/O systems?
At 5W per 16-channel module, the AAI143-H00 S2 consumes 60% less power than equivalent relay-based or older solid-state I/O systems. In large installations (500+ I/O points), this translates to reduced cooling requirements and lower annual energy costs exceeding $2,000 per cabinet.

How do I migrate existing field wiring from an older Yokogawa I/O module to the AAI143-H00 S2?
The module uses industry-standard removable terminal blocks compatible with most Yokogawa CENTUM systems. Migration involves transferring wire terminations to the new module's terminal block, importing the legacy configuration into Engineering Studio, and performing loop checks. Typical migration time is 2-4 hours per module with minimal process downtime.

Ready to Enhance Your DCS Reliability?

Contact our industrial automation specialists to discuss your specific application requirements, receive detailed technical specifications, or request a formal quotation. We provide configuration assistance, compatibility verification with your existing Yokogawa system, and expedited shipping for urgent projects.
