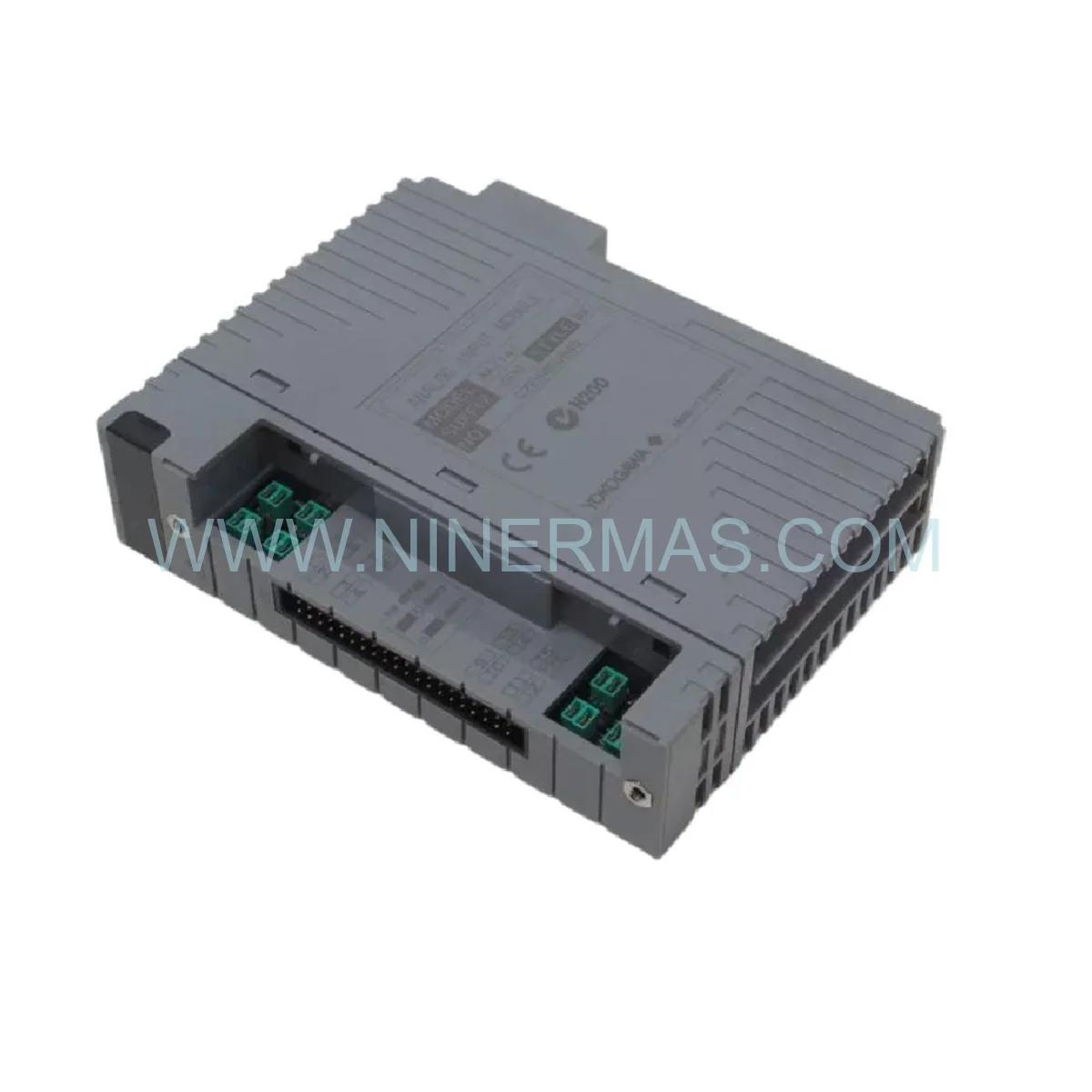

AAI141-S00 S2 Analog Input Module (Industrial-Grade Multi-Channel Acquisition)

The AAI141-S00 S2 represents Yokogawa's advanced approach to industrial signal acquisition, combining 16 non-isolated analog input channels with robust field-proven architecture. Designed for integration within CENTUM VP distributed control platforms, this module transforms raw process signals into actionable data across chemical plants, refineries, power stations, and manufacturing operations where precision measurement drives operational excellence.

Process engineers and automation specialists rely on this module to bridge the gap between field instrumentation and control logic. Whether monitoring reactor temperatures, tracking pipeline pressures, or validating flow rates, the AAI141-S00 S2 delivers consistent performance in environments where measurement accuracy directly impacts product quality, safety compliance, and production efficiency.

With hot-swappable design, comprehensive diagnostics, and compatibility across CENTUM VP R6.x platforms, this module minimizes commissioning time while maximizing system uptime. Its compact footprint and DIN-rail mounting simplify panel integration, making it the preferred choice for both greenfield installations and brownfield upgrades.

Core Capabilities & Technical Advantages

→ Multi-Signal Compatibility: Accepts 4-20mA current loops, 1-5V DC voltage signals, and thermocouple inputs through a single module platform, reducing spare parts inventory and simplifying maintenance procedures.

✓ High-Resolution Conversion: 16-bit analog-to-digital conversion delivers 0.1% accuracy across the full measurement range, ensuring reliable data for critical control loops and regulatory reporting requirements.

→ Rapid Scan Cycles: 100-millisecond per-channel conversion rate enables real-time response to process changes, supporting fast-acting control strategies in dynamic production environments.

✓ Built-In Fault Detection: Automatic diagnostics identify open circuits, short circuits, and out-of-range conditions, triggering alarms before measurement errors propagate through control logic.

→ Hot-Swap Serviceability: Field-replaceable design allows module exchange during operation without system shutdown, reducing maintenance windows and production losses.

✓ Redundancy Support: Compatible with SIL 2 safety configurations and redundant I/O architectures, meeting stringent reliability requirements for critical process applications.

Industry Applications & Use Cases

Chemical Processing: Monitor reactor vessel temperatures and pressure transmitters across batch and continuous processes. The module's multi-channel design consolidates wiring while its diagnostic capabilities detect sensor drift before quality deviations occur.

Oil & Gas Operations: Track pipeline flow meters, separator level transmitters, and compressor discharge pressures in upstream, midstream, and downstream facilities. Rugged construction withstands harsh environmental conditions while maintaining measurement integrity.

Power Generation: Acquire boiler drum levels, turbine bearing temperatures, and condenser vacuum readings in coal, gas, and combined-cycle plants. High-speed scanning supports protective relay coordination and load-following control strategies.

Pharmaceutical Manufacturing: Validate clean-in-place (CIP) temperatures, fermentation pH levels, and sterile filtration pressures in GMP-regulated environments. Audit trail capabilities support 21 CFR Part 11 compliance documentation.

Water Treatment: Monitor clarifier turbidity, chlorine residual analyzers, and pump discharge pressures across municipal and industrial treatment facilities. Reliable signal acquisition ensures regulatory compliance and operational efficiency.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the AAI141-S00 S2 when your application requires cost-effective multi-point measurement without channel-to-channel isolation. For applications demanding galvanic isolation between inputs (such as ground loop prevention or hazardous area installations), consider the AAI143-H series isolated analog input modules. Verify compatibility with your CENTUM VP system version—R6.01 or later required for full functionality.

Extended Integration Features

SCADA Connectivity: Seamless data exchange with OPC UA/DA servers enables integration with third-party historian systems, MES platforms, and enterprise analytics tools for comprehensive production intelligence.

Advanced Diagnostics: Module health monitoring tracks conversion errors, communication timeouts, and power supply deviations, providing predictive maintenance insights through CENTUM VP's asset management interface.

Configuration Flexibility: Software-selectable input ranges and filtering parameters allow field technicians to optimize signal conditioning without hardware modifications, reducing commissioning time by up to 40%.

Scalable Architecture: Mix-and-match compatibility with Yokogawa's complete I/O portfolio (digital, analog output, temperature, and specialty modules) supports system expansion from pilot installations to enterprise-scale deployments.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 2-3 business days via DHL/FedEx express service. Typical delivery to North America, Europe, and Asia-Pacific regions: 5-7 business days.

Custom Configurations: Factory-configured modules with pre-programmed settings available with 10-15 business day lead time. Ideal for large-scale projects requiring standardized deployments.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for critical applications.

Technical Support: Access to application engineers with CENTUM VP expertise for configuration assistance, troubleshooting guidance, and integration planning. Email and phone support available during business hours (GMT+8).

Documentation Package: Each module includes installation manual, wiring diagrams, configuration templates, and compliance certificates. Digital resources available via secure download portal.

Frequently Asked Questions

Q: How does the AAI141-S00 S2 connect to existing CENTUM VP systems?
A: The module communicates via Yokogawa's V-Net/IP network protocol, connecting to CENTUM VP field control stations (FCS) through standard Ethernet infrastructure. Configuration is performed using FieldMate or Resource Builder software, with automatic device recognition simplifying commissioning.

Q: What channel capacity should I plan for future expansion?
A: Industry best practice recommends maintaining 20-25% spare I/O capacity. For a 100-point measurement system, deploy modules totaling 125 channels. The AAI141's 16-channel density provides efficient scaling while minimizing panel space requirements.

Q: Can this module reduce energy consumption compared to legacy I/O systems?
A: Yes—at 5W per module (0.31W per channel), the AAI141-S00 S2 consumes approximately 60% less power than equivalent relay-based or older solid-state I/O. For a 500-point system, this translates to 150W savings and reduced cooling requirements.

Q: What installation requirements must be met for reliable operation?
A: Mount modules on grounded DIN rail within temperature-controlled enclosures (ambient -10°C to +55°C). Maintain 25mm clearance on both sides for heat dissipation. Use shielded twisted-pair cable for analog signals, with shields grounded at the module end only to prevent ground loops.

Q: Does the AAI141-S00 S2 support remote monitoring and diagnostics?
A: Full remote access is available through CENTUM VP's web-based HMI and mobile operator interfaces. Real-time channel status, historical trends, and alarm logs can be accessed from any network-connected device, enabling off-site troubleshooting and performance analysis.

Q: How do I verify compatibility with third-party field instruments?
A: The module accepts industry-standard 4-20mA and voltage signals from any manufacturer. For thermocouple inputs, verify sensor type matches module configuration (K, J, T, E, R, S, or B). Consult Yokogawa's I/O compatibility matrix for specific transmitter models or contact our technical team for validation.

Take the Next Step

Ready to enhance your process measurement infrastructure? Contact our automation specialists for application-specific recommendations, system integration planning, or volume pricing. Request a detailed quotation including shipping estimates to your facility, or schedule a technical consultation to discuss your CENTUM VP expansion requirements.
