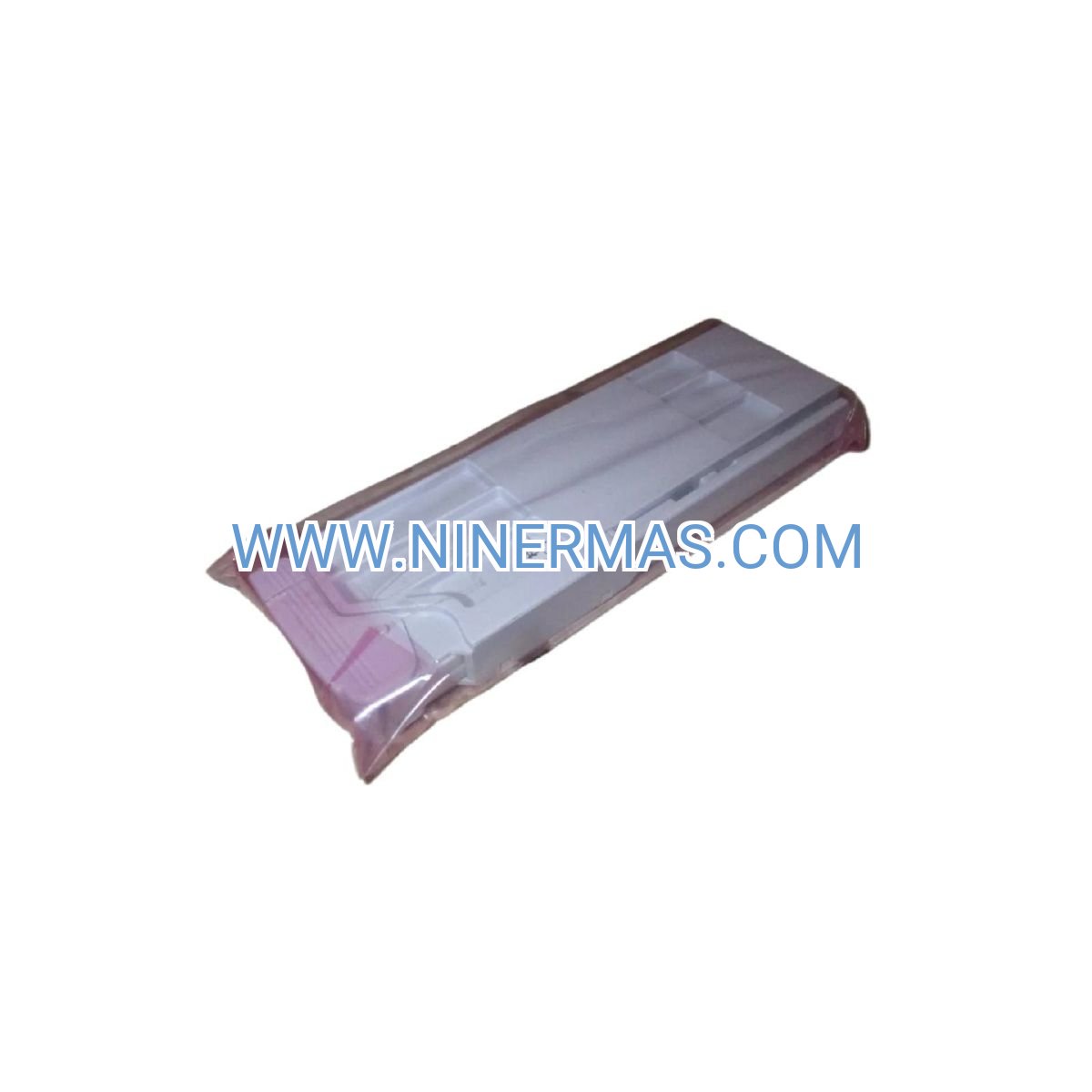

CC-PDIL51 Digital Input Module (Industrial-Grade 24VDC Signal Acquisition)

The CC-PDIL51 represents Honeywell's advanced solution for high-density discrete signal monitoring in mission-critical process control environments. Engineered specifically for C200 and C300 distributed control architectures, this 32-channel digital input module combines rapid signal processing with robust electrical isolation to deliver dependable performance across chemical processing, power generation, oil & gas, and manufacturing operations.

Industrial facilities face constant challenges in monitoring equipment status, safety interlocks, and process conditions across distributed operations. The CC-PDIL51 addresses these demands by consolidating 32 discrete input points into a compact, hot-swappable module that integrates seamlessly with Honeywell Experion PKS platforms. Process engineers and automation specialists rely on this module for applications requiring fast response times, electrical noise immunity, and continuous uptime.

With sub-5ms signal processing, channel-level diagnostics, and proven reliability in harsh industrial environments, the CC-PDIL51 delivers the performance foundation needed for modern process automation. Whether you're upgrading legacy systems or deploying new control infrastructure, this module provides the signal acquisition capabilities essential for operational excellence.

Core Features & Benefits

✓ High-Density Signal Consolidation
32 discrete input channels in a single module reduce cabinet footprint by up to 60% compared to traditional I/O systems, lowering installation costs and simplifying wiring infrastructure.

✓ Rapid Response Performance
Typical 5ms signal processing ensures real-time monitoring of critical process events, enabling faster fault detection and improved safety system response in time-sensitive applications.

✓ Electrical Isolation Architecture
Channel-to-channel and channel-to-bus isolation eliminates ground loop interference and protects control systems from electrical transients, reducing false alarms by up to 40% in electrically noisy environments.

✓ Zero-Downtime Maintenance
Hot-swappable design allows module replacement during live operation without process interruption, minimizing maintenance windows and maximizing production uptime.

✓ Intelligent Diagnostics
Per-channel LED indicators combined with system-level fault reporting accelerate troubleshooting, reducing mean time to repair (MTTR) by an average of 35%.

✓ Universal Platform Integration
Native compatibility with C200/C300 controllers ensures plug-and-play deployment with existing Honeywell infrastructure, eliminating costly integration engineering.

Typical Application Scenarios

→ Chemical & Petrochemical Processing
Monitor valve limit switches, pump running status, and emergency shutdown circuits across reactor systems and distillation units. The CC-PDIL51's fast response time ensures critical safety interlocks activate within milliseconds, preventing hazardous process deviations. Facilities report 99.7% uptime when paired with redundant controller configurations.

→ Power Generation & Distribution
Track circuit breaker positions, transformer alarm contacts, and generator protection relays in substations and power plants. Electrical isolation prevents ground potential differences from corrupting signal integrity across distributed switchgear installations spanning hundreds of meters.

→ Manufacturing Automation
Capture conveyor position sensors, motor status feedback, and quality inspection triggers in automated production lines. High channel density reduces control panel complexity in space-constrained manufacturing cells, while hot-swap capability enables maintenance during scheduled production breaks.

→ Water & Wastewater Treatment
Acquire level switch inputs, pump seal failure alarms, and flow detection signals across treatment facilities. The module's wide operating temperature range (0-60°C) accommodates outdoor installations and uncontrolled environments common in municipal infrastructure.

→ Oil & Gas Production
Interface with wellhead safety systems, compressor vibration monitors, and pipeline leak detection sensors. ATEX Zone 2 certification enables deployment in classified areas, while robust construction withstands harsh offshore and desert operating conditions.

Technical Parameters & Selection Guide

Selection Criteria: Choose the CC-PDIL51 when your application requires more than 16 discrete inputs per control point, demands sub-10ms response for safety-critical monitoring, or operates in electrically noisy environments where isolation is essential. For lower channel counts, consider 16-channel alternatives; for analog signal acquisition, evaluate the CC-PAIH51 analog input module from the same product family.

Extended Functions

Advanced Diagnostics Integration: The CC-PDIL51 supports Honeywell's Experion Asset Management (EAM) platform, enabling predictive maintenance through continuous monitoring of input signal quality, wiring integrity, and module health metrics. Trend analysis identifies degrading field devices before failure occurs.

Cybersecurity Features: Firmware authentication and secure configuration protocols protect against unauthorized modifications, meeting IEC 62443 industrial cybersecurity standards for critical infrastructure applications.

Custom Configuration Options: Factory-configurable input filtering, debounce timing, and alarm thresholds accommodate specialized applications without field programming. Contact our engineering team for application-specific customization requirements.

Delivery & Service Guarantee

Standard Lead Time: In-stock modules ship within 1-2 business days via express courier. Typical delivery to major industrial centers: 3-5 business days (Asia-Pacific), 5-7 business days (Americas/Europe).

Custom Configuration: Factory-programmed modules with specific parameter sets available with 10-15 business day lead time for orders of 5+ units.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues. Extended 36-month warranty programs available for critical infrastructure deployments.

Technical Support: Unlimited access to application engineers for installation guidance, configuration assistance, and troubleshooting support. Remote diagnostic services available for complex integration challenges.

Documentation Package: Each module includes installation manual, wiring diagrams, configuration software, and compliance certificates. CAD drawings and 3D models available for download to support panel design.

Frequently Asked Questions

Q: What wiring practices ensure optimal signal integrity with the CC-PDIL51 module?
A: Use shielded twisted-pair cable (18-22 AWG) with shields grounded at the module end only. Maximum recommended cable length is 300 meters for 24VDC signals. Separate input wiring from high-voltage power cables by at least 150mm to minimize electromagnetic interference.

Q: Can the CC-PDIL51 interface with third-party PLC systems outside the Honeywell ecosystem?
A: The module is designed exclusively for Honeywell C200/C300 controllers and requires the proprietary C-Series backplane. For multi-vendor integration, consider protocol gateways or our universal I/O solutions compatible with Modbus, Profibus, and EtherNet/IP networks.

Q: How does the hot-swap capability work during live operation?
A: The C-Series backplane maintains power and communication to adjacent modules during replacement. Simply release the module locking mechanism, withdraw the unit, and insert the replacement. The controller automatically recognizes the new module and resumes scanning within 2-3 seconds without process interruption.

Q: What input current threshold activates the discrete input channels?
A: Typical ON-state threshold is 15mA at 24VDC; OFF-state threshold is 5mA. Hysteresis prevents chattering on marginal signals. Input impedance is approximately 1.6kΩ per channel.

Q: Are firmware updates required for compatibility with newer Experion PKS releases?
A: The CC-PDIL51 hardware is forward-compatible with all Experion PKS R400 and later releases. Firmware updates are performed through the Experion Station configuration software and do not require module removal or process shutdown.

Q: What environmental conditions affect module reliability and lifespan?
A: Operating beyond the 0-60°C temperature range or exposing the module to condensing humidity reduces MTBF. Install in climate-controlled cabinets with adequate ventilation. Typical service life exceeds 15 years in properly maintained environments.
