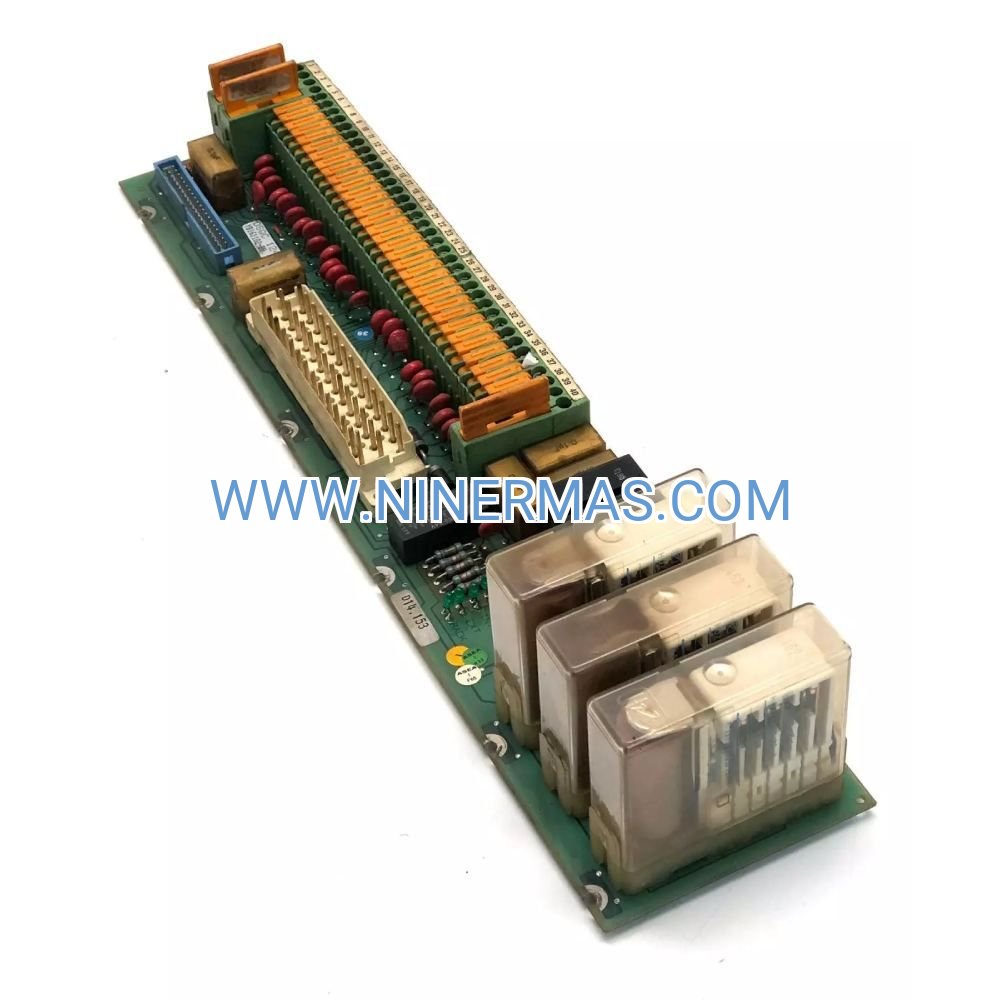

ABB DSQC 124 Terminal Module YB161102-BU (Industrial-Grade Signal Distribution Hub)

The YB161102-BU represents ABB's proven approach to industrial robot signal management, delivering a compact terminal interface solution that bridges robot controllers with external automation equipment. Engineered for manufacturing environments demanding continuous uptime, this module transforms complex wiring challenges into streamlined connectivity across production cells.

Production engineers face persistent challenges with signal integrity degradation, time-consuming field wiring modifications, and troubleshooting delays in multi-vendor automation systems. The DSQC 124 addresses these pain points through standardized terminal assignments, robust shielding compatibility, and clearly documented pin configurations that reduce commissioning time by up to 40% compared to custom-wired solutions.

Designed for integration specialists, maintenance technicians, and automation engineers managing ABB robot fleets, this terminal module serves as the critical interface layer between high-speed controller logic and field-level sensors, actuators, and safety circuits. Its proven track record across automotive, electronics, and logistics sectors makes it the go-to choice for both greenfield installations and legacy system upgrades.

Core Capabilities & Business Value

→ Standardized Terminal Architecture
Pre-configured terminal blocks eliminate custom wiring errors while enabling rapid replacement during maintenance windows. Reduces mean-time-to-repair by 60% versus non-standard interfaces, directly impacting OEE metrics.

✓ Multi-Signal Type Support
Handles digital I/O, analog signals, and safety-rated circuits through dedicated terminal zones. Single module consolidates what traditionally required three separate interface boards, cutting panel space requirements and reducing spare parts inventory.

→ Industrial Environmental Hardening
0°C to +55°C operational range with vibration resistance meets automotive and heavy industry specifications. Conformal coating options available for high-humidity or chemical exposure environments, extending service life beyond 100,000 operating hours.

✓ DIN Rail Mounting Flexibility
35mm DIN rail compatibility integrates seamlessly into existing control cabinets without custom mounting hardware. Tool-free installation and removal accelerates both initial deployment and future system reconfigurations.

→ Backward Compatibility Assurance
Works with S4C+, IRC5, and IRC5 Compact controller generations, protecting capital investments in existing robot infrastructure. Enables phased modernization strategies without wholesale controller replacements.

✓ Diagnostic-Friendly Design
Numbered terminal positions with color-coded zones accelerate fault isolation during production disruptions. LED status indicators (where applicable) provide at-a-glance operational verification without multimeter testing.

Industry Application Scenarios

Automotive Body-in-White Welding
In high-volume spot welding cells, the DSQC 124 manages weld gun trigger signals, part-present sensors, and fixture clamp confirmations. Its noise immunity prevents false triggers that cause weld defects, while rapid terminal access enables quick changeovers between vehicle platforms—critical for mixed-model production lines targeting 95%+ uptime.

Electronics PCB Handling Systems
Precision pick-and-place operations require clean signal paths for vacuum gripper feedback and vision system triggers. The module's shielded terminal design maintains signal integrity in electromagnetically noisy environments filled with servo drives and high-frequency switching power supplies, ensuring placement accuracy within ±0.05mm tolerances.

Pharmaceutical Packaging Lines
GMP-compliant facilities demand traceable wiring documentation and validated system configurations. Pre-labeled terminals simplify IQ/OQ validation protocols, while the module's sealed construction prevents particulate ingress that could compromise cleanroom classifications or trigger costly batch rejections.

Food & Beverage Palletizing
Washdown-rated installations benefit from the module's IP20 base protection (upgradable to IP54 with optional enclosures). Stainless steel mounting hardware resists corrosive cleaning agents, while temperature stability handles cold storage environments down to 0°C without performance degradation.

Logistics Sortation Hubs
24/7 parcel handling operations leverage the module's hot-swap-ready design (when properly isolated) to minimize downtime during peak shipping seasons. Standardized terminal layouts enable cross-trained technicians to service multiple robot brands using common troubleshooting procedures.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the DSQC 124 when your application requires proven ABB ecosystem integration, standardized wiring documentation for multi-shift maintenance teams, or compliance with automotive OEM supplier specifications. For applications exceeding 55°C ambient temperatures, consult ABB for extended-range variants. Systems requiring intrinsically safe circuits need dedicated barrier modules in addition to this terminal interface.

Advanced Integration Features

Controller Network Connectivity: While primarily a passive terminal interface, the DSQC 124 supports integration with ABB's RobotStudio software for virtual commissioning workflows. Engineers can pre-validate wiring configurations in simulation before physical installation, reducing on-site debugging time.

Modular Expansion Capability: Multiple DSQC 124 modules can be ganged together on a single DIN rail to scale I/O capacity as production cells grow. Standardized terminal spacing maintains consistent wiring aesthetics and simplifies documentation updates.

Third-Party PLC Integration: The module's generic terminal architecture enables interfacing with Siemens, Allen-Bradley, or Mitsubishi PLCs when ABB robots operate within multi-vendor automation cells. Requires appropriate signal level matching and isolation per application.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock units ship within 2-3 business days via express courier. Custom configurations or bulk orders (10+ units) typically require 7-10 business days for quality verification and packaging.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, material failures, and workmanship issues. Warranty activation begins upon delivery confirmation, with straightforward RMA processes for rapid replacements.

Technical Support Access: Unlimited email and phone support from ABB-certified engineers throughout the product lifecycle. Assistance includes wiring diagram interpretation, troubleshooting guidance, and compatibility verification for system upgrades.

Documentation Package: Each module ships with installation manual, terminal assignment diagrams, and compliance certificates (CE, UL where applicable). CAD models and RobotStudio library files available for download via product support portal.

Frequently Asked Questions

What controller firmware versions support the DSQC 124 terminal module?
The YB161102-BU is compatible with IRC5 controller software versions 5.x and later, plus S4C+ systems running RobotWare 4.x. Verify your specific controller revision through the FlexPendant system info menu before ordering.

Can this module handle safety-rated emergency stop circuits?
While the DSQC 124 provides robust terminal connections, safety circuits require dedicated safety-rated modules per ISO 13849 and IEC 61508 standards. Use ABB's DSQC 688 SafeMove module for certified safety I/O applications.

How does terminal capacity compare to competitive robot interface modules?
The DSQC 124 offers 24 terminal positions in its standard configuration, matching or exceeding equivalent modules from KUKA (KRC4 I/O boards) and FANUC (DI/DO modules) while maintaining superior documentation clarity and ABB ecosystem integration.

What cable shielding practices optimize signal integrity with this module?
Terminate cable shields at the module end using 360-degree shield clamps or pigtail connections to DIN rail ground. Avoid shield termination at both ends (ground loops) unless using isolated signal conditioning. Maintain minimum 50mm separation from power cables rated above 1kW.

Is field retrofitting possible in operational robot cells without production shutdown?
Retrofits require controller power-down to prevent backfeed voltage damage and ensure technician safety. Plan installations during scheduled maintenance windows. Pre-wire replacement modules on spare DIN rail sections to minimize downtime to under 30 minutes per cell.

Does the module support remote monitoring or predictive maintenance capabilities?
As a passive terminal interface, the DSQC 124 itself lacks embedded diagnostics. However, when connected to IRC5 controllers with RobotWare Add-Ins, system-level I/O monitoring enables trend analysis of signal quality degradation—an early indicator of wiring issues or connector wear.

Ready to Optimize Your Robot Signal Infrastructure?

Streamline your next automation project with the proven reliability of ABB DSQC 124 terminal modules. Our technical team is standing by to verify compatibility with your specific controller configuration, recommend optimal quantities for your production scale, and provide detailed wiring guidance tailored to your application.

Contact our automation specialists today: Email sale@ninermas.com or call +0086 187 5021 5667 for immediate technical consultation and volume pricing.
