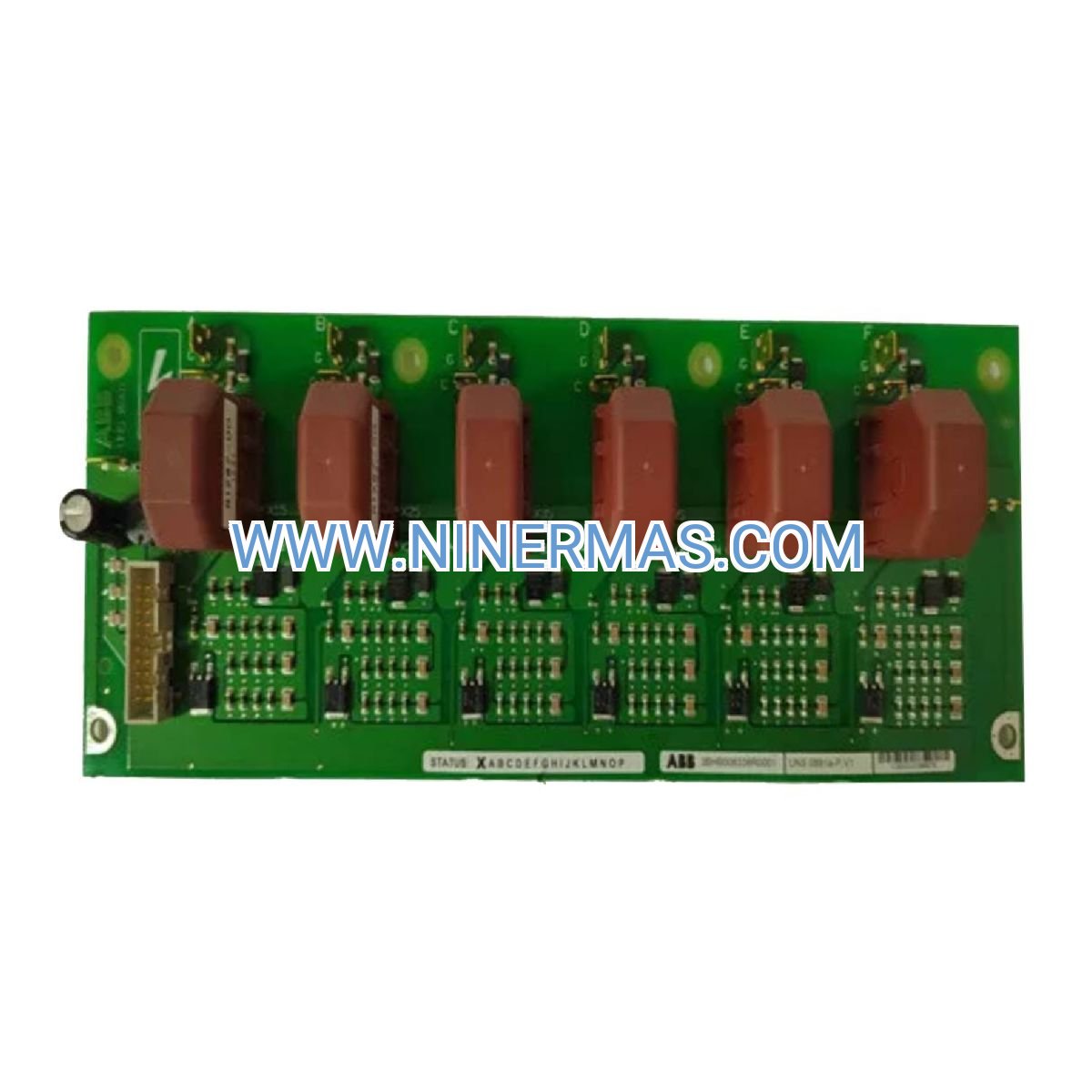

Industrial-Grade Gate Driver Interface Board (ABB UNS0881a-P V1)

The ABB UNS0881a-P V1 represents a critical interface component in modern power electronics systems, providing galvanically isolated gate signal conditioning for IGBT and power MOSFET modules. This board translates low-voltage control signals from PLCs or microcontrollers into precisely timed, high-current gate pulses required for efficient semiconductor switching in variable frequency drives, industrial inverters, and renewable energy conversion systems.

Designed for automation engineers and OEM integrators managing motor control systems, UPS installations, or grid-tied inverters, this interface board solves the challenge of safely bridging digital control logic with high-power semiconductor gates while maintaining signal integrity across harsh industrial environments.

With proven ABB engineering heritage, the UNS0881a-P V1 delivers exceptional reliability through integrated fault detection, desaturation monitoring, and thermal management—reducing unplanned downtime and simplifying maintenance workflows in mission-critical applications.

Core Features & Technical Advantages

→ High-Voltage Galvanic Isolation
Provides complete electrical separation between control logic and power stages, protecting sensitive microcontrollers from high-voltage transients while ensuring operator safety in compliance with industrial standards.

→ Integrated Fault Detection & Feedback
Real-time overcurrent sensing and desaturation monitoring enable immediate shutdown during fault conditions, preventing catastrophic IGBT failures and reducing repair costs by up to 40% compared to unprotected systems.

→ Extended Temperature Range (-40°C to +85°C)
Industrial-grade components maintain stable operation across extreme ambient conditions, from outdoor renewable energy installations to high-temperature manufacturing environments without derating.

✓ Optimized Gate Drive Waveforms
Precision-tuned rise/fall times minimize switching losses and electromagnetic interference, improving overall system efficiency by 2-5% while reducing EMC compliance costs.

✓ Modular PCB-Mount Design
Standardized footprint enables rapid replacement during maintenance windows, reducing MTTR (Mean Time To Repair) from hours to minutes in production environments.

✓ ABB Quality Assurance
Manufactured under ISO 9001 certified processes with rigorous burn-in testing, ensuring <0.1% field failure rates over 10-year operational lifecycles.

Industrial Application Scenarios

Variable Frequency Drive Retrofits
When upgrading legacy VFD systems or replacing failed gate driver modules in ABB ACS series drives, the UNS0881a-P V1 provides drop-in compatibility with existing control architectures. Maintenance teams can restore full operational capacity within a single shift, avoiding costly production stoppages in continuous process industries like chemical manufacturing or water treatment.

Renewable Energy Inverter Systems
Solar PV and wind turbine inverters demand precise IGBT control to maximize energy harvest and maintain grid code compliance. This interface board ensures clean switching transitions that reduce harmonic distortion below 3% THD, meeting utility interconnection requirements while extending inverter component lifespan through reduced thermal stress.

Industrial Motor Control Cabinets
OEM machinery builders integrating custom motor control solutions benefit from the board's compact form factor and comprehensive protection features. Applications include conveyor systems, HVAC chillers, and pump stations where reliable 24/7 operation is non-negotiable and field service access is limited.

UPS & Energy Storage Systems
Battery-backed power systems require bidirectional power flow control with millisecond-level response times. The UNS0881a-P V1's fast fault detection prevents battery damage during grid transients, protecting capital investments in critical infrastructure like data centers and hospitals.

Test Bench & R&D Applications
Power electronics laboratories use this board for prototyping advanced control algorithms, benefiting from its stable performance characteristics and well-documented electrical specifications that accelerate development cycles.

Technical Parameters & Selection Guide

Selection Criteria:
When specifying the UNS0881a-P V1 for your application, verify compatibility with your existing IGBT module gate voltage requirements (typically 15V), ensure adequate cooling provisions for ambient temperatures exceeding 60°C, and confirm that your control system can process the board's fault feedback signals. For systems requiring redundant operation, consider ordering spare units to minimize lead time during emergency replacements.

Extended Capabilities & Integration Options

System Integration Flexibility
The board accepts standard logic-level inputs (3.3V/5V CMOS/TTL), making it compatible with modern DSP controllers, FPGAs, and industrial PLCs without additional level-shifting circuitry. Fault output signals can be directly wired to PLC digital inputs or safety relay modules for automated shutdown sequences.

Customization & OEM Support
For volume applications requiring modified gate resistor values, alternative isolation ratings, or custom connector configurations, ABB's engineering team provides application-specific variants with minimum order quantities starting at 50 units. Contact our technical sales team for feasibility assessment and lead time quotations.

Monitoring & Diagnostics
When integrated with ABB's DriveWindow software or third-party SCADA systems, fault feedback signals enable predictive maintenance strategies by tracking desaturation event frequency—allowing scheduled component replacement before catastrophic failures occur.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-7 business days for in-stock units; 4-6 weeks for factory orders
Express Shipping: Available for critical downtime situations (additional charges apply)
Warranty Period: 12 months from delivery date covering manufacturing defects
Technical Support: Email and phone support during business hours (GMT+8); on-site commissioning assistance available for large projects
Documentation Provided: Installation manual, electrical schematics, recommended gate resistor values, fault troubleshooting guide

Frequently Asked Questions

Q: How do I interface this gate driver board with my existing PLC control system?
A: The UNS0881a-P V1 accepts standard 24VDC logic signals common in industrial PLCs. Connect your PLC's digital output (DO) module to the board's control input terminals, ensuring proper common ground reference. For isolation between PLC and gate driver, use optocouplers rated for your system voltage. Detailed wiring diagrams are included in the installation manual.

Q: What is the maximum IGBT module current capacity this board can control?
A: The gate driver interface is rated for IGBT modules up to 1200A continuous current, provided the IGBT's gate charge (Qg) does not exceed the board's drive capability. For modules above 600A, verify that your gate power supply can deliver sufficient peak current (typically 5-10A) during switching transitions. Consult the datasheet for specific Qg limits.

Q: Can this board improve energy efficiency in my existing VFD installation?
A: Yes—by optimizing gate drive waveforms, the UNS0881a-P V1 reduces IGBT switching losses by 15-25% compared to generic gate drivers, translating to 2-5% overall system efficiency gains in typical motor drive applications. Actual savings depend on switching frequency, load profile, and existing driver quality. Energy audits are recommended for ROI calculations.

Q: What installation clearances are required for safe operation?
A: Maintain minimum 20mm creepage distance from high-voltage terminals to grounded enclosure surfaces. Ensure adequate ventilation with at least 50mm clearance above the board for natural convection cooling. For ambient temperatures above 70°C, forced air cooling or heatsink attachment may be necessary—refer to thermal derating curves in the technical documentation.

Q: Does this gate driver support remote monitoring or IoT connectivity?
A: The board provides analog fault signals that can be connected to data acquisition systems or IoT gateways for remote monitoring. While the UNS0881a-P V1 itself does not include built-in Ethernet or wireless connectivity, its fault outputs integrate seamlessly with industrial IoT platforms like ABB Ability™ or third-party SCADA systems via standard I/O modules.

Q: How do I troubleshoot desaturation fault errors during commissioning?
A: Desaturation faults typically indicate IGBT overcurrent conditions or incorrect gate resistor values. First, verify that your load current does not exceed the IGBT's rated capacity. Check gate resistor values against manufacturer recommendations (typically 2-10Ω for turn-on, 1-5Ω for turn-off). Inspect all power connections for loose terminals or inadequate wire gauge. If faults persist under no-load conditions, contact technical support for advanced diagnostics.

Get Your ABB UNS0881a-P V1 Gate Driver Board Today

Ensure uninterrupted operation of your critical power electronics systems with genuine ABB components. Our technical sales team is ready to assist with application-specific questions, volume pricing, and expedited delivery options. Request a quote now or contact us directly to discuss your project requirements.
