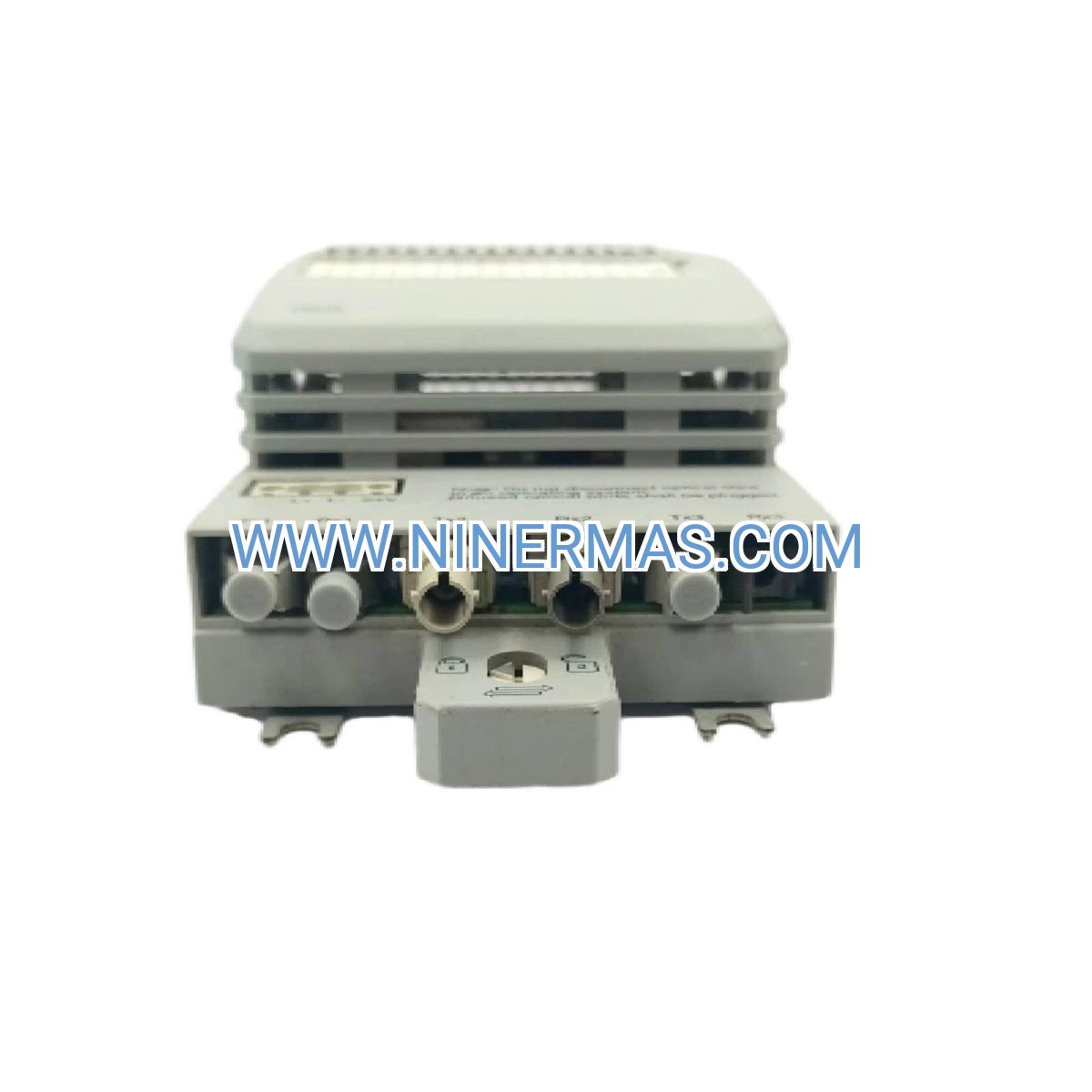

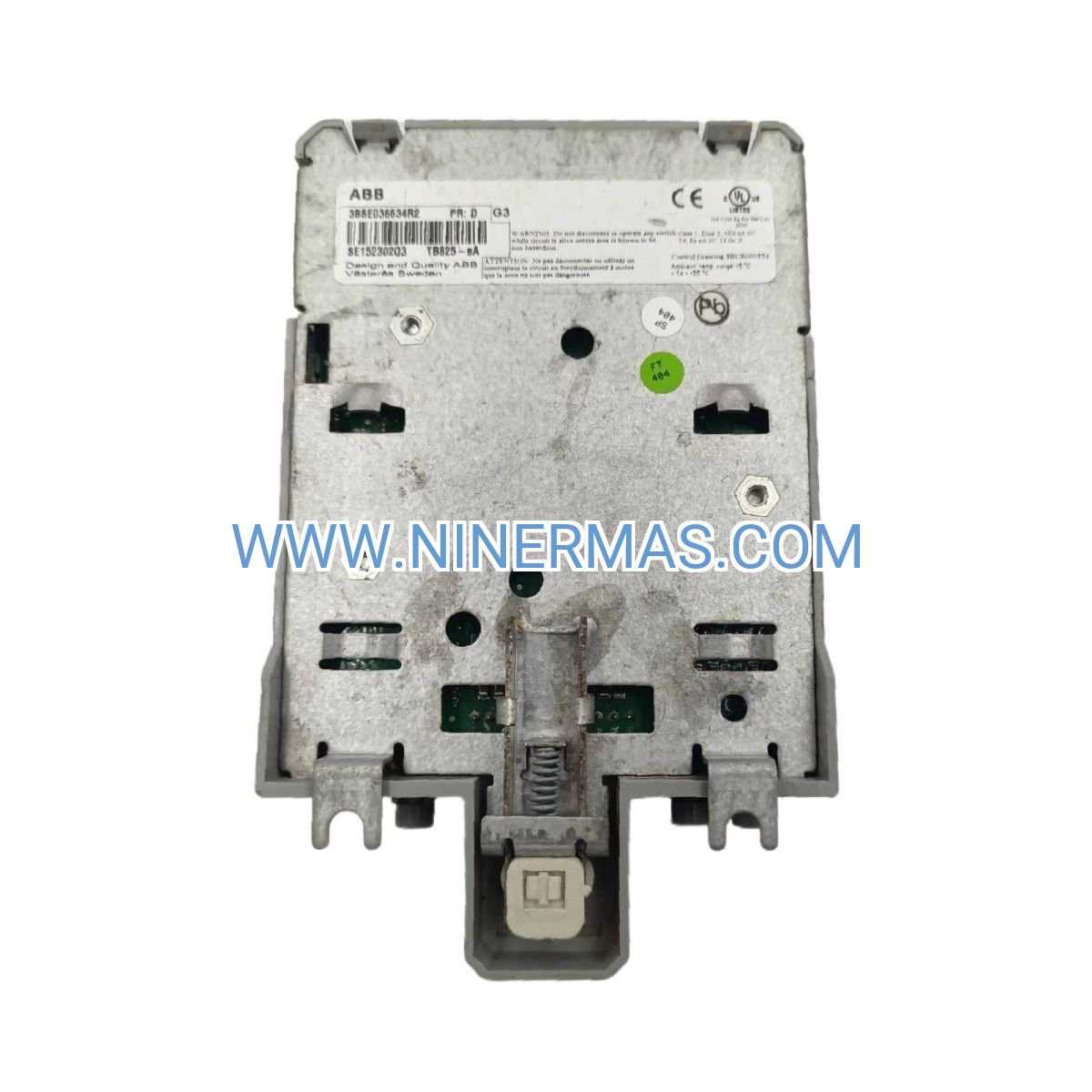

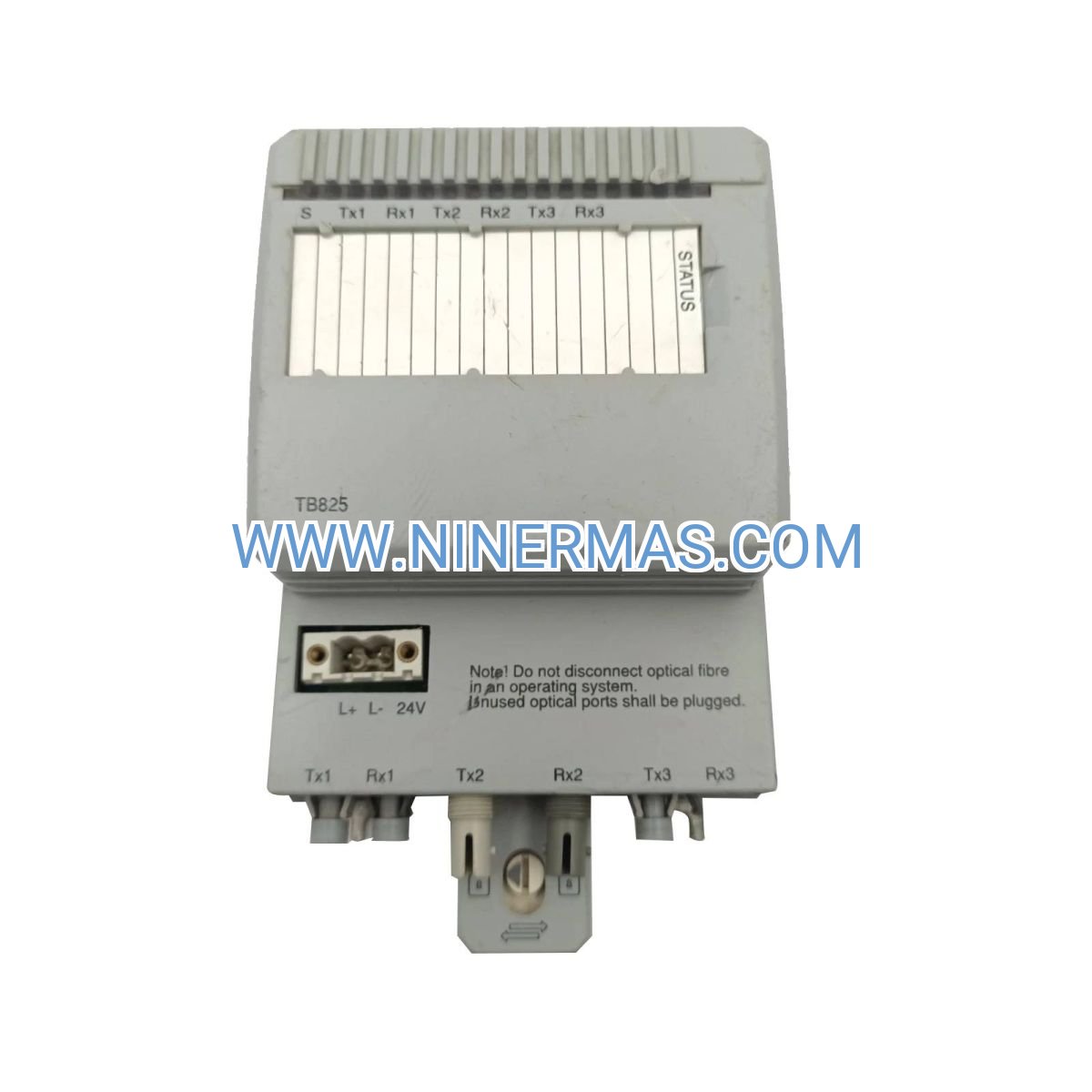

ABB TB825 Multi-Mode Optical Media Converter (Industrial-Grade Fiber Extension)

The ABB TB825 represents a proven solution for extending ModuleBus communication beyond copper cable limitations in S800 I/O distributed control architectures. This multi-mode optical media converter transforms electrical signals into fiber optic transmission, enabling reliable data exchange across distances up to 1000 meters while eliminating electromagnetic interference vulnerabilities that compromise copper-based networks in industrial environments.

Designed for process automation facilities requiring remote I/O placement—from chemical plants to power generation stations—the TB825 bridges plastic fiber, HCS fiber, and glass optical fiber media types through industry-standard ST connectors. Its compact DIN rail form factor integrates seamlessly with S800L mechanics, drawing power directly from the 24V DC backplane without external supplies.

Whether you're deploying star network topologies for fault-isolated I/O clusters or connecting hazardous area equipment to safe zone controllers, the TB825 delivers certified performance across -25°C to +70°C temperature extremes with Class 1 Div 2 and Zone 2 approvals for explosive atmospheres.

Core Features & Technical Advantages

✓ Extended Communication Range
Achieves 1000-meter ModuleBus transmission per cluster in star configurations—10× the reach of copper alternatives. Eliminates costly repeater installations and enables centralized control rooms separated from remote process areas.

✓ Multi-Media Fiber Compatibility
Supports plastic opto fiber for economical short-distance links, HCS fiber for mid-range applications, and glass optical fiber for maximum performance. Versatile link connectors and ST terminations accommodate mixed-media network designs without protocol conversion.

✓ Electromagnetic Immunity
Fiber optic transmission inherently rejects EMI, RFI, and ground loop interference. Maintains signal integrity in high-voltage switchyards, VFD-heavy motor control centers, and welding environments where electrical noise disrupts copper fieldbus networks.

✓ Hazardous Location Certified
Class 1 Div 2 Group A,B,C,D T4 and Class 1 Zone 2 AEx nC IIC T4 approvals enable safe installation in oil & gas, chemical processing, and pharmaceutical facilities. Simplifies classified area connectivity without intrinsic safety barriers.

→ Backplane-Powered Operation
Consumes only 96 mA from S800 I/O 24V DC supply—no external power required. Reduces panel space, wiring complexity, and potential failure points compared to externally powered converters.

→ Industrial Temperature Range
Operates reliably from -25°C to +70°C, meeting demands of outdoor enclosures, unheated buildings, and high-temperature process areas. Proven performance in extreme climates from Arctic installations to desert facilities.

Application Scenarios & Industry Solutions

Water & Wastewater Treatment Plants
Connect remote lift stations, clarifiers, and filtration systems to central SCADA rooms across sprawling treatment facilities. The TB825 enables 1000-meter fiber runs between pump houses and control buildings, eliminating lightning-induced failures common with copper cables in outdoor installations. Fiber immunity to moisture and corrosive atmospheres ensures long-term reliability in wet environments.

Power Generation & Substations
Link generator control panels, transformer monitoring systems, and switchgear I/O to control rooms through high-voltage areas where EMI from bus bars and circuit breakers disrupts copper communications. Fiber isolation prevents ground potential differences between buildings from damaging equipment or corrupting data.

Manufacturing & Assembly Lines
Deploy distributed I/O clusters throughout large production floors—automotive assembly, food processing, packaging lines—where welding equipment, induction heaters, and motor drives generate electrical noise. Star topology configurations with TB825 converters improve fault isolation: a single cluster failure doesn't cascade through daisy-chained networks.

Oil & Gas Upstream Facilities
Monitor and control wellhead equipment, separator systems, and tank farms in classified Zone 2 areas. The TB825's hazardous location certification eliminates zener barriers and galvanic isolators required for copper ModuleBus, reducing installation costs and cabinet complexity in offshore platforms and remote production sites.

Chemical & Pharmaceutical Processing
Integrate reactor control, batch systems, and material handling I/O across multi-building complexes where process equipment resides in classified areas and control systems occupy safe zones. Fiber transmission through walls and between structures avoids conduit sealing requirements and area classification boundary complications.

Technical Specifications & Selection Guide

Selection Criteria: Choose the TB825 when your application requires ModuleBus extension beyond 100 meters, EMI immunity in electrically noisy environments, or connectivity through hazardous area boundaries. For distances under 100 meters in benign environments, standard copper ModuleBus may suffice. For single-mode fiber requirements exceeding 1000 meters, consult ABB for alternative optical solutions.

Extended Capabilities & System Integration

The TB825 supports flexible network architectures through its multi-media fiber compatibility. Design cost-effective hybrid networks using plastic fiber for short cabinet-to-cabinet connections (easy termination, lower material costs) and glass fiber for long trunk lines requiring maximum bandwidth and minimal signal loss. This approach optimizes total installation cost while maintaining performance where needed.

Integration with ABB System 800xA and AC 800M controllers follows standard S800 I/O configuration procedures—the TB825 appears transparent to control logic, requiring no special programming. Network diagnostics and status monitoring integrate through standard ModuleBus communication, enabling predictive maintenance and rapid troubleshooting.

For redundant control architectures, deploy dual TB825 converters in parallel fiber paths to eliminate single points of failure. The S800 I/O system's inherent redundancy support ensures seamless failover without process interruption in critical applications.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory orders
Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship
Technical Assistance: Pre-sales application engineering support, post-sales integration guidance, and troubleshooting from experienced automation specialists
Documentation Package: Installation manual, wiring diagrams, fiber termination guidelines, and configuration examples included with every shipment

All TB825 units ship with full traceability documentation and quality verification certificates. Custom fiber cable assemblies, ST connector kits, and installation accessories available upon request to streamline project deployment.

Frequently Asked Questions

How do I connect the TB825 to existing S800 I/O clusters?
The TB825 mounts on standard DIN rail alongside S800 I/O modules and connects to the ModuleBus backplane through the S800L mechanics. Fiber cables attach via link connectors (plastic/HCS fiber) or ST connectors (glass fiber). Detailed wiring diagrams in the installation manual guide proper termination and polarity.

What fiber cable specifications are recommended for 1000-meter installations?
For maximum 1000-meter distance, use 62.5/125 µm or 50/125 µm multi-mode glass fiber with ST connectors. Plastic fiber and HCS fiber support shorter distances—consult the TB825 datasheet for specific attenuation limits and distance calculations based on your chosen media type.

Can the TB825 improve system reliability in high-EMI environments?
Yes. Fiber optic transmission eliminates electromagnetic coupling that causes communication errors in copper networks near VFDs, welders, and high-voltage equipment. Facilities experiencing intermittent ModuleBus faults often resolve issues immediately after converting to fiber with TB825 converters.

Does the TB825 require special configuration or programming?
No. The TB825 operates as a transparent media converter—control logic sees no difference between copper and fiber ModuleBus segments. Standard S800 I/O configuration tools and procedures apply without modification. Network addressing and cluster definitions remain unchanged.

Is the TB825 suitable for outdoor installations?
When installed in weatherproof enclosures rated for outdoor use, the TB825's -25°C to +70°C operating range accommodates most climates. Ensure enclosures provide adequate ventilation to prevent exceeding maximum temperature limits in direct sunlight or high ambient conditions.

What maintenance does the TB825 require?
Fiber optic systems require minimal maintenance. Periodically inspect fiber connectors for contamination or damage, verify LED status indicators show normal operation, and confirm secure cable connections. Unlike copper networks, fiber systems don't require shield grounding checks or termination resistance verification.

Upgrade Your S800 I/O Network Today

Ready to eliminate distance limitations and EMI challenges in your distributed control system? Contact our automation specialists for application-specific guidance, fiber network design assistance, and competitive pricing on TB825 converters and complete fiber infrastructure packages.

Request a quote now or reach out with technical questions—our team responds within 24 hours to help you specify the right solution for your facility.
