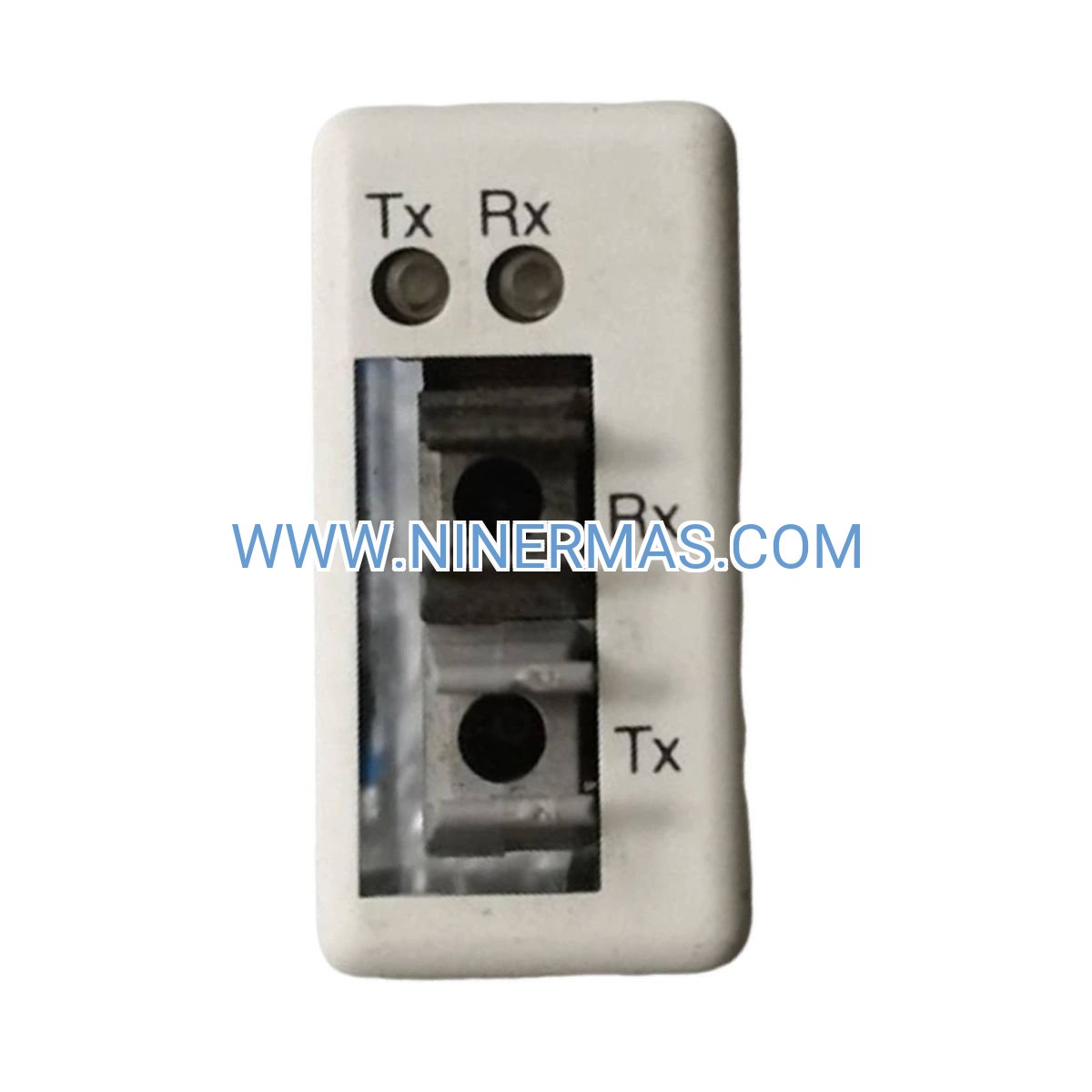

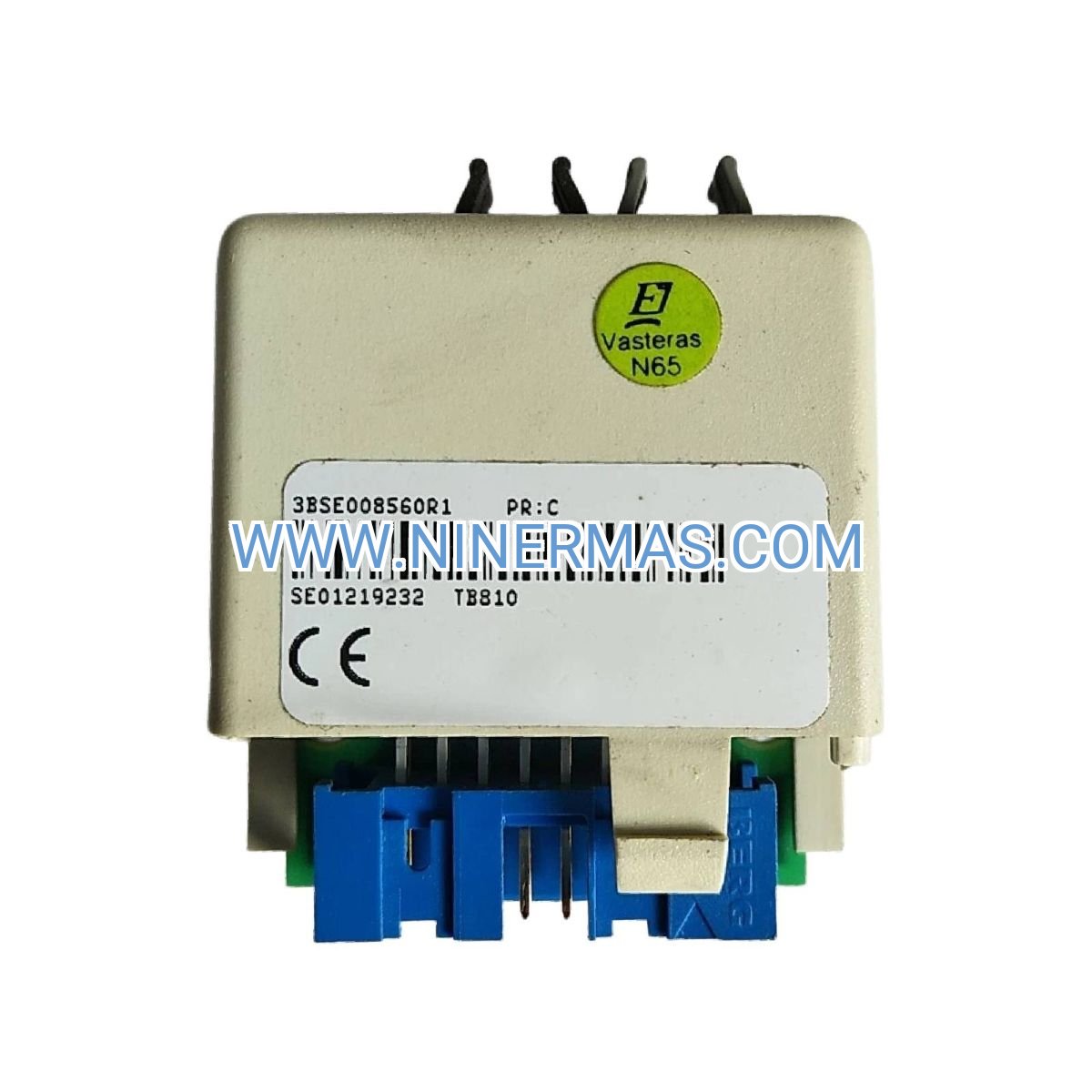

ABB TB810 Optical Modem Module – Industrial-Grade Fiber Communication Interface

The ABB TB810 represents a critical infrastructure component for distributed control systems requiring deterministic, interference-free data exchange across extended physical distances. Designed specifically for System 800xA architectures, this optical modem module converts electrical signals to optical transmission, eliminating electromagnetic interference vulnerabilities inherent in copper-based networks while maintaining microsecond-level latency performance essential for real-time process control.

Engineered for mission-critical applications in oil refineries, chemical plants, and power generation facilities, the TB810 addresses the fundamental challenge of maintaining signal integrity in electrically hostile environments. Where traditional copper cabling suffers from ground loop interference, lightning-induced surges, and radio frequency noise, fiber optic transmission provides complete galvanic isolation and immunity to electromagnetic disturbances.

This module serves as the backbone for S800 I/O networks, AC 800M controller communication, and SCADA system integration, delivering consistent 100 Mbps throughput with built-in redundancy support. Its hot-swappable design enables maintenance operations without process interruption, while diagnostic LED indicators accelerate commissioning and troubleshooting workflows.

Core Capabilities & Technical Advantages

→ Dual-Mode Fiber Compatibility: Supports both multi-mode (up to 2 km) and single-mode (up to 15 km) fiber optic cables, enabling flexible network topology design based on site-specific distance requirements and existing infrastructure investments.

→ Protocol-Agnostic Architecture: Natively handles ModuleBus and Ethernet/IP protocols without configuration changes, simplifying integration with legacy Advant systems and modern 800xA platforms within the same network infrastructure.

→ Extended Temperature Resilience: Operates reliably across -40°C to +70°C ambient conditions, meeting the thermal demands of outdoor substations, desert installations, and arctic processing facilities without auxiliary cooling systems.

→ Intrinsically Safe Design: ATEX Zone 2 certification permits installation in hazardous area boundaries, while fiber optic transmission eliminates spark ignition risks associated with electrical faults in copper networks.

✓ Hot-Swap Serviceability: Field-replaceable without system shutdown or network reconfiguration, reducing mean time to repair (MTTR) from hours to minutes during critical maintenance windows.

✓ Redundancy-Ready Configuration: Supports ring, star, and dual-homed topologies for fault-tolerant network designs, ensuring continuous operation even during fiber cable damage or module failure scenarios.

Industrial Application Scenarios

Offshore Oil & Gas Platforms: In marine environments where saltwater corrosion and electromagnetic interference from high-voltage equipment compromise copper networks, the TB810 maintains reliable communication between topside control rooms and subsea wellhead controllers across distances exceeding 5 kilometers. The module's corrosion-resistant housing and vibration tolerance meet DNV-GL offshore certification requirements.

Electrical Substation Automation: Power utilities deploy TB810 modules to connect protective relays, transformer monitors, and circuit breaker controllers within high-voltage switchyards. Fiber optic isolation prevents ground potential rise during fault conditions from damaging control equipment, while 15 km single-mode capability links remote substations to central SCADA systems.

Chemical Process Safety Systems: Safety Instrumented Systems (SIS) in chemical plants leverage TB810 optical modems to achieve IEC 61508 SIL 3 certification for emergency shutdown networks. The module's deterministic latency and immunity to process equipment interference ensure sub-10ms response times for critical safety interlocks.

Water Treatment SCADA Networks: Municipal water authorities use TB810 modules to connect remote pump stations, reservoir level sensors, and chlorination systems across metropolitan areas. Single-mode fiber links spanning 10+ kilometers eliminate the need for intermediate repeaters, reducing infrastructure costs and failure points.

Mining Conveyor Control: Underground mining operations deploy TB810 modules in fiber optic rings connecting conveyor PLCs, crusher controllers, and ventilation systems. The module's -40°C cold-start capability and dust-resistant enclosure withstand harsh underground conditions where copper networks fail within months.

Technical Specifications & Selection Criteria

Selection Criteria: Choose TB810 when network distances exceed 100 meters, electrical isolation is required for safety compliance, or existing infrastructure experiences chronic EMI-related communication failures. For distances under 100m in electrically clean environments, consider copper-based TB820 modules for cost optimization. When integrating with non-ABB systems, verify Ethernet/IP compatibility or specify TB840A for pure ModuleBus applications.

Advanced Integration Capabilities

The TB810 module integrates seamlessly with ABB's System 800xA engineering environment through automatic device discovery and configuration download. Engineers can monitor real-time optical power levels, bit error rates, and link quality metrics directly from the 800xA operator workplace, enabling predictive maintenance before fiber degradation causes network failures.

For IoT and Industry 4.0 initiatives, TB810 modules support OPC UA server connectivity, allowing cloud-based analytics platforms to access process data without compromising control network security. The module's built-in firewall features permit unidirectional data flow from field devices to enterprise systems while blocking unauthorized access attempts.

Customization options include extended-temperature variants (-55°C to +85°C), conformal coating for extreme humidity environments, and dual-redundant power input configurations for nuclear and pharmaceutical applications requiring 99.999% uptime.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for stock items; 4-6 weeks for factory-configured modules with custom firmware or extended certifications.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship; extended 60-month service contracts available for critical infrastructure applications.

Technical Support: Lifetime access to ABB-certified application engineers for integration assistance, network troubleshooting, and firmware updates. On-site commissioning services available for projects exceeding 50 modules.

Documentation Package: Includes installation manual, fiber optic cable specifications, network topology design guidelines, and AutoCAD DWG files for panel layout integration.

Frequently Asked Questions

Q: Can the TB810 optical modem interface directly with third-party PLCs using Modbus TCP?
A: Yes, when configured in Ethernet/IP mode, the TB810 supports Modbus TCP encapsulation, enabling communication with Siemens, Schneider Electric, and Rockwell Automation controllers. Consult the integration guide for VLAN configuration requirements.

Q: What fiber optic cable specifications are required for maximum 15 km transmission distance?
A: Single-mode fiber with 9/125 μm core/cladding diameter, LC or ST connectors, and ≤0.5 dB/km attenuation at 1310nm wavelength. Budget 1.5 dB loss per connector pair and 0.3 dB per fusion splice when calculating link budget.

Q: How does the TB810 module reduce energy consumption compared to copper-based repeater networks?
A: By eliminating the need for intermediate powered repeaters every 100 meters, a 5 km fiber network using TB810 modules consumes 85% less power than equivalent copper infrastructure with signal boosters, translating to $2,000+ annual savings in large installations.

Q: What installation requirements must be met for hot-swap module replacement without network disruption?
A: The network must be configured in redundant ring or dual-homed topology with automatic failover enabled in the 800xA controller. Replacement modules must be pre-configured with identical IP addresses and firmware versions before physical swap.

Q: Does the TB810 support remote firmware updates for cybersecurity patch deployment?
A: Yes, firmware updates can be deployed remotely via the 800xA engineering station using secure FTP transfer. The module automatically validates firmware integrity and rolls back to previous version if update verification fails.

Q: Can TB810 modules operate in explosive atmosphere environments classified as ATEX Zone 1?
A: Standard TB810 modules are certified for Zone 2 applications only. For Zone 1 installations, specify the TB810-EX variant with enhanced enclosure sealing and intrinsically safe barrier integration.

Take the Next Step

Eliminate electromagnetic interference challenges in your control network infrastructure. Contact our automation specialists to receive a customized fiber optic network design, ROI analysis comparing copper vs. fiber deployment costs, and compatibility verification with your existing ABB or third-party control systems. Request a technical consultation today to ensure your TB810 implementation meets performance, safety, and budget requirements.
