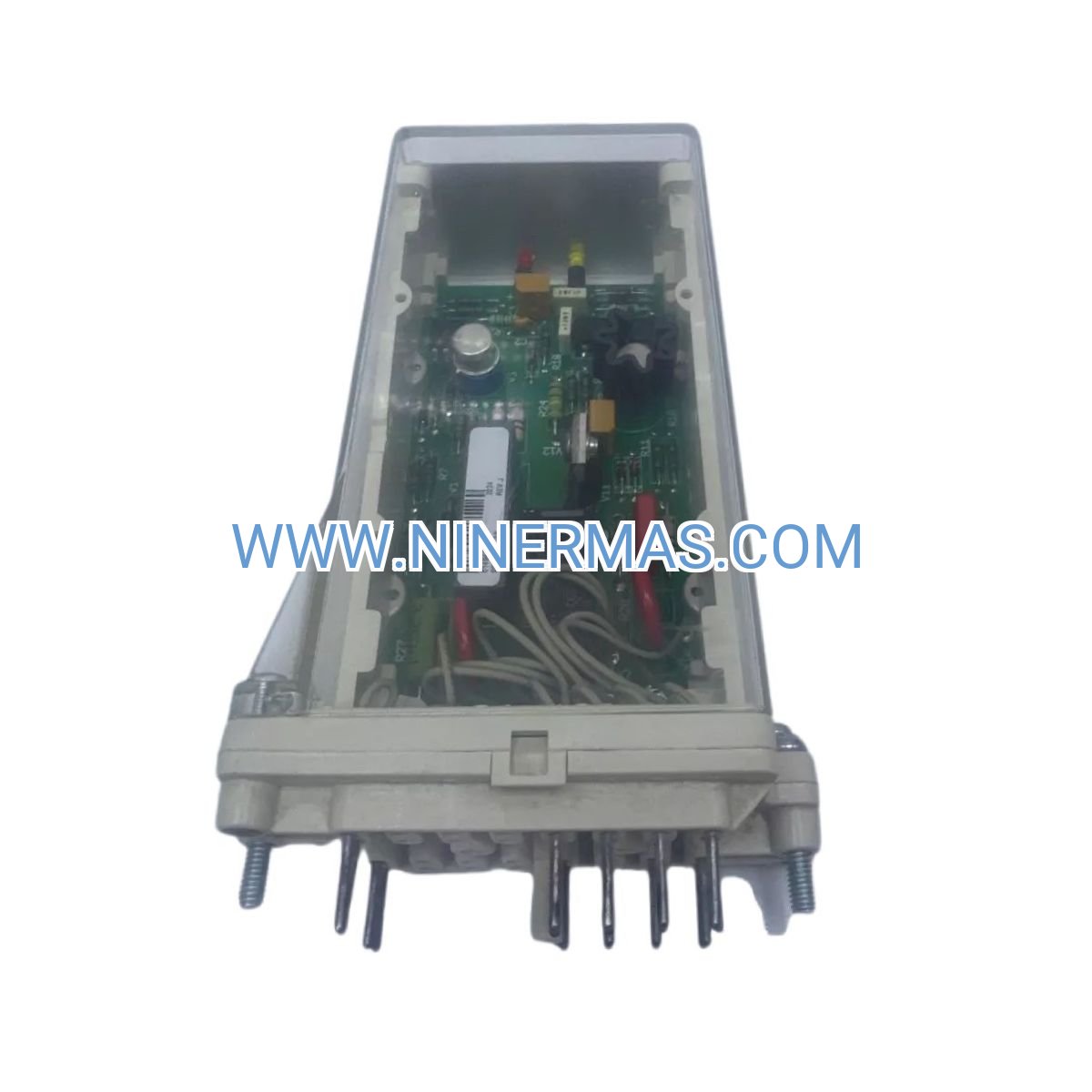

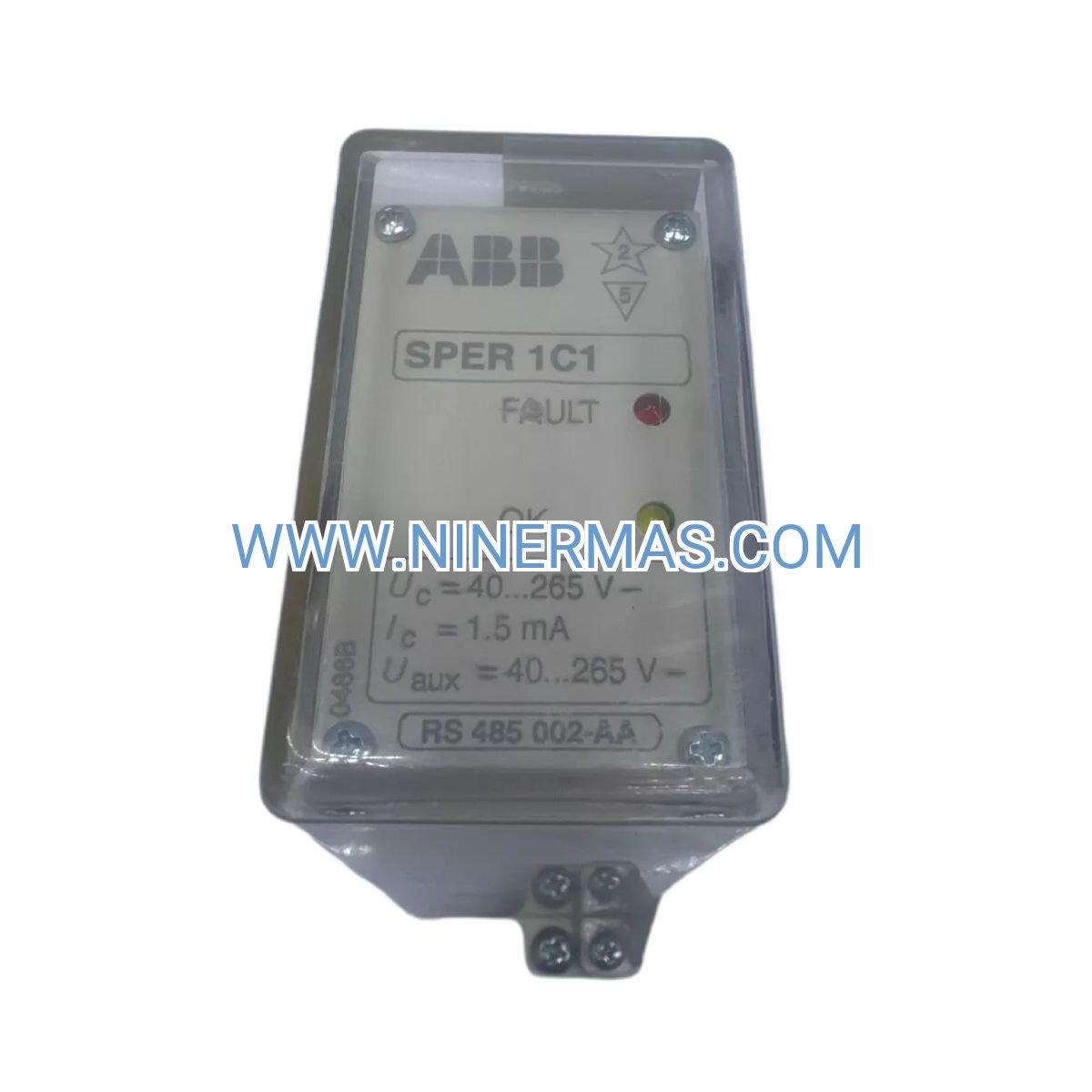

ABB SPER1C1-AAJ Trip Circuit Supervision Relay (Industrial-Grade Protection Device)

The ABB SPER1C1-AAJ represents a specialized protection relay engineered to continuously monitor the health and readiness of circuit breaker trip circuits in critical electrical infrastructure. By detecting hidden faults before they compromise safety systems, this relay serves as an essential safeguard in substations, switchgear installations, and industrial power distribution networks where circuit breaker reliability directly impacts operational continuity and personnel safety.

Designed for utility-grade applications and heavy industrial environments, the SPER1C1-AAJ addresses a fundamental vulnerability in electrical protection systems: the inability to detect trip circuit failures until a fault event occurs. Through continuous impedance monitoring and intelligent fault discrimination, this relay provides early warning of degraded connections, broken wiring, or coil deterioration—ensuring your protection systems remain ready to respond when needed most.

With its wide operating voltage range (40-265V DC), dual alarm outputs, and robust construction meeting IEC 60255 standards, the SPER1C1-AAJ delivers reliable supervision across diverse installation environments. Whether protecting critical infrastructure, industrial processes, or renewable energy systems, this relay provides the assurance that your circuit breakers will operate when protection relays demand action.

Key Features & Technical Advantages

✓ Continuous Trip Circuit Monitoring
Injection of low-level supervision current enables real-time impedance measurement without interfering with normal breaker operation. Detects open circuits, short circuits, and high-resistance faults that could prevent trip coil energization during fault conditions.

✓ Wide DC Voltage Compatibility (40-265V DC)
Accommodates various substation battery systems including 48V, 110V, 125V, and 220V DC nominal voltages. Maintains accurate supervision during battery discharge cycles and charging operations, ensuring consistent protection across voltage fluctuations.

✓ Dual Changeover Relay Outputs (2× SPDT)
Independent alarm contacts support local annunciation and remote SCADA integration simultaneously. 5A contact rating at 250V AC provides compatibility with diverse alarm circuits and control system interfaces.

✓ Fast Fault Detection Response (<50ms)
Rapid anomaly detection minimizes the window of vulnerability when trip circuits develop faults. Advanced filtering algorithms distinguish genuine circuit degradation from transient electromagnetic interference or switching transients.

✓ Fail-Safe Design Architecture
Loss of auxiliary power or internal relay failure causes alarm outputs to de-energize, triggering immediate fault indication. This design philosophy ensures that relay malfunctions cannot mask trip circuit problems.

✓ Compact DIN Rail Mounting
Space-efficient form factor (typically 22.5mm width) enables installation in crowded control panels. Tool-free DIN rail attachment facilitates rapid deployment and simplified maintenance procedures.

Industrial Application Scenarios

→ Transmission & Distribution Substations
Utility companies deploy the SPER1C1-AAJ to supervise high-voltage circuit breaker trip circuits in transmission substations (69kV-500kV) and distribution substations (4kV-34.5kV). The relay detects wiring deterioration caused by environmental exposure, vibration, or thermal cycling—preventing protection system failures that could lead to cascading outages or equipment damage.

→ Industrial Manufacturing Facilities
Manufacturing plants with medium-voltage distribution systems (2.4kV-13.8kV) use trip circuit supervision to maintain production continuity. Early detection of trip circuit faults enables scheduled maintenance during planned outages rather than emergency shutdowns, reducing production losses and maintenance costs.

→ Power Generation Stations
Generator circuit breakers in thermal power plants, combined-cycle facilities, and hydroelectric stations require absolute trip reliability. The SPER1C1-AAJ provides continuous verification that generator protection systems can isolate faults, protecting multi-million dollar turbine-generator sets from damage.

→ Data Centers & Mission-Critical Facilities
Hospitals, telecommunications hubs, financial data centers, and emergency services facilities cannot tolerate electrical system failures. Trip circuit supervision adds a critical layer of reliability assurance, supporting uptime requirements of 99.99% or higher.

→ Renewable Energy Installations
Solar photovoltaic farms, wind turbine collector substations, and battery energy storage systems operate in remote locations with limited maintenance access. The SPER1C1-AAJ enables remote monitoring of trip circuit health, reducing site visits and improving system availability.

Technical Specifications & Selection Guide

Selection Criteria: Verify that your station battery voltage falls within the 48-220V DC auxiliary supply range. Confirm that trip circuit voltage matches the 40-265V DC monitoring range. For AC trip circuits or voltages outside these ranges, alternative ABB supervision relay models are available—contact our technical team for application-specific recommendations.

Advanced Protection Capabilities

Trip circuit failures represent a critical hidden vulnerability in electrical protection systems. Unlike primary equipment faults that trigger immediate alarms, trip circuit degradation often goes undetected until a protection relay attempts to trip a circuit breaker during a fault event—at which point the failure to trip can result in equipment destruction, fire hazards, or safety incidents.

The SPER1C1-AAJ employs continuous impedance monitoring technology to detect trip circuit anomalies before they compromise protection system integrity. A low-level supervision current (typically in the milliampere range) flows through the trip circuit continuously, allowing the relay to measure circuit resistance and detect deviations from normal parameters.

Common trip circuit faults detected by the SPER1C1-AAJ include: broken control wiring due to vibration or mechanical damage; corroded terminal connections caused by environmental exposure; degraded trip coil insulation from thermal aging; blown fuses in trip circuit paths; and high-resistance joints from loose terminal screws. Each of these conditions increases trip circuit impedance beyond acceptable thresholds, triggering immediate alarm activation.

The relay's intelligent filtering algorithms prevent false alarms during normal circuit breaker operations. When a protection relay initiates a trip command, the supervision function temporarily suspends monitoring to avoid misinterpreting the trip event as a circuit fault. After the trip sequence completes and the circuit breaker opens, supervision automatically resumes—verifying that the trip circuit has returned to its normal monitored state.

Integration & Connectivity Options

The dual changeover relay outputs provide flexible alarm routing configurations. In typical installations, one contact drives a local annunciator panel or alarm horn, providing immediate notification to on-site personnel. The second contact integrates with SCADA systems, remote terminal units (RTUs), or programmable logic controllers (PLCs) for remote monitoring, event logging, and automated response procedures.

Contact ratings of 5A at 250V AC support direct connection to alarm circuits, control relays, or PLC input modules without requiring intermediate interface relays. The changeover (SPDT) configuration enables both normally-open and normally-closed alarm logic, accommodating diverse control system architectures and fail-safe requirements.

Terminal blocks accept wire sizes from 0.5mm² to 2.5mm² (20-14 AWG), compatible with standard control wiring practices. Screw terminals provide secure connections that withstand vibration and thermal cycling common in substation environments. Clear terminal labeling and comprehensive wiring diagrams simplify installation and reduce commissioning time.

Delivery Timeline & Technical Support

Standard Lead Time: In-stock units ship within 2-3 business days via express courier. Typical delivery to major cities: 5-7 business days. Remote locations may require 7-10 business days depending on logistics infrastructure.

Warranty Coverage: All ABB SPER1C1-AAJ relays include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty service includes free replacement of defective units and technical support for troubleshooting and application assistance.

Technical Documentation: Each relay ships with installation manual, wiring diagrams, technical specifications, and commissioning test procedures. Additional resources including application notes, CAD drawings, and integration guides are available for download from our technical library.

Engineering Support: Our technical team provides pre-sales application engineering assistance, helping you select appropriate supervision relay configurations for your specific installation requirements. Post-sales support includes commissioning guidance, troubleshooting assistance, and integration consulting for complex protection schemes.

Frequently Asked Questions

How does trip circuit supervision improve electrical system reliability?
Trip circuit supervision detects hidden faults in circuit breaker control wiring before they compromise protection system operation. By identifying degraded connections, broken wires, or coil failures during normal operation, the relay enables scheduled maintenance rather than discovering faults during emergency conditions when circuit breaker operation is critical.

What is the typical installation time for the SPER1C1-AAJ relay?
Experienced technicians can install and commission a single relay in approximately 30-45 minutes, including DIN rail mounting, wiring connections, functional testing, and alarm verification. Bulk installations benefit from standardized wiring templates and pre-fabricated control cables.

Can the relay monitor trip circuits for multiple circuit breakers?
No, each SPER1C1-AAJ unit supervises a single trip circuit. For installations with multiple circuit breakers, deploy one supervision relay per breaker to ensure comprehensive monitoring coverage. This one-to-one architecture provides fault isolation and prevents a single relay failure from affecting multiple breakers.

Does the supervision current affect circuit breaker trip coil life?
No, the low-level supervision current (typically <10mA) is far below the trip coil operating threshold and does not cause coil heating or mechanical wear. The supervision function operates continuously for years without impacting trip coil reliability or service life.

What maintenance procedures are required for the SPER1C1-AAJ?
The solid-state design requires minimal maintenance. Annual functional testing is recommended to verify alarm output operation and confirm proper integration with annunciation systems. Test procedures include simulating trip circuit faults (open circuit and high resistance) and verifying alarm activation. No field calibration or adjustment is necessary.

How does the relay perform in high electromagnetic interference environments?
The SPER1C1-AAJ incorporates EMI filtering and shielding designed to meet IEC 60255 immunity requirements for substation environments. The relay operates reliably in proximity to high-voltage switchgear, power transformers, and high-current busbars without false alarms or performance degradation.

Request Technical Consultation

Selecting the optimal trip circuit supervision solution requires careful consideration of your specific application requirements, existing protection schemes, and integration constraints. Our application engineering team is available to discuss your project needs, recommend appropriate configurations, and provide technical guidance for successful implementation.

Contact us today to discuss your circuit breaker protection requirements and receive a detailed technical proposal tailored to your installation. We provide comprehensive support from initial specification through commissioning and ongoing operation.
