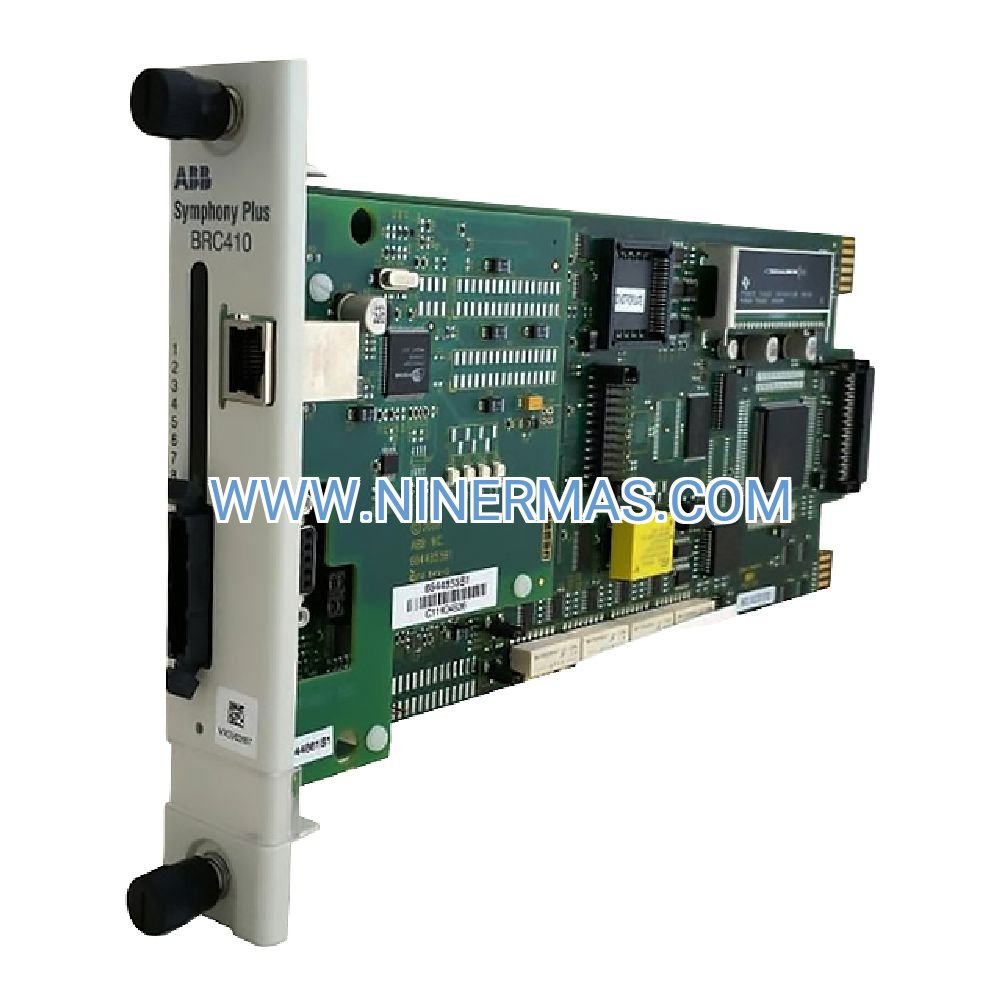

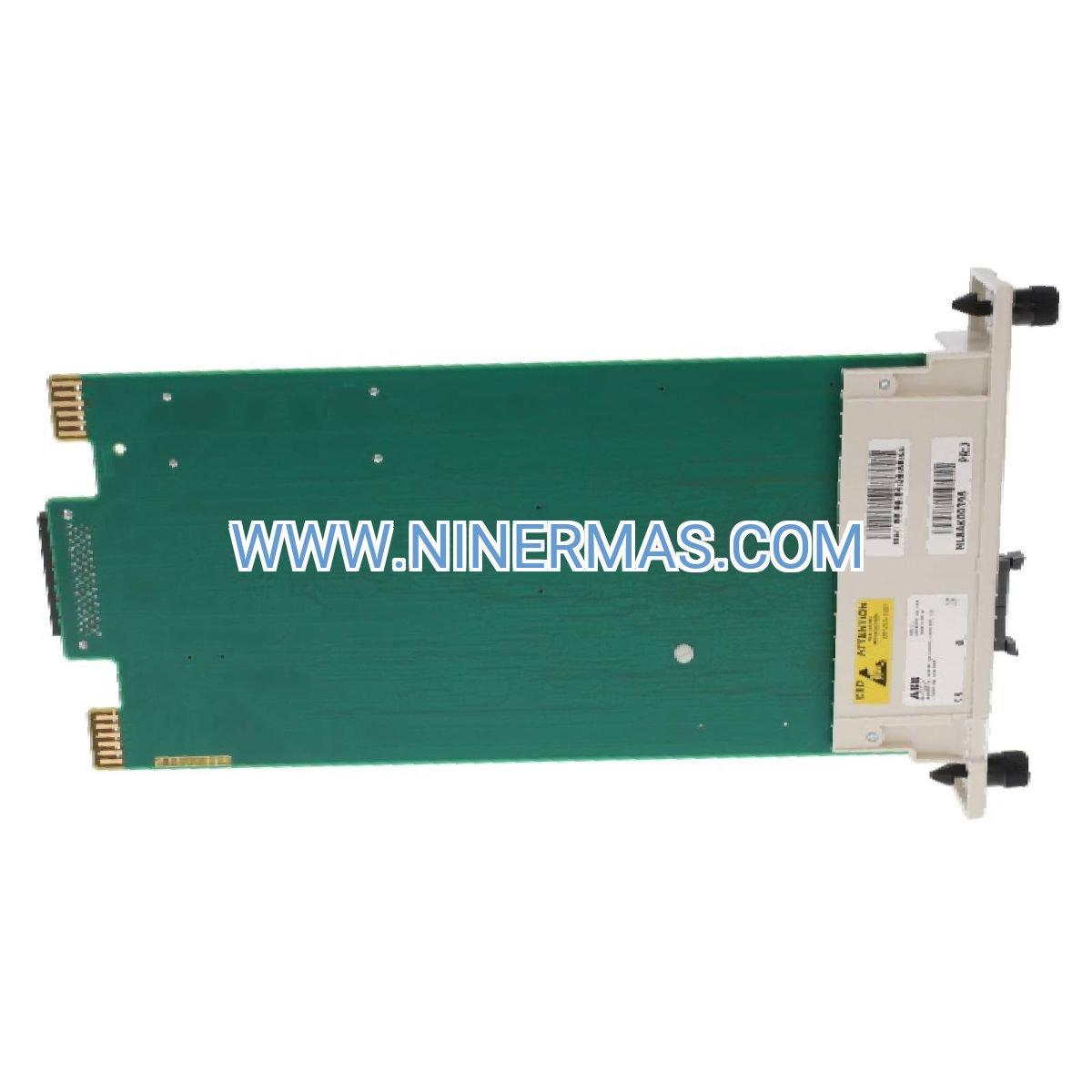

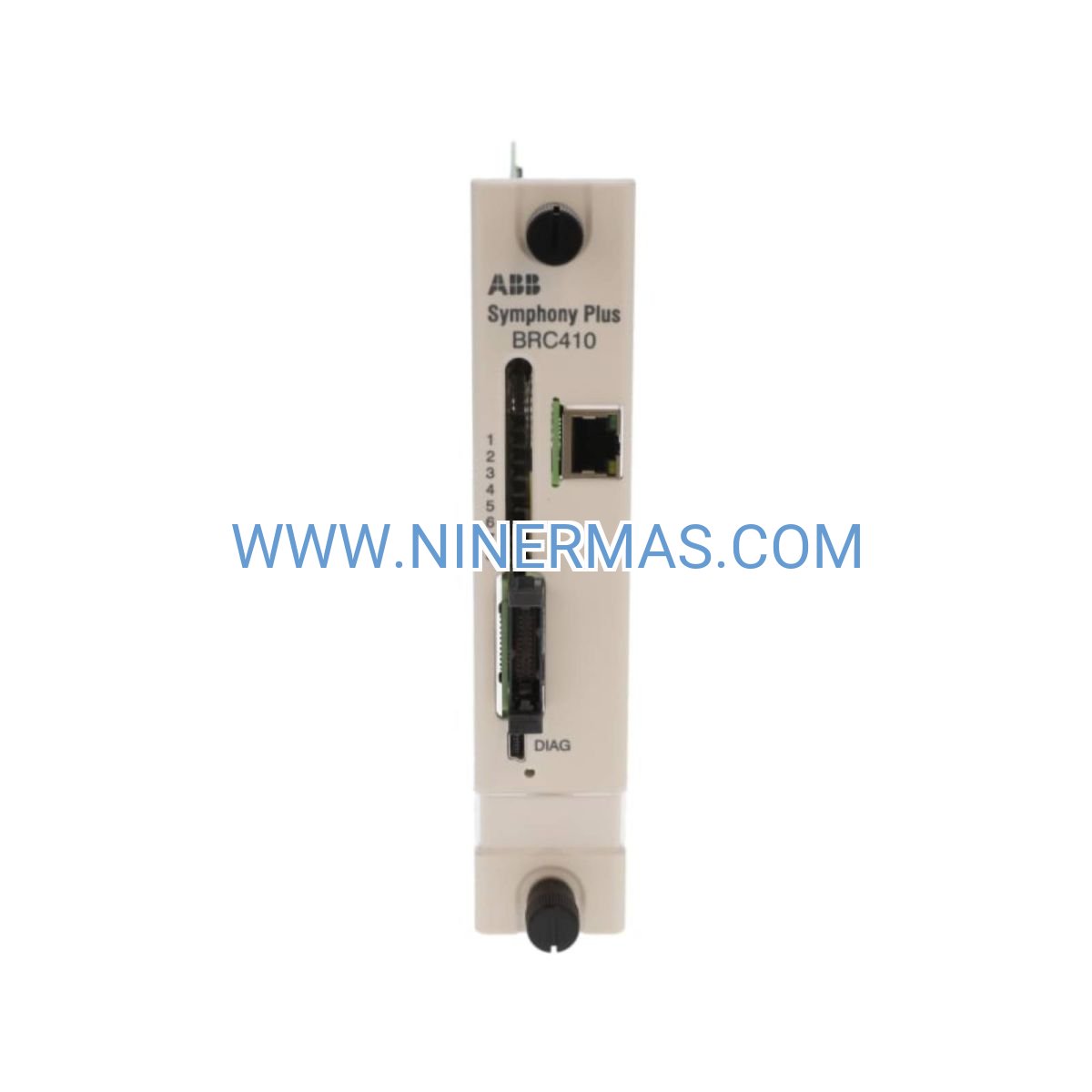

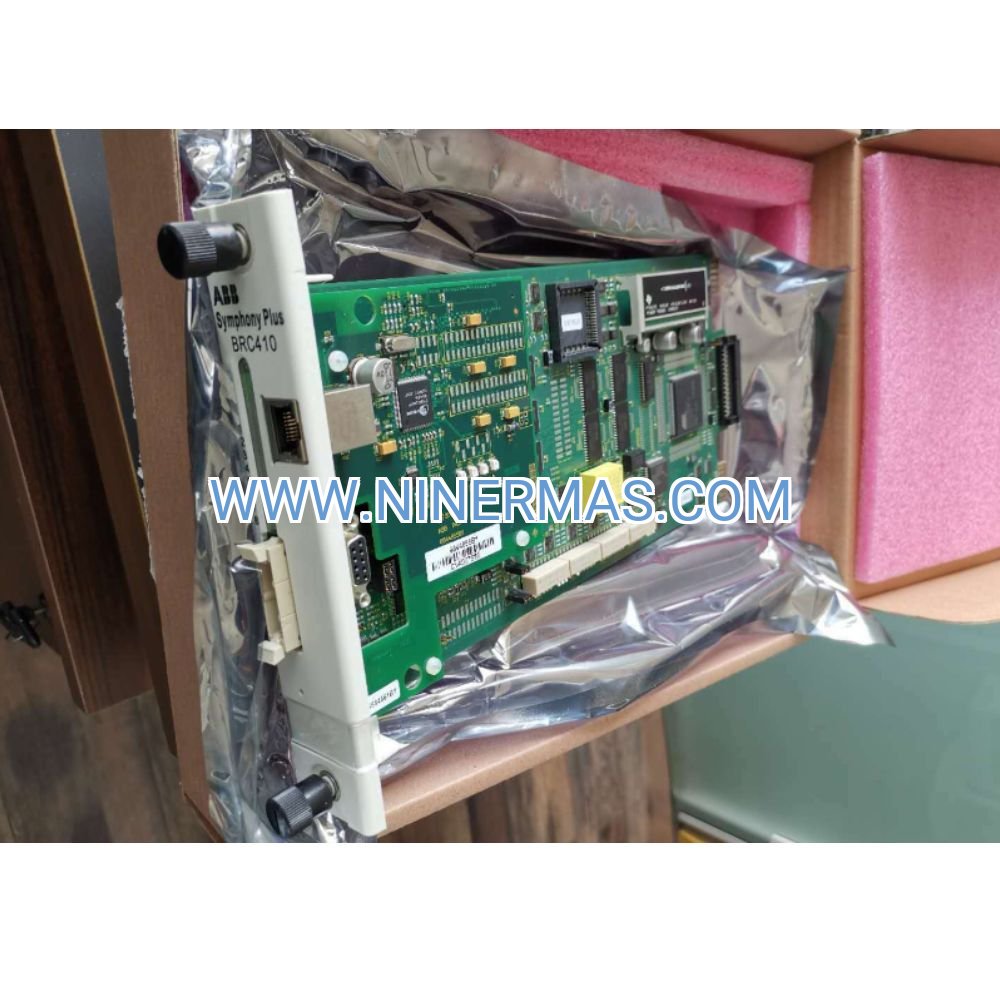

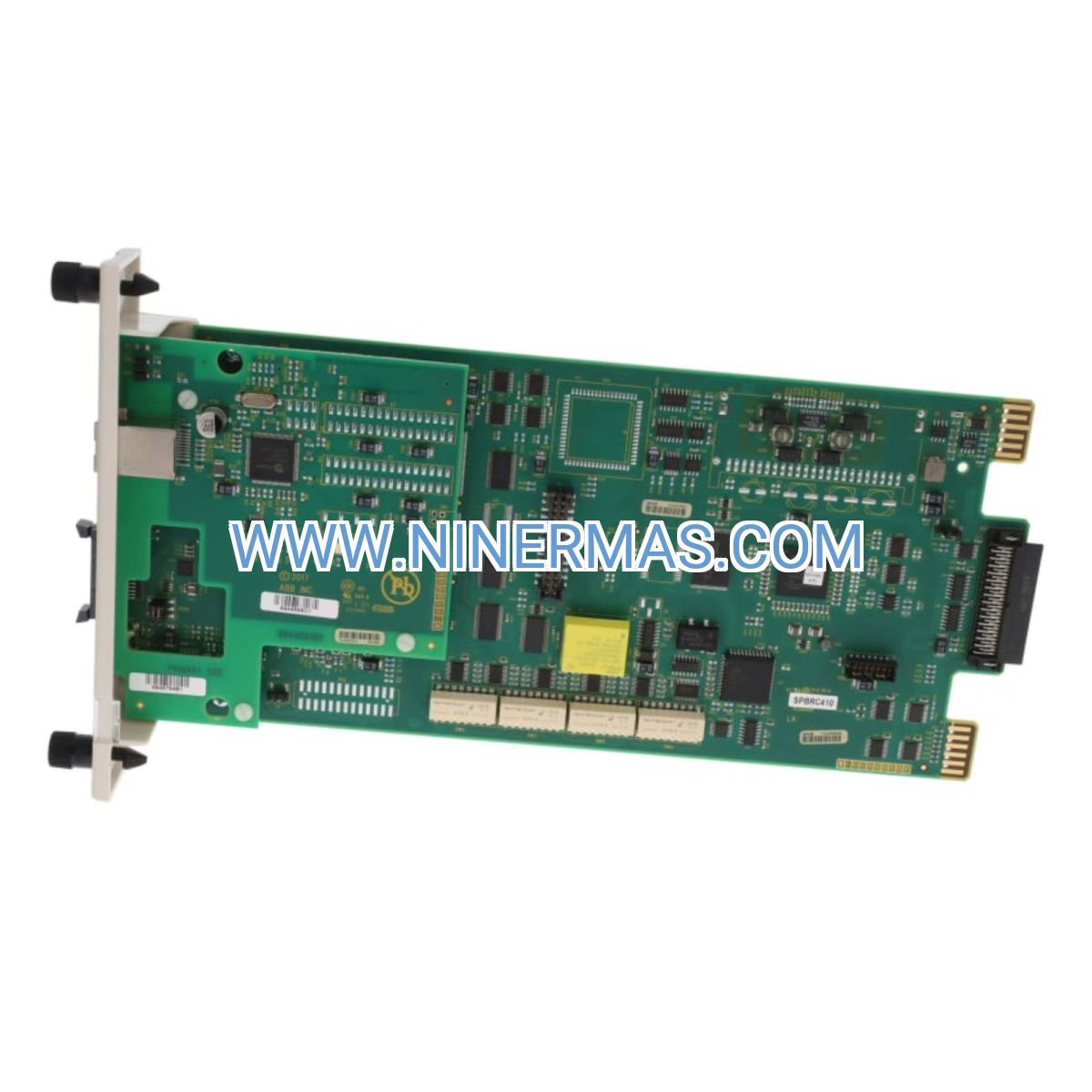

ABB SPBRC410 Bridge Controller (Industrial-Grade Modbus TCP Processor)

The ABB SPBRC410 represents a proven solution for distributed control applications requiring deterministic Ethernet communication and centralized bridge processing. Built on Symphony Plus architecture, this controller delivers real-time control execution while managing extensive Modbus TCP slave networks across process automation, manufacturing control, and critical infrastructure installations.

Engineered for integration with ABB Symphony Plus, Bailey INFI 90 legacy platforms, and Harmony Gateway software ecosystems, the SPBRC410 serves as the communication backbone for multi-vendor device networks. Its 100 MHz processor handles complex control algorithms while maintaining consistent scan cycles, even under maximum network load conditions with 128 connected slave devices.

Industrial operators choose the SPBRC410 for applications demanding reliable uptime, extended temperature tolerance, and seamless SCADA integration. The controller's compact Harmony Rack mounting design reduces panel footprint while its integrated battery backup protects critical configuration data during power transitions—essential for continuous process industries where unplanned downtime carries significant operational costs.

Core Features & Benefits

→ High-Performance Processing Architecture
100 MHz CPU delivers deterministic control execution with 128 MB onboard memory for program storage, data buffering, and historical trending. Ensures consistent scan times even during peak communication loads, critical for time-sensitive process control applications.

→ Scalable Modbus TCP Connectivity
Single Ethernet port supports up to 128 Modbus TCP slave devices across distributed networks. Enables multi-vendor integration while maintaining protocol efficiency, reducing engineering complexity in heterogeneous automation environments.

→ Extended Battery Backup Protection
Integrated battery system provides up to 10 years of configuration data retention during power interruptions. Eliminates reprogramming requirements after outages, reducing maintenance overhead and restart time in critical applications.

→ Wide Operating Temperature Range
Rated for -25°C to +70°C ambient conditions without derating. Supports deployment in extreme environments including outdoor enclosures, unheated facilities, and high-temperature process areas where standard controllers require additional cooling.

✓ Compact Harmony Rack Integration
Direct mounting compatibility with HR Series racks simplifies installation and reduces wiring labor. Standardized form factor (101.6 x 254 x 203.2 mm) optimizes panel space utilization in retrofit and new construction projects.

✓ IEC Compliance & CE Certification
Meets international industrial automation standards for electromagnetic compatibility, safety, and reliability. Ensures regulatory conformity for global deployments across manufacturing, energy, and infrastructure sectors.

Application Scenarios

Process Manufacturing Control
Chemical processing plants deploy the SPBRC410 to coordinate reactor temperature control, flow regulation, and batch sequencing across distributed field devices. The controller's Modbus TCP interface integrates legacy instrumentation with modern SCADA platforms, extending asset lifespan while enabling centralized monitoring. Operators gain real-time visibility into process variables without replacing existing field equipment.

Water & Wastewater Treatment
Municipal treatment facilities utilize the SPBRC410 for pump station control, filtration system automation, and chemical dosing management. Its extended temperature rating supports outdoor installation in pump houses and remote lift stations, while battery backup ensures continuous operation during utility power fluctuations common in infrastructure applications.

Energy Generation & Distribution
Power generation facilities implement the SPBRC410 for auxiliary system control including cooling water circulation, fuel handling, and emissions monitoring. The controller's ability to manage 128 slave devices consolidates multiple control points into a single processing node, reducing hardware costs and simplifying network architecture in complex energy installations.

Manufacturing Automation
Discrete manufacturing operations leverage the SPBRC410 for conveyor control, material handling coordination, and production line sequencing. Integration with Symphony Plus enables unified control strategies across multiple production cells, while Modbus TCP connectivity supports third-party robotics, vision systems, and quality inspection equipment.

Building Automation & HVAC
Commercial facilities deploy the SPBRC410 for central plant control, chiller sequencing, and energy management. The controller coordinates variable frequency drives, valve actuators, and sensor networks to optimize energy consumption while maintaining occupant comfort—critical for reducing operational costs in large commercial and institutional buildings.

Technical Parameters & Selection Guide

Selection Criteria: Choose the SPBRC410 when your application requires centralized Modbus TCP communication management with Symphony Plus integration. Ideal for systems with 50-128 distributed devices requiring deterministic control execution. For smaller networks (under 50 devices), consider the BRC300 for cost optimization. For applications requiring redundant processing, evaluate dual-controller architectures with failover capabilities.

Extended Functions

SCADA & HMI Integration: The SPBRC410's Ethernet connectivity enables direct integration with Wonderware, Ignition, FactoryTalk, and other SCADA platforms via standard Modbus TCP drivers. Operators gain real-time process visualization, alarm management, and historical trending without proprietary gateways or protocol converters.

Multi-Platform Compatibility: Beyond Symphony Plus, the controller interfaces with Bailey INFI 90 legacy systems and Harmony Gateway software, protecting existing automation investments while enabling phased migration strategies. This backward compatibility extends system lifespan and reduces total cost of ownership in brownfield installations.

Custom Configuration Services: NINERMAS offers pre-configured SPBRC410 units with customer-specific network parameters, device mappings, and control logic. This turnkey approach reduces commissioning time and minimizes on-site programming requirements—particularly valuable for remote installations or projects with tight deployment schedules.

Delivery & Service Assurance

Lead Time: Standard SPBRC410 units ship within 3-5 business days from order confirmation. Custom-configured controllers require 7-10 business days for programming, testing, and quality verification. Expedited processing available for critical outage situations and emergency replacements.

Warranty Coverage: All SPBRC410 controllers include a 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for up to 36 months, providing additional protection for mission-critical applications.

Technical Support: NINERMAS provides lifetime technical support including configuration assistance, troubleshooting guidance, and integration consulting. Our engineering team offers remote diagnostics, firmware updates, and application-specific programming support to ensure optimal system performance.

Documentation Package: Each controller ships with installation manual, wiring diagrams, Modbus register mapping, configuration software, and sample ladder logic programs. Digital documentation library includes CAD drawings, 3D models, and integration guides for common SCADA platforms.

Frequently Asked Questions

How does the SPBRC410 connect to existing Symphony Plus systems?
The controller mounts directly into Harmony Rack (HR Series) enclosures and connects via standard Ethernet cabling to Symphony Plus networks. Configuration is performed through Harmony Gateway software using Modbus TCP device profiles. No proprietary communication cards or adapters required—standard RJ45 Ethernet connectivity simplifies installation and reduces hardware costs.

What is the maximum network distance for Modbus TCP slave devices?
Using standard Ethernet infrastructure, the SPBRC410 supports slave devices up to 100 meters away via copper cabling (Cat5e/Cat6). For extended distances, deploy industrial Ethernet switches with fiber optic uplinks to reach devices several kilometers away while maintaining deterministic communication performance. Network topology supports star, ring, and linear configurations depending on application requirements.

Can the SPBRC410 reduce energy consumption in process control applications?
Yes—the controller's low 10W power consumption reduces electrical operating costs compared to legacy bridge controllers drawing 25-40W. Additionally, its ability to coordinate variable frequency drives, optimize pump sequencing, and implement demand-based control strategies can reduce overall process energy consumption by 15-30% depending on application specifics and baseline efficiency.

What installation requirements are needed for harsh environment deployment?
The SPBRC410's -25°C to +70°C rating eliminates the need for environmental conditioning in most industrial settings. Mount the controller in a NEMA-rated enclosure appropriate for the installation environment (NEMA 4/4X for outdoor or washdown areas). Ensure adequate ventilation for heat dissipation and protect Ethernet connections with industrial-grade connectors rated for vibration and moisture exposure.

Does the controller support remote monitoring and diagnostics?
Yes—when integrated with Symphony Plus or third-party SCADA systems, the SPBRC410 enables remote access to process variables, diagnostic data, and configuration parameters via secure VPN connections. Operators can monitor controller status, network health, and slave device communication from centralized control rooms or mobile devices, reducing the need for on-site troubleshooting visits.

How long does battery backup maintain configuration data during power loss?
The integrated battery system preserves all configuration data, control programs, and network parameters for up to 10 years without external power. This eliminates reprogramming requirements after extended outages and ensures rapid system restart when power is restored—critical for minimizing downtime in continuous process applications.

Get Your SPBRC410 Bridge Controller Quote Today

Ready to upgrade your distributed control network with proven Modbus TCP connectivity? Contact our industrial automation specialists for application-specific configuration guidance, volume pricing, and technical integration support. We'll help you determine the optimal controller setup for your Symphony Plus environment and provide complete documentation for seamless deployment.
