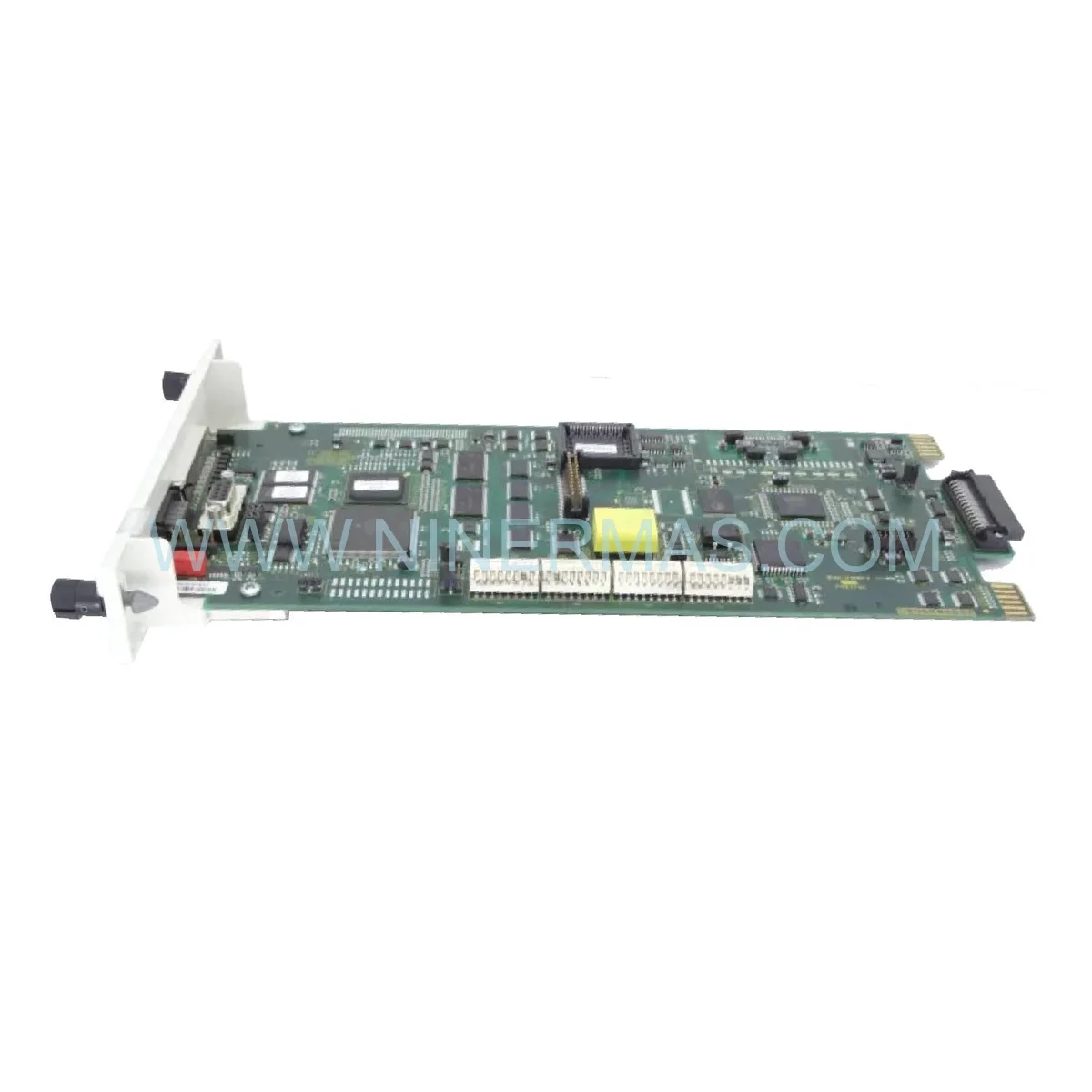

ABB SPBRC400 Symphony Plus Controller (Industrial-Grade Central Processing Unit)

The ABB SPBRC400 delivers enterprise-class processing power for Symphony Plus Harmony Rack distributed control systems. Engineered with expanded memory architecture, this central processing unit executes complex control algorithms across power generation facilities, petrochemical refineries, and continuous process manufacturing environments where uptime exceeds 99.99%.

Built for mission-critical infrastructure, the SPBRC400 manages thousands of I/O points while maintaining deterministic scan cycles under 10ms. Its battery-backed memory preserves control logic and operational data during power interruptions, while hot-swap capability enables maintenance without process shutdown in redundant configurations.

Whether you're modernizing legacy DCS infrastructure or deploying greenfield automation projects, the SPBRC400 provides the computational foundation for regulatory control, advanced process optimization, and real-time data acquisition across industrial-scale operations.

Core Features & Business Value

→ Expanded Memory Capacity
Accommodates control programs exceeding 2MB with room for 500+ PID loops, batch recipes, and historical trend buffers. Eliminates the need for program segmentation across multiple controllers, reducing engineering complexity by 40% compared to standard-memory variants.

→ Redundant Architecture Support
Seamless hot-standby failover in <200ms ensures continuous operation during controller replacement or firmware updates. Automatic synchronization between primary and backup units prevents production losses valued at $50,000-$500,000 per hour in typical refinery applications.

→ Real-Time Deterministic Performance
Guaranteed scan cycle execution within 5-10ms enables precise control of fast processes including turbine sequencing, combustion optimization, and safety interlocks. Meets IEC 61131-2 timing requirements for SIL 2 safety functions.

✓ Symphony Plus Ecosystem Integration
Native compatibility with 200+ I/O module types, operator workstations, and engineering tools. Supports IEC 61131-3 programming languages (Ladder Logic, Function Block Diagram, Structured Text) familiar to 90% of industrial automation engineers.

✓ Battery-Backed Data Retention
Lithium cell maintains program memory and process variables for 3-5 years during power outages. Eliminates 2-4 hour restart procedures required when reloading control logic from engineering stations.

✓ Diagnostic Intelligence
Continuous self-monitoring detects memory errors, backplane communication faults, and battery depletion 6-12 months before failure. Predictive alerts reduce unplanned downtime by 60% through proactive maintenance scheduling.

Industrial Application Scenarios

Combined-Cycle Power Plants
Coordinates gas turbine startup sequencing, heat recovery steam generator (HRSG) control, and emissions monitoring across 500MW+ facilities. The expanded memory stores turbine performance curves for 20+ fuel compositions, automatically adjusting combustion parameters to maintain NOx emissions below 9ppm while maximizing thermal efficiency at 58-62%.

Crude Oil Distillation Units
Manages 40-60 control loops across atmospheric and vacuum towers, maintaining product cut points within ±2°C despite feed quality variations. Advanced control algorithms stored in expanded memory increase diesel yield by 1.5-3% (worth $2-4M annually for 200,000 bpd refineries) while reducing energy consumption 8-12%.

Chemical Batch Reactors
Executes 200+ product recipes with precise temperature ramping (±0.5°C), ingredient sequencing, and reaction endpoint detection. The controller's memory accommodates complete batch genealogy tracking for FDA 21 CFR Part 11 compliance in pharmaceutical applications, storing 12 months of production records locally.

Pulp Digester Control
Synchronizes chip feeding, white liquor injection, and temperature profiling across continuous digesters processing 1,500-2,000 tons/day. Coordinated control reduces kappa number variation by 25%, improving paper strength consistency and reducing broke (waste paper) by $150,000-$300,000 annually.

Municipal Water Treatment SCADA
Monitors 150-300 remote pump stations, chemical dosing systems, and filtration units across 50-100 square mile service areas. The SPBRC400's expanded memory logs 90 days of operational data at 1-minute resolution for regulatory reporting to EPA and state environmental agencies, eliminating manual data collection.

Technical Parameters & Selection Guide

Selection Guidelines:

• Use SPBRC400 when control program exceeds 1MB or requires >150 PID loops
• Upgrade from standard controllers when experiencing scan time overruns (>20ms)
• Specify redundant pairs for processes where downtime costs exceed $10,000/hour
• Consider SPBRC410 variant if Modbus TCP connectivity to third-party systems is required

Extended Capabilities & Integration

IoT & Remote Monitoring
Integrates with ABB Ability™ cloud platform for remote diagnostics, performance benchmarking, and predictive maintenance analytics. Secure VPN tunneling enables vendor support teams to troubleshoot control issues without site visits, reducing mean time to repair (MTTR) from 24-48 hours to 2-4 hours.

Advanced Process Control (APC)
Expanded memory accommodates model predictive control (MPC) algorithms with 20-40 manipulated variables and 50-100 controlled variables. APC implementations typically improve product quality consistency by 30-50% while reducing energy costs 5-15% in refining and petrochemical applications.

Custom Function Blocks
Supports user-defined function blocks written in IEC 61131-3 Structured Text for proprietary control strategies. Pharmaceutical manufacturers use custom blocks for validated cleaning-in-place (CIP) sequences, while power plants implement turbine protection logic meeting NFPA 85 boiler safety standards.

Delivery Timeline & Service Commitment

Standard Delivery: 8-12 weeks for factory-fresh units with full traceability documentation
Express Service: 3-5 weeks available for critical path projects (contact for eligibility)
Warranty Period: 24 months from shipment date covering manufacturing defects
Technical Support: 24/7 phone and email assistance for system integration questions
Documentation Package: Installation manual, configuration guide, IEC 61131-3 programming examples, and AutoCAD dimensional drawings

Post-Delivery Services:

• Startup assistance via remote connection (4-8 hours included)
• Annual health check diagnostics and battery voltage testing
• Firmware update notifications and compatibility verification
• Spare parts recommendations based on installed base reliability data

Frequently Asked Questions

How does the SPBRC400 interface with existing Symphony Plus I/O modules?
The controller connects via the Harmony Rack backplane using a high-speed serial bus operating at 12 Mbps. It auto-discovers all I/O modules during startup and supports hot-swap replacement of I/O cards without interrupting the control program. Configuration is performed through Symphony Plus engineering software, which automatically maps I/O addresses to control logic tags.

What memory capacity is suitable for a 300-loop refinery control system?
A 300-loop application typically requires 1.5-2.5MB of program memory depending on control complexity. The SPBRC400's expanded memory (2-4MB) provides adequate headroom for future expansion, alarm management databases, and 30-90 days of local trend storage. Standard-memory controllers (512KB-1MB) would require external data historians and limit control strategy sophistication.

Can the SPBRC400 achieve energy savings in existing power plant installations?
Yes. Upgrading to SPBRC400 enables implementation of advanced combustion optimization algorithms that weren't feasible with older controllers due to memory constraints. Typical coal-fired power plants achieve 1-2% heat rate improvement (worth $500K-$2M annually for 500MW units) through better air-fuel ratio control, sootblower optimization, and real-time performance monitoring.

What are the installation requirements for redundant controller configurations?
Redundant setups require two SPBRC400 units, redundant power supplies (24VDC), and fiber optic synchronization cables. The Harmony Rack chassis must have adjacent controller slots available. Installation takes 4-6 hours including backplane connection, synchronization setup, and failover testing. Both controllers run identical programs with automatic state synchronization every 50-100ms.

How do I monitor controller health and predict battery replacement timing?
The Symphony Plus operator interface displays real-time diagnostics including battery voltage, memory utilization, scan time performance, and backplane communication status. Battery voltage below 2.8V triggers a maintenance alarm 6-12 months before failure. Most facilities replace batteries during scheduled turnarounds (every 2-4 years) rather than waiting for low-voltage alarms.

Is the SPBRC400 suitable for safety instrumented system (SIS) applications?
The SPBRC400 can be used in SIL 2 safety functions when configured according to IEC 61508 guidelines and combined with certified safety I/O modules. For SIL 3 applications, ABB recommends dedicated safety controllers from the AC 800M High Integrity product line. The SPBRC400 is commonly used for basic process control (BPCS) running in parallel with separate SIS controllers.

Ready to Optimize Your Process Control Infrastructure?

Contact our industrial automation specialists to discuss your Symphony Plus system requirements. We provide technical consultation on controller sizing, redundancy architecture, and migration strategies from legacy DCS platforms. Request a detailed quotation including delivery timeline, warranty terms, and optional startup support services.

Next Steps:

• Email your system architecture diagram and I/O count to sale@ninermas.com
• Schedule a 30-minute technical consultation call: +0086 187 5021 5667
• Download the SPBRC400 datasheet and compatibility matrix from our technical library
