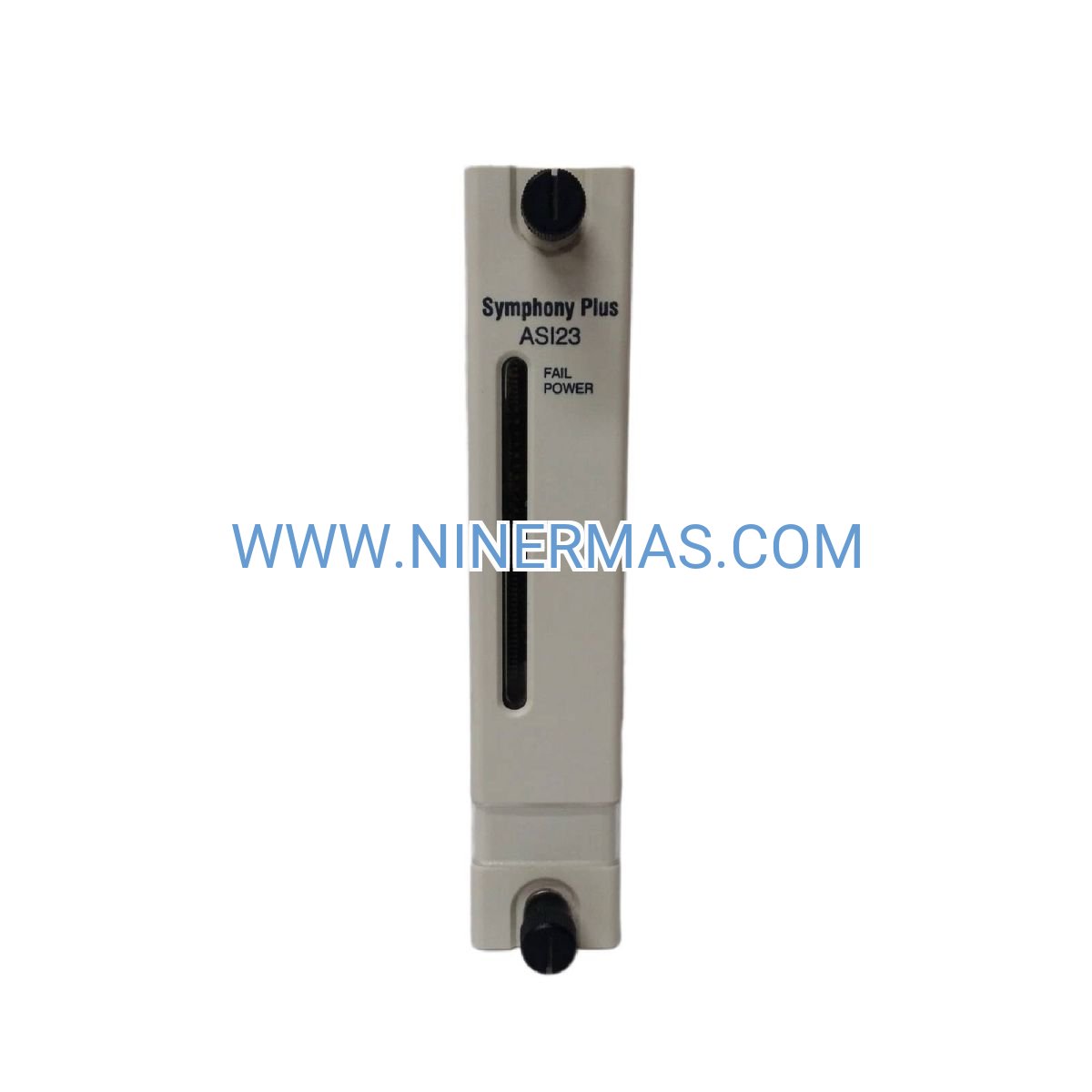

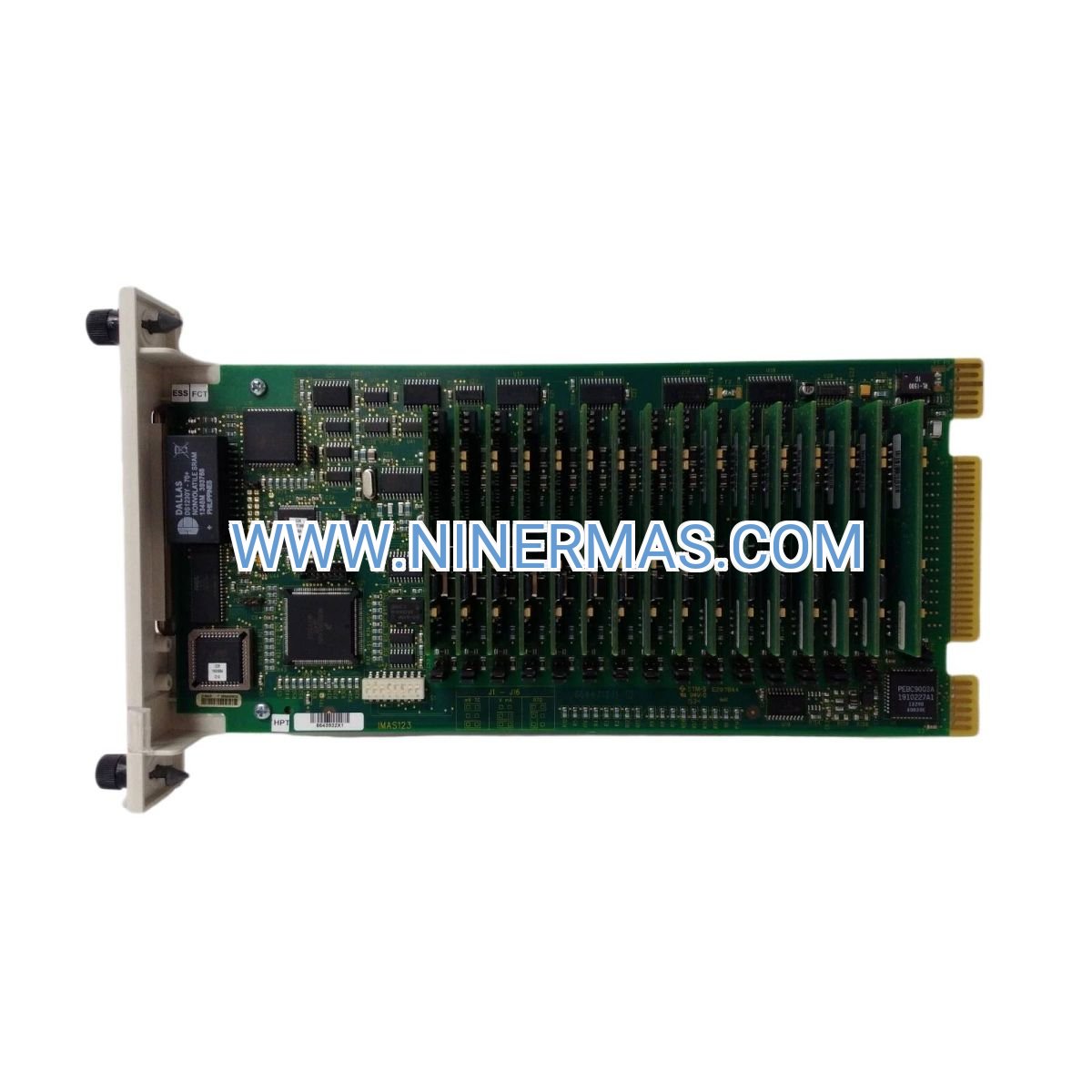

ABB SPASI23 Analog Input Module (Industrial-Grade Multi-Channel Signal Processor)

The ABB SPASI23 represents a professional-grade analog input solution engineered for Symphony Plus and Bailey INFI 90 distributed control architectures. This 16-channel module delivers precision signal acquisition across thermocouple, RTD, and millivolt input types, combining 16-bit resolution with ±0.1% full-scale accuracy to support mission-critical temperature and process monitoring in power generation, petrochemical refining, and advanced manufacturing environments.

Designed for harsh industrial conditions, the SPASI23 addresses common measurement challenges through 500V channel-to-channel isolation that eliminates ground loops and electromagnetic interference. Whether you're managing boiler temperature profiles, reactor cascade control, or pharmaceutical batch validation, this module provides the measurement integrity and diagnostic capability required for regulatory compliance and operational excellence.

With hot-swap capability in redundant configurations and comprehensive diagnostic LEDs, the SPASI23 minimizes downtime while simplifying commissioning and troubleshooting workflows. Its multi-signal flexibility reduces spare parts inventory by consolidating TC, RTD, and mV inputs on a single platform—delivering both technical performance and lifecycle cost advantages.

Core Capabilities & Technical Advantages

→ Universal Signal Compatibility
Accepts thermocouples (Types J, K, T, E, R, S, B), 2/3/4-wire RTDs (Pt100, Pt1000, Ni120), and millivolt signals on the same module. This versatility eliminates the need for multiple module types, streamlining system design and reducing engineering complexity across mixed-sensor installations.

→ High-Isolation Architecture
500V channel-to-channel and channel-to-bus isolation prevents measurement corruption from ground potential differences and EMI sources. Critical for installations near VFDs, large motors, and welding equipment where electrical noise can compromise data integrity and trigger false alarms.

→ Precision 16-Bit Conversion
Delivers 0.0015% resolution across full measurement span, enabling detection of subtle process variations essential for quality control, energy optimization, and predictive maintenance strategies. Supports advanced control algorithms requiring high-fidelity feedback signals.

✓ Extended Environmental Range
Operates reliably from -30°C to +70°C without derating, supporting non-climate-controlled enclosures in outdoor substations, remote pump stations, and industrial freezer applications. Reduces HVAC requirements and installation costs in challenging environments.

✓ Diagnostic Intelligence
Per-channel status LEDs provide instant visual confirmation of sensor health, wiring integrity, and configuration errors. Accelerates commissioning by 40-60% compared to modules requiring software-based diagnostics, while simplifying maintenance troubleshooting during plant operations.

✓ Hot-Swap Serviceability
Enables module replacement without system shutdown in redundant I/O configurations, supporting continuous operation requirements in 24/7 process industries. Reduces mean time to repair (MTTR) and eliminates costly production interruptions during maintenance activities.

Industry Applications & Problem-Solving Scenarios

Power Generation & Cogeneration
Coal, natural gas, and biomass power plants deploy SPASI23 modules for boiler economizer temperature profiling, turbine bearing RTD monitoring, and flue gas analysis. The 16-bit resolution captures 0.1°C temperature variations critical for combustion efficiency optimization and NOx emissions compliance under EPA regulations.

Chemical & Petrochemical Processing
Distillation columns, catalytic reactors, and heat exchanger networks require multi-point temperature measurement for cascade control and safety interlocks. The module's isolation prevents ground loops in large-scale installations spanning multiple electrical zones, while its accuracy supports material balance calculations and yield optimization.

Pharmaceutical & Biotechnology Manufacturing
Autoclave sterilization cycles, lyophilization processes, and fermentation reactors demand validated temperature measurement for FDA 21 CFR Part 11 compliance. The SPASI23's ±0.1% accuracy meets qualification requirements for critical control points (CCPs) in GMP-regulated facilities, with full audit trail support through Symphony Plus historian integration.

Oil & Gas Upstream/Midstream
Separator temperature control, pipeline heating systems, and compressor monitoring benefit from the module's wide operating range and noise immunity. Supports remote installations in hazardous areas when paired with appropriate barriers, reducing field wiring costs through consolidated I/O architecture.

Food & Beverage Processing
Pasteurization, UHT sterilization, and cold chain monitoring applications leverage the SPASI23 for HACCP compliance and quality assurance. Multi-range capability accommodates both refrigeration (-40°C) and high-temperature cooking (200°C) processes on a single control platform.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose SPASI23 when your application requires mixed sensor types (TC + RTD), high channel density (>8 points), or operates in electrically noisy environments. For applications with uniform sensor types or lower channel counts, consider the NTAI03 (8-channel) or CAI20 (compact) alternatives. Verify compatibility with your Symphony Plus or INFI 90 system revision before ordering.

Advanced Integration & Customization Options

SCADA & Historian Connectivity
Seamless integration with ABB 800xA, Wonderware, Ignition, and OSIsoft PI through Symphony Plus OPC UA/DA servers. Supports high-speed data logging (10Hz) for transient event capture and advanced analytics applications including machine learning-based predictive maintenance.

Redundancy Configurations
Supports N+1 and 2oo3 voting architectures for safety-critical measurements in SIL 2/3 applications. Hot-standby failover occurs within 100ms, maintaining process control continuity during module replacement or failure events.

Custom Calibration Services
Factory calibration certificates traceable to NIST standards available for pharmaceutical and aerospace applications. On-site calibration and IQ/OQ documentation support available through authorized ABB service partners.

Hazardous Area Deployment
When combined with approved intrinsic safety barriers (MTL, Pepperl+Fuchs), supports installation in Class I Division 2 and ATEX Zone 2 environments. Consult factory for entity parameters and barrier selection guidance.

Delivery Timeline & Service Commitment

Standard Lead Time: 4-6 weeks for new production units; 1-2 weeks for refurbished/tested surplus inventory (subject to availability)
Express Service: 48-72 hour expedited processing available for critical outage situations (additional fees apply)
Warranty Coverage: 12 months from shipment date covering manufacturing defects and component failures
Technical Support: Lifetime application engineering assistance via email/phone; on-site commissioning support available
Documentation Package: User manual, wiring diagrams, configuration templates, and calibration certificate included with each shipment

Frequently Asked Questions

Q: Can the SPASI23 interface directly with third-party DCS platforms like Honeywell or Emerson?
A: No, the SPASI23 is designed exclusively for ABB Symphony Plus and Bailey INFI 90 systems due to proprietary backplane communication protocols. For multi-vendor integration, consider using Symphony Plus as the I/O concentrator with OPC connectivity to other DCS platforms.

Q: What is the maximum cable length for RTD and thermocouple connections?
A: RTD inputs support up to 300 meters (1000 feet) with 3-wire or 4-wire configurations using 18 AWG shielded cable. Thermocouple inputs can extend to 150 meters (500 feet) with compensating cable; longer runs may require field-mounted transmitters to maintain accuracy specifications.

Q: Does the module support HART communication for smart transmitter integration?
A: No, the SPASI23 is a direct-wired analog input module without HART capability. For smart transmitter integration with digital diagnostics, consider the ABB NTAI05 HART-enabled analog input module or use separate HART multiplexers.

Q: How does the module handle sensor failures or open-circuit conditions?
A: The SPASI23 provides upscale (>105% span) or downscale (<-5% span) fault indication configurable per channel. Diagnostic LEDs illuminate immediately upon fault detection, and the system can trigger alarms or initiate safe-state control actions through Symphony Plus logic.

Q: Can I mix different RTD types (Pt100 and Pt1000) on the same module?
A: Yes, each channel is independently configurable for sensor type, allowing mixed RTD configurations. However, ensure proper excitation current settings (typically 1mA for Pt100, 0.3mA for Pt1000) are configured to avoid self-heating errors in high-resistance sensors.

Q: What cybersecurity features protect the module from unauthorized access?
A: The SPASI23 relies on Symphony Plus system-level security including role-based access control (RBAC), encrypted communication, and audit logging. The module itself has no network-facing interfaces; all configuration occurs through authenticated engineering workstations on isolated control networks.

Request Technical Consultation & Pricing

Our application engineers are ready to assist with system design, sensor selection, and integration planning for your specific process requirements. Contact us with your project details including:

• Number of measurement points and sensor types
• Operating environment conditions and hazardous area classification
• Existing DCS platform and revision level
• Accuracy and response time requirements
• Delivery timeline and budget constraints

We'll provide a detailed technical proposal including module configuration recommendations, wiring diagrams, and total cost of ownership analysis within 24-48 hours.
