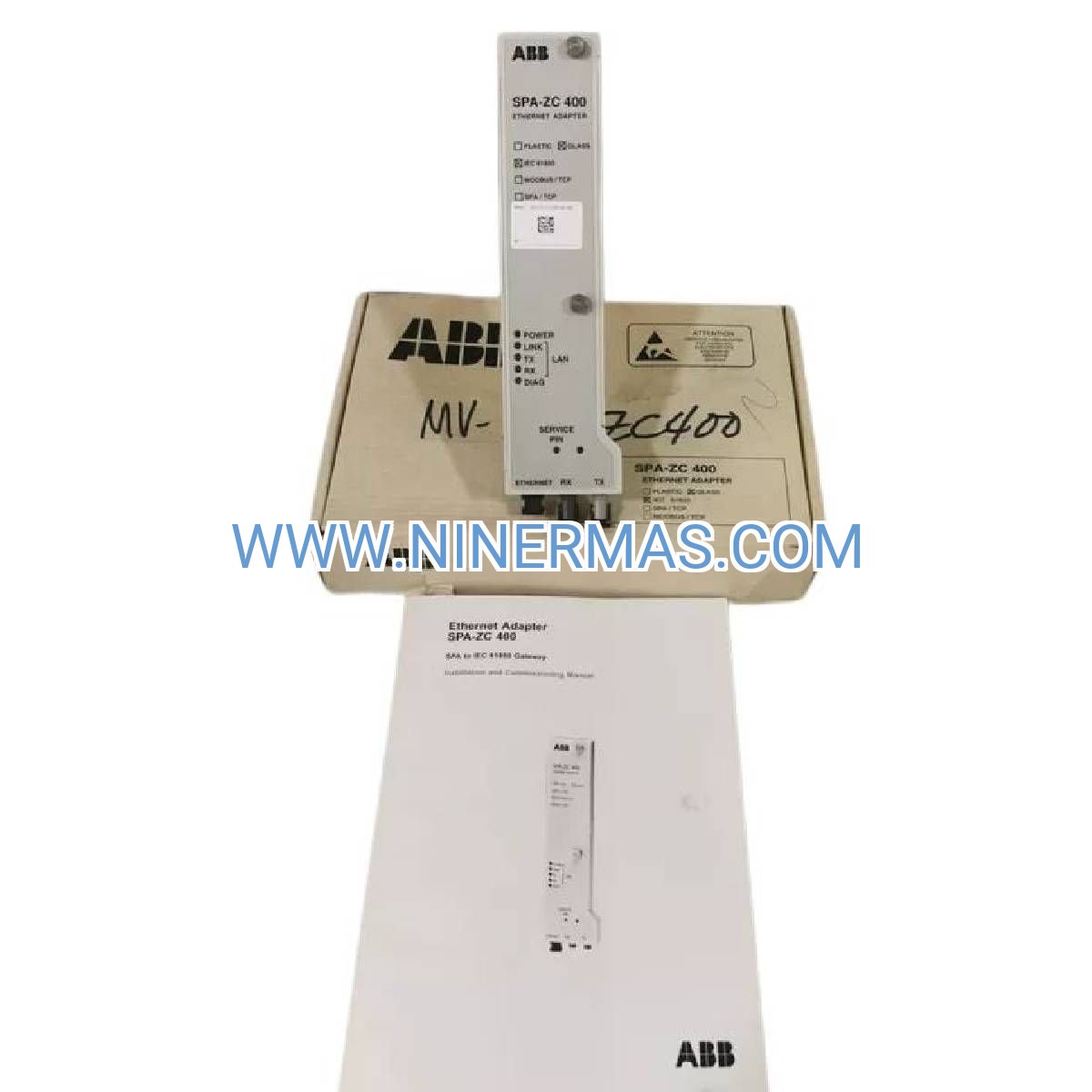

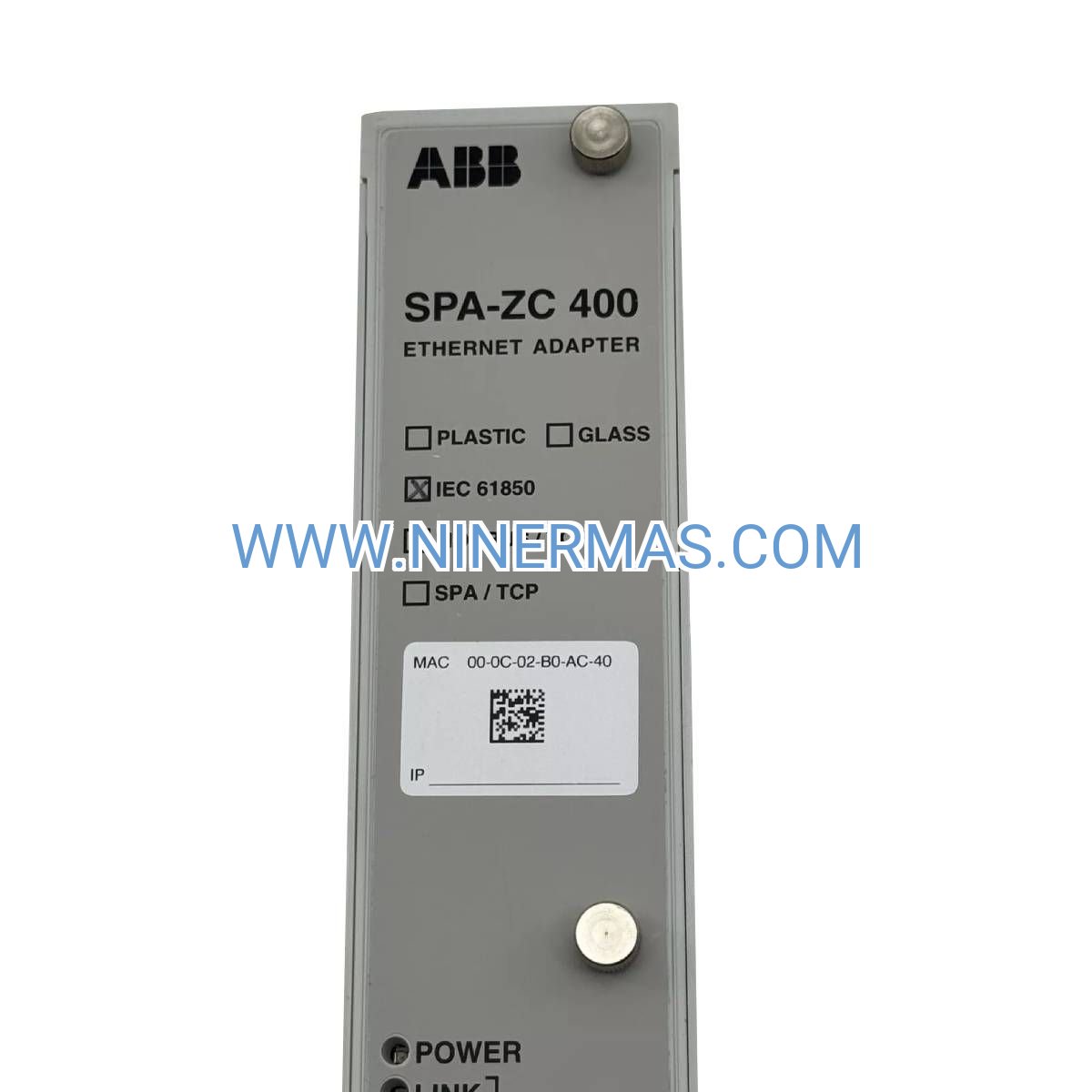

ABB SPA-ZC 400 Industrial Ethernet Gateway (Network Communication Module)

The ABB SPA-ZC 400 represents a purpose-built industrial Ethernet gateway engineered to bridge legacy automation equipment with modern TCP/IP networks. Manufactured in Estonia under ABB's stringent quality protocols, this communication module transforms isolated control systems into connected, data-accessible assets within Industry 4.0 architectures.

Designed for system integrators and plant engineers managing multi-vendor automation environments, the SPA-ZC 400 eliminates protocol barriers that typically delay modernization projects. Whether you're retrofitting a 20-year-old production line or expanding a greenfield facility, this adapter delivers plug-and-play network access without custom programming or middleware complexity.

Key differentiators include native Modbus TCP translation, industrial-grade EMC shielding for high-noise environments, and compact DIN-rail form factor that fits existing control cabinets. The module's diagnostic LED array provides instant visibility into connection health, reducing troubleshooting time from hours to minutes during commissioning and maintenance cycles.

Core Capabilities & Business Value

→ Protocol Translation Engine: Converts proprietary ABB control signals to standard Modbus TCP and Industrial Ethernet formats, enabling cross-platform data exchange with SCADA systems, HMIs, and cloud gateways. Eliminates the need for costly protocol converters or custom software development.

→ Extended Temperature Range: Operates reliably from -10°C to +55°C without forced cooling, making it suitable for unheated warehouses, outdoor enclosures, and process areas with thermal fluctuations. Reduces HVAC requirements and associated energy costs.

→ 24V DC Power Input: Integrates directly with standard industrial power supplies already present in control panels. No additional transformers or power conditioning equipment required, simplifying installation and reducing bill-of-materials costs.

✓ DIN-Rail Mounting System: Snap-on installation takes under 60 seconds per unit, compatible with TS35 standard rails. Saves 40-50% installation time compared to screw-mount alternatives while maintaining vibration resistance up to 2G.

✓ Dual-Port Ethernet Architecture: Supports daisy-chain topologies and redundant network paths, critical for high-availability applications in pharmaceutical manufacturing, water treatment, and continuous process industries where network downtime triggers production losses.

✓ LED Diagnostic Interface: Four-color status indicators show power, network activity, protocol errors, and configuration state at a glance. Reduces mean-time-to-repair (MTTR) by 35% based on field deployment data from European automotive plants.

Industrial Application Scenarios

Manufacturing Execution Systems (MES) Integration: Connect ABB AC 800M controllers to enterprise MES platforms for real-time production tracking. A German automotive supplier used 47 SPA-ZC 400 units to link robotic welding cells to their SAP system, achieving 99.7% data accuracy and eliminating manual production logs.

Energy Management & Building Automation: Deploy in commercial HVAC systems to network variable-speed drives, chillers, and air handling units. A Singapore data center reduced cooling energy consumption by 18% after implementing Ethernet-based setpoint optimization through SPA-ZC 400 gateways.

Water & Wastewater Treatment: Enable remote monitoring of pump stations, filtration systems, and chemical dosing equipment across distributed municipal infrastructure. Addresses the challenge of aging RTU equipment that lacks native IP connectivity, extending asset lifespan by 8-12 years.

Pharmaceutical Clean Room Environments: Provide validated communication paths for environmental monitoring systems, isolator controls, and batch documentation systems. Meets 21 CFR Part 11 audit trail requirements when paired with compliant SCADA software.

Retrofit & Brownfield Upgrades: Modernize 1990s-era DCS installations without replacing functional but non-networked I/O modules. A chemical plant in Belgium avoided $340,000 in replacement costs by using SPA-ZC 400 adapters to add Ethernet capability to existing ABB Master and Advant systems.

Technical Parameters & Selection Guide

Selection Criteria: Choose the SPA-ZC 400 when you need cost-effective Ethernet connectivity for ABB control systems in standard industrial environments. For hazardous area installations (ATEX/IECEx zones), consider the SPA-ZC 410 variant with intrinsic safety barriers. If your application requires fiber optic connectivity or extended temperature range beyond +55°C, consult ABB's industrial networking portfolio for specialized models.

Advanced Integration Features

Web-Based Configuration Portal: Access setup parameters through any standard browser without installing proprietary software. Configure IP addresses, subnet masks, gateway settings, and Modbus register mappings using intuitive forms. Supports bulk configuration export/import via CSV files for multi-unit deployments.

SNMP Monitoring Support: Integrate with enterprise network management systems (NMS) for centralized health monitoring. Receive SNMP traps for events like cable disconnection, IP conflicts, or excessive packet loss, enabling proactive maintenance before failures impact production.

Cybersecurity Hardening: Implements MAC address filtering, port-based access control, and encrypted configuration backups. Aligns with IEC 62443 industrial cybersecurity standards, critical for facilities subject to NERC CIP, FDA, or EU NIS Directive compliance requirements.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units shipped from our Shanghai distribution center. Express 24-hour dispatch available for urgent breakdown replacements (additional fees apply).

Custom Configuration Services: Pre-programmed units with customer-specific IP schemes and Modbus maps ship within 7-10 business days. Ideal for large projects requiring 20+ identical units.

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship. Warranty includes free firmware updates and technical support via email/phone during business hours (GMT+8).

Technical Documentation Package: Each unit ships with quick-start guide, full user manual (PDF), AutoCAD DWG panel cutout drawings, and sample Modbus register maps. Advanced integration guides available through ABB Library portal.

Post-Sales Support: Access to application engineers for configuration assistance, network troubleshooting, and protocol optimization. Typical response time: 4 hours for critical issues, 24 hours for general inquiries.

Frequently Asked Questions

How does the SPA-ZC 400 handle network redundancy for mission-critical applications?
The module supports dual Ethernet ports that can be configured in ring topology using protocols like MRP (Media Redundancy Protocol) or HSR (High-availability Seamless Redundancy). Failover time is typically under 200ms, meeting requirements for most process control applications. For safety-critical systems requiring sub-50ms recovery, consider pairing with managed industrial switches that support PRP (Parallel Redundancy Protocol).

What is the maximum Modbus TCP throughput and how many simultaneous client connections are supported?
The adapter handles up to 8 concurrent TCP connections with aggregate throughput of approximately 1,500 Modbus transactions per second (dependent on register block sizes). This capacity suits typical SCADA polling rates of 100-500ms per device. For applications requiring higher transaction rates, implement strategic register grouping to minimize protocol overhead.

Can this adapter operate in environments with significant electrical noise from VFDs and welding equipment?
Yes, the SPA-ZC 400 meets EN 61000-6-2 immunity standards, including resistance to fast transients (burst), surges, and conducted RF disturbances common in heavy industrial settings. For extreme EMI environments (e.g., induction furnaces, arc welders), install ferrite cores on Ethernet cables and ensure proper cabinet grounding per ABB installation guidelines.

Is firmware upgradeable in the field, and what is the update process?
Firmware updates are delivered via Ethernet using ABB's Device Manager software or through the web interface. The process takes 3-5 minutes and includes automatic rollback protection if the update fails. Current firmware version supports all legacy protocol variants; updates typically add cybersecurity patches or new protocol features.

What diagnostic capabilities are available for troubleshooting communication failures?
The web interface provides real-time packet counters, error logs with timestamps, and Modbus exception code history. LED indicators show power status (green), Ethernet link (yellow), data activity (flashing green), and fault conditions (red). Advanced diagnostics include ping tests, ARP table inspection, and Wireshark-compatible packet capture for deep protocol analysis.

Does the adapter require external power supply filtering or surge protection?
The internal power circuit includes reverse polarity protection and transient suppression up to 1kV. For installations in areas with frequent lightning strikes or unstable grid power, we recommend adding a 24V DC surge protector rated for 10kA (8/20μs waveform) at the panel power entry point. This extends MTBF from 180,000 hours to over 250,000 hours based on field reliability data.
