Siemens 6SE7038-6WK84-1BH0 Retrofit-Compatible AC Drive: Legacy System Compatibility & Smooth Upgrade

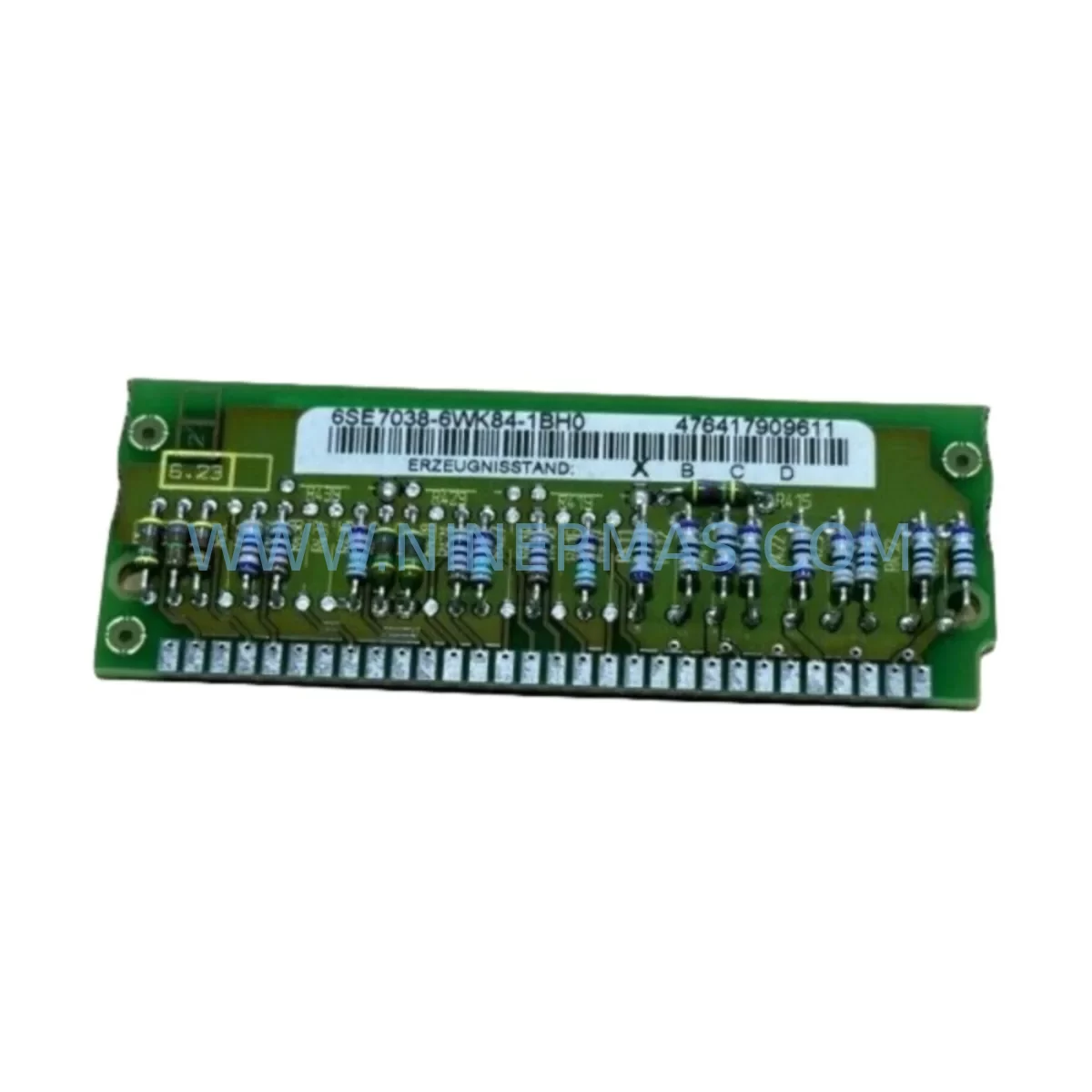

The Siemens 6SE7038-6WK84-1BH0 is a high-power AC variable frequency drive from the SIMOVERT MASTERDRIVES series — a platform that has served as the backbone of industrial motion control across steel mills, paper lines, crane systems, and heavy-duty conveyor applications for decades. As original equipment manufacturers phase out support and spare parts availability tightens, plant engineers and procurement teams are increasingly turning to retrofit-compatible replacement units to extend the operational life of their existing automation infrastructure without committing to a full system overhaul.

NINERMAS supplies the 6SE7038-6WK84-1BH0 as a tested, retrofit-ready spare with a 12-month warranty, supporting customers through the full replacement cycle — from pre-shipment verification to on-site commissioning guidance.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a 6SE7038-6WK84-1BH0 in a live production environment requires careful pre-planning across multiple engineering disciplines. The drive typically sits within a dedicated motor control cabinet alongside supporting components such as a Siemens 6SE7090-0XX84-0AB0 CUVC control board, a 6SE7090-0XX84-2FK0 CBP2 PROFIBUS communication board, and a 6SY7000-0AD87 power interface module. Before removal of the faulty unit, engineers should use DriveMonitor or the OP1S operator panel to perform a full parameter upload (P053 backup procedure), preserving motor data, ramp times, current limits, and application-specific function blocks.

Terminal wiring on the 6SE70 chassis follows a standardized layout, but field teams must verify the exact terminal strip assignment against the original wiring diagram — particularly for the X101 control terminal block (digital inputs/outputs), X102 analog I/O, and the X9 PROFIBUS connector. If the existing system uses a Siemens S7-400 PLC or S7-300 CPU communicating over PROFIBUS-DP, the GSD file and DP slave address must be confirmed before the new drive is powered up to avoid address conflicts on the fieldbus segment.

For plants migrating from PROFIBUS to PROFINET, the retrofit window is an ideal opportunity to install a 6GK1415-2AA10 PN/DP coupler or evaluate whether a SINAMICS S120 booksize unit with a CU320-2 PN control unit better serves the long-term architecture. However, for sites where budget, timeline, or program complexity makes a platform migration impractical, a like-for-like 6SE7038-6WK84-1BH0 replacement remains the lowest-risk path.

Backplane and rack compatibility should also be confirmed. The 6SE70 chassis drive does not use a modular rack in the same way as compact SIMOVERT units, but the DC bus connection, pre-charging circuit, and braking chopper interface (if a 6SE7038-6ES87-1FB0 braking unit is present) must all be verified for continuity. If the system includes a Siemens 6SN1145 infeed/regenerative module on a shared DC bus, the sequencing logic for pre-charge and enable signals must be re-validated after the drive swap.

I/O expansion cards such as the 6SE7090-0XX84-0FF5 SCI1 serial interface board or technology option boards installed in the existing drive must be physically transferred to the replacement unit or sourced separately. NINERMAS can advise on option board availability for the 6SE70 platform as part of the pre-order consultation process.

HMI integration should not be overlooked. If the plant uses a Siemens TP270 or OP270 operator panel connected via MPI or PROFIBUS, the drive’s node address and baud rate settings must match the existing network configuration. Screen tags referencing drive parameters (speed setpoint, actual current, fault codes) should be tested in simulation mode before live commissioning to confirm data integrity.

Downtime Control During System Migration

Minimizing production downtime during a drive replacement on a critical line requires a structured approach. The recommended sequence for a 6SE7038-6WK84-1BH0 swap is as follows:

Pre-shutdown preparation: Complete parameter backup via DriveMonitor. Photograph all terminal wiring and option board positions. Confirm replacement unit has been pre-tested and powered at NINERMAS facility before shipment. Verify that all associated components — control board, communication board, fan assembly, and DC fuses — are in serviceable condition and will not require concurrent replacement.

Controlled shutdown: Follow the standard SIMOVERT MASTERDRIVES de-energization procedure: disable the drive via the PROFIBUS enable signal, allow the DC bus to discharge fully (monitor via the DC bus voltage indicator or use a calibrated meter on the DC terminals), then isolate the main supply breaker and apply lockout/tagout. Do not rely solely on the drive’s internal discharge resistor for high-power frames — allow a minimum of 5 minutes after isolation before opening the cabinet.

Physical swap: Disconnect and label all control wiring before removing the chassis. Transfer option boards in the correct slot sequence. Reconnect power and control terminals per the original wiring diagram. Confirm torque values on busbar connections to prevent thermal failures under load.

Recommissioning: Download the saved parameter set to the new drive. Perform a no-load motor identification run if the motor data has changed or if the replacement unit has a different firmware revision. Verify PROFIBUS communication status (green LED on CBP2 board), check for active faults (F-word), and run the drive at reduced speed before returning to full production load. Total planned downtime for a well-prepared swap on this frame size is typically 4–8 hours; unplanned replacements without pre-staged spares can extend to 24–72 hours.

NINERMAS maintains stock of the 6SE7038-6WK84-1BH0 and associated 6SE70 platform components to support rapid dispatch. Pre-shipment functional testing is performed on all units, and a test report is available upon request.

Retrofit Support FAQ

Q1: Is the 6SE7038-6WK84-1BH0 a direct drop-in replacement for my existing SIMOVERT MASTERDRIVES unit?
A: In most cases, yes — provided the replacement unit is the same frame size and power rating. The 6SE70 series uses a consistent terminal layout and option board slot configuration across production batches. However, firmware revisions may differ, and a parameter restore followed by a motor identification run is always recommended to ensure optimal performance. NINERMAS can confirm frame and firmware compatibility before shipment.

Q2: Can I reuse my existing PROFIBUS CBP2 board and control wiring?
A: Yes. The CBP2 communication board (6SE7090-0XX84-2FK0) is transferable between 6SE70 chassis units. Retain the existing DP slave address and GSD configuration. Confirm the PROFIBUS cable shield is properly grounded at the cabinet entry point to avoid communication errors after restart.

Q3: What pre-shipment testing does NINERMAS perform on the 6SE7038-6WK84-1BH0?
A: Each unit undergoes a powered functional test covering DC bus charge, gate driver integrity, control board communication, and fan operation. A test report documenting measured parameters is available upon request. All units ship with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and do you hold stock?
A: NINERMAS maintains inventory of the 6SE7038-6WK84-1BH0 to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. For time-critical shutdowns, contact our team directly to confirm availability and arrange expedited dispatch.
