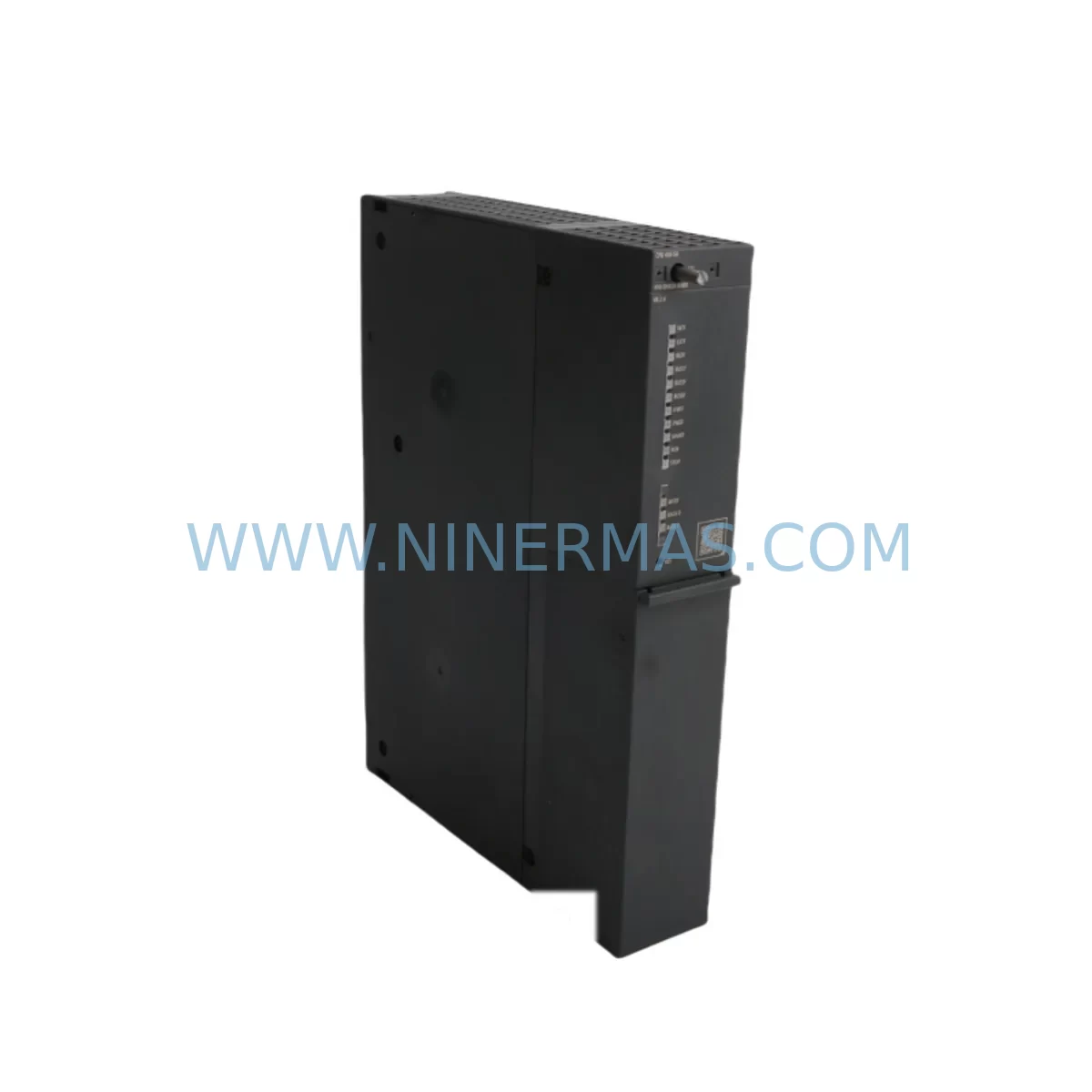

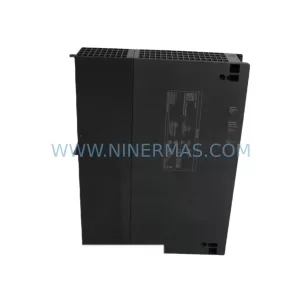

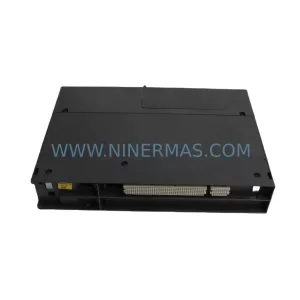

The Siemens 6ES7410-5HX08-0AB0 is a high-performance CPU module designed for the SIMATIC S7-400 series, widely deployed across heavy industry, process automation, and critical infrastructure. As original production lines age and OEM support windows close, this module has become one of the most sought-after retrofit and replacement components for engineers tasked with extending the operational life of existing control architectures without committing to a full platform migration.

Whether you are replacing a failed unit on an active production line, sourcing a long-term spare for a discontinued control cabinet, or executing a phased modernization of a legacy DCS or PLC network, the 6ES7410-5HX08-0AB0 offers a direct, validated path forward. NINERMAS maintains verified stock of this module, fully tested prior to shipment, and backed by a 12-month warranty covering hardware defects under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 6ES7410-5HX08-0AB0 in an active control environment requires careful pre-planning across several interdependent system layers. Before the module is physically swapped, engineers should audit the existing rack configuration. The S7-400 UR2-H rack, commonly used in redundant H-system configurations, requires that both CPU slots be populated with matched firmware versions. If the replacement unit carries a different firmware revision than the standby CPU, the H-system synchronization will fail at startup, triggering a fault state rather than a seamless switchover.

Power capacity is a frequent oversight. The PS 407 10A power supply module must be verified to have sufficient headroom to support the CPU alongside co-installed signal modules such as SM 421 digital input modules, SM 422 digital output modules, and SM 431 analog input modules. Overloaded backplanes are a leading cause of intermittent CPU faults that are misdiagnosed as CPU hardware failure.

Communication architecture must also be mapped before the swap. If the 6ES7410-5HX08-0AB0 is acting as a PROFIBUS DP master, all slave addresses — including ET 200M distributed I/O stations, IM 153-2 interface modules, and third-party field devices — must be documented. The DP master parameters stored in the CPU’s configuration memory are not automatically transferred to a replacement unit; they must be reloaded from the STEP 7 project or re-downloaded via TIA Portal.

For systems using Industrial Ethernet, the CP 443-1 communication processor module installed in the same rack should be checked for IP address conflicts and routing table integrity after the CPU swap. In multi-rack configurations connected via IM 460/IM 461 send/receive interface modules, the inter-rack communication parameters must be re-validated to ensure data consistency across the expanded I/O structure.

HMI integration is another critical checkpoint. SIMATIC WinCC or WinCC flexible panels connected to the S7-400 via MPI or Ethernet will lose their tag connection during the CPU swap window. Before powering down, export all active alarm logs and trend archives. After the new 6ES7410-5HX08-0AB0 is installed and the program is reloaded, verify that all HMI screen variables are correctly mapped and that no tag addresses have shifted due to block reorganization during the program download.

For installations where the CPU manages safety-related functions in conjunction with an F-CPU or ET 200S fail-safe modules, the safety program signature must be re-verified after the swap. The F-CPU will enter safe state if the safety program CRC does not match the expected value stored in the F-runtime group.

Downtime Control During System Migration

Minimizing unplanned downtime during a CPU swap on a live S7-400 system begins with a complete offline backup of the STEP 7 or TIA Portal project, including all hardware configuration files, symbol tables, and data block contents. This backup should be stored on a programming device that is physically present on-site during the swap — not solely on a remote server — to eliminate network dependency during the critical commissioning window.

For H-system (fault-tolerant) configurations using the 6ES7410-5HX08-0AB0, the recommended procedure is to replace one CPU at a time while the partner CPU maintains process control. This approach reduces the effective downtime to the synchronization period between the two CPUs after the replacement unit is inserted and powered — typically under two minutes for systems with moderate data block volumes.

For simplex (non-redundant) installations, the swap window should be scheduled during a planned maintenance shutdown. The original program logic should be preserved in its entirety; avoid reorganizing OBs, FBs, or DBs during the swap unless a tested and validated updated program is ready for simultaneous download. Partial program changes during a CPU replacement significantly increase the risk of startup faults and extend the commissioning time.

After the new CPU is installed and the program is downloaded, perform a controlled startup sequence: verify CPU RUN mode, check all I/O module status LEDs on the SM 421, SM 422, and SM 431 modules, confirm PROFIBUS DP network status via the diagnostic buffer, and validate process values against known reference points before releasing the system to production. Document the swap date, firmware version of the replacement unit, and any configuration changes made during the process for future maintenance records.

Retrofit Support FAQ

Q1: Is the 6ES7410-5HX08-0AB0 a direct drop-in replacement for earlier 410-5H CPU variants?
In most cases, yes. The 6ES7410-5HX08-0AB0 is backward-compatible with earlier 410-5H hardware revisions at the rack and backplane level. However, firmware version differences may require a project re-download via STEP 7 or TIA Portal. Always verify the firmware version of the replacement unit against your existing system documentation before installation.

Q2: What pre-shipment testing does NINERMAS perform on this module?
Every 6ES7410-5HX08-0AB0 unit shipped by NINERMAS undergoes functional power-on testing and visual inspection for physical defects. Units are verified to power up correctly and pass self-diagnostic routines before dispatch. A 12-month warranty is included with every unit, covering hardware defects under normal operating conditions.

Q3: Can this CPU be used in a non-redundant (simplex) S7-400 configuration?
Yes. While the 410-5H designation indicates fault-tolerant capability, the module operates fully in simplex mode when installed as a single CPU in a standard UR1 or UR2 rack. The H-system synchronization features are simply inactive in this configuration, and no additional licensing or configuration is required to run the module in simplex mode.

Q4: What is the typical lead time and stock availability?
NINERMAS maintains active inventory of the 6ES7410-5HX08-0AB0 to support urgent replacement requirements. Standard orders are processed and dispatched within 1–3 business days. For large-quantity orders or long-term supply agreements, contact our sales team directly to confirm availability and arrange priority allocation.
